Description
OEX ACX3006 6.3mm Male Blade Crimp Terminal Red Vinyl Insulated 0.5 to 1.5mm² Double Crimp Tin Plated Copper Pack of 100

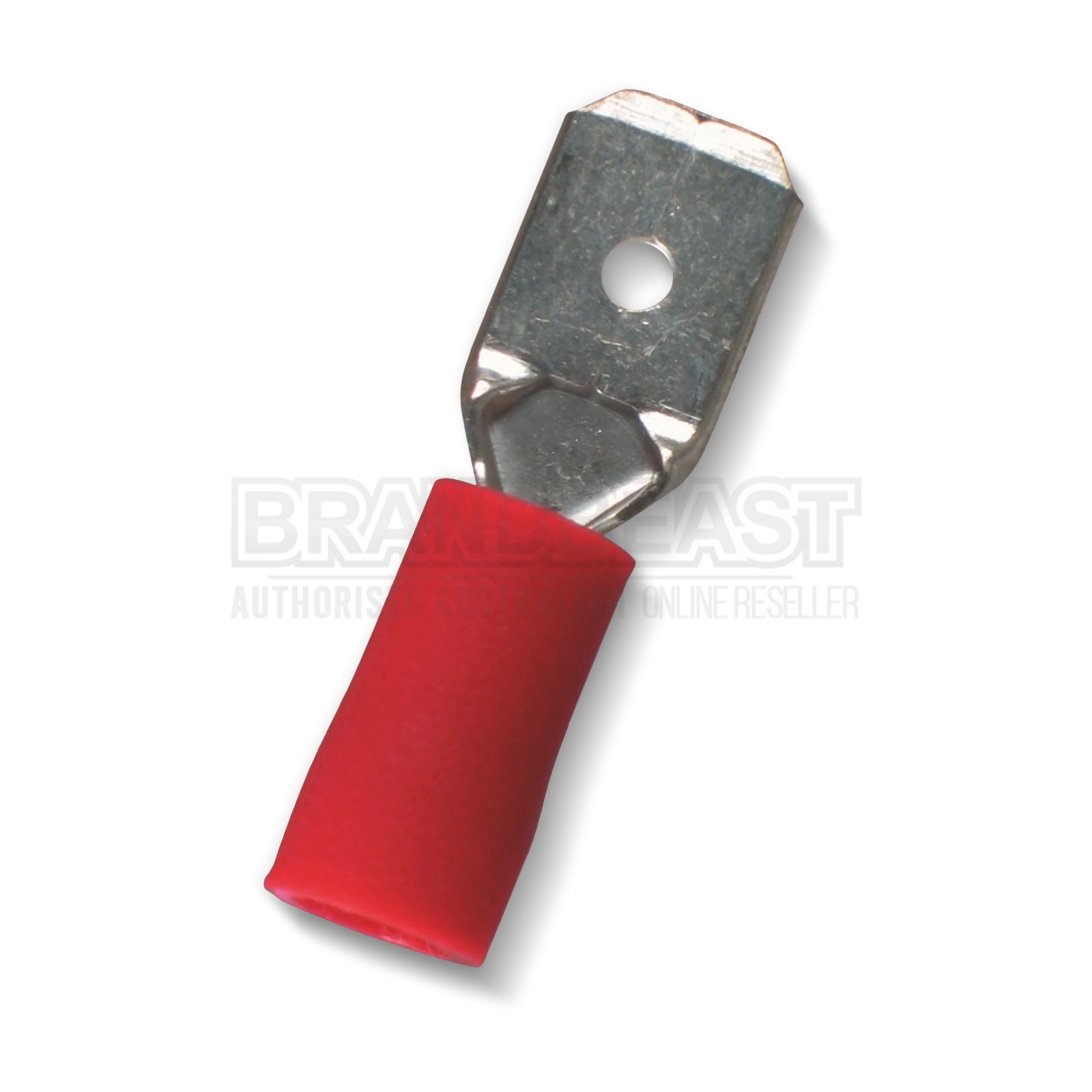

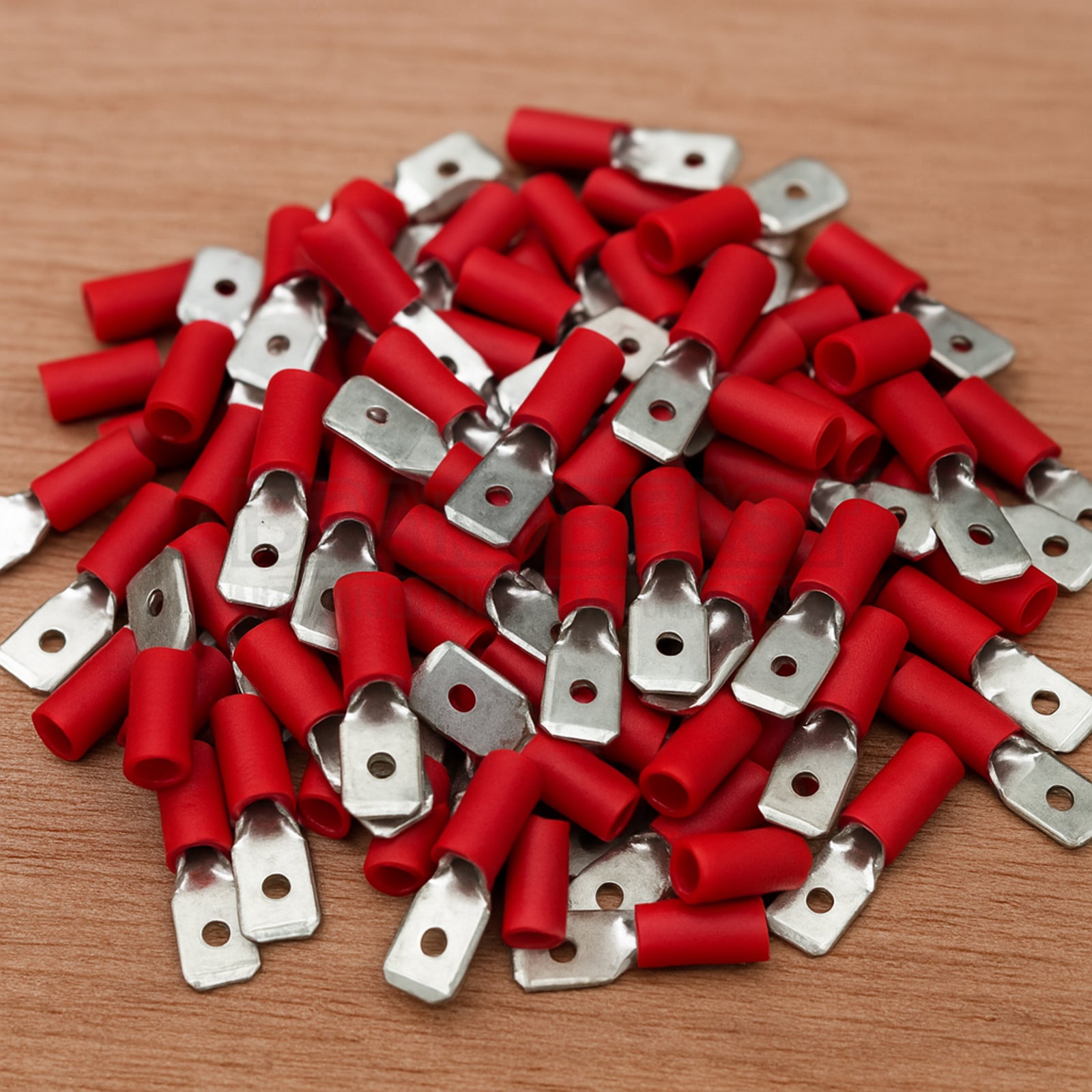

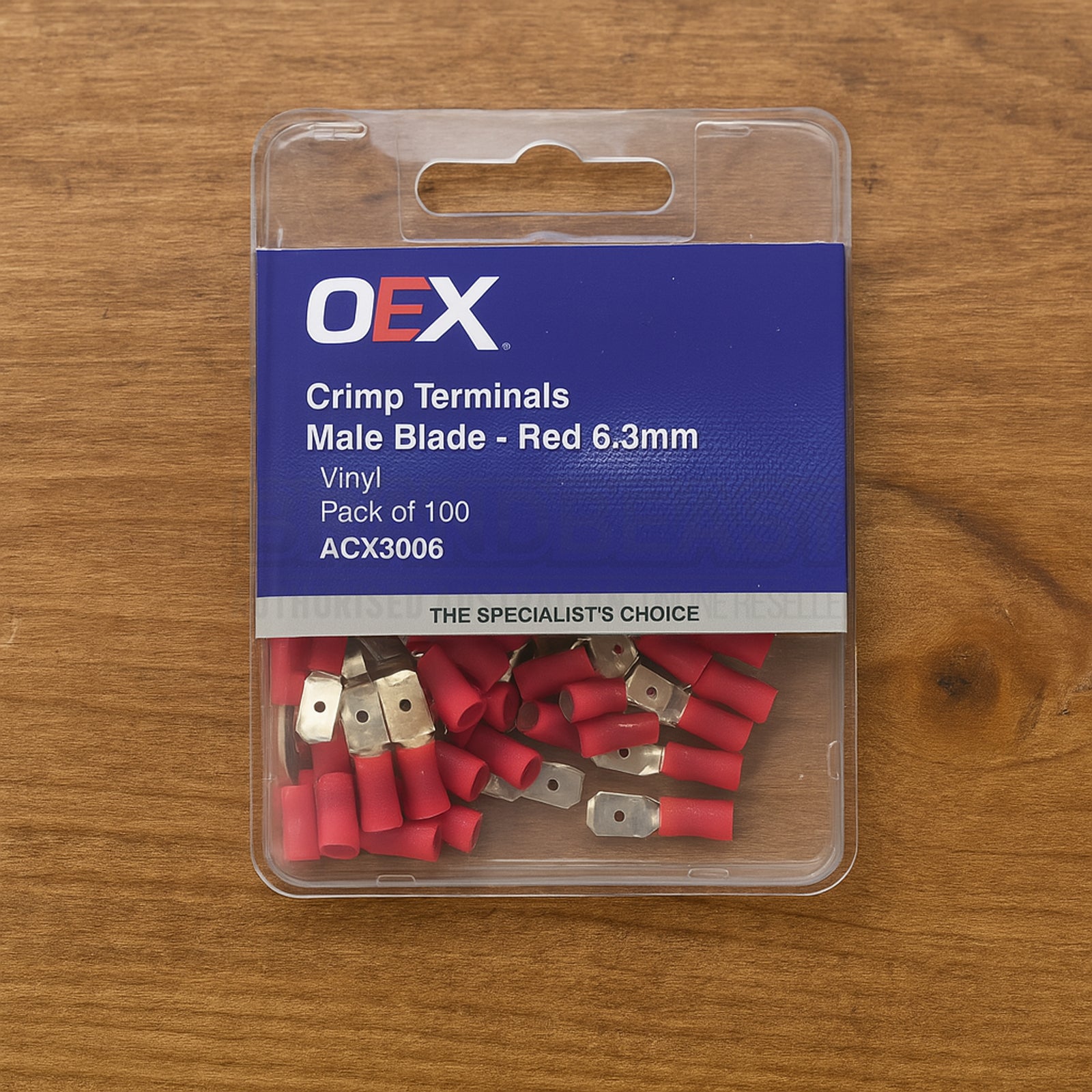

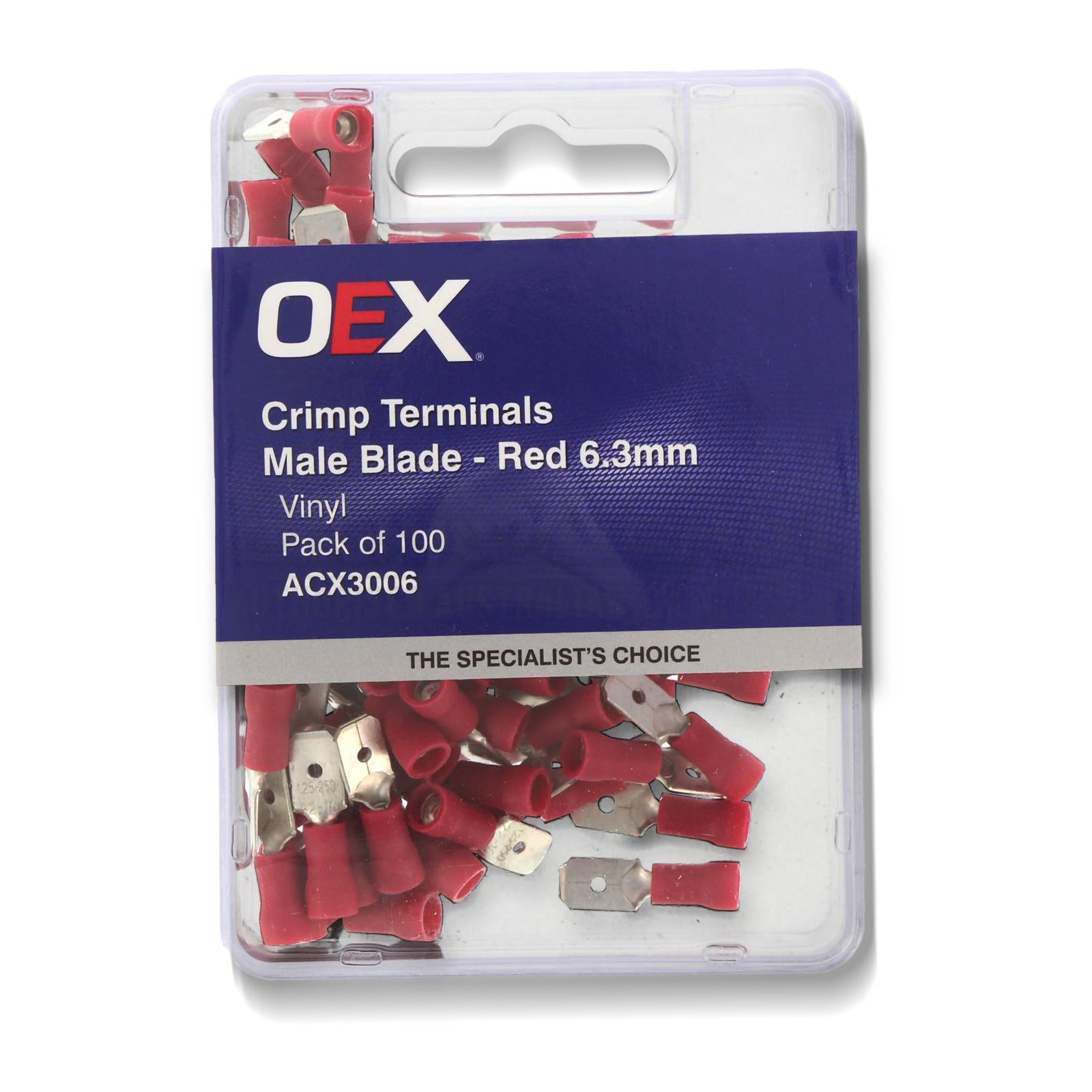

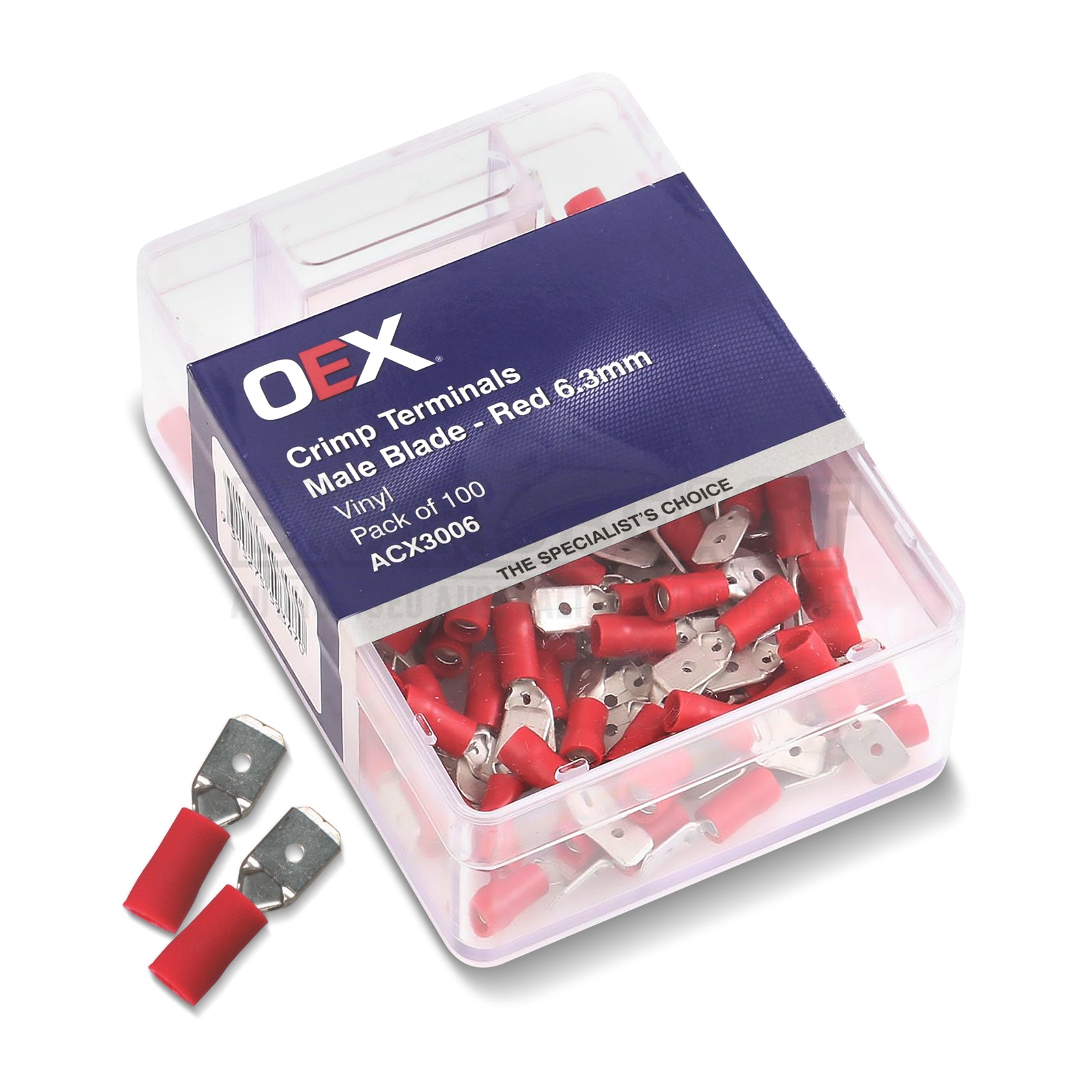

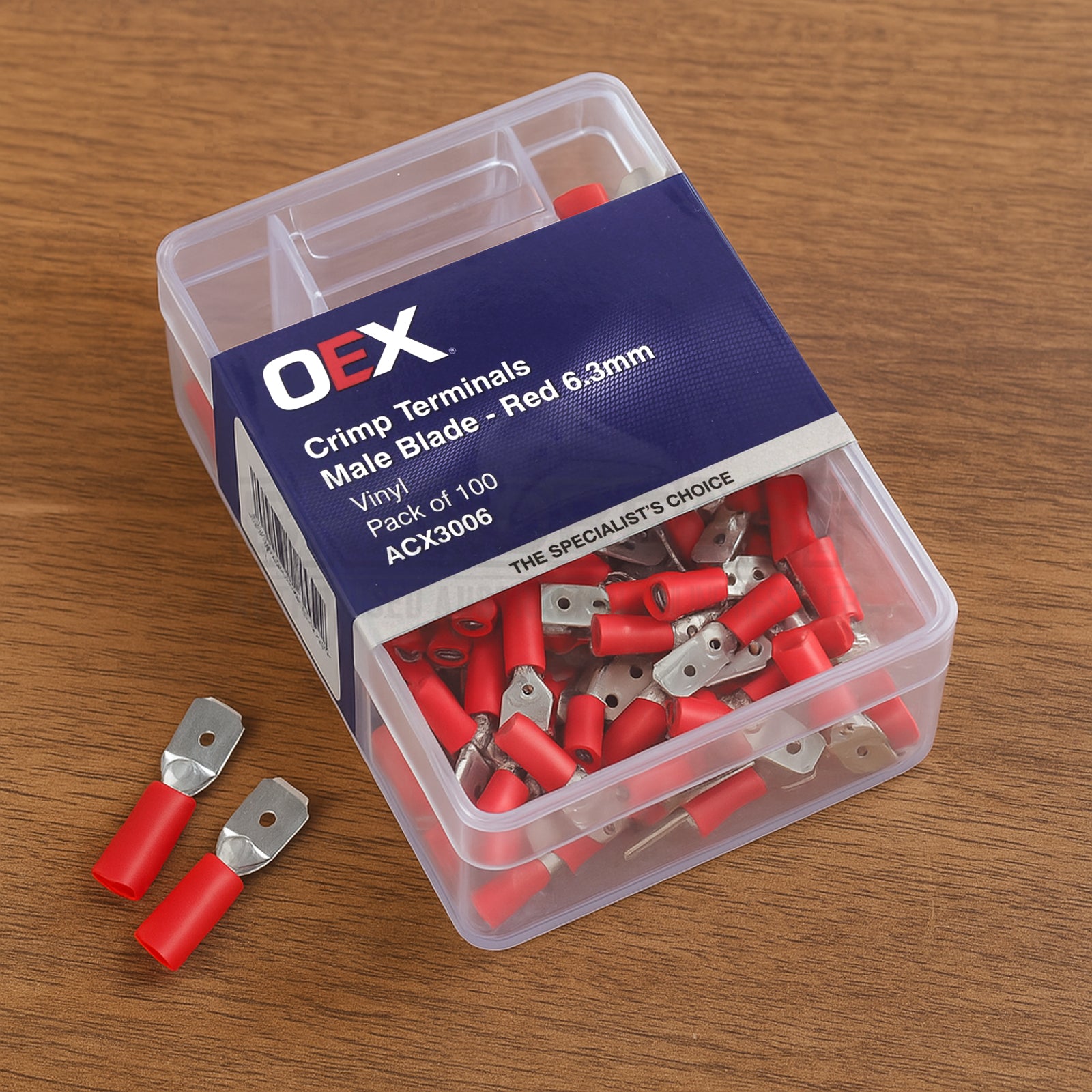

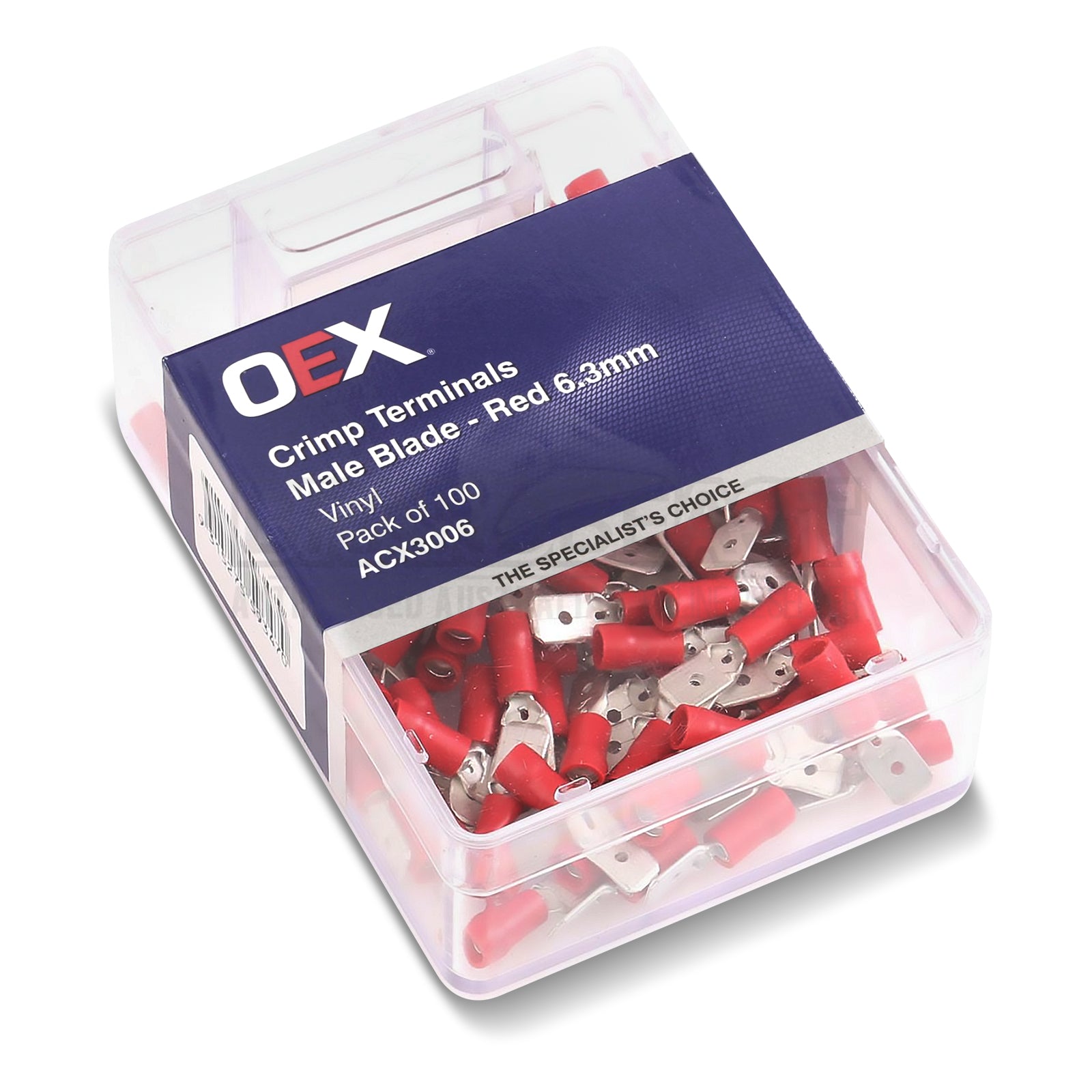

The OEX ACX3006 is a 6.3mm male blade crimp terminal in red, supplied in a pack of 100. The vinyl insulated double crimp design provides both a cable crimp and an insulation crimp for a secure, strain-relieved connection. Tin plated copper construction ensures reliable conductivity and corrosion resistance. The red colour coding indicates compatibility with the 0.5 to 1.5mm² cable range in the standard automotive terminal colour convention. Covered by a one year warranty.
Product overview
The 6.3mm male blade terminal is one of the most widely used automotive crimp terminal sizes, mating with standard 6.3mm female blade receptacles used throughout vehicle wiring harnesses, relay sockets, fuse holders and accessory connectors. The double crimp design has two separate crimp zones one grips the bare conductor for the electrical connection, and one grips the cable insulation for strain relief preventing the terminal from pulling off the cable under tension.
The red vinyl insulation follows the standard automotive terminal colour convention for the 0.5 to 1.5mm² cable range. Always match the terminal colour to the cable size for a correct crimp. A ratchet crimping tool designed for insulated terminals in the red range is recommended for reliable crimps that meet pull-out force requirements. The pack of 100 suits trade workshops.
Features and benefits
6.3mm x 0.8mm male blade: Standard automotive blade terminal size, mating with 6.3mm female blade receptacles used widely in vehicle wiring harnesses and accessory connectors.
Red vinyl insulation: Colour codes the 0.5 to 1.5mm² cable range following the standard automotive terminal convention.
Double crimp design: Separate cable crimp and insulation crimp for a secure electrical connection with strain relief.
Tin plated copper: Reliable conductivity and corrosion resistance for long-term terminal performance.
Pack of 100: Trade-friendly workshop quantity.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX3006 |
| Brand |
OEX |
| Terminal Type |
Male Blade |
| Terminal Size |
6.3mm x 0.8mm |
| Insulation |
Vinyl, Red |
| Cable Range |
0.5 to 1.5mm² |
| Construction |
Double crimp |
| Material |
Tin plated copper |
| Pack Quantity |
100 |
| Weight |
0.08kg |
| Warranty |
One year |
| Sold As |
Pack of 100 |
Frequently asked questions
What does the red colour indicate? Red is the standard colour code for automotive crimp terminals suited to the 0.5 to 1.5mm² cable range. Always match the terminal colour to the cable size for a correct crimp.
What is a double crimp terminal? A double crimp terminal has two crimp zones one that grips the bare conductor for the electrical connection, and one that grips the cable insulation for strain relief, preventing the terminal from pulling off the cable under tension.
What tool is required to crimp these terminals? A ratchet crimping tool designed for insulated terminals in the red (0.5 to 1.5mm²) cable range is recommended. Using the correct tool ensures a proper crimp that meets pull-out force requirements.
What is the mating receptacle size for this terminal? This terminal is 6.3mm wide and mates with standard 6.3mm female blade receptacles used widely in automotive wiring harnesses, relay sockets and accessory connectors.
Are these terminals available in other sizes or colours? OEX produces crimp terminals in a range of types, sizes and cable ranges. Check the OEX terminal range for other available options.
