Description

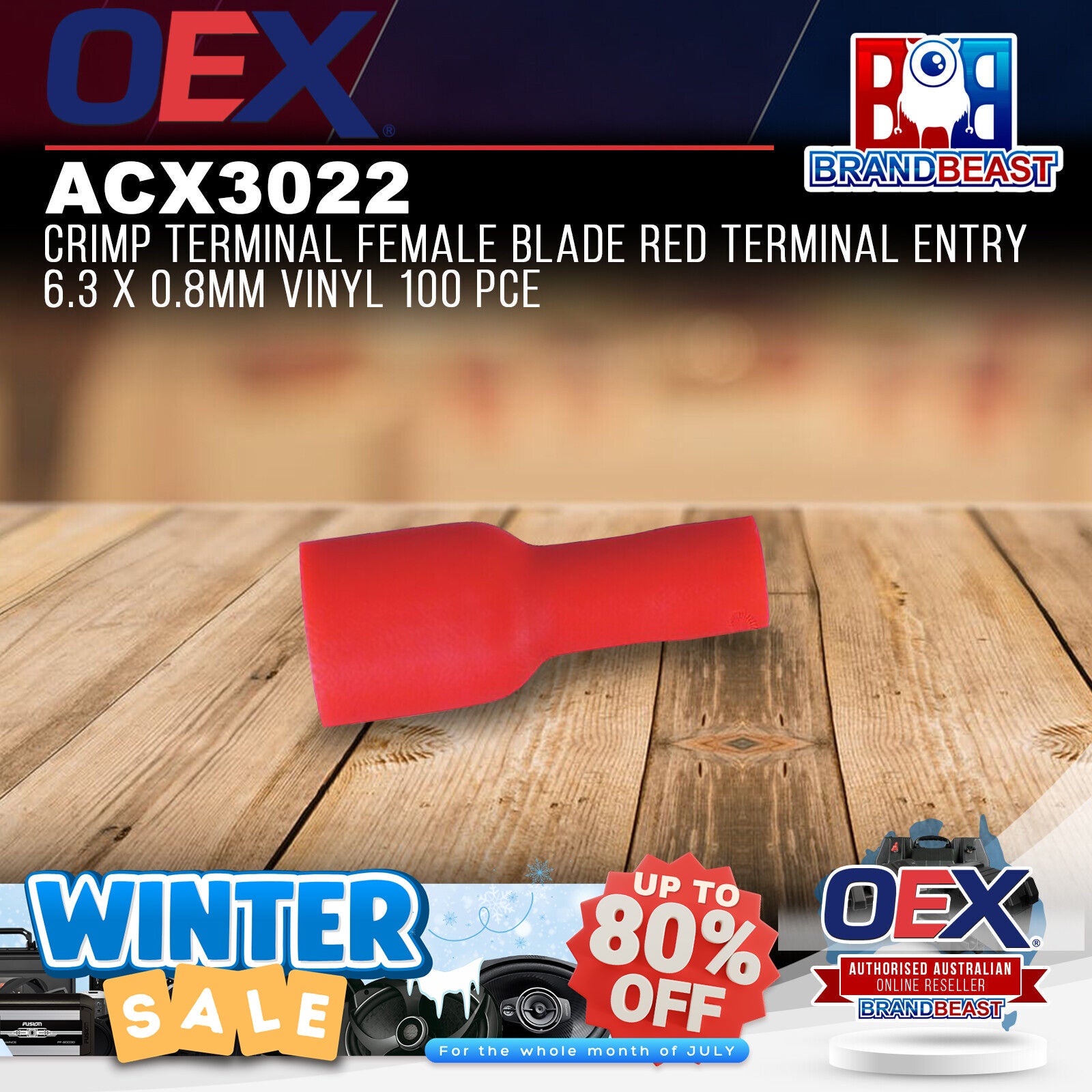

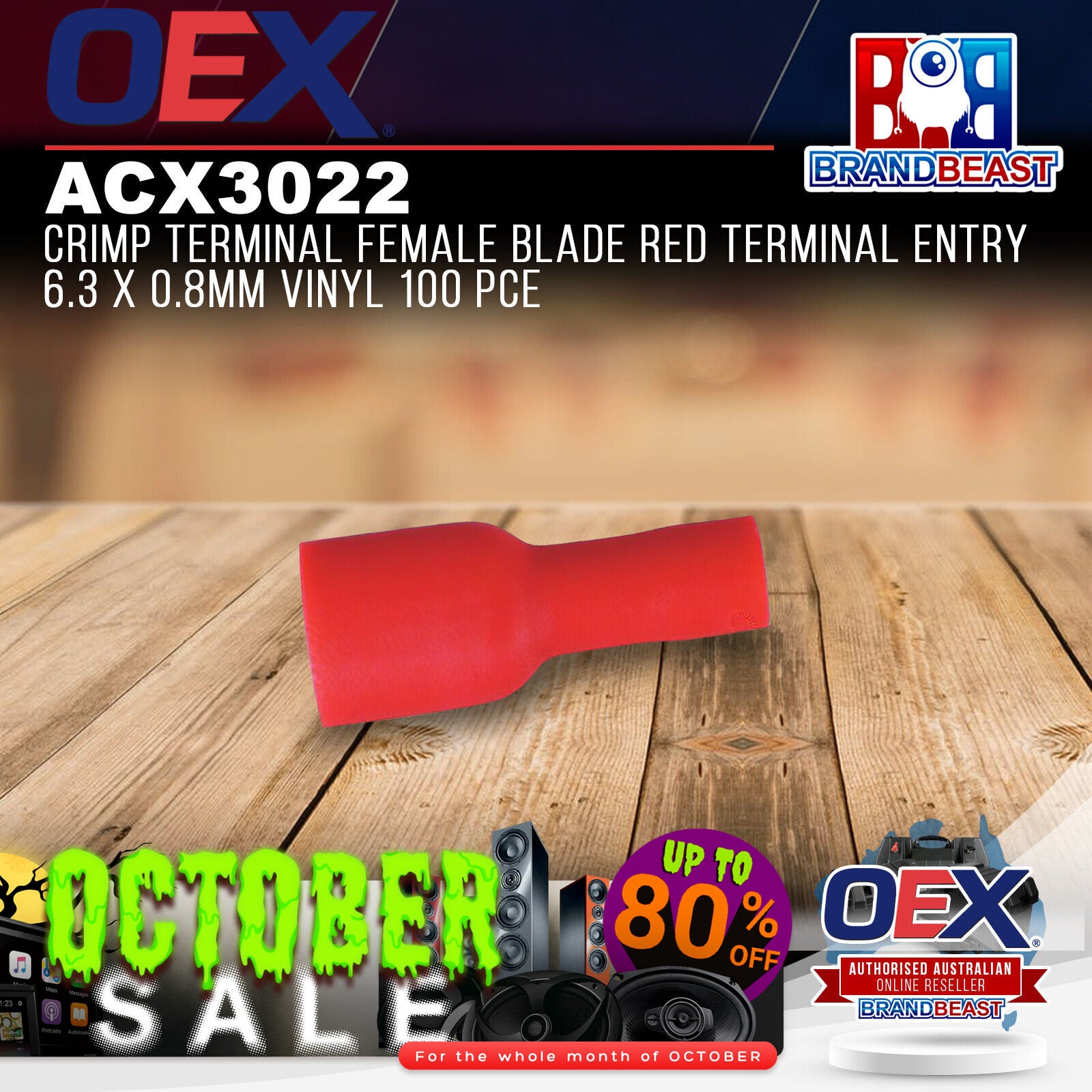

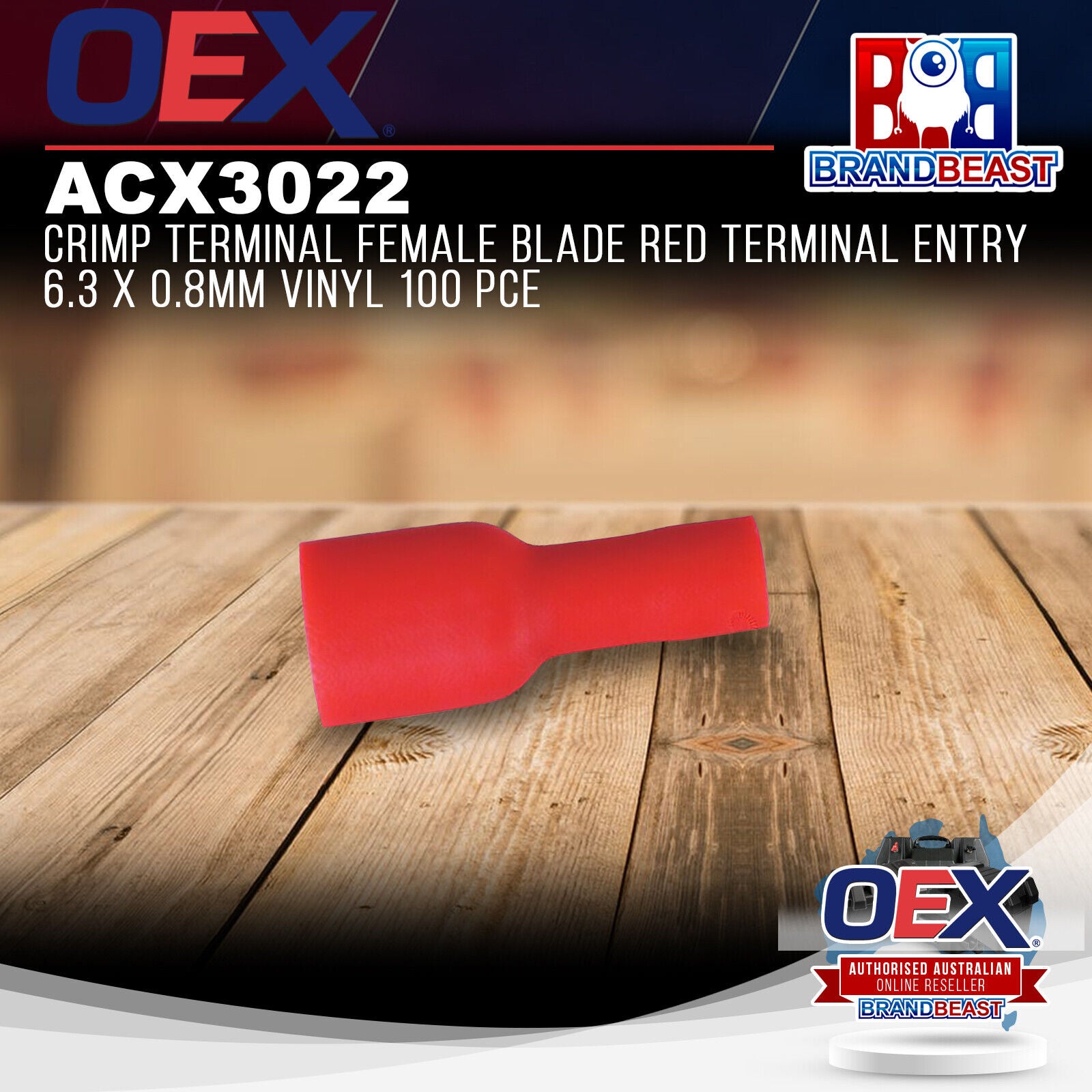

OEX ACX3022 6.3mm Fully Insulated Female Blade Crimp Terminal Red Vinyl 0.5 to 1.5mm² Double Crimp Pack of 100
The OEX ACX3022 is a 6.3mm fully insulated female blade crimp terminal in red vinyl, supplied in a pack of 100. The fully insulated design covers the terminal barrel for more complete protection against accidental contact and short circuits compared to standard insulated terminals. Double crimp construction provides both a cable crimp and an insulation crimp for a secure, strain-relieved connection. Tin plated copper ensures reliable conductivity. Red colour coding indicates the 0.5 to 1.5mm² cable range. Covered by a one year warranty.
Product overview
The ACX3022 is the fully insulated version of the 6.3mm female blade terminal in the OEX range, offering more complete barrel coverage than the standard insulated ACX3016. Where the standard insulated ACX3016 may leave part of the terminal barrel exposed, the fully insulated ACX3022 covers the full barrel for reduced risk of accidental contact and short circuits in tight wiring installations.
All three 6.3mm female blade red terminal options in the OEX range serve different installation preferences. The ACX3016 is vinyl, standard insulated, pack of 100. The ACX3022 is vinyl, fully insulated, pack of 100. The ACX3021/50 is nylon, fully insulated, pack of 50. All share the same 6.3mm blade size and red colour coding for the 0.5 to 1.5mm² cable range. A ratchet crimping tool designed for insulated terminals in the red range is recommended.
Features and benefits
6.3mm x 0.8mm female blade: Mates with standard 6.3mm male blade terminals including OEX ACX3006 (red) and ACX3007 (blue).
Fully insulated vinyl: Complete barrel coverage for more protection against accidental contact and short circuits than standard insulated terminals.
Red colour coding: Colour codes the 0.5 to 1.5mm² cable range following the standard automotive terminal convention.
Double crimp design: Separate cable crimp and insulation crimp for a secure electrical connection with strain relief.
Tin plated copper: Reliable conductivity and corrosion resistance for long-term terminal performance.
Pack of 100: Trade-friendly workshop quantity.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX3022 |
| Brand |
OEX |
| Terminal Type |
Female Blade |
| Terminal Size |
6.3mm x 0.8mm |
| Insulation |
Vinyl, Red |
| Insulation Style |
Fully insulated |
| Cable Range |
0.5 to 1.5mm² |
| Construction |
Double crimp |
| Material |
Tin plated copper |
| Pack Quantity |
100 |
| Weight |
0.1kg |
| Warranty |
One year |
| Sold As |
Pack of 100 |
Frequently asked questions
What does "fully insulated" mean? A fully insulated terminal has insulation extending to cover the entire terminal barrel, providing more complete protection against accidental contact and short circuits compared to a standard insulated terminal where the metal barrel may be partially exposed.
What does the red colour indicate? Red is the standard colour code for automotive crimp terminals suited to the 0.5 to 1.5mm² cable range. Always match the terminal colour to the cable size for a correct crimp.
What male blade terminal does this mate with? This female terminal mates with 6.3mm male blade terminals such as the OEX ACX3006 (red, 0.5 to 1.5mm²) and ACX3007 (blue, 1.5 to 2.5mm²).
What tool is required to crimp these terminals? A ratchet crimping tool designed for insulated terminals in the red (0.5 to 1.5mm²) cable range is recommended. Using the correct tool ensures a proper crimp that meets pull-out force requirements.
How does the ACX3022 compare to the ACX3016 and ACX3021/50? All three are 6.3mm female blade red terminals for the 0.5 to 1.5mm² cable range. The ACX3016 is vinyl, standard insulated, pack of 100. The ACX3022 is vinyl, fully insulated, pack of 100. The ACX3021/50 is nylon, fully insulated, pack of 50. Select based on insulation style preference and quantity required.
