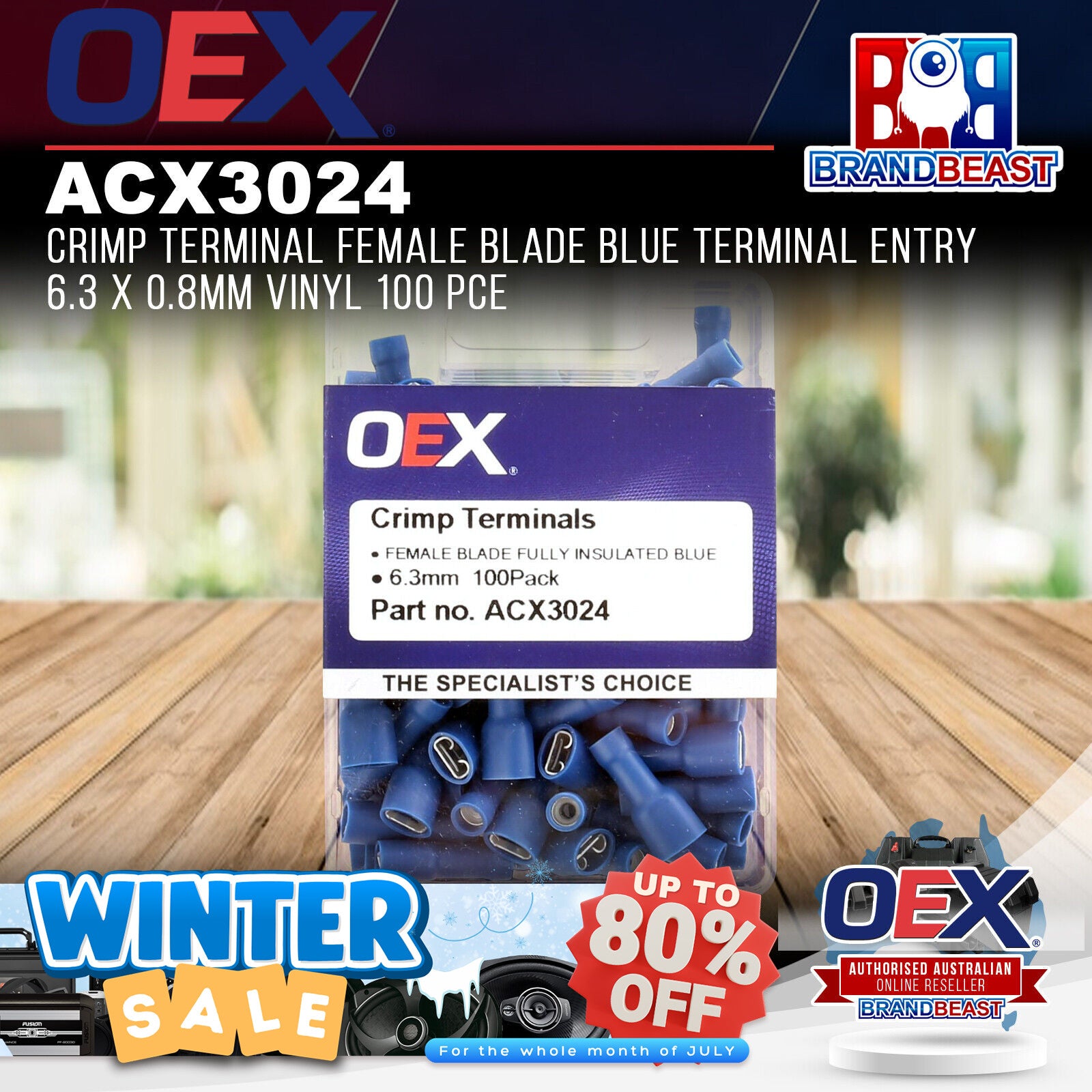

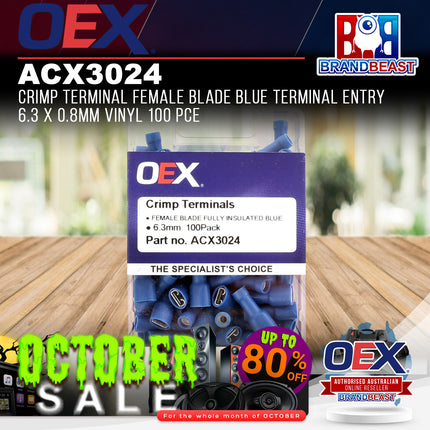

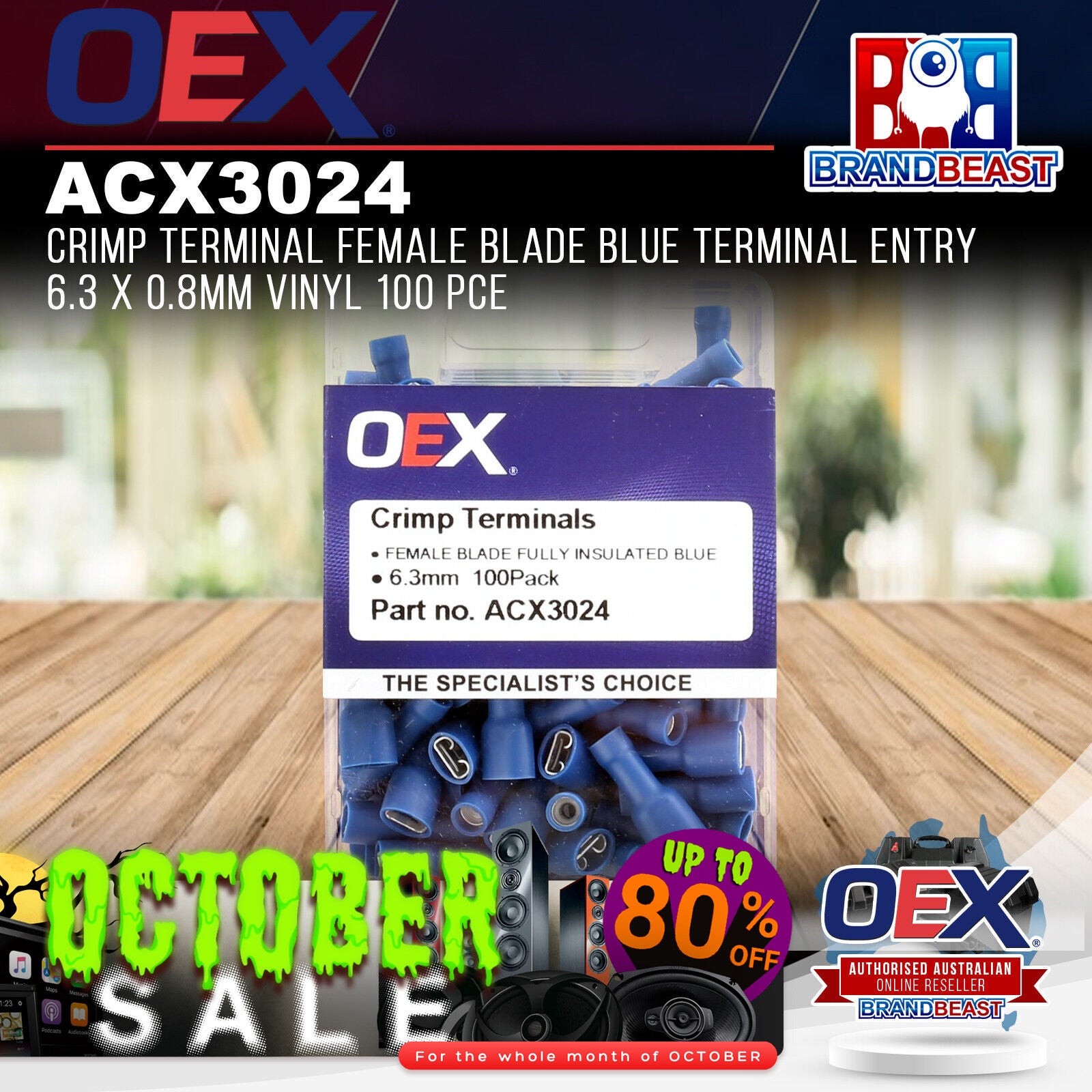

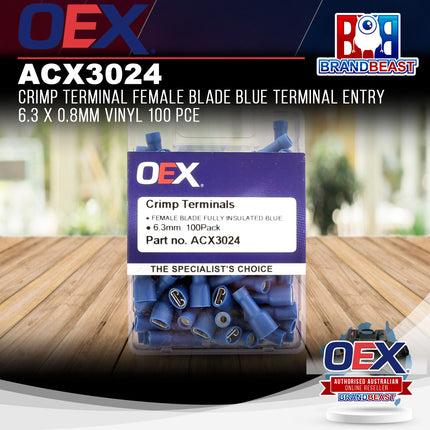

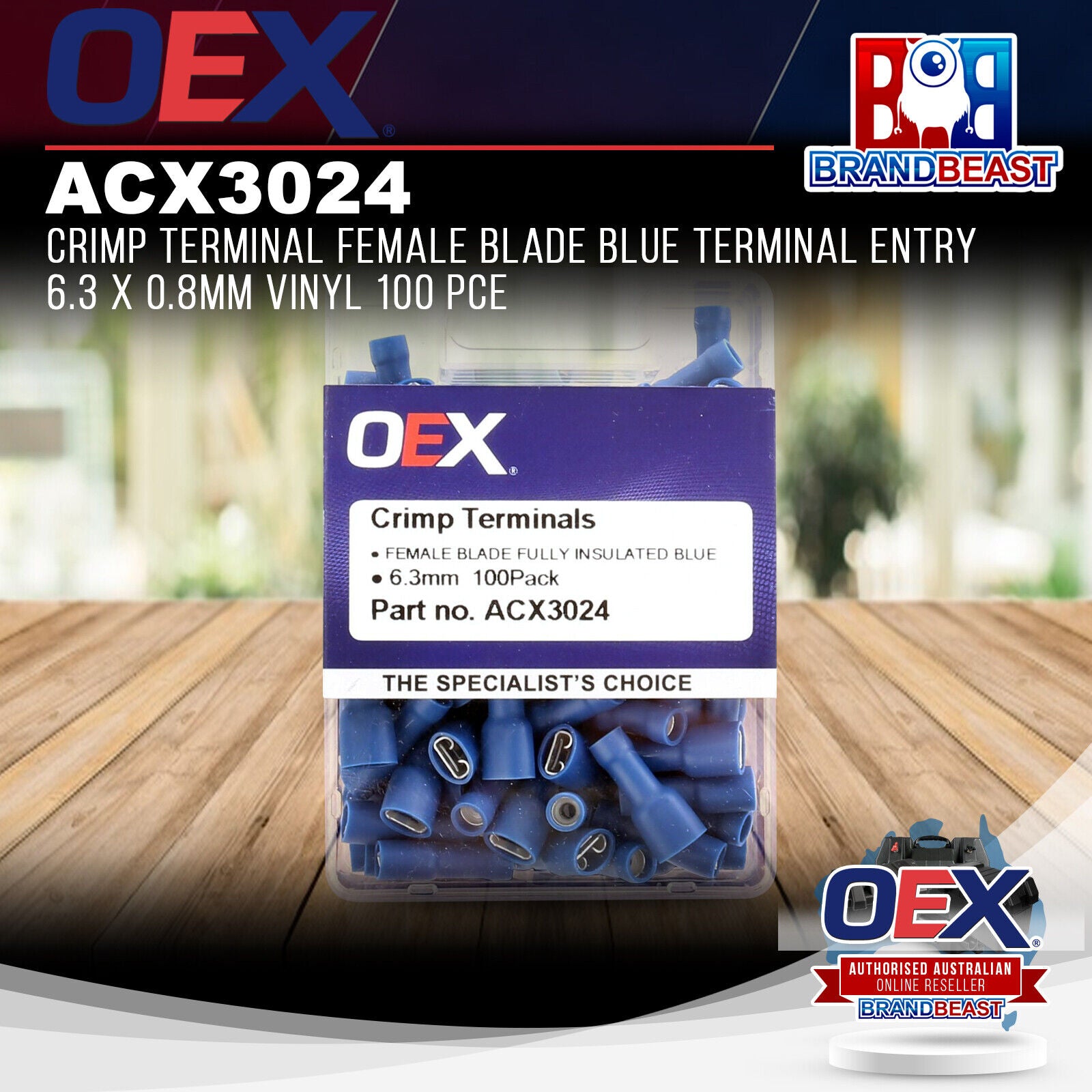

OEX ACX3024 6.3mm Fully Insulated Female Blade Crimp Terminal Blue Vinyl 1.5 to 2.5mm² Double Crimp Pack of 100
The OEX ACX3024 is a 6.3mm fully insulated female blade crimp terminal in blue vinyl, supplied in a pack of 100. The fully insulated design covers the terminal barrel for more complete protection against accidental contact and short circuits. Double crimp construction provides both a cable crimp and an insulation crimp for a secure, strain-relieved connection. Tin plated copper ensures reliable conductivity. Blue colour coding indicates the 1.5 to 2.5mm² cable range. Covered by a one year warranty.
Product overview
The ACX3024 is the blue (1.5 to 2.5mm²) version of the fully insulated 6.3mm female blade terminal, stepping up from the red ACX3022 (0.5 to 1.5mm²) for heavier gauge cable in the same 6.3mm blade format. The fully insulated vinyl design covers the entire terminal barrel for more complete protection against accidental contact and short circuits compared to standard insulated alternatives.
Both the ACX3022 (red) and ACX3024 (blue) are vinyl, fully insulated, 6.3mm female blade terminals in packs of 100 — the only difference is the cable range. Select based on your cable size: red for 0.5 to 1.5mm², blue for 1.5 to 2.5mm². A ratchet crimping tool designed for insulated terminals in the blue range is recommended.
Features and benefits
6.3mm x 0.8mm female blade: Mates with standard 6.3mm male blade terminals including OEX ACX3006 (red) and ACX3007 (blue).
Fully insulated vinyl: Complete barrel coverage for more protection against accidental contact and short circuits than standard insulated terminals.
Blue colour coding: Colour codes the 1.5 to 2.5mm² cable range following the standard automotive terminal convention. Steps up from the red ACX3022 (0.5 to 1.5mm²).
Double crimp design: Separate cable crimp and insulation crimp for a secure electrical connection with strain relief.
Tin plated copper: Reliable conductivity and corrosion resistance for long-term terminal performance.
Pack of 100: Trade-friendly workshop quantity.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX3024 |
| Brand |
OEX |
| Terminal Type |
Female Blade |
| Terminal Size |
6.3mm x 0.8mm |
| Insulation |
Vinyl, Blue |
| Insulation Style |
Fully insulated |
| Cable Range |
1.5 to 2.5mm² |
| Construction |
Double crimp |
| Material |
Tin plated copper |
| Pack Quantity |
100 |
| Weight |
0.04kg |
| Warranty |
One year |
| Sold As |
Pack of 100 |
Frequently asked questions
What does the blue colour indicate? Blue is the standard colour code for automotive crimp terminals suited to the 1.5 to 2.5mm² cable range. Always match the terminal colour to the cable size for a correct crimp.
What does "fully insulated" mean? A fully insulated terminal has insulation extending to cover the entire terminal barrel, providing more complete protection against accidental contact and short circuits compared to a standard insulated terminal where the metal barrel may be partially exposed.
What male blade terminal does this mate with? This female terminal mates with 6.3mm male blade terminals such as the OEX ACX3006 (red, 0.5 to 1.5mm²) and ACX3007 (blue, 1.5 to 2.5mm²).
What tool is required to crimp these terminals? A ratchet crimping tool designed for insulated terminals in the blue (1.5 to 2.5mm²) cable range is recommended. Using the correct tool ensures a proper crimp that meets pull-out force requirements.
How does the ACX3024 compare to the ACX3022? Both are 6.3mm vinyl fully insulated female blade terminals in packs of 100. The ACX3022 is red for the 0.5 to 1.5mm² cable range and the ACX3024 is blue for the 1.5 to 2.5mm² range. Select based on your cable size.
