Description

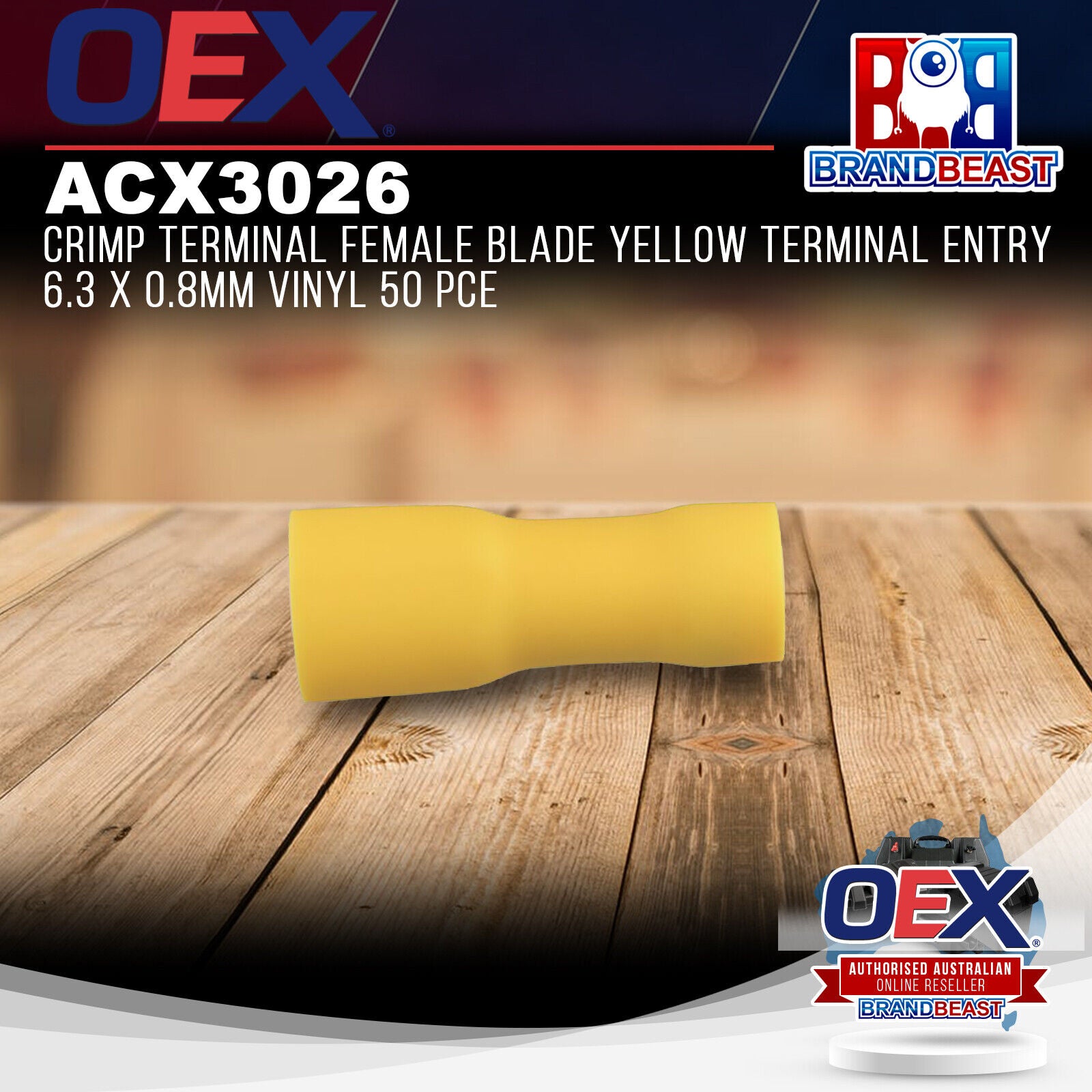

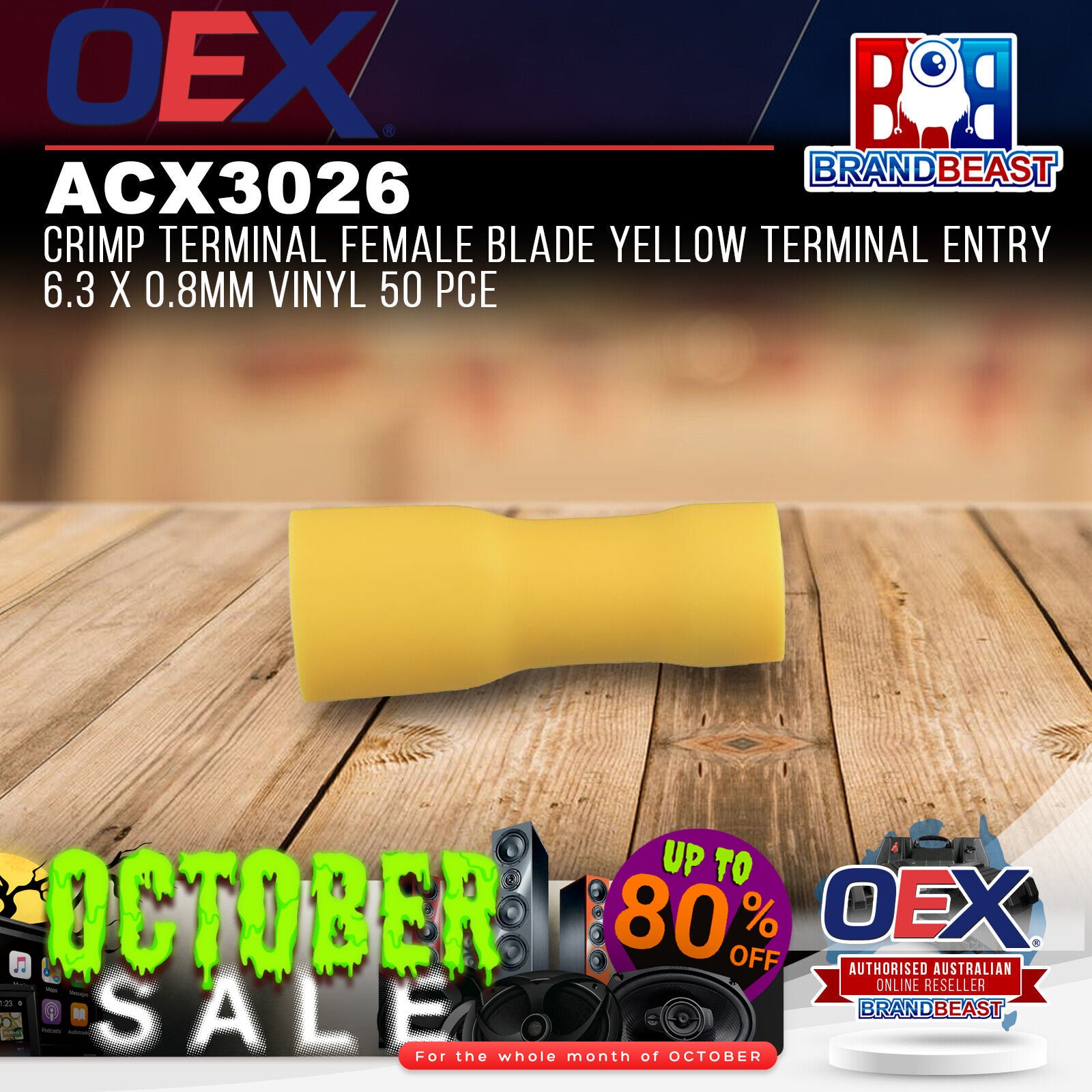

OEX ACX3026 6.3mm Fully Insulated Female Blade Crimp Terminal Yellow Vinyl 4.0 to 6.0mm² Double Crimp Pack of 50
The OEX ACX3026 is a 6.3mm fully insulated female blade crimp terminal in yellow vinyl, supplied in a pack of 50. The fully insulated design covers the terminal barrel for complete protection against accidental contact and short circuits. Double crimp construction provides both a cable crimp and an insulation crimp for a secure, strain-relieved connection. Tin plated copper ensures reliable conductivity. Yellow colour coding indicates the 4.0 to 6.0mm² cable range. Covered by a one year warranty.
Product overview
The ACX3026 is the vinyl version of the yellow fully insulated 6.3mm female blade terminal, suited to general heavy gauge wiring applications in the 4.0 to 6.0mm² range. It shares the same 6.3x0.8mm blade size, double crimp design and yellow colour coding as the nylon ACX3025, differing only in insulation material. For underbonnet and high-temperature installations where greater heat resistance is required, the nylon ACX3025 is the more appropriate choice. For general automotive wiring applications outside demanding thermal environments, the vinyl ACX3026 is a suitable alternative.
A ratchet crimping tool designed for insulated terminals in the yellow range is recommended. The pack of 50 reflects the lower usage frequency of heavier gauge terminal sizes compared to lighter gauge 100-piece packs.
Features and benefits
6.3mm x 0.8mm female blade: Mates with standard 6.3mm male blade terminals for heavy gauge circuit terminations.
Vinyl fully insulated: Complete barrel coverage for protection against accidental contact and short circuits. Suited to general use applications.
Yellow colour coding: Colour codes the 4.0 to 6.0mm² cable range following the standard automotive terminal convention.
Double crimp design: Separate cable crimp and insulation crimp for a secure electrical connection with strain relief.
Tin plated copper: Reliable conductivity and corrosion resistance for long-term terminal performance.
Pack of 50: Suited to the lower usage frequency of heavier gauge terminal sizes.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX3026 |
| Brand |
OEX |
| Terminal Type |
Female Blade |
| Terminal Size |
6.3mm x 0.8mm |
| Insulation |
Vinyl, Yellow |
| Insulation Style |
Fully insulated |
| Cable Range |
4.0 to 6.0mm² |
| Construction |
Double crimp |
| Material |
Tin plated copper |
| Pack Quantity |
50 |
| Weight |
0.06kg |
| Warranty |
One year |
| Sold As |
Pack of 50 |
Frequently asked questions
What does the yellow colour indicate? Yellow is the standard colour code for automotive crimp terminals suited to the 4.0 to 6.0mm² cable range. Always match the terminal colour to the cable size for a correct crimp.
What does "fully insulated" mean? A fully insulated terminal has insulation extending to cover the entire terminal barrel, providing more complete protection against accidental contact and short circuits compared to a standard insulated terminal.
What male blade terminal does this mate with? This female terminal mates with standard 6.3mm male blade terminals. Confirm the tab width of the mating terminal is 6.3mm before purchasing.
What tool is required to crimp these terminals? A ratchet crimping tool designed for insulated terminals in the yellow (4.0 to 6.0mm²) cable range is recommended. Using the correct tool ensures a proper crimp that meets pull-out force requirements.
How does the ACX3026 compare to the ACX3025? Both are 6.3mm yellow fully insulated female blade terminals in packs of 50 for the 4.0 to 6.0mm² cable range. The ACX3025 uses nylon insulation with greater heat and abrasion resistance, suited to underbonnet and high-temperature applications. The ACX3026 uses vinyl insulation, suited to general automotive wiring. Select based on the thermal demands of your installation.
