Description

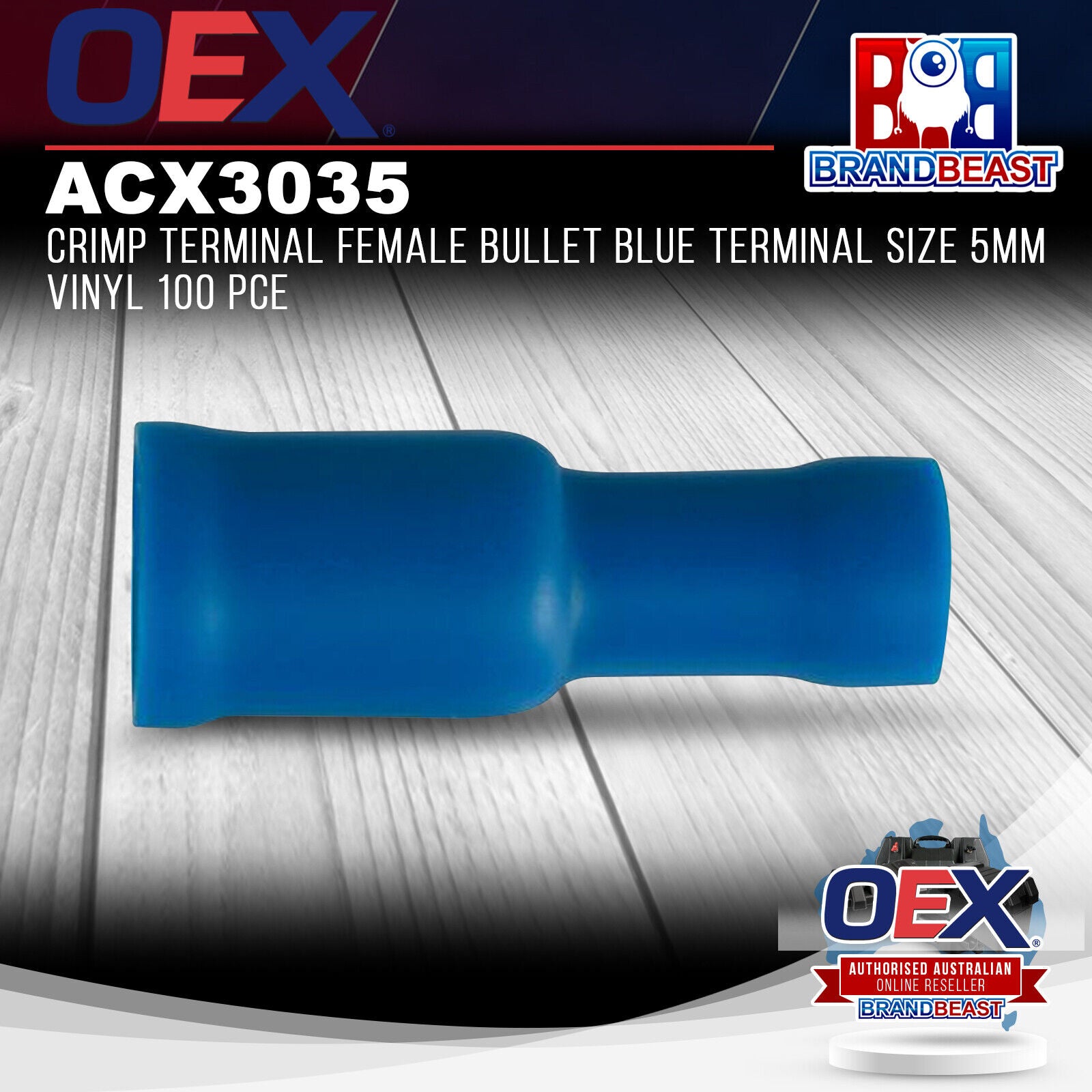

OEX ACX3035 5mm Fully Insulated Female Bullet Crimp Terminal Blue Vinyl 1.5 to 2.5mm² Double Crimp Pack of 100
The OEX ACX3035 is a 5mm fully insulated female bullet crimp terminal in blue vinyl, supplied in a pack of 100. The fully insulated design covers the terminal barrel for complete protection against accidental contact and short circuits. Double crimp construction provides both a cable crimp and an insulation crimp for a secure, strain-relieved connection. Tin plated copper ensures reliable conductivity. Blue colour coding indicates the 1.5 to 2.5mm² cable range. This female bullet terminal mates with a corresponding 5mm male bullet terminal. Covered by a one year warranty.
Product overview
The ACX3035 steps up from the 4mm red bullet (ACX3033) to a 5mm diameter for the 1.5 to 2.5mm² cable range, suited to heavier gauge cable in the same inline removable bullet terminal format. The 5mm and 4mm bullet formats are not interchangeable — confirm the bullet diameter of the mating terminal before purchasing.
The female bullet receptacle receives the male bullet pin to create an inline disconnect that can be separated by hand without tools. The fully insulated vinyl design covers the entire terminal barrel for more complete protection against accidental contact and short circuits. The double crimp grips both the bare conductor and the cable insulation for a secure electrical connection with strain relief. A ratchet crimping tool designed for insulated terminals in the blue (1.5 to 2.5mm²) range is recommended.
Features and benefits
5mm female bullet: Larger format than the 4mm red bullet range, suited to heavier gauge cable in the 1.5 to 2.5mm² range. Not interchangeable with 4mm bullet terminals.
Blue vinyl fully insulated: Complete barrel coverage for protection against accidental contact and short circuits. Blue colour codes the 1.5 to 2.5mm² cable range.
Double crimp design: Separate cable crimp and insulation crimp for a secure electrical connection with strain relief.
Tin plated copper: Reliable conductivity and corrosion resistance for long-term terminal performance.
Pack of 100: Trade-friendly workshop quantity.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX3035 |
| Brand |
OEX |
| Terminal Type |
Female Bullet |
| Terminal Size |
5mm |
| Insulation |
Vinyl, Blue |
| Insulation Style |
Fully insulated |
| Cable Range |
1.5 to 2.5mm² |
| Construction |
Double crimp |
| Material |
Tin plated copper |
| Pack Quantity |
100 |
| Weight |
0.14kg |
| Warranty |
One year |
| Sold As |
Pack of 100 |
Frequently asked questions
What is a female bullet terminal used for? A female bullet terminal receives a male bullet pin to create an inline connection that can be disconnected by hand. They are commonly used in automotive wiring for lighting, sensors and accessory circuits where a removable inline connection is needed.
What does the blue colour indicate? Blue is the standard colour code for automotive crimp terminals suited to the 1.5 to 2.5mm² cable range. Always match the terminal colour to the cable size for a correct crimp.
How does a 5mm bullet terminal differ from a 4mm? The 5mm format is physically larger and suits heavier gauge cable in the 1.5 to 2.5mm² range. The 4mm format suits lighter gauge cable in the 0.5 to 1.5mm² range. They are not interchangeable confirm the bullet diameter of the mating terminal before purchasing.
What tool is required to crimp these terminals? A ratchet crimping tool designed for insulated terminals in the blue (1.5 to 2.5mm²) cable range is recommended. Using the correct tool ensures a proper crimp that meets pull-out force requirements.
Are these terminals available in other sizes or colours? OEX produces crimp terminals in a range of types, sizes and cable ranges. Check the OEX terminal range for other available options.
