Description

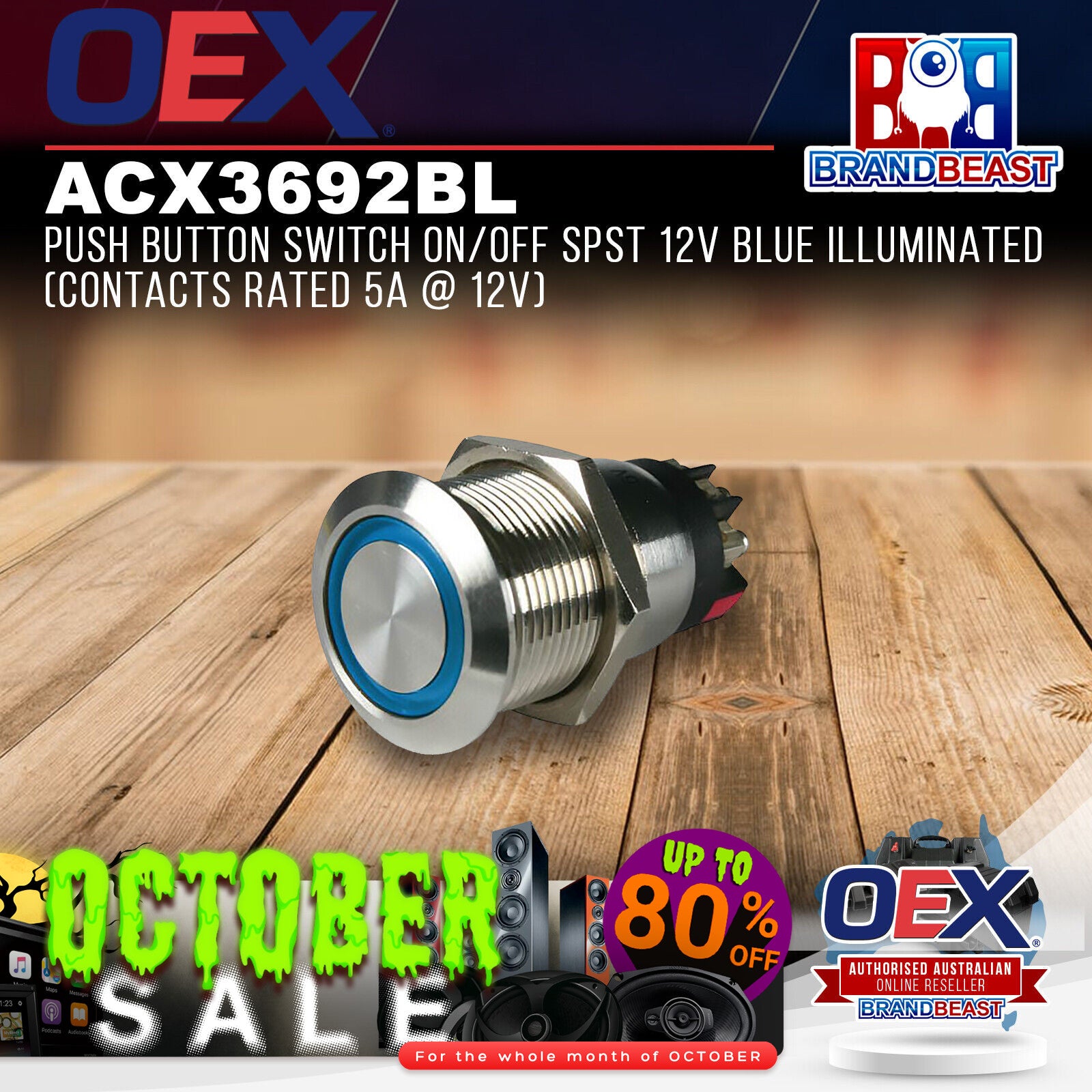

OEX ACX3692BL 12V 5A IP65 Illuminated Latching Push Button Switch Blue LED Chrome Housing NO and NC Terminals 19mm Mount
The OEX ACX3692BL is a 12V, 5A illuminated latching push button switch in an SPST On/Off configuration, with a blue LED indicator and IP65 weatherproof rating. The push-on/push-off latching action toggles the circuit between On and Off states with each press, staying in the selected position until pressed again. Identical in specification to the red ACX3690BL differing only in blue LED illumination it offers an alternative colour option for panels with a blue theme or where different LED colours distinguish switch functions. Chrome plated housing, three blade terminals (common, NO and NC), 19mm mounting hole, 12mm mount length. Covered by a one year warranty.
Product overview
The ACX3692BL shares every specification with the ACX3690BL 5A at 12V, IP65, chrome plated housing, three blade terminals, 19mm mount hole and 12mm mount length. The only difference is LED colour: red on the ACX3690BL, blue on the ACX3692BL. The blue LED suits panels built around a blue illumination theme, or installations where different colours are used to distinguish switch functions for example, blue for auxiliary circuits and red for warning or power circuits.
The latching action means the switch holds its position after being pressed, unlike a momentary switch which only activates while held. The three-terminal configuration provides wiring flexibility: wire between common and NO for standard normally open accessory switching, or between common and NC for a normally closed circuit application. At 5A it handles low-current loads and relay trigger inputs directly. For loads exceeding 5A, the switch should trigger a relay.
Features and benefits
Latching push On/push Off: Press to toggle between On and Off. Switch holds position without being held down. Not a momentary switch.
Blue LED illuminated: Glows when the switch is in the On position. Blue colour for panel theme coordination or function differentiation.
IP65 rated: Fully sealed against dust and protected against water jets from any direction. Suited to external mounting and exposed panel locations.
Chrome plated housing: Premium finish for custom panels and marine consoles.
3x blade terminals common, NO and NC: Wire between common and NO for standard normally open switching. Wire between common and NC for a normally closed circuit. Full wiring flexibility for both accessory and control circuit applications.
19mm mounting hole: Standard diameter for illuminated push button switches.
12mm mount length: Suits standard panel thicknesses.
One year warranty: Covered by a one year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX3692BL |
| Brand |
OEX |
| Switch Type |
Push Button (Latching) |
| Switch Action |
On/Off (SPST) |
| Poles |
1 |
| Positions |
2 |
| Current Rating |
5A at 12V |
| Voltage |
12V |
| Illumination |
Blue LED |
| IP Rating |
IP65 |
| Housing |
Chrome plated |
| Terminals |
3x Blade (Common, NO, NC) |
| Mount Diameter |
19mm |
| Mount Length |
12mm |
| Pack Quantity |
1 |
| Weight |
0.02kg |
| Warranty |
One year |
| Sold As |
Single unit |
Frequently asked questions
Is this a momentary or latching switch? The ACX3692BL is a latching (push On/push Off) switch pressing it toggles the circuit between On and Off states and the switch holds its position until pressed again. It is not a momentary switch; the circuit remains active after the button is released.
What are the three terminals for? The three blade terminals are common, normally open (NO) and normally closed (NC). Wire between common and NO for a circuit that is open at rest and closes when the switch is activated standard accessory switching. Wire between common and NC for a circuit that is closed at rest and opens when the switch is activated used in alarm, interlock and control circuit applications.
How does the ACX3692BL differ from the ACX3690BL? The ACX3692BL and ACX3690BL are identical in all specifications 5A, 12V, IP65, chrome plated, 3 terminals, 19mm mount, 12mm length. The only difference is LED colour: the ACX3690BL has a red LED and the ACX3692BL has a blue LED. Select based on your panel's colour scheme or function coding convention.
What does IP65 mean for this switch? IP65 means the switch is fully protected against dust ingress (6) and against water jets from any direction (5). This makes it suitable for panel locations exposed to rain, splash and wash-down including external vehicle panels, marine consoles and outdoor equipment enclosures.
What is the maximum load this switch can handle directly? This switch is rated at 5A at 12V. For loads exceeding 5A, use the switch to trigger a relay rather than wiring the load directly through the switch contacts.
