Description

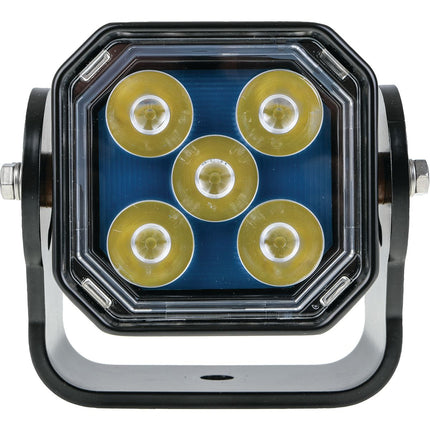

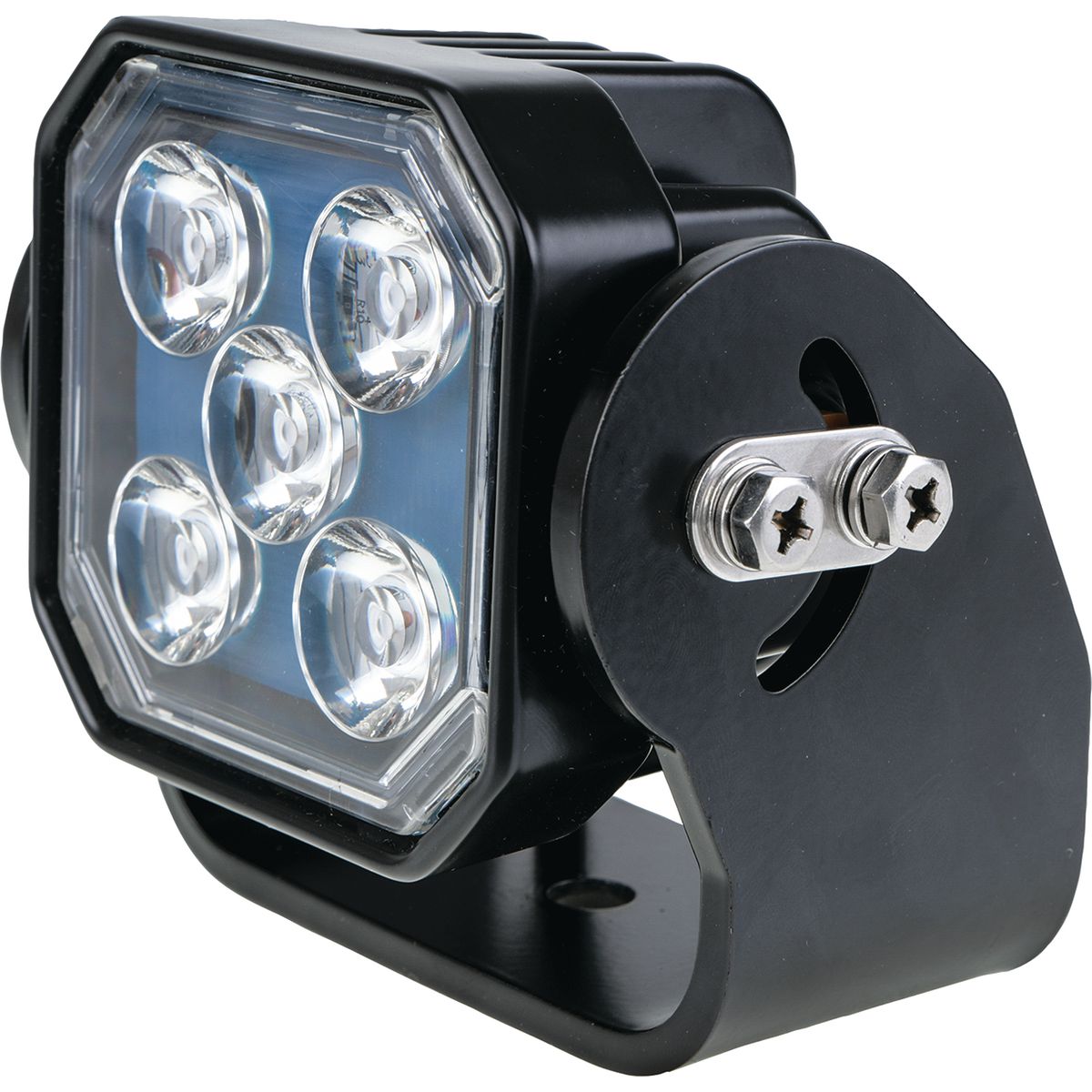

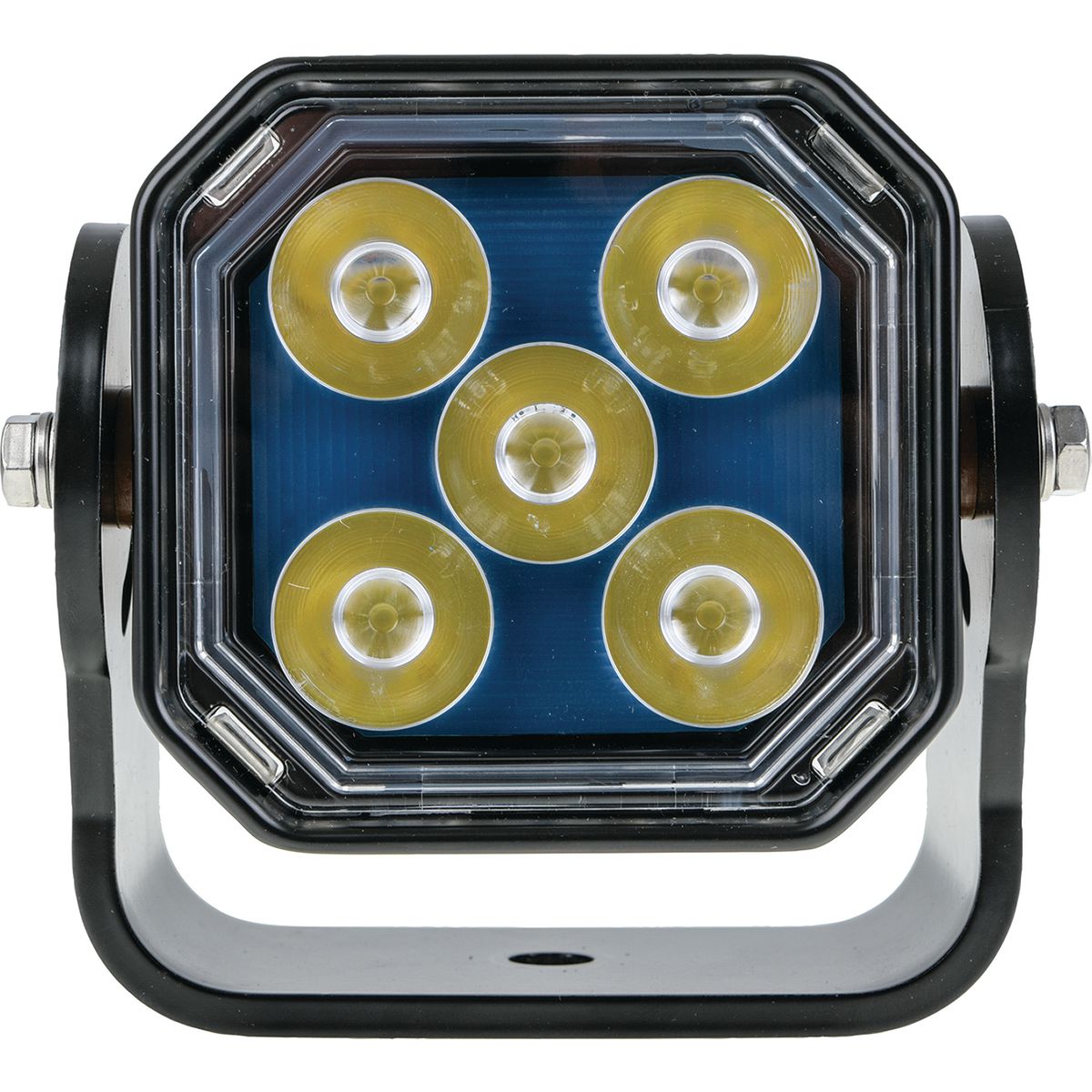

OEX ACX5580 Prospector 5 LED Work Light Spot Beam 12V/24V
Illuminate work sites and off-road terrain with the OEX Prospector 5 LED work light featuring spot beam pattern, five high-output 7W LEDs producing over 4500 total lumens, dual 12V/24V voltage compatibility for diverse vehicle applications, simplified housing design with integrated lens optics for optimal beam performance, color coded backplate for easy beam pattern identification, and OEX quality manufacturing standards backed by rigorous Brisbane testing for harsh Australian mining, industrial, and off-road conditions.
Product Overview
The OEX ACX5580 Prospector 5 LED represents a versatile and affordable work light solution that combines high-output LED technology with simplified housing design for professional-grade illumination across diverse applications. This 5-LED configuration work light features individual high-output 7W LEDs that each produce over 900 lumens, delivering combined output exceeding 4500 lumens through focused spot beam pattern optimized for long-distance illumination and penetrating light projection. The spot beam configuration provides concentrated light distribution ideal for driving lights, long-range visibility enhancement, and applications requiring distance illumination rather than wide flood coverage. The newly designed lens integrates optical elements directly into the lens structure, reducing manufacturing costs while maintaining optimal beam performance and light distribution characteristics that ensure professional-grade illumination quality. The innovative color coded backplate system enables instant visual identification of beam pattern type, simplifying inventory management and installation procedures where multiple lights with different beam patterns are used across vehicle fleets or work sites. Dual 12V/24V voltage compatibility ensures universal installation flexibility across passenger vehicles, 4WD trucks, commercial vehicles, heavy equipment, and marine applications without requiring voltage-specific versions. The simplified housing design reduces complexity while maintaining robust construction that withstands harsh environmental conditions including mining sites, construction environments, agricultural applications, and off-road terrain exposure. Manufactured by ISO 9001 certified OEX partners with rigorous in-house product testing conducted in Brisbane, this work light meets stringent engineering, testing, and quality control procedures specifically developed for harsh Australian and New Zealand conditions. OEX's reputation since 1997 for providing highest quality automotive aftermarket parts ensures this Prospector series work light delivers reliable performance across mining, industrial, manufacturing, RV, marine, and repair specialist applications. The Prospector series offers multiple size configurations including 5, 9, and 12 LED variants, enabling scalable lighting solutions where users can select appropriate light output levels matching specific application requirements and budget considerations. The 5-LED configuration provides balanced performance for applications requiring substantial illumination without the physical size and power consumption of larger 9 or 12 LED models, making it ideal for secondary work lights, supplemental lighting installations, and applications with mounting space constraints.
Features & Benefits
High-Output 7W LED Technology Features five individual 7W high-output LEDs each producing over 900 lumens for combined output exceeding 4500 lumens, delivering professional-grade illumination intensity that dramatically improves visibility during nighttime work operations, off-road driving, and low-light conditions while maintaining energy-efficient operation that minimizes electrical system load compared to traditional halogen work lights.
Focused Spot Beam Pattern Provides concentrated spot beam light distribution optimized for long-distance illumination and penetrating light projection, ideal for driving light applications, distance visibility enhancement, and situations requiring focused illumination rather than wide area coverage, ensuring optimal beam performance for highway driving, trail navigation, and long-range work site visibility requirements.
Dual 12V/24V Voltage Compatibility Operates reliably across both 12V passenger vehicles, 4WD trucks, caravans, and 24V commercial vehicles, heavy equipment, mining machinery without requiring voltage-specific versions, providing universal installation flexibility across mixed-voltage fleet applications while protecting against voltage fluctuations during engine cranking and alternator regulation for consistent illumination performance.
Color Coded Backplate Identification Features color coded backplate system that enables instant visual identification of spot beam pattern versus flood beam variants, simplifying inventory management for fleet operators, parts departments, and work sites where multiple lights with different beam patterns are used, eliminating confusion during installation and ensuring correct beam pattern selection for specific mounting locations.
Simplified Housing with Integrated Optics Utilizes newly designed simplified housing construction with integrated lens optics that reduce manufacturing costs without compromising beam performance, providing affordable professional-grade work lighting that delivers optimal light distribution characteristics while maintaining robust construction suitable for harsh environmental conditions across mining, industrial, and off-road applications.
Scalable Prospector Series Configuration Part of comprehensive Prospector series offering 5, 9, and 12 LED configuration options, enabling users to select appropriate light output levels matching specific application requirements, budget considerations, and mounting space constraints, providing scalable lighting solutions where 5-LED model offers balanced performance for secondary work lights and supplemental illumination without physical size of larger configurations.
Technical Specifications
| Specification |
Details |
| Brand |
OEX |
| Model |
ACX5580 |
| Product Type |
LED Auxiliary Work Light |
| Series |
Prospector |
| LED Configuration |
5 LEDs |
| LED Power |
7W per LED (High-Output) |
| Total Power |
35W (5 × 7W) |
| Lumens per LED |
Over 900 Lumens |
| Total Lumens |
Over 4500 Lumens (Combined Output) |
| Beam Pattern |
Spot Beam |
| Beam Type |
Focused Long-Distance Illumination |
| Voltage Range |
12V/24V DC |
| Voltage Compatibility |
12V and 24V Systems |
| Lens Design |
Integrated Optics |
| Backplate |
Color Coded for Beam Identification |
| Housing Design |
Simplified Construction |
| Available Configurations |
5, 9, 12 LED Options (Series) |
| Available Beam Patterns |
Spot or Flood (Series) |
| Manufacturing Standards |
ISO 9001 Certified |
| Testing Location |
In-house Brisbane, Australia |
Compatible With
Vehicle Applications:
- 4WD and off-road vehicles (12V)
- Passenger vehicles and SUVs (12V)
- Utes and pickup trucks (12V)
- Commercial trucks and delivery vehicles (12V/24V)
- Mining vehicles and heavy equipment (24V)
- Agricultural machinery and tractors (12V/24V)
- Construction equipment (12V/24V)
- Caravans and RVs (12V)
- Marine vessels and boats (12V/24V)
- Industrial transport vehicles (12V/24V)
Mounting Applications:
- Bull bar and front bar mounting
- Roof rack and light bar installations
- A-pillar and windscreen frame mounting
- Truck cabin roof mounting
- Equipment boom and arm mounting
- Trailer and caravan exterior mounting
- Work site portable lighting rigs
Voltage System Compatibility:
- 12V passenger vehicle electrical systems
- 12V 4WD and off-road vehicle systems
- 24V commercial truck electrical systems
- 24V heavy equipment electrical systems
- 12V/24V marine electrical systems
Industry Applications:
- Mining operations and extraction sites
- Construction and civil engineering
- Agricultural and farming operations
- Industrial manufacturing facilities
- RV and caravan industry
- Marine and maritime operations
- Repair and service specialists
- Emergency and rescue services
Prospector Series Options:
- 5 LED configuration (this model - balanced output)
- 9 LED configuration (increased output)
- 12 LED configuration (maximum output)
- Spot beam or flood beam patterns available
Frequently Asked Questions
What's the difference between spot beam and flood beam patterns?
Spot beam (this model) provides focused long-distance illumination with concentrated light projection, ideal for driving lights, highway use, and long-range visibility. Flood beam provides wide-area illumination with broader coverage, ideal for work site lighting and close-range visibility. The color coded backplate helps identify which pattern each light uses.
Will this work light operate on both 12V and 24V vehicles?
Yes, the ACX5580 features dual 12V/24V voltage compatibility, enabling use across passenger vehicles, 4WD trucks (12V), and commercial trucks, mining equipment, heavy machinery (24V) without requiring different versions. This universal voltage range ensures reliable operation across diverse vehicle electrical systems including voltage fluctuations.
How does the 5 LED configuration compare to 9 and 12 LED models?
The 5 LED model provides over 4500 lumens combined output, offering balanced performance for secondary work lights and supplemental illumination applications. The 9 LED configuration delivers increased output for primary work lights, while 12 LED provides maximum illumination for demanding applications. The 5 LED model offers smaller physical size and lower power consumption while maintaining professional-grade performance.
What makes OEX Prospector series suitable for harsh Australian conditions?
OEX conducts rigorous in-house product testing in Brisbane specifically for Australian conditions. Their ISO 9001 certified manufacturing partners follow stringent engineering and quality control procedures. Since 1997, OEX has developed lighting products designed to survive adverse weather and demanding conditions across mining, industrial, and off-road applications throughout Australia.
Can I mix spot and flood beam lights on the same vehicle?
Yes, many installations combine spot beam lights for long-distance visibility with flood beam lights for close-range area illumination. The color coded backplates make it easy to identify which lights are spot versus flood, ensuring correct beam pattern placement during installation. This combination provides comprehensive lighting coverage for diverse applications.
