Description

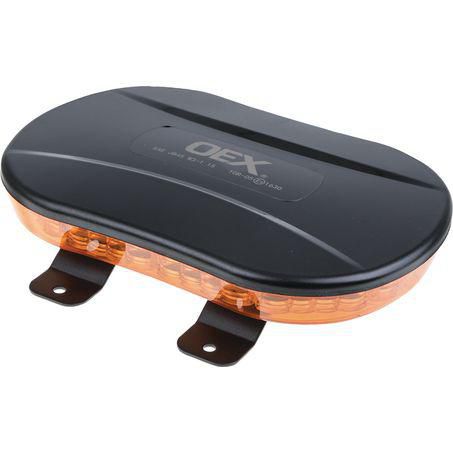

OEX ACX5732 12/24V Low Profile Minibar Amber LED Amber Lens Bracket Mount
Alert and protect with the OEX ACX5732 low profile amber LED minibar featuring 20 selectable flash patterns for versatile warning signalling, dual magnetic and 4 bolt bracket mount options for permanent or temporary installation, IP67 waterproof protection for outdoor and on-road use in all weather conditions, SAE Class 1 certification for compliance with recognised warning light performance standards, EMC R10 electromagnetic compatibility approval, 10-30V wide voltage input for 12V and 24V vehicle compatibility, a slim 41mm low-profile housing with amber lens and black top for a clean, discreet appearance, and a 12-month OEX warranty.
Product Overview
The OEX ACX5732 is a professional-grade low-profile amber LED minibar engineered for emergency, warning, and hazard signalling applications on a wide range of vehicles including service trucks, utilities, agricultural equipment, tow trucks, road maintenance vehicles, municipal fleet, and any application requiring a highly visible amber warning presence without the bulk and height of a traditional full-size light bar. The slim 41mm low-profile housing keeps the ACX5732 well within the roofline of most vehicles when permanently bracket-mounted, minimising aerodynamic drag, reducing wind noise, and maintaining a cleaner vehicle silhouette compared to conventional raised light bars — making it particularly practical for vehicles that operate both on-road and in environments with height restrictions such as workshops, loading docks, and covered parking areas. Twenty selectable flash patterns give operators the flexibility to configure the warning signal for the specific application and regulatory environment — from high-intensity rapid flash for maximum urgency signalling to slower, more measured patterns suited to site traffic management and slow-moving equipment hazard marking. The dual magnetic and 4 bolt bracket mount configuration provides genuine installation versatility — the magnetic base enables quick attachment to any ferrous metal surface for temporary or hire fleet use, while the 4 bolt bracket option provides a secure, vibration-resistant permanent installation on vehicles operating in high-vibration off-road and agricultural environments. SAE Class 1 certification confirms the ACX5732 meets the highest tier of the Society of Automotive Engineers warning light performance standard, indicating the light output and flash pattern intensity meet the requirements for the most demanding emergency and warning signalling applications. IP67 waterproof protection ensures reliable operation in heavy rain, water spray, and wash-down conditions encountered in agricultural, municipal, and roadside work environments.
Features & Benefits
20 Selectable Flash Patterns Comprehensive pattern selection allows configuration of the warning signal for the specific application and regulatory environment, from rapid high-urgency patterns to slower site-speed hazard marking sequences.

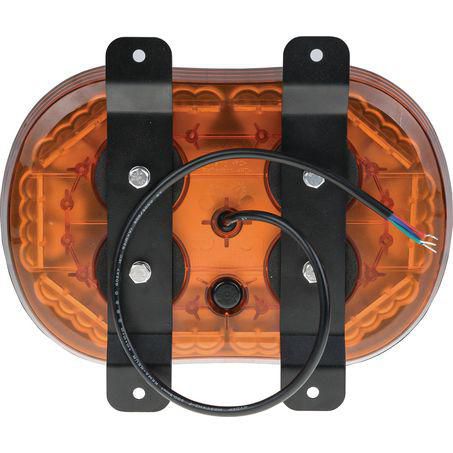

Dual Magnetic and 4 Bolt Bracket Mount Genuine installation versatility for both temporary and permanent fitment — magnetic base enables quick attachment to ferrous metal surfaces for hire fleet and temporary use, while 4 bolt bracket provides a secure, vibration-resistant permanent installation.
SAE Class 1 Certified Meets the highest tier of the SAE warning light performance standard, confirming the ACX5732 delivers the light output and flash intensity required for the most demanding emergency and warning signalling applications.

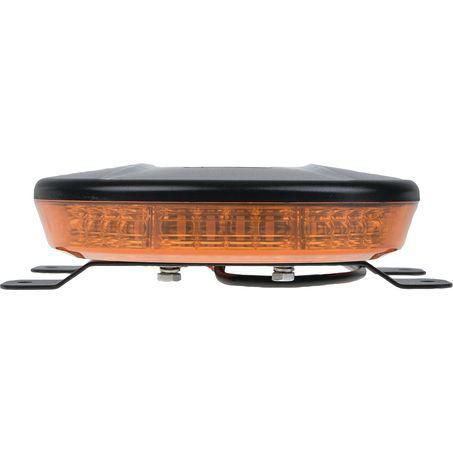

Low Profile 41mm Housing The slim amber lens and black top housing sits well within the roofline of most vehicles when bracket-mounted, minimising aerodynamic drag, reducing wind noise, and maintaining a discreet vehicle profile suitable for on-road and height-restricted environments.
IP67 Waterproof Protection Certified for continuous submersion up to 1 metre depth, ensuring reliable operation in heavy rain, water spray, road splash, and wash-down conditions across agricultural, municipal, emergency services, and roadside work applications.
EMC R10 Approved Electromagnetic compatibility certification confirms the ACX5732 meets European ECE Regulation 10 requirements, indicating the light does not generate electromagnetic interference that could affect vehicle electronics, communications equipment, or other sensitive systems on the host vehicle.
10-30V Wide Voltage Input Compatible with 12V and 24V vehicle electrical systems across light vehicles, trucks, agricultural machinery, and heavy equipment without requiring voltage-specific variants.
Amber LED Amber Lens The amber LED and amber lens combination maximises the perceived warning colour intensity and visibility at distance, providing the high-contrast amber output required for effective hazard and warning signalling in daylight and low-light conditions.
Technical Specs
| Specification |
Detail |
| Brand |
OEX |
| SKU |
ACX5732 |
| Item Type |
Low Profile Minibar |
| LED / Lens Colour |
Amber / Amber |
| Flash Patterns |
20 |
| Voltage Input |
10-30V (12V / 24V) |
| Light Bar Style |
Low Profile |
| Housing Height |
41mm |
| Length |
251mm |
| Width |
170mm |
| Mount Options |
Magnetic and 4 Bolt Bracket |
| IP Rating |
IP67 |
| Certification |
SAE Class 1, EMC R10 |
| Housing Colour |
Black Top / Amber Lens |
| Warranty |
12 Months |
Compatible With / Goes Well With
The OEX ACX5732 is compatible with 12V and 24V vehicles across light commercial vehicles, utes, trucks, agricultural tractors and machinery, tow trucks, road maintenance vehicles, municipal fleet, and emergency services vehicles requiring an amber warning presence. Suitable for permanent bracket mounting to roof, cab, or tray structures via 4 bolt fixing, or temporary magnetic attachment to any ferrous metal roof or panel. Pairs well with OEX and compatible warning light wiring harnesses and switch panels, OEX rocker switches and switch panel accessories for cab-mounted control, OEX circuit breakers and inline fuse holders for circuit protection, and OEX cable management accessories for clean permanent wiring installations.
Frequently Asked Questions
What is SAE Class 1 certification and why does it matter when choosing a warning light?
SAE Class 1 is the highest performance tier under the Society of Automotive Engineers J845 warning light standard, which specifies minimum light output intensity, flash pattern frequency, and visibility requirements for vehicle warning lights. A Class 1 rating confirms the ACX5732 meets the most stringent output requirements in the SAE standard, making it suitable for the most demanding emergency and warning signalling applications including emergency services, hazmat response, roadside assistance, and high-speed highway work zone applications. Lower-rated Class 2 and Class 3 lights meet reduced output requirements suited to lower-speed or lower-urgency applications. Always check local state and territory regulations regarding which SAE class is required for your specific vehicle type and application.
What does EMC R10 approval mean for the ACX5732?
EMC R10 refers to UN ECE Regulation 10, which is the electromagnetic compatibility standard for vehicles and their components in European and many international regulatory frameworks. R10 approval confirms that the ACX5732 does not emit electromagnetic interference exceeding regulated limits that could affect vehicle electronics, radio communications, GPS receivers, or other sensitive equipment on the host vehicle or in the surrounding environment. For fleet operators and emergency services where reliable radio communications are critical, EMC R10 approval provides assurance that the warning light will not interfere with in-vehicle communications systems.
Can I use the ACX5732 for both temporary and permanent installation?
Yes. The ACX5732 includes both a magnetic base for quick temporary attachment to any ferrous metal surface and a 4 bolt bracket for secure permanent installation. The magnetic mount is particularly practical for hire fleet vehicles, temporary traffic management applications, and situations where the light needs to be moved between vehicles. The 4 bolt bracket provides a more secure, vibration-resistant connection for vehicles operating in high-vibration agricultural, off-road, or commercial environments where a magnetic mount alone may not provide adequate retention.

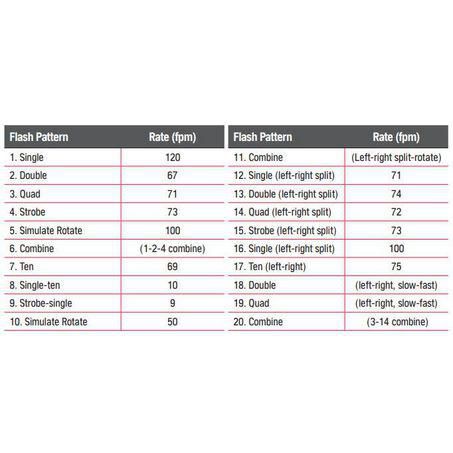

How do I select between the 20 flash patterns on the ACX5732?
Flash pattern selection on the ACX5732 is typically cycled using the control input — usually by briefly interrupting the power supply or using a dedicated pattern select input if wired accordingly. Refer to the included instruction sheet for the specific pattern selection procedure for the ACX5732. The 20 available patterns typically include single, double, and quad flash sequences, rotating and alternating patterns, solid on, and various combination sequences at different flash rates. Select the pattern that meets local regulatory requirements for your specific vehicle type and application.
Are there regulations governing the use of amber warning lights on vehicles in Australia?
Yes. The use of amber warning lights on vehicles in Australia is regulated at state and territory level, and requirements vary depending on the vehicle type, intended application, and jurisdiction. Generally, amber warning lights are permitted on a wide range of vehicles including agricultural machinery, tow trucks, road maintenance vehicles, utilities, and service vehicles, but activation while driving on public roads may be restricted to specific circumstances. Some states require approval or registration of the warning light configuration on the vehicle. Always check the relevant state or territory road rules and any applicable Australian Standards or industry codes before fitting and activating warning lights on public roads or work sites.
