Description

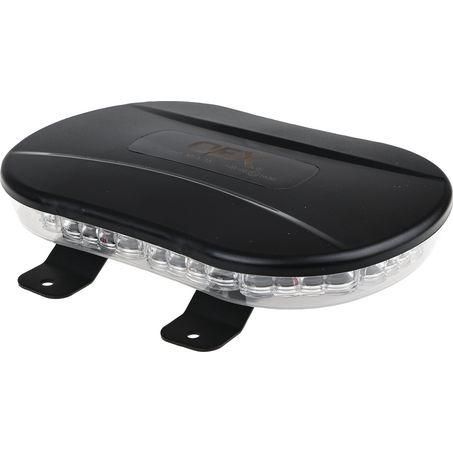

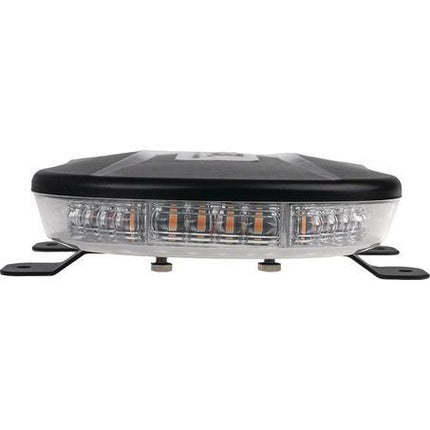

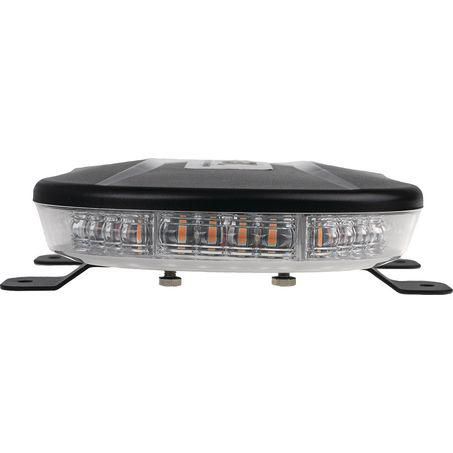

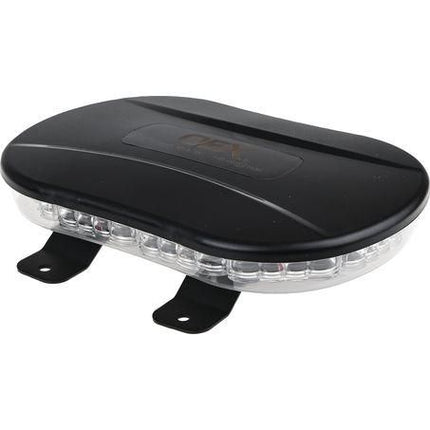

OEX ACX5734 12/24V Low Profile Minibar Amber LED Clear Lens Bracket Mount
Alert and protect with the OEX ACX5734 low profile amber LED minibar featuring a clear lens housing for a clean, modern appearance, 20 selectable flash patterns for versatile warning signalling, dual magnetic and 4 bolt bracket mount options for permanent or temporary installation, IP67 waterproof protection for outdoor and on-road use in all weather conditions, SAE Class 1 certification for compliance with recognised warning light performance standards, EMC R10 electromagnetic compatibility approval, 10-30V wide voltage input for 12V and 24V vehicle compatibility, a slim 41mm low-profile housing with black top, and a 12-month OEX warranty.
Product Overview
The OEX ACX5734 is a professional-grade low-profile amber LED minibar sharing the same core platform as the ACX5732 — including the 41mm slim housing, 20 flash patterns, dual magnetic and bracket mount, SAE Class 1 and IP67 ratings — with the key distinction of a clear lens in place of the amber lens. The clear lens configuration allows the amber LED output to project through without the additional colour filtering effect of an amber lens, which can result in a crisper, sharper perceived flash at close range in some conditions, and provides a cleaner, more contemporary visual appearance when the light is not activated — making the ACX5734 a popular choice for fleet vehicles and service operators who prefer a more discreet, factory-style aesthetic with the lens deactivated. The slim 41mm low-profile housing keeps the ACX5734 within the roofline of most vehicles when permanently bracket-mounted, minimising aerodynamic drag, reducing wind noise, and maintaining a clean vehicle silhouette suitable for on-road use and height-restricted environments including workshops, loading docks, and covered parking areas. Twenty selectable flash patterns provide the flexibility to configure the warning signal for the specific application and regulatory environment, from high-intensity rapid flash for maximum urgency signalling to measured patterns suited to site traffic management and slow-moving equipment hazard marking. The dual magnetic and 4 bolt bracket mount configuration enables quick temporary attachment via the magnetic base or secure permanent installation via the 4 bolt bracket on vehicles operating in high-vibration off-road and commercial environments. SAE Class 1 certification confirms the ACX5734 meets the highest tier of the SAE warning light performance standard, and IP67 waterproof protection ensures reliable operation in heavy rain, water spray, and wash-down conditions.
Features & Benefits
Clear Lens with Amber LED The clear lens provides a clean, contemporary appearance when the light is deactivated, offering a more discreet, factory-style aesthetic compared to an amber lens housing while still delivering the required amber warning output when activated.

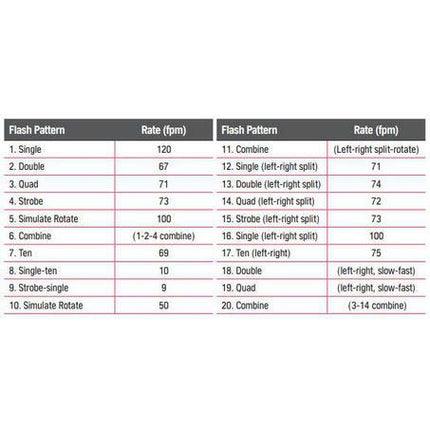

20 Selectable Flash Patterns Comprehensive pattern selection allows configuration of the warning signal for the specific application and regulatory environment, from rapid high-urgency patterns to slower site-speed hazard marking sequences.

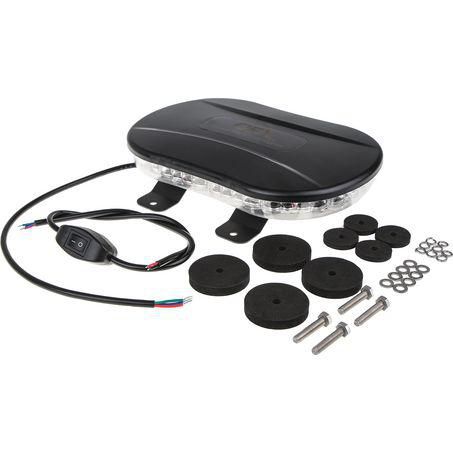

Dual Magnetic and 4 Bolt Bracket Mount Genuine installation versatility for both temporary and permanent fitment — magnetic base enables quick attachment to ferrous metal surfaces for hire fleet and temporary use, while 4 bolt bracket provides a secure, vibration-resistant permanent installation.
SAE Class 1 Certified Meets the highest tier of the SAE warning light performance standard, confirming the ACX5734 delivers the light output and flash intensity required for the most demanding emergency and warning signalling applications.
Low Profile 41mm Housing The slim clear lens and black top housing sits well within the roofline of most vehicles when bracket-mounted, minimising aerodynamic drag, reducing wind noise, and maintaining a discreet vehicle profile suitable for on-road and height-restricted environments.
IP67 Waterproof Protection Certified for continuous submersion up to 1 metre depth, ensuring reliable operation in heavy rain, water spray, road splash, and wash-down conditions across agricultural, municipal, emergency services, and roadside work applications.
EMC R10 Approved Electromagnetic compatibility certification confirms the ACX5734 meets ECE Regulation 10 requirements, ensuring the light does not generate electromagnetic interference that could affect vehicle electronics, communications equipment, or other sensitive systems on the host vehicle.
10-30V Wide Voltage Input Compatible with 12V and 24V vehicle electrical systems across light vehicles, trucks, agricultural machinery, and heavy equipment without requiring voltage-specific variants.
Technical Specs
| Specification |
Detail |
| Brand |
OEX |
| SKU |
ACX5734 |
| Item Type |
Low Profile Minibar |
| LED Colour |
Amber |
| Lens Colour |
Clear |
| Flash Patterns |
20 |
| Voltage Input |
10-30V (12V / 24V) |
| Light Bar Style |
Low Profile |
| Housing Height |
41mm |
| Length |
251mm |
| Width |
170mm |
| Mount Options |
Magnetic and 4 Bolt Bracket |
| IP Rating |
IP67 |
| Certification |
SAE Class 1, EMC R10 |
| Housing Colour |
Black Top / Clear Lens |
| Warranty |
12 Months |
Compatible With / Goes Well With
The OEX ACX5734 is compatible with 12V and 24V vehicles across light commercial vehicles, utes, trucks, agricultural tractors and machinery, tow trucks, road maintenance vehicles, municipal fleet, and emergency services vehicles requiring an amber warning presence. Suitable for permanent bracket mounting to roof, cab, or tray structures via 4 bolt fixing, or temporary magnetic attachment to any ferrous metal roof or panel. Pairs naturally with the OEX ACX5732 amber lens variant for operators choosing between lens options on the same vehicle platform. Pairs well with OEX and compatible warning light wiring harnesses and switch panels, OEX rocker switches and switch panel accessories for cab-mounted control, OEX circuit breakers and inline fuse holders for circuit protection, and OEX cable management accessories for clean permanent wiring installations.
Frequently Asked Questions
What is the difference between the ACX5734 clear lens and the ACX5732 amber lens minibar?
The ACX5734 and ACX5732 are identical in all specifications — same 41mm housing, 20 flash patterns, dual mount options, SAE Class 1, IP67, and 10-30V ratings — with the sole difference being the lens colour. The ACX5732 features an amber lens that adds a warm amber colour filter over the LED output, producing a rich, saturated amber appearance both when activated and when viewed at rest. The ACX5734 features a clear lens that allows the amber LED output to project through unfiltered, resulting in a cleaner, more contemporary appearance when deactivated and a slightly crisper perceived flash in some conditions. The choice is largely aesthetic and application-specific — amber lens suits a traditional high-visibility appearance, while clear lens suits operators preferring a more modern, discreet look when the light is off.
What is SAE Class 1 certification and why does it matter when choosing a warning light?
SAE Class 1 is the highest performance tier under the Society of Automotive Engineers J845 warning light standard, which specifies minimum light output intensity, flash pattern frequency, and visibility requirements for vehicle warning lights. A Class 1 rating confirms the ACX5734 meets the most stringent output requirements in the SAE standard, making it suitable for the most demanding emergency and warning signalling applications including emergency services, roadside assistance, and high-speed highway work zone applications. Lower-rated Class 2 and Class 3 lights meet reduced output requirements suited to lower-speed or lower-urgency applications. Always check local state and territory regulations regarding which SAE class is required for your specific vehicle type and application.
Can I use the ACX5734 for both temporary and permanent installation?
Yes. The ACX5734 includes both a magnetic base for quick temporary attachment to any ferrous metal surface and a 4 bolt bracket for secure permanent installation. The magnetic mount is practical for hire fleet vehicles, temporary traffic management applications, and situations where the light needs to be moved between vehicles. The 4 bolt bracket provides a more secure, vibration-resistant connection for vehicles operating in high-vibration agricultural, off-road, or commercial environments where a magnetic mount alone may not provide adequate retention.
What does EMC R10 approval mean for the ACX5734?
EMC R10 refers to UN ECE Regulation 10, the electromagnetic compatibility standard for vehicles and their components. R10 approval confirms the ACX5734 does not emit electromagnetic interference exceeding regulated limits that could affect vehicle electronics, radio communications, GPS receivers, or other sensitive equipment on the host vehicle. For fleet operators and emergency services where reliable radio communications are critical, EMC R10 approval provides assurance that the warning light will not interfere with in-vehicle communications systems.
Are there regulations governing the use of amber warning lights on vehicles in Australia?
Yes. The use of amber warning lights on vehicles in Australia is regulated at state and territory level, and requirements vary depending on the vehicle type, intended application, and jurisdiction. Generally, amber warning lights are permitted on a wide range of vehicles including agricultural machinery, tow trucks, road maintenance vehicles, utilities, and service vehicles, but activation while driving on public roads may be restricted to specific circumstances. Always check the relevant state or territory road rules and any applicable Australian Standards or industry codes before fitting and activating warning lights on public roads or work sites.
