Description

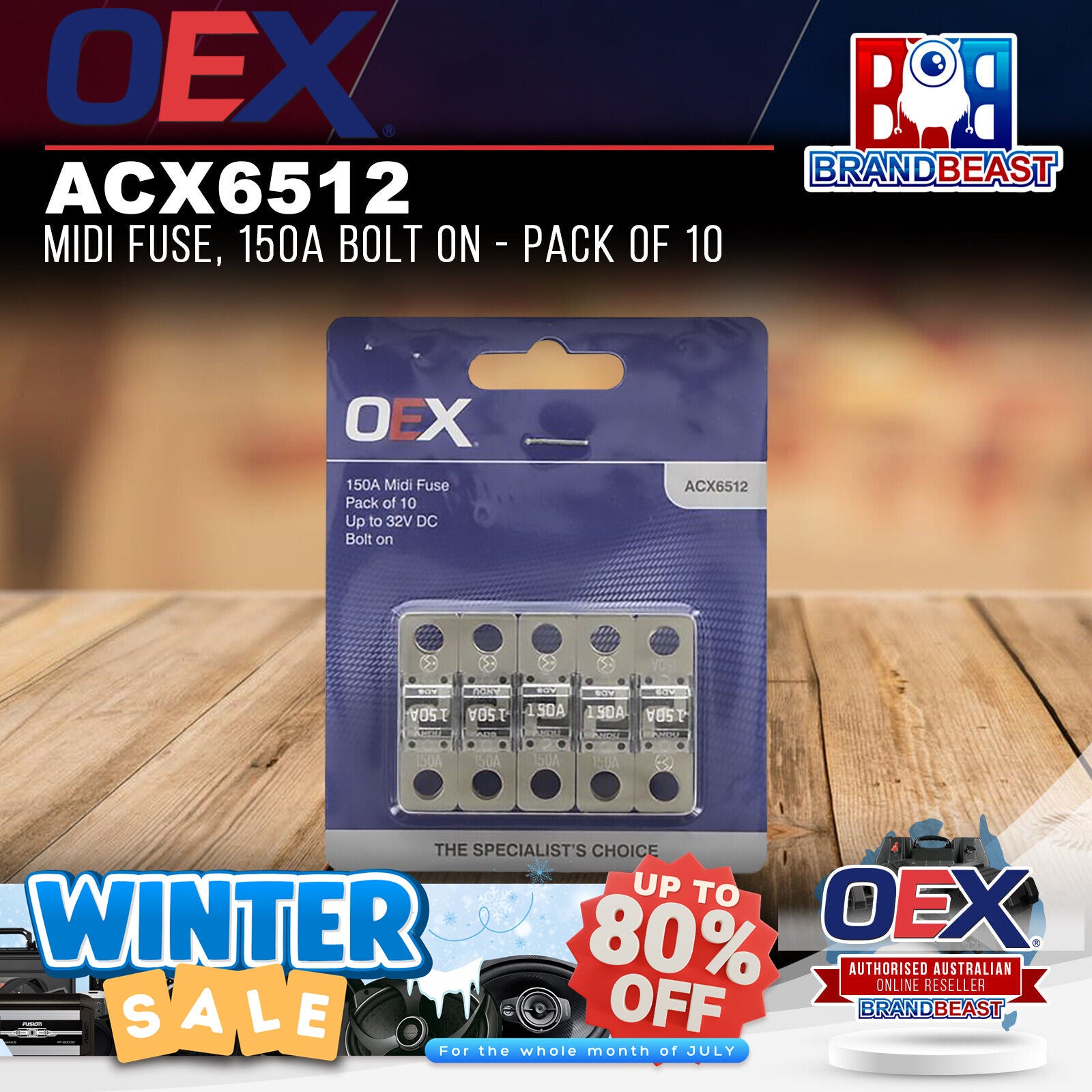

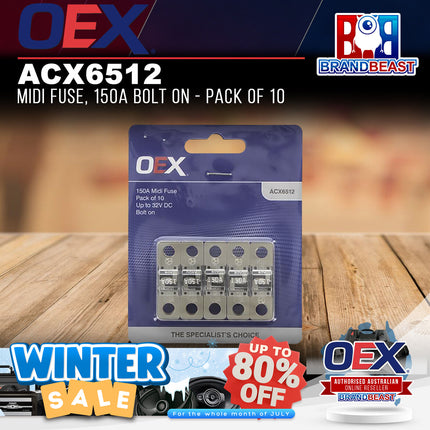

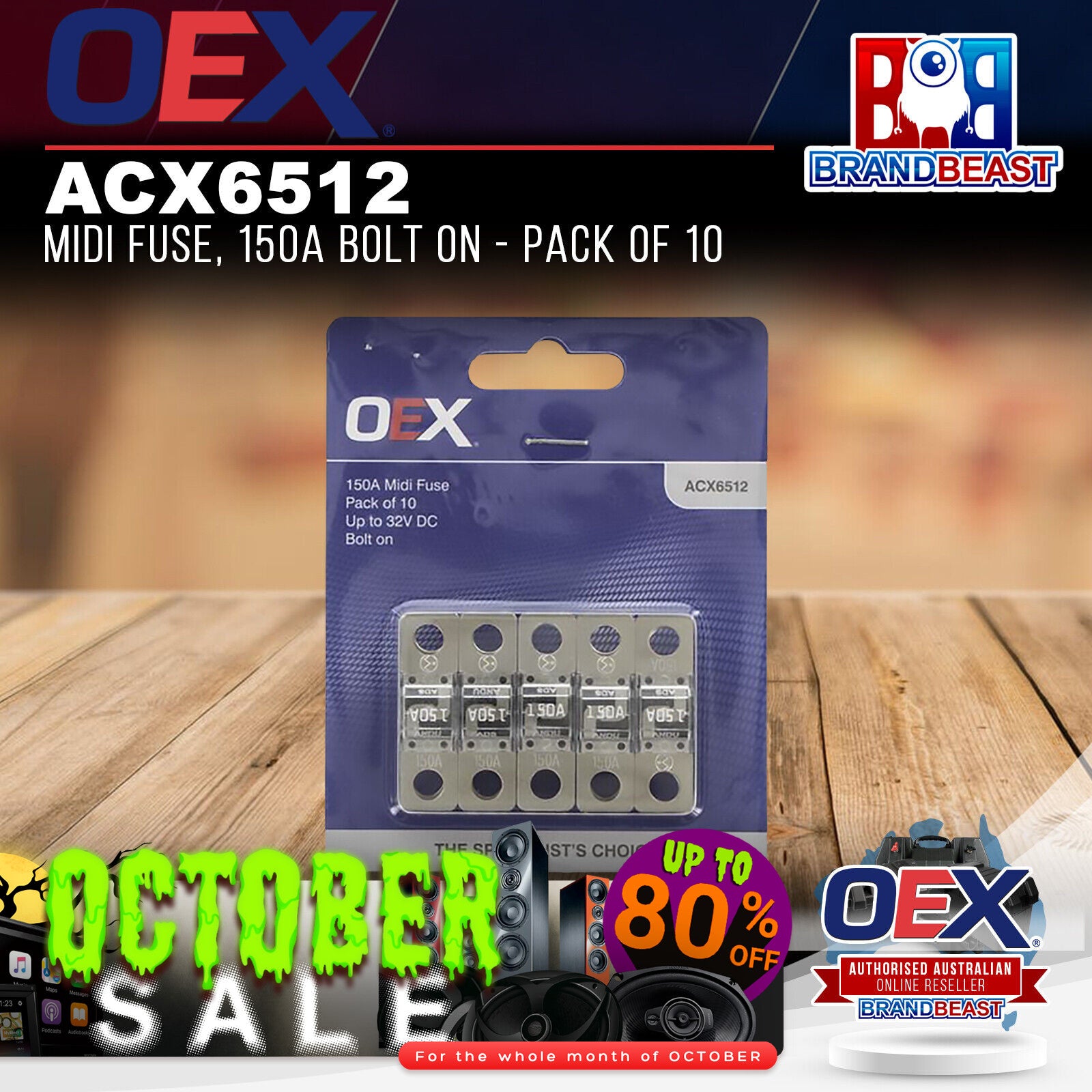

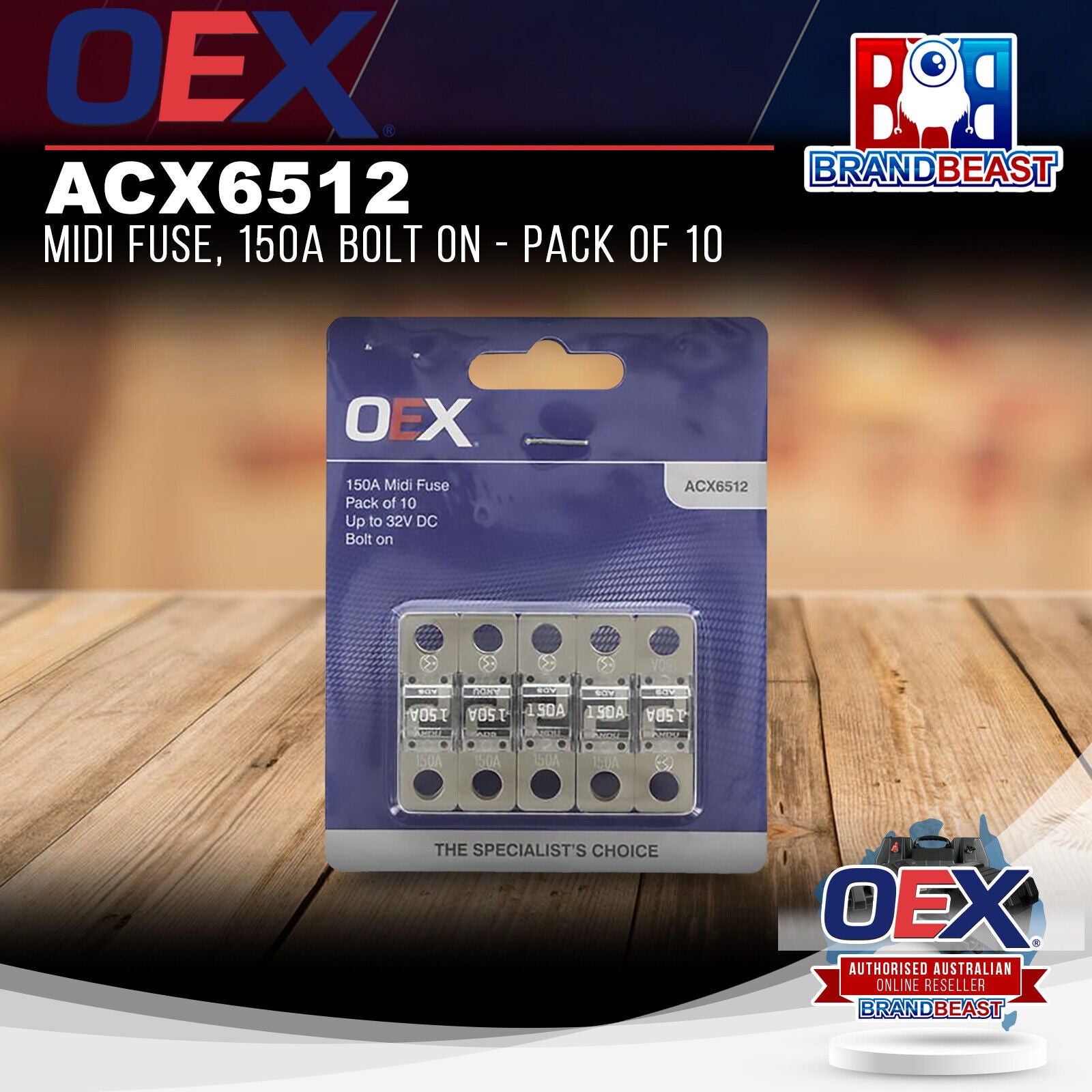

OEX ACX6512 150A Midi Fuse Bolt On Pack of 10
The OEX ACX6512 is a 150A Midi fuse with a bolt on mounting design and 32V DC rating. It features copper tin plated construction, a fuse element window and 30mm centre to centre mounting, supplied as a pack of 10.
Product overview
Designed for automotive electrical applications, the ACX6512 provides a 150A fuse solution with a bolt on mounting configuration. The copper tin plated construction provides the specified material finish, while the fuse element window allows the fuse element to be viewed.
Each fuse measures 41mm in length and uses a 30mm centre to centre mounting measurement. The pack contains 10 fuses and the ACX6512 is also available as a single pack under part number ACX6512BL.
Features and benefits
150A fuse rating: Provides circuit protection: Rated at 150A for compatible automotive electrical applications.
Midi fuse type: Designed for Midi fuse applications: Uses the Midi fuse format with a bolt on mounting design.
32V DC rating: Suitable for specified DC systems: Rated for 32V DC applications.
Copper tin plated construction: Specified conductive material: Features copper with a tin plated finish.
Fuse element window: Provides visual inspection: Includes a window that allows the fuse element to be viewed.
30mm mounting measurement: Defined installation spacing: The mounting points measure 30mm centre to centre.
Pack of 10: Supplied for multiple applications: Each pack contains 10 individual 150A Midi fuses.
Technical specs
| Specification |
Detail |
| Part Number |
ACX6512 |
| Brand |
OEX |
| Type |
Fuse |
| Fuse Type |
Midi |
| Amps |
150A |
| Voltage Rating |
32V DC |
| Length |
41mm |
| Mounting |
Centre to centre 30mm |
| Construction |
Copper tin plated |
| Fuse Type Code |
SF30 |
| Pack Quantity |
10 |
| Weight |
0.1kg |
| Warranty |
One Year |
Frequently asked questions
What amp rating is the OEX ACX6512 Midi Fuse? The OEX ACX6512 is rated at 150A and uses a Midi fuse design with a bolt on mounting configuration, making it suitable for compatible electrical applications requiring a 150A fuse.
What voltage is the ACX6512 rated for? The OEX ACX6512 has a 32V DC rating, making it suitable for electrical systems operating within the specified voltage rating. The product data specifically identifies the fuse as a 32V DC Midi fuse.
How many fuses are included in the ACX6512 pack? The ACX6512 is supplied as a pack of 10 individual 150A Midi fuses, providing multiple replacement fuses for applications requiring the same fuse specification.
What is the mounting measurement of the ACX6512? The OEX ACX6512 uses a bolt on mounting design with the mounting points positioned 30mm centre to centre. The fuse has an overall length of 41mm and includes a fuse element window for visual inspection.
Is the ACX6512 available as a single fuse? Yes. The OEX ACX6512 is also available as a single pack under part number ACX6512BL. The ACX6512 version covered here is supplied as a pack of 10.
