Description

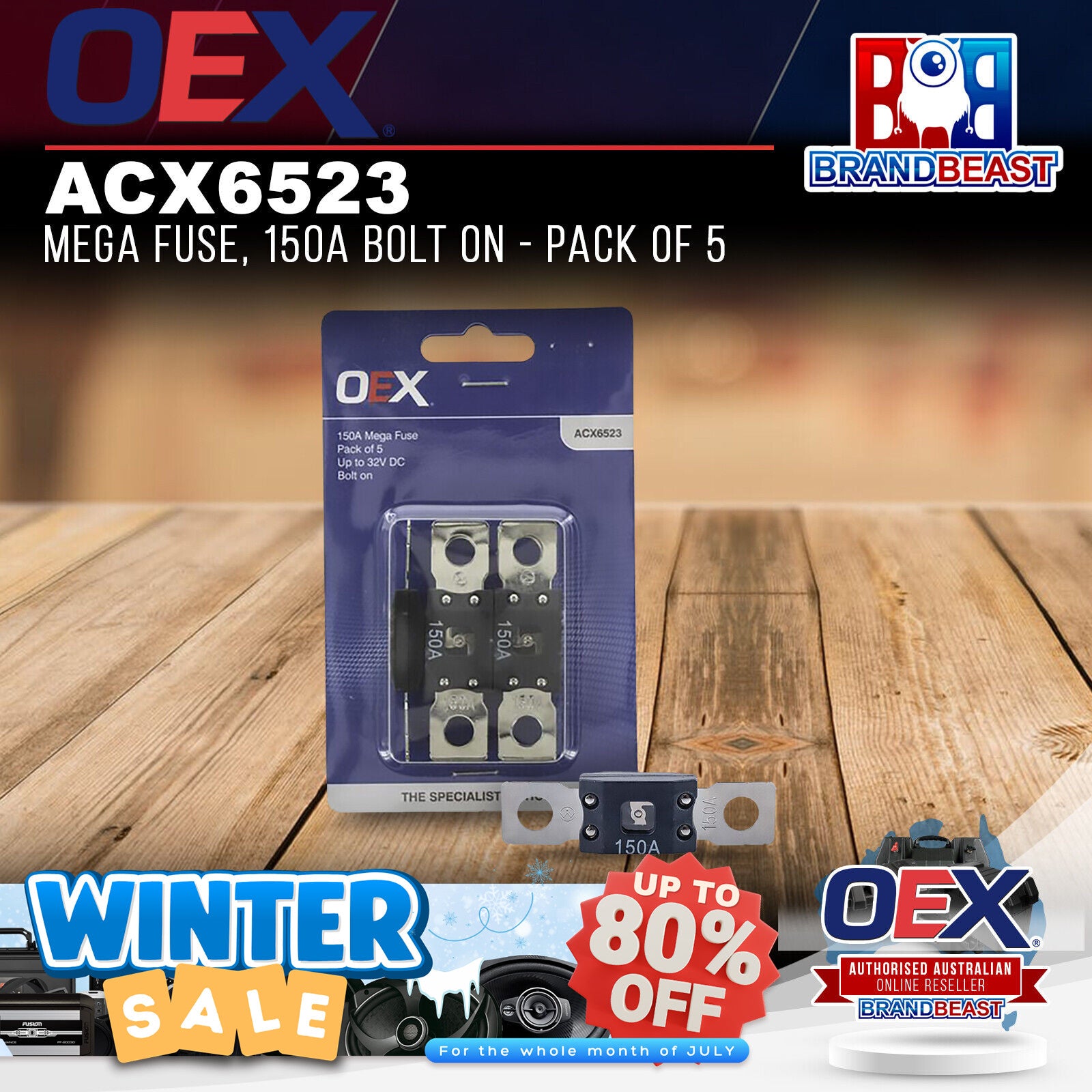

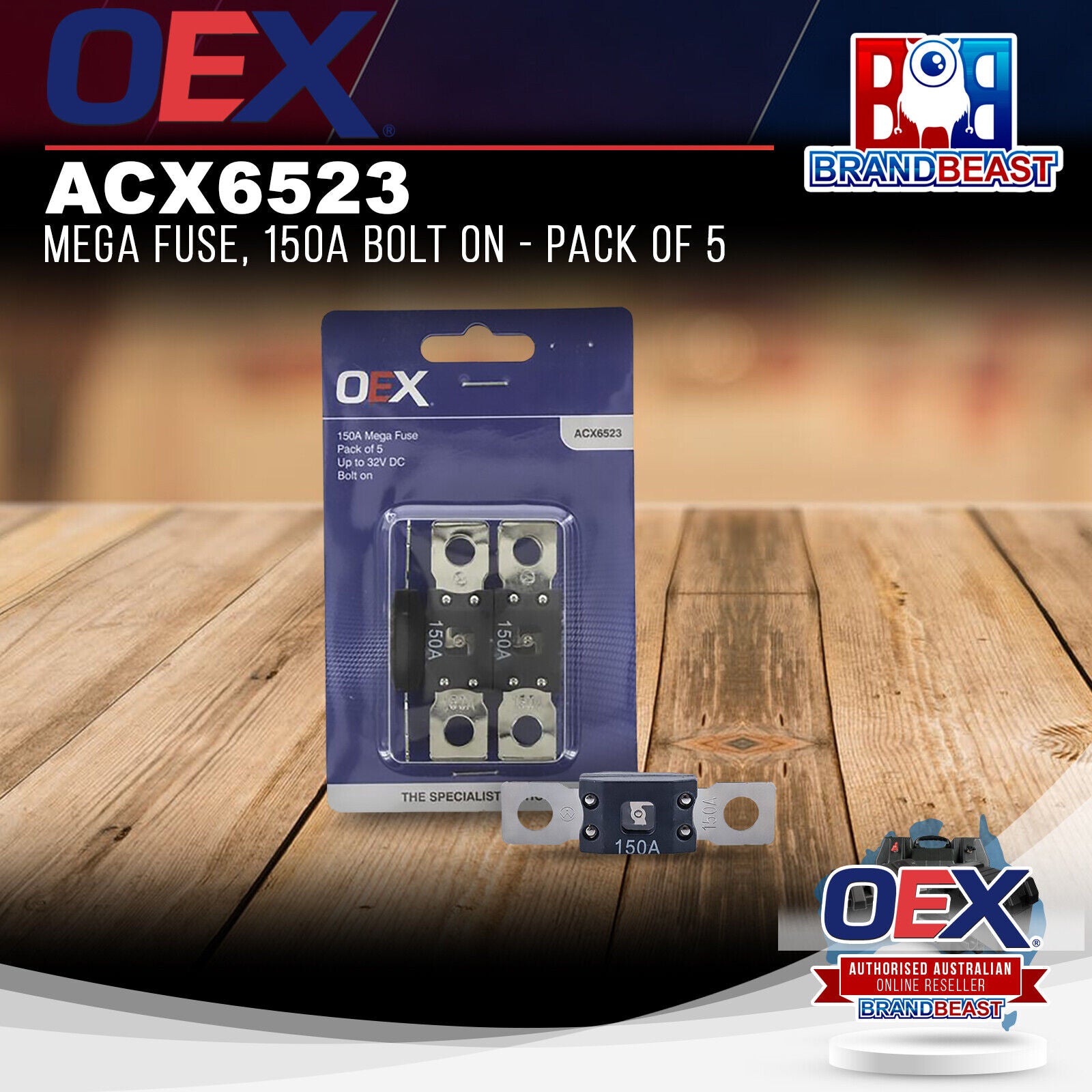

OEX ACX6523 150A Bolt On Mega Fuse SF51 Type Copper Tin Plated Pack of 5
The OEX ACX6523 is a 150A bolt-on mega fuse of SF51 type, rated to 32V DC with copper tin plated contacts. Measuring 68.5mm in length with a 50.8mm centre-to-centre mounting distance, it is supplied in a pack of 5. Covered by a one-year warranty. Also available individually as the ACX6523BL.
Product overview
The ACX6523 is the 150A variant in the OEX SF51 mega fuse range, providing higher-current main circuit protection for demanding 12V and 24V automotive, caravan and marine electrical installations. The bolt-on SF51 format delivers a secure, vibration-resistant connection suited to high-draw applications including large amplifier main feeds, dual battery system protection, winch circuits and heavy commercial accessory installations. Copper tin plated contacts provide reliable conductivity and oxidation resistance across the service life of the fuse.
The pack of 5 suits workshop, trade and owner-installer use where having spare fuses readily available alongside the installed unit is practical. The 50.8mm centre-to-centre bolt spacing is compatible with a wide range of SF51 mega fuse holders. The single-unit version is available as ACX6523BL.
Features and benefits
150A rated mega fuse: 150A rating suits high-current main circuit protection in 12V and 24V systems including large amplifier feeds, winch installations, dual battery systems and heavy commercial accessory circuits.
Bolt-on SF51 type: Bolt-on connection provides a secure, vibration-resistant installation suited to high-current applications where connection integrity is critical.
Copper tin plated contacts: Tin-plated copper contacts provide reliable conductivity and resist oxidation over time, maintaining consistent fuse performance.
32V DC rating: Compatible with both 12V and 24V DC vehicle electrical systems within the 32V rating.
68.5mm length: Standard SF51 mega fuse length compatible with a wide range of mega fuse holders.
50.8mm centre-to-centre mounting: Standard SF51 bolt spacing compatible with a wide range of mega fuse holders.
Pack of 5: Five fuses per pack provides spares for workshop or trade use alongside the installed fuse.
One year warranty: Covered by a one-year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX6523 |
| Brand |
OEX |
| Fuse Type |
Mega (SF51) |
| Amperage |
150A |
| Voltage Rating |
32V DC |
| Contact Material |
Copper tin plated |
| Length |
68.5mm |
| Mount Centre to Centre |
50.8mm |
| Pack Quantity |
5 |
| Warranty |
One year |
| Sold As |
Pack of 5 |
Frequently asked questions
How does the ACX6523 compare to other OEX mega fuses in this range? The OEX SF51 mega fuse range includes the ACX6519 (60A), ACX6520 (80A), ACX6522 (125A) and ACX6523 (150A). All share the same SF51 format and 50.8mm mount spacing. Select the correct amperage for your circuit protection requirements.
Is the ACX6523 available individually? Yes. The ACX6523BL is the single-unit version of this fuse. Contact us to order the single pack if you only need one fuse.
What fuse holder is compatible with the ACX6523? The ACX6523 uses a standard SF51 mega fuse format with 50.8mm centre-to-centre bolt spacing, compatible with mega fuse holders designed for this spacing. Contact us if you need help selecting a compatible OEX fuse holder.
Can the ACX6523 be used in a 24V system? Yes. The ACX6523 is rated to 32V DC, covering both 12V and 24V vehicle electrical systems.
Is the 150A rating suitable for my application? 150A suits high-current main circuit protection including large amplifier feeds, winch installations and dual battery systems. If you are unsure whether 150A is the correct rating for your circuit, contact us for advice. OEX mega fuses are available in other amperage ratings if a different value is required.
