Description

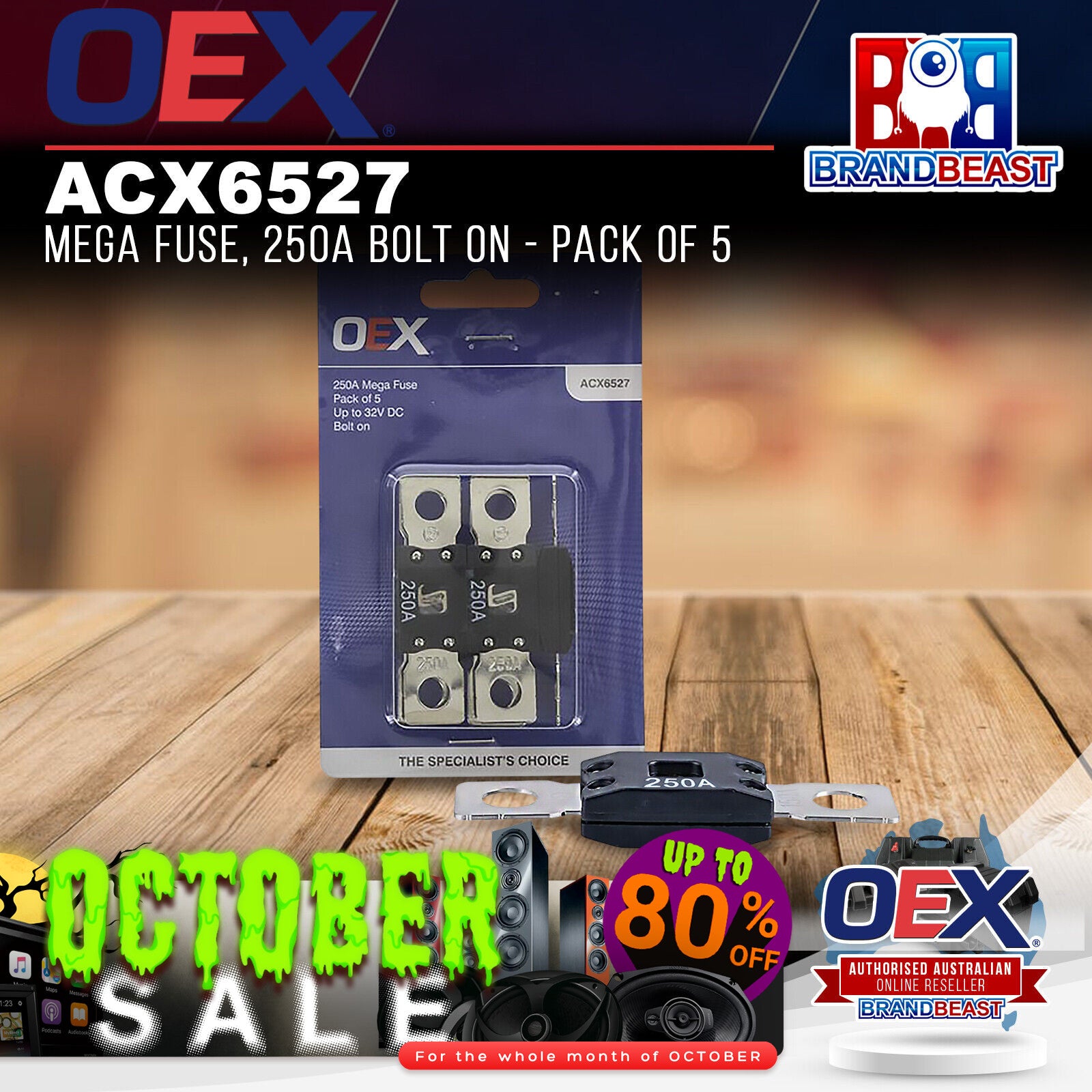

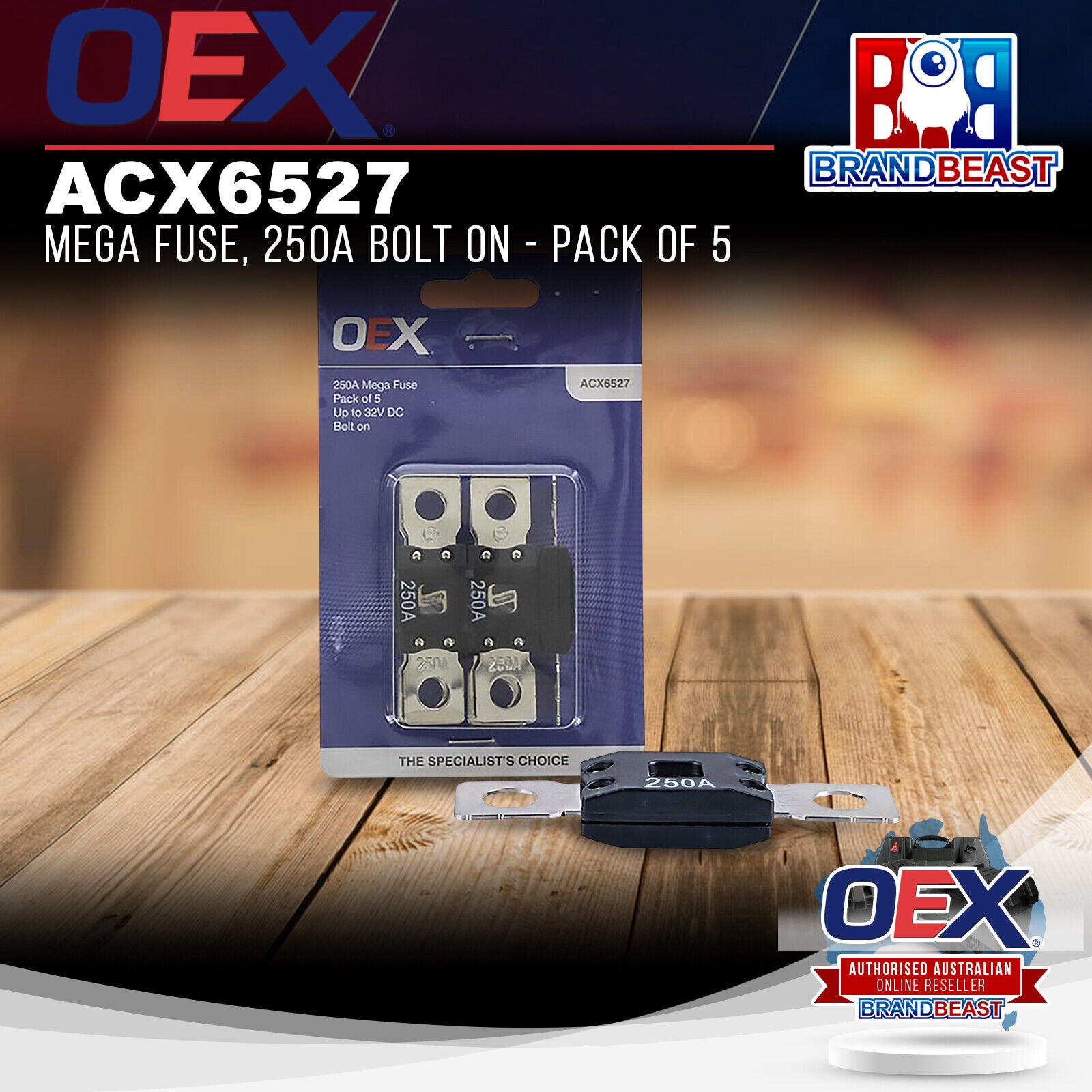

OEX ACX6527 250A Bolt On Mega Fuse SF51 Type Copper Tin Plated Pack of 5
The OEX ACX6527 is a 250A bolt-on mega fuse of SF51 type, rated to 32V DC with copper tin plated contacts. Measuring 68.5mm in length with a 50.8mm centre-to-centre mounting distance, it is supplied in a pack of 5. Covered by a one-year warranty. Also available individually as the ACX6527BL.
Product overview
The ACX6527 is the highest-rated variant in the OEX SF51 mega fuse range at 250A, designed for main circuit protection on the heaviest-draw 12V and 24V electrical installations. Applications include main battery-to-distribution feeds, high-current winch systems, large multi-amplifier audio installations and heavy commercial vehicle accessory circuits where lower-rated fuses would not provide adequate protection. The bolt-on SF51 format delivers a secure, vibration-resistant connection that handles sustained high-current loads without the connection integrity concerns of lighter fuse formats.
Copper tin plated contacts provide reliable conductivity and oxidation resistance across the service life of the fuse. The pack of 5 suits workshop, trade and owner-installer use. The 50.8mm centre-to-centre bolt spacing is compatible with a wide range of SF51 mega fuse holders, and the single-unit version is available as ACX6527BL.
Features and benefits
250A rated mega fuse: The highest-rated fuse in the OEX SF51 mega range at 250A, suited to main battery feeds, high-current winch systems, multi-amplifier installations and heavy commercial accessory circuits.
Bolt-on SF51 type: Bolt-on connection provides a secure, vibration-resistant installation suited to sustained high-current loads where connection integrity is critical.
Copper tin plated contacts: Tin-plated copper contacts provide reliable conductivity and resist oxidation over time, maintaining consistent fuse performance.
32V DC rating: Compatible with both 12V and 24V DC vehicle electrical systems within the 32V rating.
68.5mm length: Standard SF51 mega fuse length compatible with a wide range of mega fuse holders.
50.8mm centre-to-centre mounting: Standard SF51 bolt spacing compatible with a wide range of mega fuse holders.
Pack of 5: Five fuses per pack provides spares for workshop or trade use alongside the installed fuse.
One year warranty: Covered by a one-year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX6527 |
| Brand |
OEX |
| Fuse Type |
Mega (SF51) |
| Amperage |
250A |
| Voltage Rating |
32V DC |
| Contact Material |
Copper tin plated |
| Length |
68.5mm |
| Mount Centre to Centre |
50.8mm |
| Pack Quantity |
5 |
| Warranty |
One year |
| Sold As |
Pack of 5 |
Frequently asked questions
How does the ACX6527 compare to other OEX mega fuses in this range? The OEX SF51 mega fuse range includes the ACX6519 (60A), ACX6520 (80A), ACX6522 (125A), ACX6523 (150A) and ACX6527 (250A). All share the same SF51 format and 50.8mm mount spacing. The ACX6527 is the highest-rated option in the range, suited to the heaviest-draw main circuit applications.
Is the ACX6527 available individually? Yes. The ACX6527BL is the single-unit version of this fuse. Contact us to order the single pack if you only need one fuse.
What fuse holder is compatible with the ACX6527? The ACX6527 uses a standard SF51 mega fuse format with 50.8mm centre-to-centre bolt spacing, compatible with mega fuse holders designed for this spacing. Contact us if you need help selecting a compatible OEX fuse holder.
Can the ACX6527 be used in a 24V system? Yes. The ACX6527 is rated to 32V DC, covering both 12V and 24V vehicle electrical systems.
Is the 250A rating suitable for my application? 250A is suited to the heaviest-draw main circuit protection applications including large battery-to-distribution feeds, high-current winch systems and multi-amplifier installations. If you are unsure whether 250A is the correct rating for your circuit, contact us for advice.
