Description

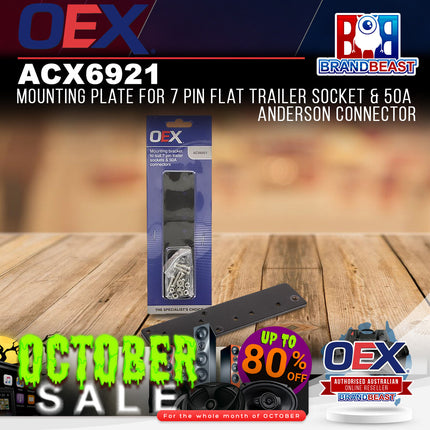

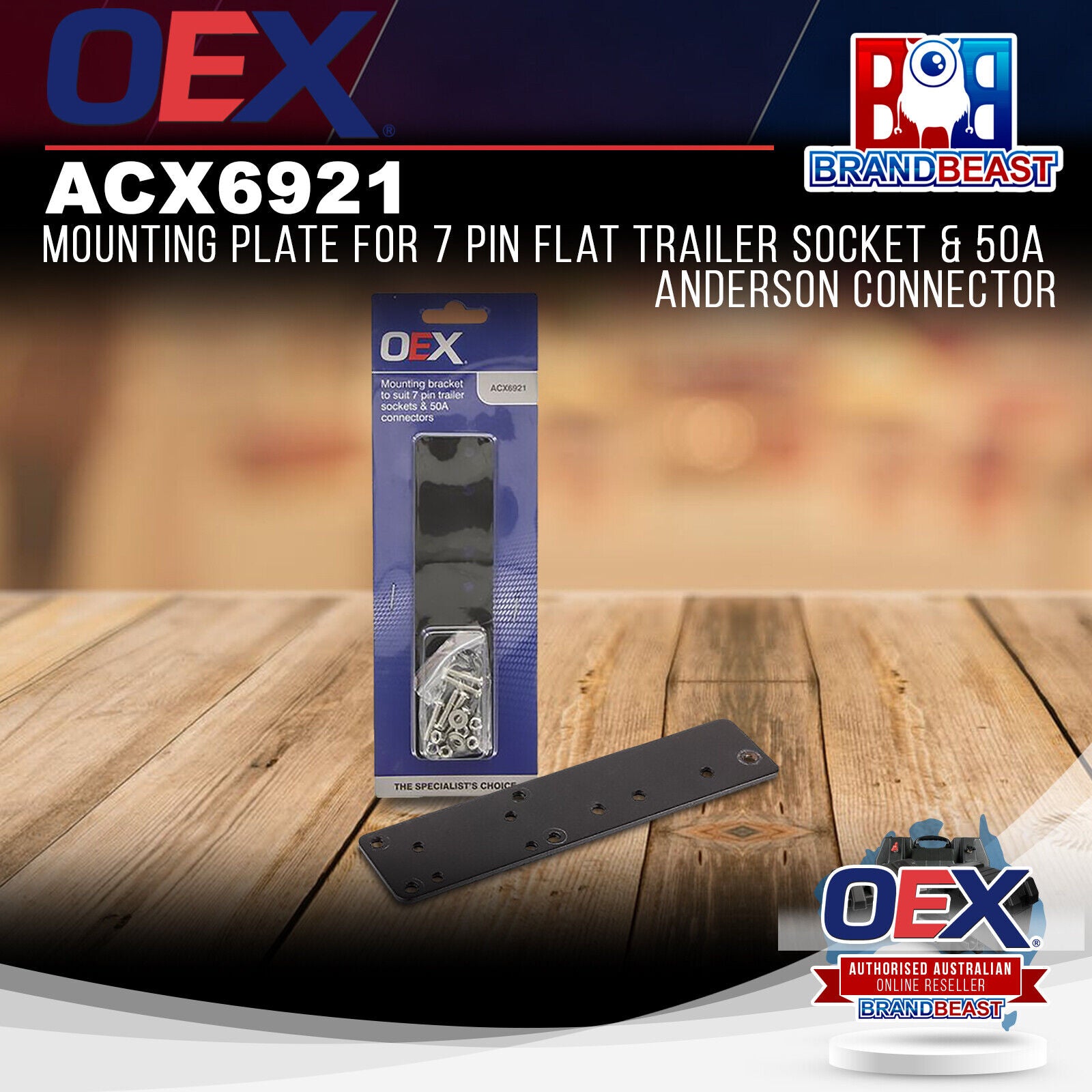

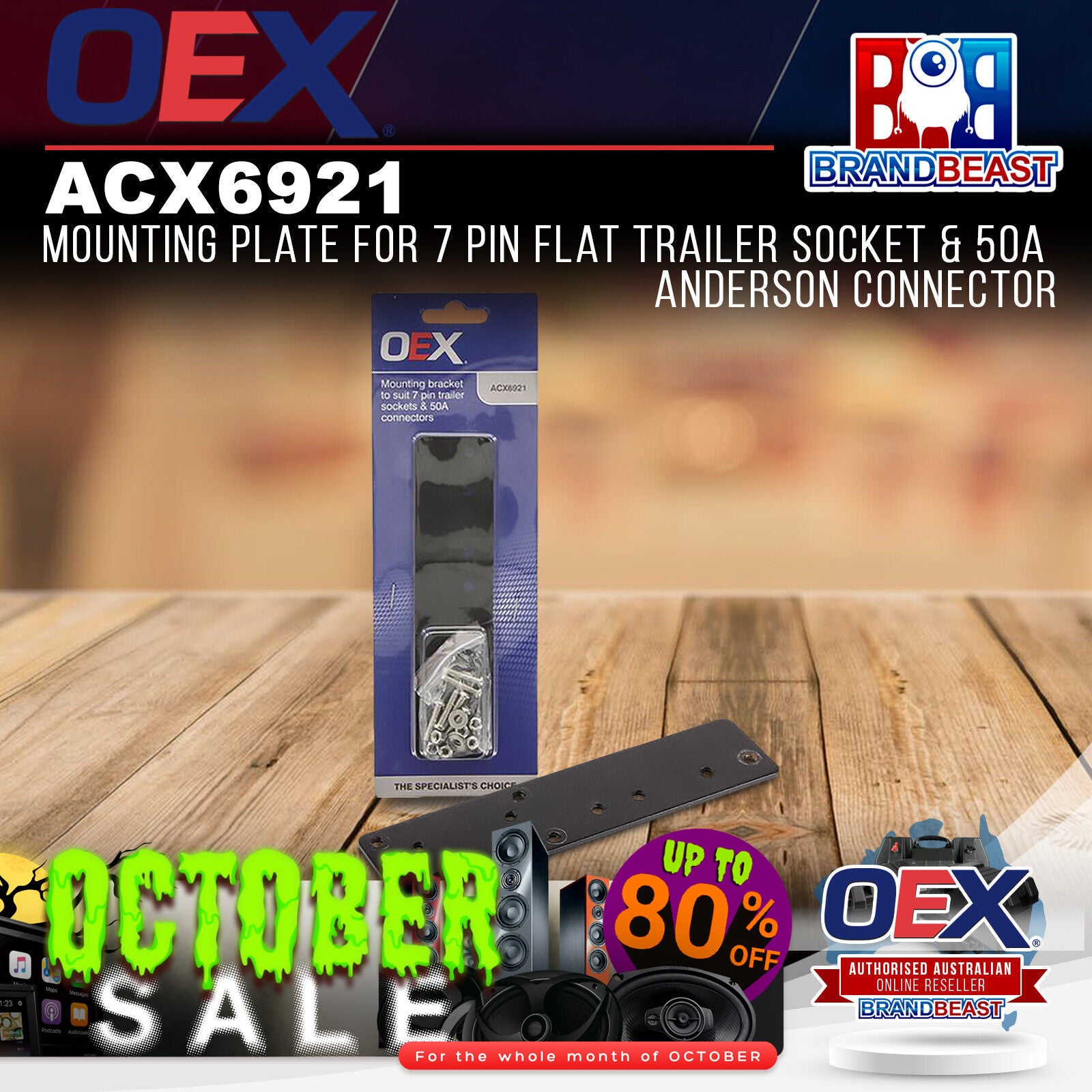

OEX ACX6921 Mounting Plate for 7 Pin Flat Trailer Socket and 50A Anderson Plug Connector
The OEX ACX6921 is a 3mm pre-drilled black powder coated steel mounting plate designed to suit 7 pin flat trailer sockets and 50A Anderson plug connectors. Measuring 160mm x 40mm x 3mm, it includes stainless steel mounting hardware and is supplied individually. The 7 pin flat socket, 50A Anderson connector (ACX2760) and connector housing (ACX2768) are all sold separately. A pack of 10 is available as the ACX2841.
Product overview
The ACX6921 provides a purpose-built mounting solution for combining a 7 pin flat trailer socket and a 50A Anderson plug connector in a single, neat panel installation. The 3mm powder coated steel plate is pre-drilled for both connector types, removing the need to fabricate a custom bracket, and the black powder coat finish provides corrosion resistance for tow bar and chassis mounting environments. Stainless steel mounting hardware is included in the pack.
At 160 x 40 x 3mm, the plate is compact enough for standard tow bar tongue and chassis rail mounting positions. The sockets and connectors the plate is designed for must be sourced separately the 7 pin flat socket, the ACX2760 50A Anderson connector and the ACX2768 connector housing are each sold independently. Installers needing multiple plates for fleet or trade work can purchase the pack of 10 version as the ACX2841.
Features and benefits
Pre-drilled 3mm steel plate: Pre-drilled holes for 7 pin flat trailer sockets and 50A Anderson connectors remove the need for custom fabrication, simplifying installation.
Black powder coat finish: Corrosion-resistant black powder coat finish suits tow bar, chassis and outdoor mounting environments.
Stainless steel mounting hardware included: Stainless steel hardware is supplied in the pack, providing corrosion-resistant fastening for the mounting plate itself.
160mm x 40mm x 3mm dimensions: Compact footprint suited to standard tow bar tongue and chassis rail mounting positions.
Compatible with 7 pin flat sockets and 50A Anderson connectors: Designed to accept both connector types in a single plate, providing a tidy combined trailer power and auxiliary power mounting point.
Pack of 10 available: For fleet, trade or multi-vehicle installations, a pack of 10 is available as the ACX2841.
One year warranty: Covered by a one-year OEX warranty.
Technical specs
| Specification |
Detail |
| SKU |
ACX6921 |
| Brand |
OEX |
| Material |
3mm powder coated steel |
| Finish |
Black powder coat |
| Dimensions |
160mm x 40mm x 3mm |
| Compatible Connectors |
7 pin flat trailer socket, 50A Anderson plug |
| Hardware |
Stainless steel mounting hardware included |
| Pack Quantity |
1 |
| Warranty |
One year |
| Sold As |
Each |
Frequently asked questions
Does the ACX6921 include the 7 pin flat socket or Anderson connector? No. The ACX6921 is a mounting plate only. The 7 pin flat trailer socket, the ACX2760 50A Anderson connector and the ACX2768 50A connector housing are all sold separately. Contact us to add these to your order.
What is the ACX2841? The ACX2841 is the pack of 10 version of the ACX6921 mounting plate. It contains the same plate in a bulk quantity suited to fleet, trade or multi-vehicle installations. Contact us for pricing and availability.
What material and finish is the ACX6921 made from? The ACX6921 is made from 3mm steel with a black powder coat finish, providing structural rigidity and corrosion resistance for outdoor and tow bar mounting environments.
Is the ACX6921 suitable for outdoor and tow bar mounting? Yes. The 3mm powder coated steel construction and stainless steel mounting hardware make the ACX6921 suited to outdoor, tow bar tongue and chassis rail mounting. Ensure all connectors and sockets installed in the plate are also rated for outdoor use.
Can the ACX6921 be used with other connector types? The ACX6921 is pre-drilled specifically for 7 pin flat trailer sockets and 50A Anderson plug connectors. Compatibility with other connector formats cannot be confirmed without verifying the hole dimensions against the connector's mounting footprint.
