Description

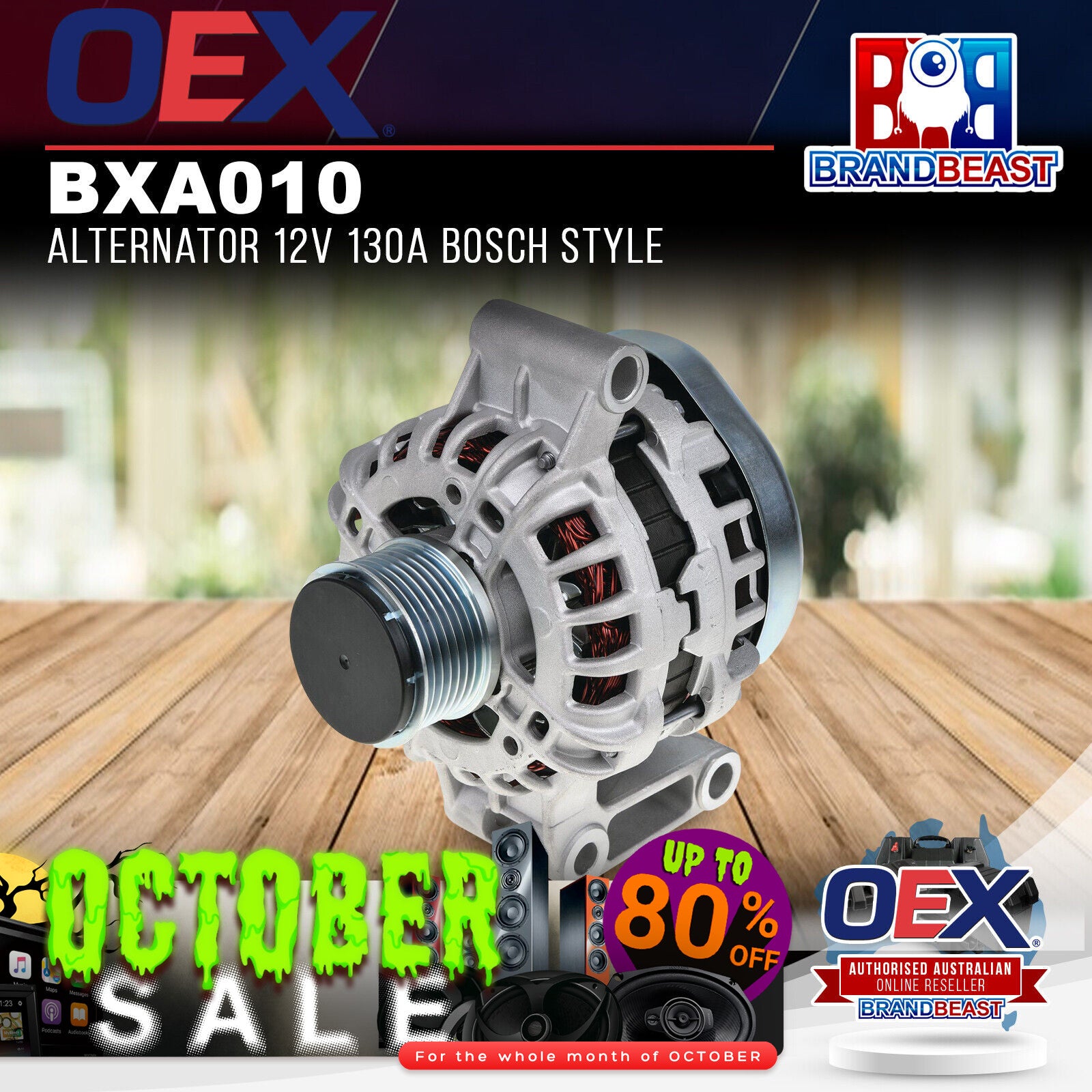

OEX BXA010 12V 130A Bosch Style Alternator, Pad Mount, 7 Groove Pulley, Internal Regulator, New Unit
The BXA010 from OEX is a new 12V 130A alternator in Bosch style with a pad mount, 7-groove pulley, and internal regulator. It features a 59mm pulley outside diameter, 175mm mount centre to centre, 60mm mount leg thickness, and 11mm mount hole diameter. Pin code IR161. Important: the BXA010 is one of two identical-looking alternators with different regulator functions. Identification must be made by OE number. This unit replaces the standard pulley version only.
Product overview
The BXA010 is a direct replacement alternator for applications requiring a Bosch-style unit with a pad mount and internal regulator at 130A output. A critical identification note applies to this unit: there are two alternators that appear visually identical but have different regulator functions. Selecting the wrong unit will result in incorrect regulator operation. Identification must be confirmed by OE number before ordering, and the BXA010 is confirmed to replace the standard pulley version only.
The 7-groove pulley suits multi-ribbed belt drive systems found in the engine applications this unit replaces. OEX products are sourced from market-leading original equipment manufacturers and aftermarket suppliers, and this unit carries a 3-year warranty for passenger vehicle applications and a 1-year warranty for commercial applications.
Features and benefits
New unit, not remanufactured: The BXA010 is supplied as a new alternator, providing confidence in output performance and service life from the point of installation.
130A output at 12V: Delivers 130A of charging output at 12V, suited to the electrical demands of the engine applications this unit is designed to replace.
Pad mount configuration: The pad mount with 175mm centre-to-centre measurement, 60mm leg thickness, and 11mm mount hole diameter suits the bracket arrangements of confirmed Bosch-style applications requiring this mount type.
7-groove pulley: The 59mm outside diameter 7-groove pulley suits multi-ribbed belt drive systems found in the applications this alternator is built to replace.
Internal regulator: Fitted with an internal voltage regulator (pin code IR161), eliminating the need for an external regulator in compatible applications.
Confirm by OE number before ordering: The BXA010 is one of two identical-looking Bosch-style alternators with different regulator functions. Visual identification is not sufficient. Always confirm the correct unit by OE number. The BXA010 replaces the standard pulley version only.
3-year passenger warranty: Backed by a 3-year warranty for passenger vehicle applications and a 1-year warranty for commercial applications.
Technical specs
| Specification |
Detail |
| SKU |
BXA010 |
| Brand |
OEX |
| Voltage |
12V |
| Power Rating |
130A |
| Suits Unit Make |
Bosch Style |
| Alternator Mount |
Pad |
| Mount Centre to Centre |
175mm |
| Mount Leg Thickness |
60mm |
| Mount Hole Diameter |
11mm |
| Pulley Outside Diameter |
59mm |
| Pulley Section |
7 Groove |
| Regulator Type |
Internal |
| Pin Code |
IR161 |
| Replaces |
Standard Pulley Version Only |
| Condition |
New |
| Weight |
7kg |
| Warranty |
3 Years Passenger, 1 Year Commercial |
Frequently asked questions
Is the BXA010 a new or remanufactured unit?
The BXA010 is a new alternator, not a remanufactured unit.
Why do I need to confirm by OE number before ordering the BXA010?
There are two alternators that appear visually identical to the BXA010 but have different regulator functions. Selecting the wrong unit based on appearance alone will result in incorrect regulator operation in your vehicle. Always confirm the correct unit by OE number. Contact us if you need assistance with identification.
Which version does the BXA010 replace?
The BXA010 replaces the standard pulley version of this Bosch-style alternator only. If your vehicle has a different pulley variant, a different OEX unit will be required. Contact us to confirm the correct alternator for your application.
What pulley type does the BXA010 use?
The BXA010 uses a 7-groove pulley with a 59mm outside diameter, suited to multi-ribbed belt drive systems in the applications this unit is designed to replace. Confirm your belt groove count matches before ordering.
What are the key dimensions I need to confirm before ordering?
The key dimensions for fitment confirmation are the mount centre-to-centre measurement (175mm), mount leg thickness (60mm), mount hole diameter (11mm), and pulley outside diameter (59mm). The mount type is pad, the pulley section is 7 groove, and the pin code is IR161. Always confirm by OE number given the existence of a visually identical unit with a different regulator. Contact us if you need assistance.
