Description

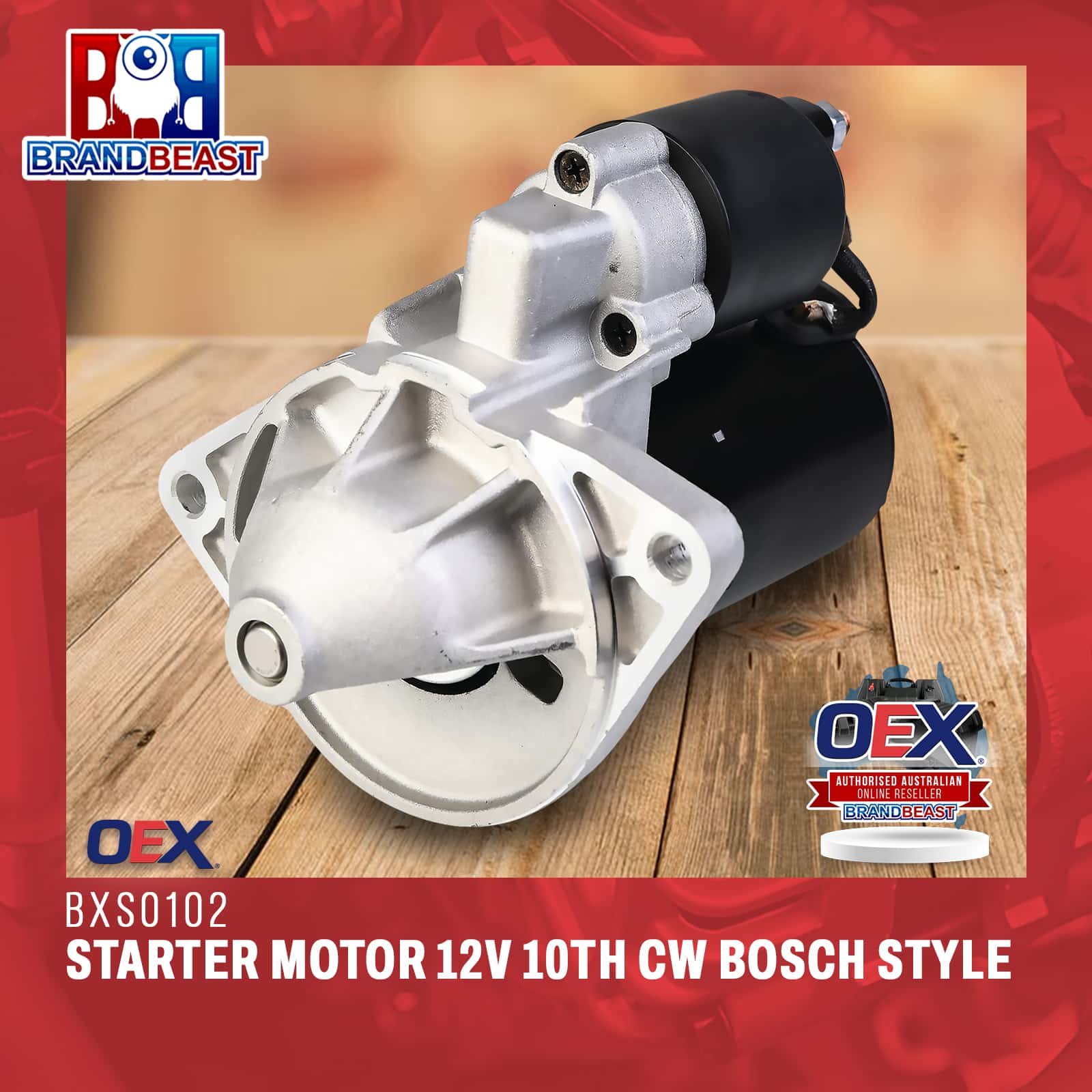

OEX BXS0102 12V 1.4kW 10 Tooth CW Bosch Style Starter Motor, 2-Hole Mount, Dry Clutch, New Unit
The BXS0102 from OEX is a new 12V 1.4kW starter motor in Bosch style with a 10-tooth pinion, clockwise rotation, and a 2-hole mount configuration. It features a 103mm flange diameter, 134mm mount centres, dry clutch, and an overall length of 198mm. This unit will also replace Bosch style 9-tooth starters. Backed by a 3-year passenger and 1-year commercial warranty.
Product overview
The BXS0102 is a direct replacement starter motor for applications requiring a Bosch-style unit with CW rotation, a 10-tooth pinion, and a 2-hole mount. A key compatibility note applies to this unit: despite being a 10-tooth starter, the BXS0102 is confirmed to replace Bosch style 9-tooth starters as well, broadening its application coverage beyond what the tooth count alone might suggest.
This is a new unit, not a remanufactured one, and carries a 3-year warranty for passenger vehicle applications and a 1-year warranty for commercial applications. The dry clutch design suits the operating conditions of the applications this unit replaces.
Features and benefits
New unit, not remanufactured: The BXS0102 is supplied as a new starter motor, providing confidence in service life from the point of installation.
1.4kW power rating: Delivers 1.4kW of cranking power, suited to the engine applications this unit is designed to replace.
10-tooth CW pinion, replaces 9-tooth Bosch style starters: Clockwise rotation with a 10-tooth pinion and 27mm pinion diameter. Confirmed to replace Bosch style 9-tooth starters, extending compatibility beyond the standard tooth count match.
2-hole Bosch style mount: The 2-hole mounting configuration with 103mm flange diameter and 134mm mount centres suits the engine block mounting points of Bosch-style applications requiring these dimensions.
Dry clutch design: Fitted with a dry clutch, appropriate for the operating conditions of the applications this unit is designed to suit.
3-year passenger warranty: Backed by a 3-year warranty for passenger vehicle applications and a 1-year warranty for commercial applications.
Technical specs
| Specification |
Detail |
| SKU |
BXS0102 |
| Brand |
OEX |
| Voltage |
12V |
| Power Rating |
1.4kW |
| Rotation |
Clockwise (CW) |
| Number of Teeth |
10 |
| Pinion Diameter |
27mm |
| Pinion at Rest |
13mm |
| Flange Diameter |
103mm |
| Mount Centres A |
134mm |
| Mount Hole Diameter |
11mm |
| Overall Length |
198mm |
| Starter Mount Type |
2 Hole |
| Clutch Type |
Dry |
| Suits Unit Make |
Bosch Style |
| Replaces |
Bosch Style 9 Tooth Starters |
| Condition |
New |
| Weight |
4.22kg |
| Warranty |
3 Years Passenger, 1 Year Commercial |
Frequently asked questions
Will the BXS0102 replace a Bosch style 9-tooth starter motor?
Yes. Despite being a 10-tooth unit, the BXS0102 is confirmed to replace Bosch style 9-tooth starters. If you are replacing a 9-tooth Bosch style starter, confirm the remaining dimensions match before ordering. Contact us if you need assistance confirming fitment.
Is the BXS0102 a new or remanufactured unit?
The BXS0102 is a new starter motor, not a remanufactured unit.
What warranty does the BXS0102 carry?
The BXS0102 carries a 3-year warranty for passenger vehicle applications and a 1-year warranty for commercial applications.
What is the rotation direction of the BXS0102?
The BXS0102 rotates clockwise (CW). Confirm that your application requires CW rotation before ordering, as an incorrect rotation direction will prevent the starter from engaging the ring gear correctly.
What are the key dimensions I need to confirm before ordering?
The key dimensions for fitment confirmation are the flange diameter (103mm), mount centres A (134mm), mount hole diameter (11mm), pinion diameter (27mm), pinion at rest (13mm), and overall length (198mm). Contact us if you need assistance confirming fitment for your specific application.
