Description

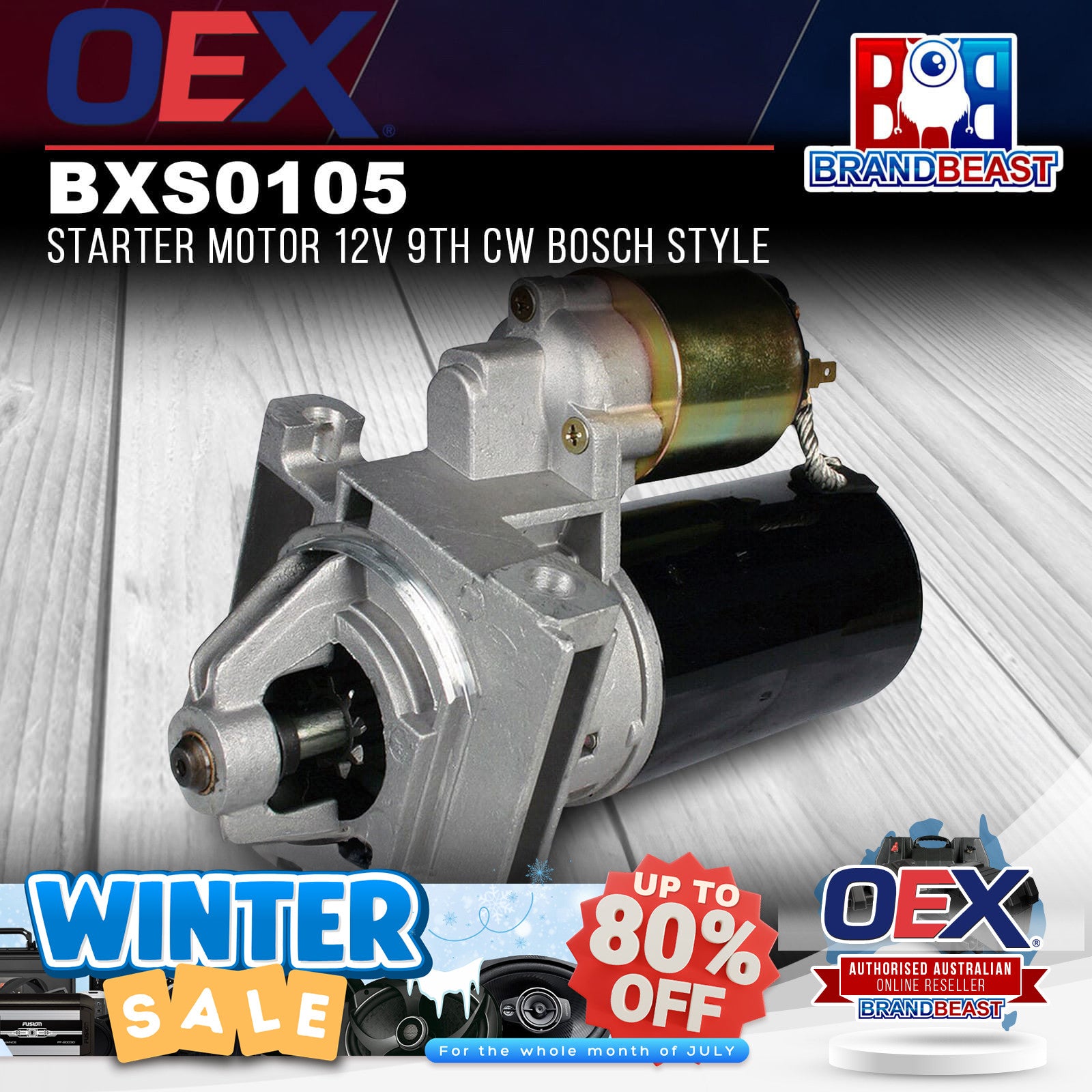

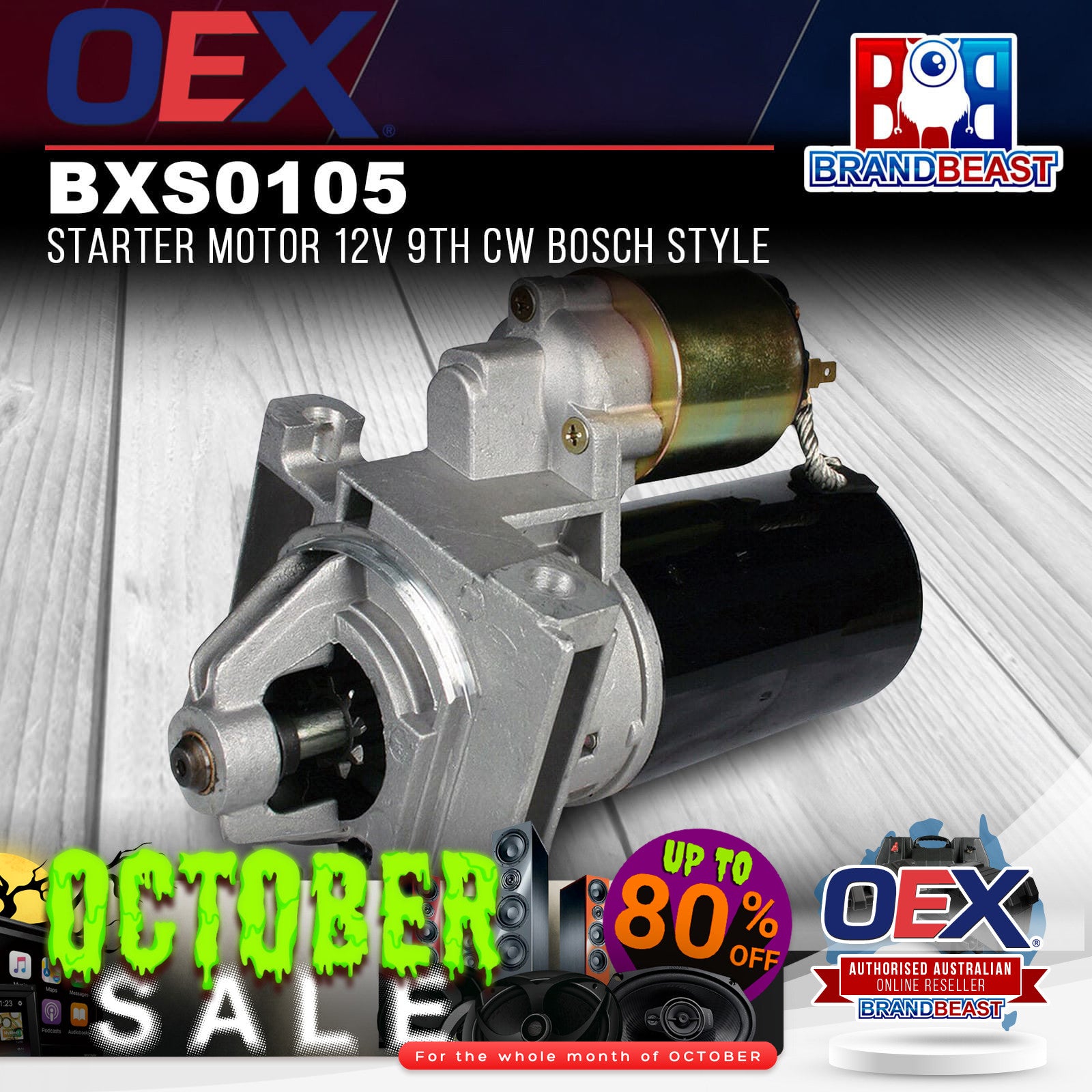

OEX BXS0105 12V 1.4kW 9 Tooth CW Bosch Style Starter Motor, Pad Mount, Dry Clutch, New Unit
The BXS0105 from OEX is a new 12V 1.4kW starter motor in Bosch style with a 9-tooth pinion, clockwise rotation, and a pad mount configuration. It features an 82mm flange diameter, 81mm mount centres, dry clutch, and an overall length of 240mm. Backed by a 3-year or 75,000 kilometre warranty on new units for passenger vehicle applications.
Product overview
The BXS0105 is a direct replacement starter motor for applications requiring a Bosch-style unit with CW rotation, a 9-tooth pinion, and a pad mount. OEX, which stands for Original Equipment Xchange, is a brand with its origins in Japanese starter motor and alternator production, now serving the broader Australian automotive aftermarket with quality replacement rotating electrical components at competitive prices.
This is a new unit, not a remanufactured one, and carries a 3-year or 75,000 kilometre warranty for passenger vehicle applications and a 1-year warranty for commercial applications. The dry clutch design suits the operating conditions of the applications this unit is built to replace.
Features and benefits
New unit, not remanufactured: The BXS0105 is supplied as a new starter motor, providing confidence in service life from the point of installation.
1.4kW power rating: Delivers 1.4kW of cranking power, suited to the engine applications this unit is designed to replace.
9-tooth CW pinion: Clockwise rotation with a 9-tooth pinion and 25mm pinion diameter, matching the ring gear specifications of confirmed compatible applications.
Pad mount configuration: The pad mount style with 82mm flange diameter and 81mm mount centres suits engine block mounting points of Bosch-style applications calling for this configuration.
Dry clutch design: Fitted with a dry clutch, appropriate for the operating conditions of the applications this unit is designed to suit.
3-year or 75,000km passenger warranty: Backed by a 3-year or 75,000 kilometre warranty for passenger vehicle applications and a 1-year warranty for commercial applications.
OEX Original Equipment Xchange: OEX products are sourced from market-leading original equipment manufacturers and aftermarket suppliers, delivering premium quality replacement rotating electrical components for the Australian automotive aftermarket.
Technical specs
| Specification |
Detail |
| SKU |
BXS0105 |
| Brand |
OEX |
| Voltage |
12V |
| Power Rating |
1.4kW |
| Rotation |
Clockwise (CW) |
| Number of Teeth |
9 |
| Pinion Diameter |
25mm |
| Pinion at Rest |
6mm |
| Flange Diameter |
82mm |
| Mount Centres A |
81mm |
| Mount Hole Diameter |
10mm |
| Overall Length |
240mm |
| Starter Mount Type |
Pad |
| Clutch Type |
Dry |
| Suits Unit Make |
Bosch Style |
| Condition |
New |
| Weight |
3.4kg |
| Warranty |
3 Years or 75,000km Passenger, 1 Year Commercial |
Frequently asked questions
Is the BXS0105 a new or remanufactured unit?
The BXS0105 is a new starter motor, not a remanufactured unit.
What warranty does the BXS0105 carry?
The BXS0105 carries a 3-year or 75,000 kilometre warranty for passenger vehicle applications and a 1-year warranty for commercial applications.
What is the rotation direction of the BXS0105?
The BXS0105 rotates clockwise (CW). Confirm that your application requires CW rotation before ordering, as an incorrect rotation direction will prevent the starter from engaging the ring gear correctly.
What mount type does the BXS0105 use?
The BXS0105 uses a pad mount configuration, unlike the 2-hole mount used on some other Bosch-style starter motors in the OEX range. Confirm that your application requires a pad mount before ordering.
What are the key dimensions I need to confirm before ordering?
The key dimensions for fitment confirmation are the flange diameter (82mm), mount centres A (81mm), mount hole diameter (10mm), pinion diameter (25mm), pinion at rest (6mm), and overall length (240mm). Contact us if you need assistance confirming fitment for your specific application.
