Description
A brand new Denso-style alternator built to restore reliable 12V charging to your vehicle.
Product Overview

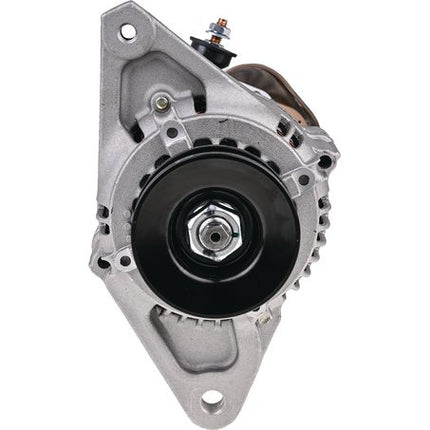

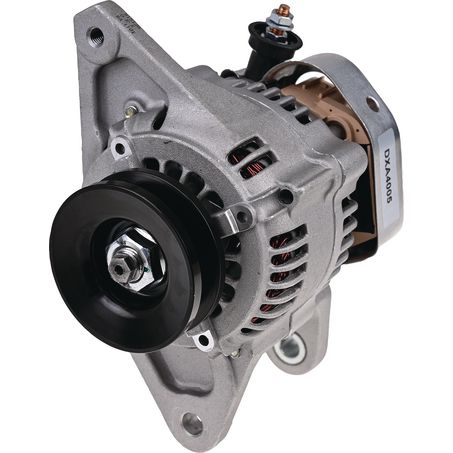

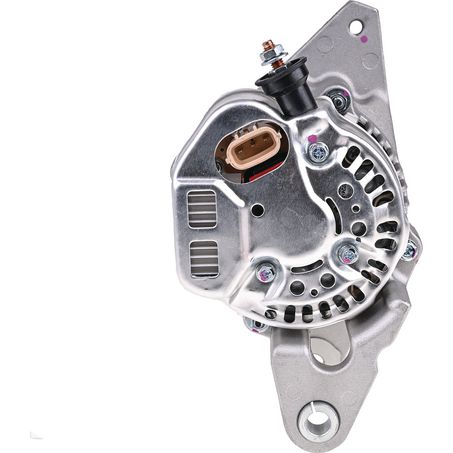

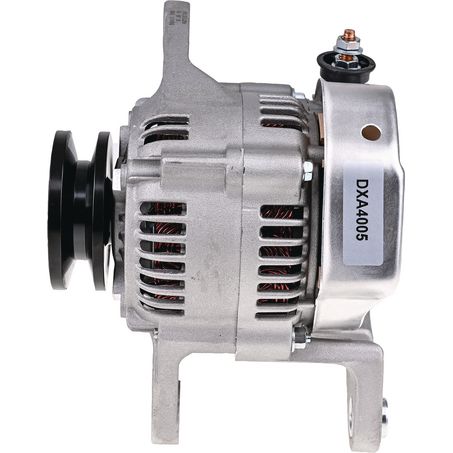

The OEX DXA4005 is a brand new 12V, 55A alternator designed as a direct-style replacement for Denso-unit applications. Featuring an internal voltage regulator, twin leg mount, and an IR74 pin code, it is engineered to match the key dimensions and electrical specifications of the original Denso-style unit it replaces — simplifying installation without modification in compatible applications.
With a 70mm Section A pulley, 10mm pivot hole, M8×1.25 adjusting hole, 75mm inside mounting leg spread, and a 172mm mount centre-to-centre distance, the DXA4005 is built to drop into the existing bracket and belt configuration of suitable vehicles. This is a new unit — not remanufactured — backed by a one-year OEX warranty.
Key Specifications
- 12V system voltage
- 55A output rating
- Denso-style replacement unit
- Internal voltage regulator (no external regulator required)
- Twin leg alternator mount configuration
- Mount centre-to-centre distance: 172mm
- Inside mounting leg spread: 75mm
- Pivot hole diameter: 10mm
- Adjusting hole thread: M8×1.25
- Pulley outside diameter: 70mm
- Pulley section: A (standard V-belt profile)
- Pin code: IR74
- Brand new unit — not remanufactured
- Weight: 3.4 kg
- 1-year OEX warranty
Features & Benefits
- Internal voltage regulator — Self-contained regulation eliminates dependency on an external regulator, simplifying the electrical circuit and reducing potential failure points. No additional regulator wiring or components required on installation.
- Brand new unit — Unlike remanufactured alternators, the DXA4005 ships as a new unit with fresh internals — no worn brushes, degraded bearings, or reused components to worry about from day one.
- Denso-style design — Engineered to match the mounting geometry and electrical interface of original Denso-unit applications, reducing installation time and the need for custom bracket or wiring modifications.
- Twin leg mount with 172mm centre-to-centre — Precise mounting dimensions allow direct fitment into the original alternator bracket on compatible applications without adaptor plates or spacers.
- 70mm Section A pulley — Standard V-belt pulley profile compatible with existing drive belt configurations on supported engines, eliminating the need for belt replacement or tensioner adjustment in most cases.
- 55A output — Provides sufficient charge capacity for vehicles running standard factory electrical loads, with appropriate headroom for moderate auxiliary additions like driving lights or a UHF radio.
- M8×1.25 adjusting hole — Standard thread specification for alternator belt tensioning, compatible with OEM-style adjustment bolts on supported brackets.
Technical Specs
- Part Number: DXA4005
- Brand: OEX
- Type: Alternator
- Suits Unit Make: Denso
- Voltage: 12V
- Power Rating: 55A
- Regulator Type: Internal
- Pin Code: IR74
- Mount Type: Twin Leg
- Mount Centre-to-Centre: 172mm
- Inside Mounting Legs: 75mm
- Pivot Hole Diameter: 10mm
- Adjusting Hole: M8×1.25
- Pulley Outside Diameter: 70mm
- Pulley Section: A
- Condition: New (not remanufactured)
- Weight: 3.4 kg
- Warranty: 1 year
- Unit of Measure: Each
Compatible With / Goes Well With
- Vehicles originally fitted with Denso-style 12V alternators matching the above mounting and electrical specifications
- Applications requiring IR74 pin code internal regulator alternators
- Standard Section A V-belt drive systems with 70mm pulley compatibility
- Twin-leg bracket mounting configurations with 172mm centre-to-centre spacing and 75mm inside leg spread
Important: Compatibility must be verified against your specific vehicle make, model, engine, and build date before purchase. Cross-reference the pin code (IR74), mount dimensions (172mm C-C, 75mm inside legs), pivot hole (10mm), and adjusting hole (M8×1.25) against your original unit or vehicle workshop manual. If unsure, consult a qualified auto electrician before ordering.
Weight
3.4 kg.
Frequently Asked Questions
Is this a new alternator or a remanufactured unit?
The DXA4005 is a brand new alternator — not remanufactured. It ships with all new internal components including windings, brushes, and bearings, with no previously used parts.
How do I confirm this alternator will fit my vehicle?
Cross-reference the pin code (IR74), mount centre-to-centre (172mm), inside mounting leg spread (75mm), pivot hole diameter (10mm), adjusting hole thread (M8×1.25), and pulley OD (70mm) against your original unit or vehicle workshop manual. When in doubt, consult a qualified auto electrician.
Does this alternator require an external voltage regulator?
No — the DXA4005 features an internal voltage regulator, meaning no separate external regulator is required. The regulation circuit is self-contained within the alternator body.
What belt type does the 70mm Section A pulley suit?
The Section A pulley is designed for standard A-profile V-belts, which are the most common belt type found on vehicles running Denso-style alternators. In most compatible applications, the existing drive belt can be reused.
What warranty does this alternator carry?
The OEX DXA4005 is backed by a one-year OEX warranty. Retain your proof of purchase and ensure installation is carried out correctly, as warranty claims relating to incorrect fitment or installation may not be covered.
