Description

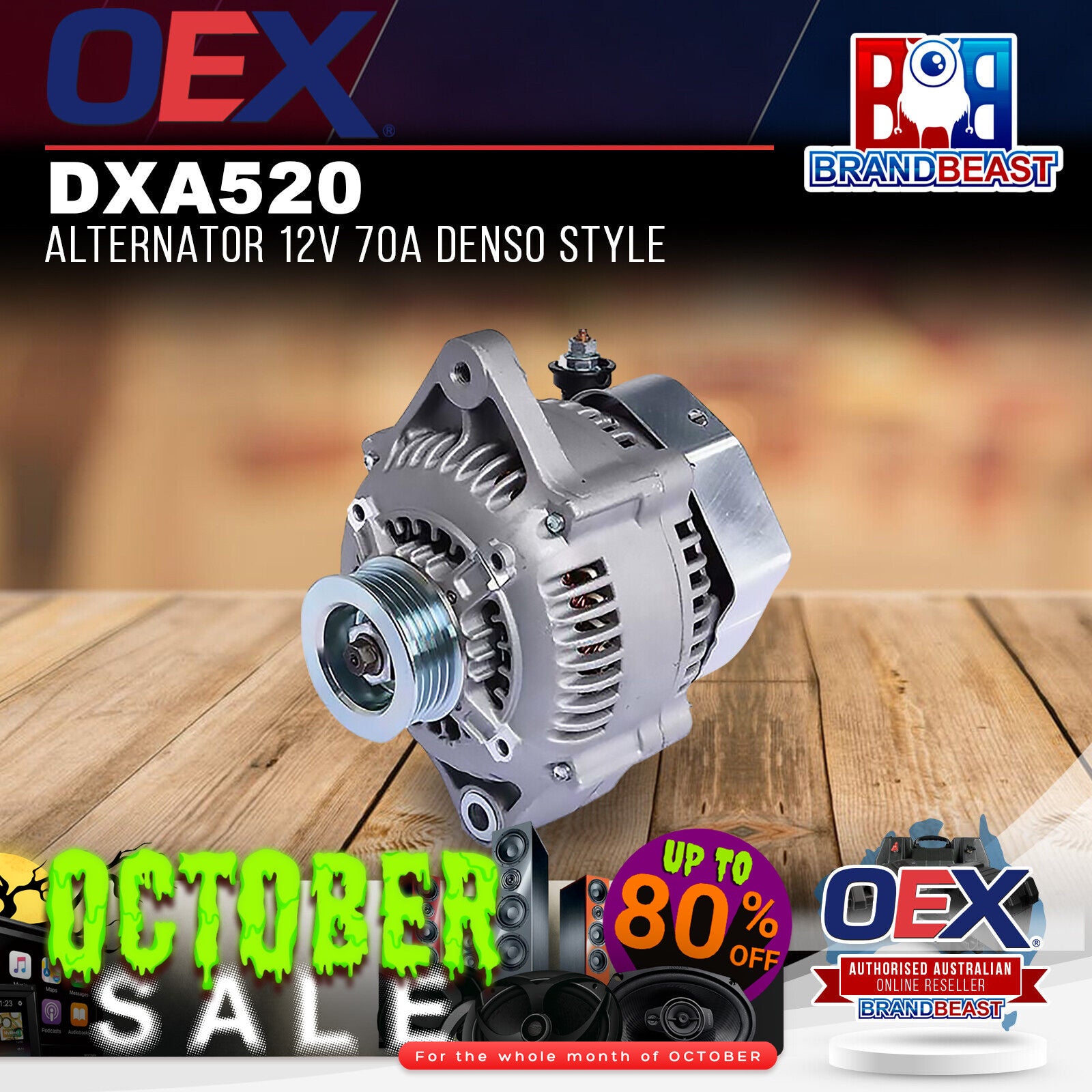

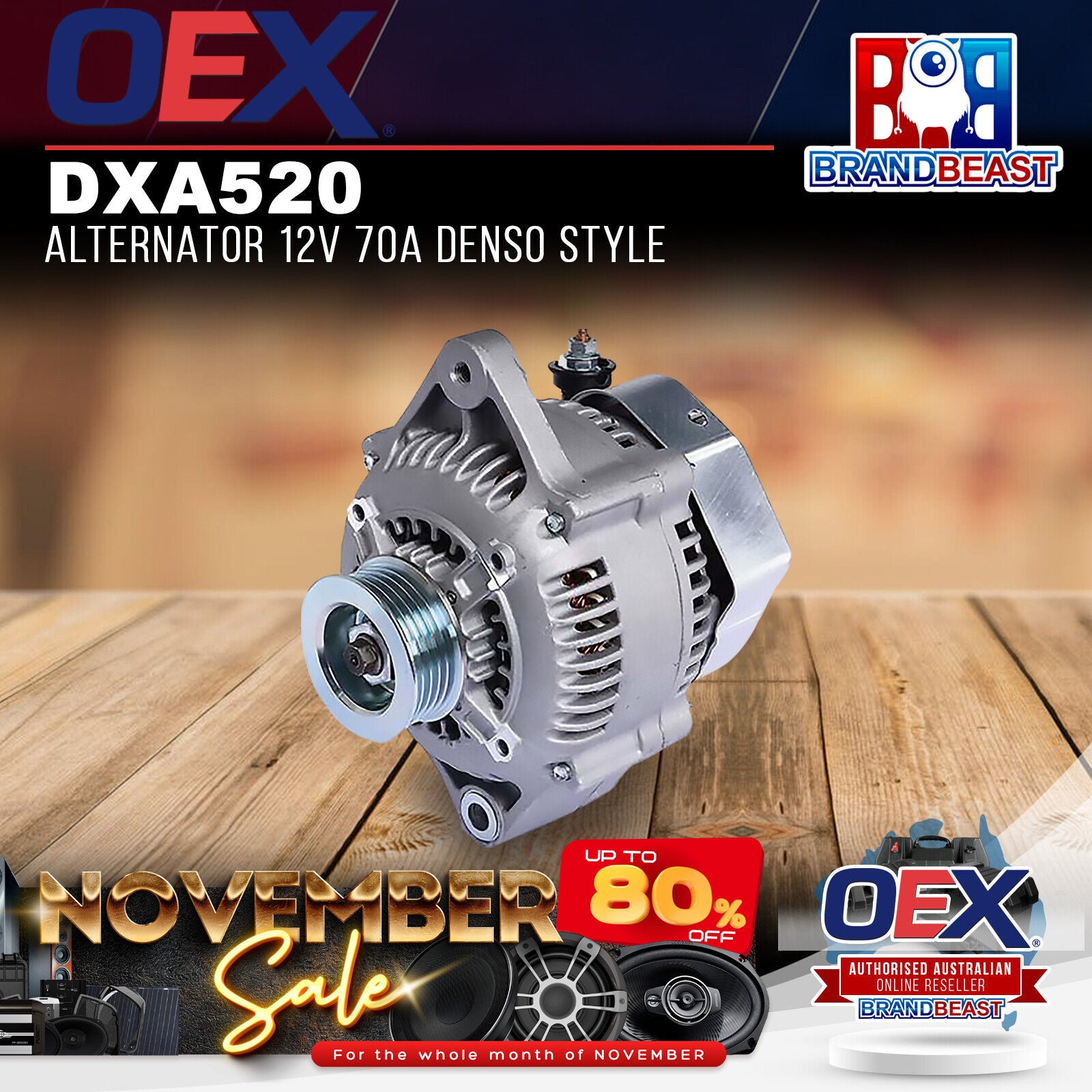

OEX DXA520 12V 70A Denso Style Alternator Single Leg Mount 5-Groove 53.5mm Pulley IR11 New Unit
The OEX DXA520 is a new 12V 70A alternator in the Denso style with a single leg mount and 5-groove pulley. The only 5-groove unit in the OEX Denso range, the DXA520 suits vehicles with a 5-rib serpentine belt. Confirm all mounting dimensions and pin code against your vehicle's existing alternator before ordering. 3-year passenger vehicle warranty, 1-year commercial warranty.
Product overview
The DXA520 is a 70A Denso-style single leg alternator with a 5-groove pulley, suited to vehicles with a 5-rib serpentine belt configuration. The 5-groove pulley is distinct from the 6 and 7-groove units in the OEX Denso range and is used on some earlier or lower-specification Denso-equipped vehicles. Confirm your vehicle's belt rib count before ordering.
The IR11 pin code is shared with other OEX Denso units including the DXA4036 (70A, single leg, 6-groove, 163mm CTC, 55mm OD) and the DXA4041 (110A, single leg, AA section). The DXA520 is differentiated by its 5-groove pulley, 53.5mm OD and 164mm CTC. Confirm all dimensions rather than relying on pin code alone. Note also that the DXA552M (130A, single leg, 7-groove) shares the same single leg mount style and 58mm leg thickness but has different CTC, pulley and output the two are not interchangeable.
Features and benefits
New unit: Brand new, not remanufactured.
70A output: Suited to lower electrical demand passenger vehicles, 4WDs, SUVs and utes.
5-groove pulley, 53.5mm OD: The only 5-groove unit in the OEX Denso range. Suits vehicles with a 5-rib serpentine belt. Confirm belt groove count before ordering.
Single leg mount, 164mm CTC, 58mm leg thickness: Confirm all mounting dimensions against the vehicle before ordering.
10mm pivot hole, M8x1.25 adjusting hole: Confirm hole sizes and thread specifications suit the vehicle's mounting points.
IR11 pin code: Shared with other OEX Denso units. Confirm all dimensions against your vehicle.
Internal regulator: Voltage regulation handled internally.
ISO 9001 certified manufacturing: Built under ISO 9001 quality management for consistent quality and reliability.
3-year passenger / 1-year commercial warranty: Extended warranty for passenger vehicle applications.
Technical specs
| Specification |
Detail |
| SKU |
DXA520 |
| Brand |
OEX |
| Voltage |
12V |
| Output |
70A |
| Style |
Denso |
| Regulator |
Internal |
| Mount |
Single leg |
| Pulley Section |
5-groove |
| Pulley OD |
53.5mm |
| Mount CTC |
164mm |
| Leg Thickness |
58mm |
| Pivot Hole |
10mm |
| Adjusting Hole |
M8x1.25 |
| Pin Code |
IR11 |
| Condition |
New |
| Warranty |
3 years (passenger), 1 year (commercial) |
Frequently asked questions
Is this a new or remanufactured unit? New. The DXA520 is a brand new unit, not remanufactured or rebuilt.
Why does the DXA520 have a 5-groove pulley when most other units have 6 or 7? The DXA520 is designed to fit vehicles with a 5-rib serpentine belt, a configuration used on some earlier or lower-specification Denso-equipped vehicles. Always confirm your vehicle's belt groove count before ordering.
The DXA520 and DXA552M both have single leg mounts are they interchangeable? No. Both use a single leg mount with 58mm leg thickness, but their other dimensions differ. The DXA520 is 70A with 164mm CTC, 5-groove pulley, 53.5mm OD and IR11 pin code. The DXA552M is 130A with 165mm CTC, 7-groove pulley, 58mm OD and IR115 pin code. Always confirm all dimensions against your vehicle.
What is the warranty on this alternator? 3 years for passenger vehicle applications, 1 year for commercial use.
What should I confirm before ordering this alternator? Confirm mount type (single leg), CTC (164mm), leg thickness (58mm), pivot hole (10mm), adjusting hole (M8x1.25), pulley section (5-groove), pulley OD (53.5mm) and pin code (IR11) all match your vehicle's requirements. Alternators are vehicle-specific, verify fitment before purchasing.
