Description

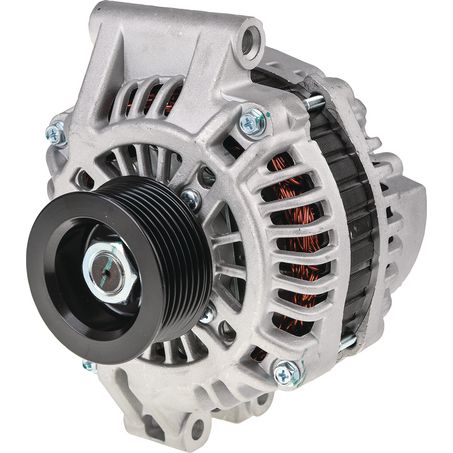

OEX DXA568 12V 90A Denso Style Alternator Pad Mount 161mm CTC 7-Groove 60mm Pulley IR43 New Unit
The OEX DXA568 is a new 12V 90A alternator in the Denso style with a pad mount configuration and 7-groove pulley. Confirm all mounting dimensions and pin code against your vehicle's existing alternator before ordering. 3-year passenger vehicle warranty, 1-year commercial warranty.
Product overview
The DXA568 is a 90A Denso-style pad mount alternator. The pad mount configuration bolts directly to a flat mounting surface via a solid pad base rather than through separate mounting legs, and is used on certain commercial and industrial vehicle applications. Confirm your vehicle uses a pad mount bracket before ordering.
The IR43 pin code is shared with the DXA561 (105A, pad mount, 161mm CTC) in the OEX Denso range. The DXA568 is differentiated by its 90A output and 47mm inside leg compared to the DXA561's 41mm leg thickness. Confirm all dimensions against your vehicle's existing alternator before ordering.
Features and benefits
New unit: Brand new, not remanufactured.
90A output: Suited to vehicles with moderate electrical demands.
Pad mount, 161mm CTC, 47mm inside leg: Pad mount configuration. Confirm all mounting dimensions against the vehicle before ordering.
7-groove 60mm OD pulley: 7-groove multi-rib pulley for serpentine belt drive systems.
8.5mm pivot hole, 9mm adjusting hole: Confirm hole sizes suit the vehicle's mounting points.
IR43 pin code: Confirm pin code and all dimensions against your vehicle.
Internal regulator: Voltage regulation handled internally.
3-year passenger / 1-year commercial warranty: Extended warranty for passenger vehicle applications.
Technical specs
| Specification |
Detail |
| SKU |
DXA568 |
| Brand |
OEX |
| Voltage |
12V |
| Output |
90A |
| Style |
Denso |
| Regulator |
Internal |
| Mount |
Pad |
| Pulley Section |
7-groove |
| Pulley OD |
60mm |
| Mount CTC |
161mm |
| Inside Leg |
47mm |
| Pivot Hole |
8.5mm |
| Adjusting Hole |
9mm |
| Pin Code |
IR43 |
| Condition |
New |
| Weight |
5.24kg |
| Warranty |
3 years (passenger), 1 year (commercial) |
Frequently asked questions
Is this a new or remanufactured unit? New. The DXA568 is a brand new unit, not remanufactured or rebuilt.
What is a pad mount alternator? A pad mount alternator bolts directly to a flat mounting surface via a solid pad base rather than through separate single, twin or quad mounting legs. This configuration is common on certain commercial and industrial vehicle applications. Confirm your vehicle uses a pad mount bracket before ordering.
The DXA561 also has a pad mount and IR43 pin code how do I tell them apart? Both the DXA568 and DXA561 use a pad mount, 161mm CTC and IR43 pin code. They differ in output (90A vs 105A) and inside leg dimension (47mm vs 41mm leg thickness). Confirm both output and mounting dimensions against your vehicle's existing alternator before ordering.
What is the warranty on this alternator? 3 years for passenger vehicle applications, 1 year for commercial use.
What should I confirm before ordering this alternator? Confirm mount type (pad), CTC (161mm), inside leg (47mm), pivot hole (8.5mm), adjusting hole (9mm), pulley section (7-groove), pulley OD (60mm) and pin code (IR43) all match your vehicle's requirements. Alternators are vehicle-specific, verify fitment before purchasing.
