Description

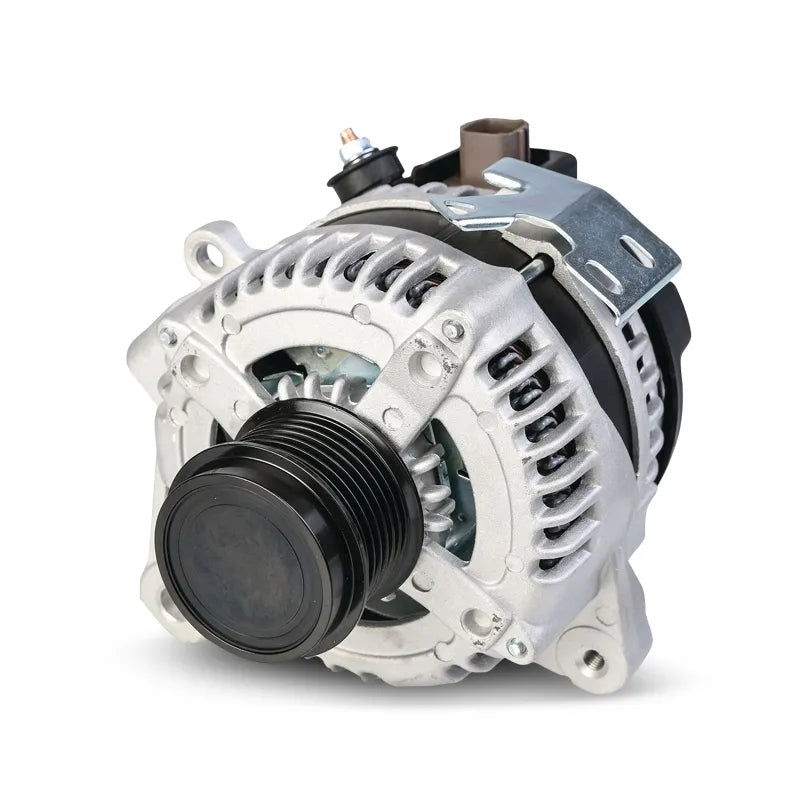

OEX DXA582 Alternator 12V 100A Denso Style
The OEX DXA582 is a new 12V 100A alternator, Denso style, featuring an internal regulator with a Sense terminal, twin leg mount, and a 7 groove pulley.
Product Overview
The DXA582 is a new 12V Denso style alternator from OEX, delivering 100A of output through an internal regulator. Built with a twin leg mount and a mount centre to centre distance of 123mm, the DXA582 features a 7 groove pulley with a 55mm outside diameter.
This unit has a Sense terminal in the regulator plug. If a unit with an RLO terminal is required instead, use the DXA583. The ACX6250 may be required to confirm circuit configuration.
Features & Benefits
100A Output at 12V: Delivers 100A of charging output on a standard 12V electrical system.
Internal Regulator with Sense Terminal: Fitted with an internal regulator featuring a Sense terminal; for an RLO terminal option, use the DXA583 instead.
Twin Leg Mount: The twin leg mounting arrangement matches the original Denso style fitment for straightforward installation.
7 Groove Pulley: The 7 groove pulley at 55mm outside diameter suits the specified fitment applications.
Denso Style Design: Built to Denso style specifications for compatible fitment across applications originally equipped with a matching Denso unit.
New Unit: Supplied new, not reconditioned.
Technical Specs
| Specification | Detail |
| Part No. | DXA582 |
| Brand | OEX |
| Type | Alternator |
| Voltage | 12V |
| Power Rating | 100A |
| Regulator Type | Internal, Sense Terminal |
| Suits Unit Make | Denso |
| Alternator Mount | Twin Leg |
| Mount Cnt to Cnt | 123mm |
| Inside Mounting Legs | 46.5mm |
| Adjusting Hole Diameter | M8x1.25 |
| Pivot Hole Diameter | M10x1.25 / 11mm |
| Pulley Outside Diameter | 55mm |
| Pulley Section | 7 Groove |
| Pin Code | IR115 |
| New / Reman. | New |
| Weight | 6.1kg |
Compatible With
The DXA582 is a Denso style 12V 100A alternator with a Sense terminal regulator plug and twin leg mount. If a unit with an RLO terminal is required, use the DXA583 instead. The ACX6250 may be required to confirm circuit configuration.
Frequently Asked Questions
What terminal does the DXA582 regulator use?
The DXA582 has a Sense terminal in the regulator plug. If a unit with an RLO terminal is required, use the DXA583 instead.
How do I confirm the correct circuit configuration?
The ACX6250 may be required to confirm circuit configuration before ordering.
What voltage and output does the DXA582 provide?
The DXA582 is a 12V alternator delivering 100A of output.
How is the DXA582 mounted?
The DXA582 uses a twin leg mount with a 123mm mounting centre to centre distance.
Is the DXA582 new or reconditioned?
The DXA582 is supplied new.
