Description

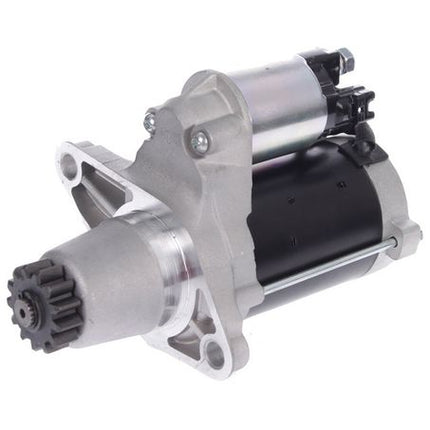

OEX DXS4006 Starter Motor 12V 13 Tooth CCW Denso Style
The OEX DXS4006 is a new 12V starter motor with a 13 tooth counter-clockwise rotation pinion, Denso style, delivering 1.6kW power output with a 2 hole dry clutch mount.
Product Overview
The DXS4006 is a new 12V Denso style starter motor from OEX, featuring a 13 tooth counter-clockwise (CCW) rotation pinion and a 2 hole dry clutch mounting arrangement. Delivering 1.6kW of power, the DXS4006 is built to a 55mm flange diameter with 122mm mounting centres and an overall length of 209mm.
The OEX brand is sourced from market leading original equipment manufacturers and aftermarket suppliers. OEX products are sourced from ISO certified factories, and each product is backed by a comprehensive nationwide warranty.
Features & Benefits
1.6kW Power Rating: The 1.6kW power rating provides reliable cranking performance suited to the applications this starter is designed for.
13 Tooth Pinion, Counter-Clockwise Rotation: The 13 tooth pinion with CCW rotation must match the application exactly; confirm rotation direction carefully before ordering.
Denso Style Design: Built to Denso style specifications for compatible fitment across applications originally equipped with a matching Denso unit.
2 Hole Dry Clutch Mount: The 2 hole mounting arrangement with a dry clutch design suits the specified fitment applications.
ISO Certified Manufacturing: Sourced from ISO certified factories, supporting consistent quality and reliability.
New Unit: Supplied new, not reconditioned.
Technical Specs
| Specification | Detail |
| Part No. | DXS4006 |
| Brand | OEX |
| Type | Starter Motor |
| Voltage | 12V |
| Power Rating | 1.6kW |
| Number of Teeth | 13 |
| Rotation | CCW (Counter-Clockwise) |
| Suits Unit Make | Denso |
| Flange Diameter | 55mm |
| Mount Centres A | 122mm |
| Mount Hole Diameter | 11mm |
| Overall Length | 209mm |
| Pinion at Rest | 66mm |
| Pinion Diameter | 41mm |
| Starter Mount Type | 2 Hole |
| Wet / Dry Clutch | Dry |
| New / Reman. | New |
| Weight | 3.0kg |
Compatible With
The DXS4006 is a Denso style 13 tooth starter motor with counter-clockwise (CCW) rotation. Confirm your original starter's rotation direction and specifications match before ordering.
Frequently Asked Questions
What rotation direction does the DXS4006 have?
The DXS4006 has counter-clockwise (CCW) rotation, an important fitment factor to confirm against your original starter.
What is the power rating of the DXS4006?
The DXS4006 has a 1.6kW power rating.
How many teeth does the DXS4006 pinion have?
The DXS4006 has a 13 tooth pinion with counter-clockwise rotation.
What mounting type does the DXS4006 use?
The DXS4006 uses a 2 hole mounting arrangement with a dry clutch design.
Is the DXS4006 new or reconditioned?
The DXS4006 is supplied new.
