Description

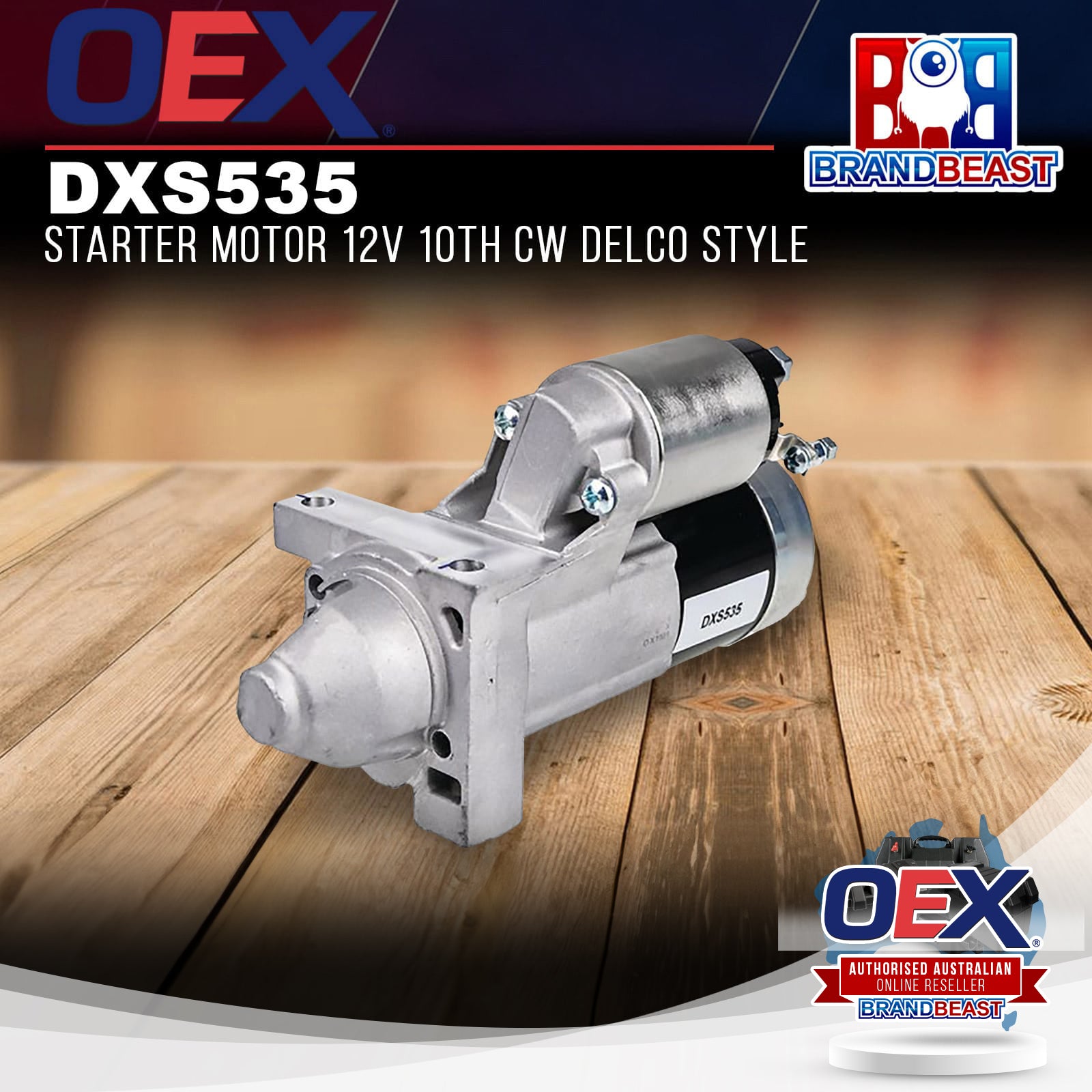

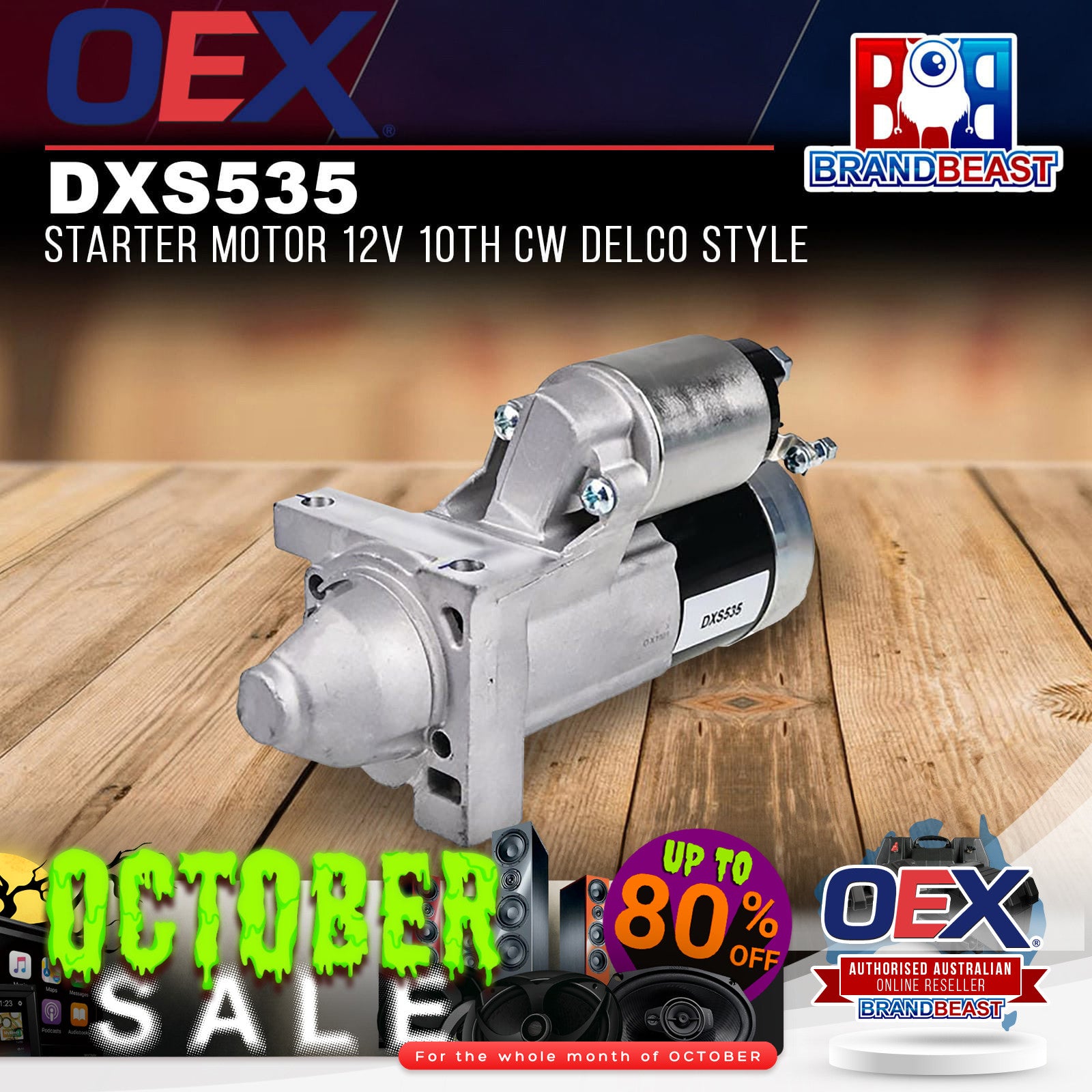

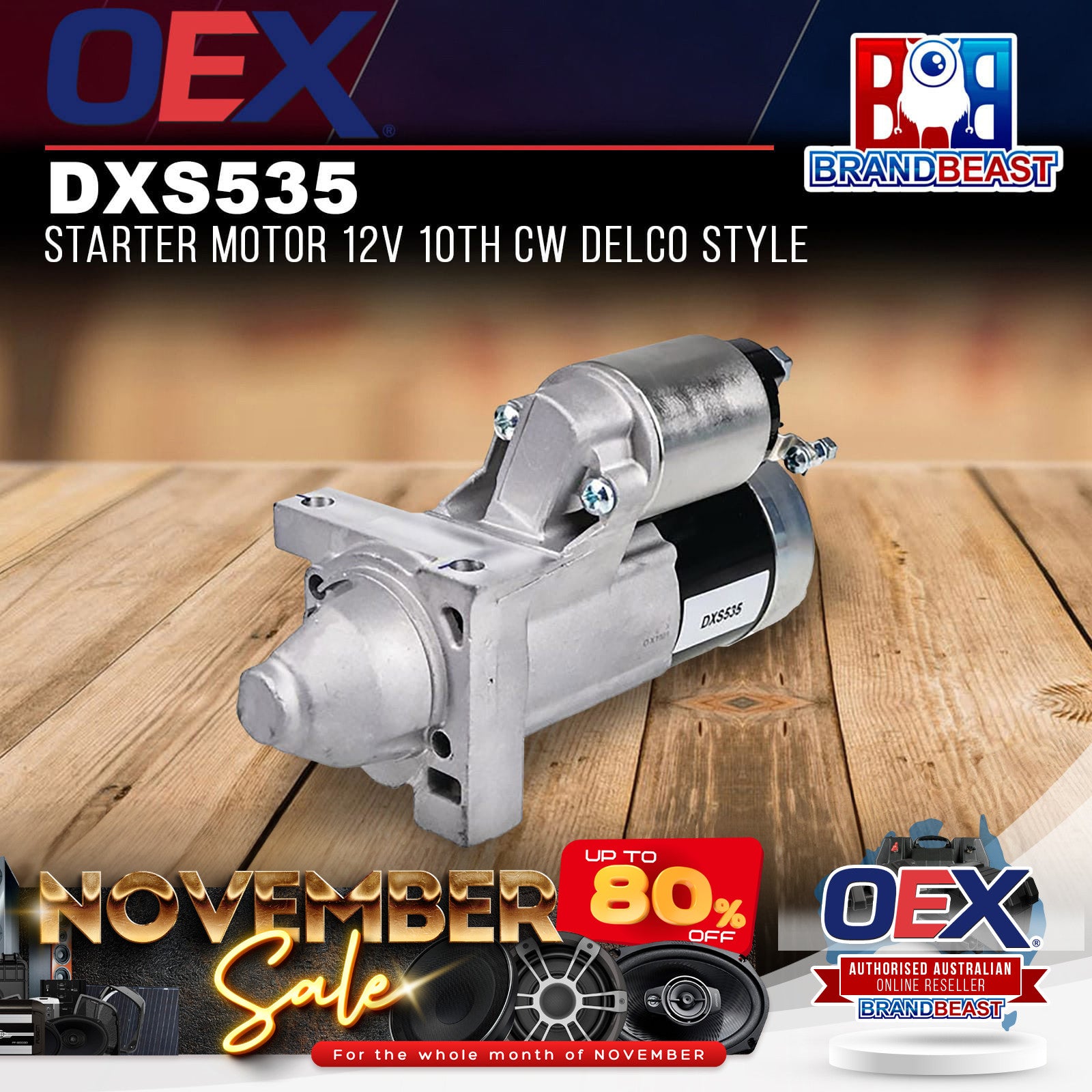

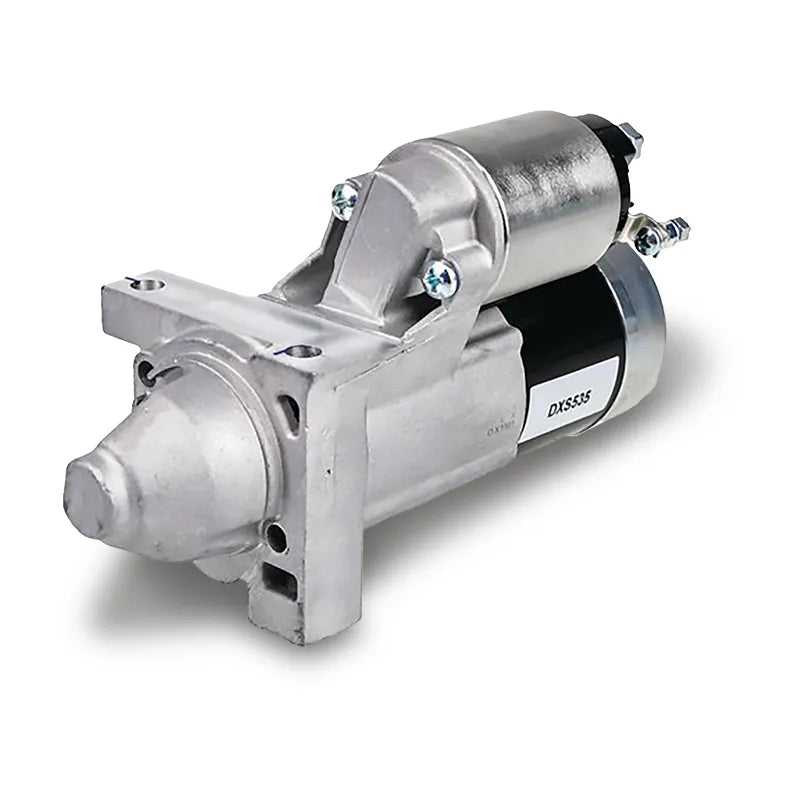

OEX DXS535 Starter Motor 12V 10 Tooth CW Delco Style
The OEX DXS535 is a new 12V starter motor with a 10 tooth clockwise rotation pinion, Delco style, delivering 1.2kW power output with a pad mount.
Product Overview
The DXS535 is a new 12V Delco style starter motor from OEX, featuring a 10 tooth clockwise rotation pinion and a pad mounting arrangement. Delivering 1.2kW of power, the DXS535 is built to a 58mm flange diameter with 74mm mounting centres and an overall length of 226mm.
The OEX brand is sourced from market leading original equipment manufacturers and aftermarket suppliers. OEX products are sourced from ISO certified factories, and each product is backed by a comprehensive nationwide warranty.
Features & Benefits
1.2kW Power Rating: The 1.2kW power rating provides reliable cranking performance suited to the applications this starter is designed for.
10 Tooth Pinion, Clockwise Rotation: The 10 tooth pinion with clockwise rotation must match the application exactly for correct fitment.
Delco Style Design: Built to Delco style specifications for compatible fitment across applications originally equipped with a matching Delco unit.
Pad Mount: The pad mounting arrangement with a dry clutch design suits the specified fitment applications.
ISO Certified Manufacturing: Sourced from ISO certified factories, supporting consistent quality and reliability.
New Unit: Supplied new, not reconditioned.
Technical Specs
| Specification | Detail |
| Part No. | DXS535 |
| Brand | OEX |
| Type | Starter Motor |
| Voltage | 12V |
| Power Rating | 1.2kW |
| Number of Teeth | 10 |
| Rotation | CW (Clockwise) |
| Suits Unit Make | Delco |
| Flange Diameter | 58mm |
| Mount Centres A | 74mm |
| Mount Hole Diameter | 10mm |
| Overall Length | 226mm |
| Pinion at Rest | 11mm |
| Pinion Diameter | 28mm |
| Starter Mount Type | Pad |
| Wet / Dry Clutch | Dry |
| New / Reman. | New |
| Weight | 3.72kg |
Compatible With
The DXS535 is a Delco style 10 tooth starter motor. Confirm your original starter's specifications match before ordering.
Frequently Asked Questions
What is the power rating of the DXS535?
The DXS535 has a 1.2kW power rating.
How many teeth does the DXS535 pinion have?
The DXS535 has a 10 tooth pinion with clockwise rotation.
What mounting type does the DXS535 use?
The DXS535 uses a pad mounting arrangement with a dry clutch design.
Is the DXS535 new or reconditioned?
The DXS535 is supplied new.
What quality assurance backs the DXS535?
OEX products are sourced from ISO certified factories and backed by a comprehensive nationwide warranty.
