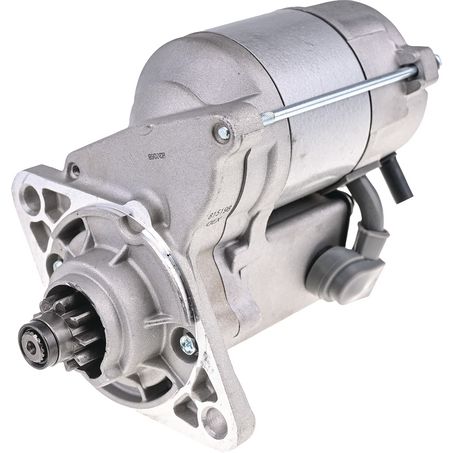

OEX DXS547 Starter Motor 12V 9 Tooth CCW Denso Style
The OEX DXS547 is a new 12V starter motor with a 9 tooth counter-clockwise rotation pinion, Denso style, designed for automatic transmission applications, delivering 1.4kW power output with a 2 hole dry clutch mount.
Product Overview
The DXS547 is a new 12V Denso style starter motor from OEX, featuring a 9 tooth counter-clockwise (CCW) rotation pinion and a 2 hole dry clutch mounting arrangement. Delivering 1.4kW of power, the DXS547 is built to an 82mm flange diameter with 120mm mounting centres and an overall length of 186mm.
This unit is designed for automatic transmission applications. The 8 and 9 tooth units are interchangeable, giving added flexibility when sourcing a replacement.
Features & Benefits
1.4kW Power Rating: The 1.4kW power rating provides reliable cranking performance suited to the applications this starter is designed for.
9 Tooth Pinion, Counter-Clockwise Rotation: The 9 tooth pinion with CCW rotation must match the application exactly; confirm rotation direction carefully before ordering.
Denso Style Design: Built to Denso style specifications for compatible fitment across applications originally equipped with a matching Denso unit.
Designed for Automatic Transmission: This unit is specified for automatic transmission applications.
8 and 9 Tooth Interchangeable: The 8 and 9 tooth versions of this unit are interchangeable, giving flexibility when sourcing a replacement.
2 Hole Dry Clutch Mount: The 2 hole mounting arrangement with a dry clutch design suits the specified fitment applications.
New Unit: Supplied new, not reconditioned.
Technical Specs
| Specification | Detail |
| Part No. | DXS547 |
| Brand | OEX |
| Type | Starter Motor |
| Voltage | 12V |
| Power Rating | 1.4kW |
| Number of Teeth | 9 |
| Rotation | CCW (Counter-Clockwise) |
| Suits Unit Make | Denso |
| Transmission | Automatic |
| Flange Diameter | 82mm |
| Mount Centres A | 120mm |
| Mount Hole Diameter | 11mm |
| Overall Length | 186mm |
| Pinion at Rest | 32mm |
| Pinion Diameter | 29mm |
| Starter Mount Type | 2 Hole |
| Wet / Dry Clutch | Dry |
| New / Reman. | New |
| Weight | 3.6kg |
Compatible With
The DXS547 is a Denso style 9 tooth starter motor with counter-clockwise (CCW) rotation, designed for automatic transmission applications. The 8 and 9 tooth versions are interchangeable. Confirm your original starter's rotation direction matches before ordering.
Frequently Asked Questions
Can I use an 8 tooth starter instead of the DXS547?
Yes. The 8 and 9 tooth versions of this unit are interchangeable.
What rotation direction does the DXS547 have?
The DXS547 has counter-clockwise (CCW) rotation, an important fitment factor to confirm against your original starter.
Is the DXS547 for automatic or manual transmission?
The DXS547 is designed for automatic transmission applications.
What is the power rating of the DXS547?
The DXS547 has a 1.4kW power rating.
Is the DXS547 new or reconditioned?
The DXS547 is supplied new.
