Description

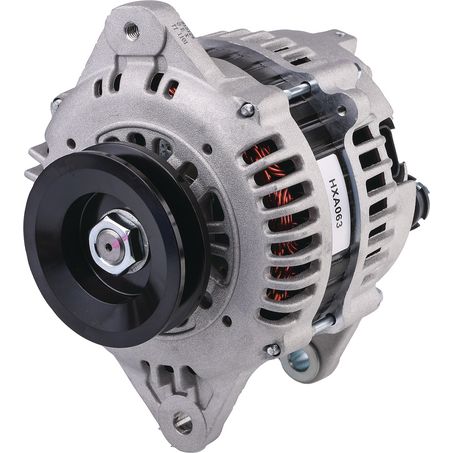

OEX HXA063 Alternator 12V 100A Hitachi Style
The OEX HXA063 is a new 12V 100A alternator, Hitachi style, featuring an internal regulator, twin leg mount, and an A section pulley.
Product Overview
The HXA063 is a new 12V Hitachi style alternator from OEX, delivering 100A of output through an internal regulator. Built with a twin leg mount and a mount centre to centre distance of 175mm, the HXA063 features an A section pulley with an 84mm outside diameter.
The OEX brand is sourced from market leading original equipment manufacturers and aftermarket suppliers. OEX products are sourced from factories that are ISO9001 certified to support stringent engineering, testing, and quality control procedures. When you fit an OEX product, you have the peace of mind of knowing it's backed by a comprehensive nationwide warranty.
Features & Benefits
100A Output at 12V: Delivers 100A of charging output on a standard 12V electrical system.
Internal Regulator: An internal regulator keeps the charging system compact without needing a separate external regulator unit.
Twin Leg Mount: The twin leg mounting arrangement matches the original Hitachi style fitment for straightforward installation.
Large A Section Pulley: The A section pulley at 84mm outside diameter suits the specified fitment applications.
Hitachi Style Design: Built to Hitachi style specifications for compatible fitment across applications originally equipped with a matching Hitachi unit.
ISO9001 Certified Manufacturing: Sourced from ISO9001 certified factories, supporting stringent engineering, testing, and quality control procedures.
New Unit: Supplied new, not reconditioned.
Technical Specs
| Specification | Detail |
| Part No. | HXA063 |
| Brand | OEX |
| Type | Alternator |
| Voltage | 12V |
| Power Rating | 100A |
| Regulator Type | Internal |
| Suits Unit Make | Hitachi |
| Alternator Mount | Twin Leg |
| Mount Cnt to Cnt | 175mm |
| Inside Mounting Legs | 79mm |
| Adjusting Hole Diameter | M8x1.25 |
| Pivot Hole Diameter | 10mm |
| Pulley Outside Diameter | 84mm |
| Pulley Section | A |
| Pin Code | IR49 |
| New / Reman. | New |
| Weight | 6.3kg |
Compatible With
The HXA063 is a Hitachi style 12V 100A alternator with a twin leg mount and 175mm mounting centre to centre distance. Confirm fitment against your original alternator's mounting dimensions and pin code (IR49) before ordering.
Frequently Asked Questions
What voltage and output does the HXA063 provide?
The HXA063 is a 12V alternator delivering 100A of output.
What is the difference between the HXA063 and HXA069?
Both are Hitachi style alternators sharing the same pin code (IR49), but the HXA063 delivers 100A with an A section pulley, while the HXA069 delivers 90A with a 6 groove pulley.
How is the HXA063 mounted?
The HXA063 uses a twin leg mount with a 175mm mounting centre to centre distance.
What pulley does the HXA063 use?
The HXA063 uses an A section pulley with an 84mm outside diameter.
Is the HXA063 new or reconditioned?
The HXA063 is supplied new.
