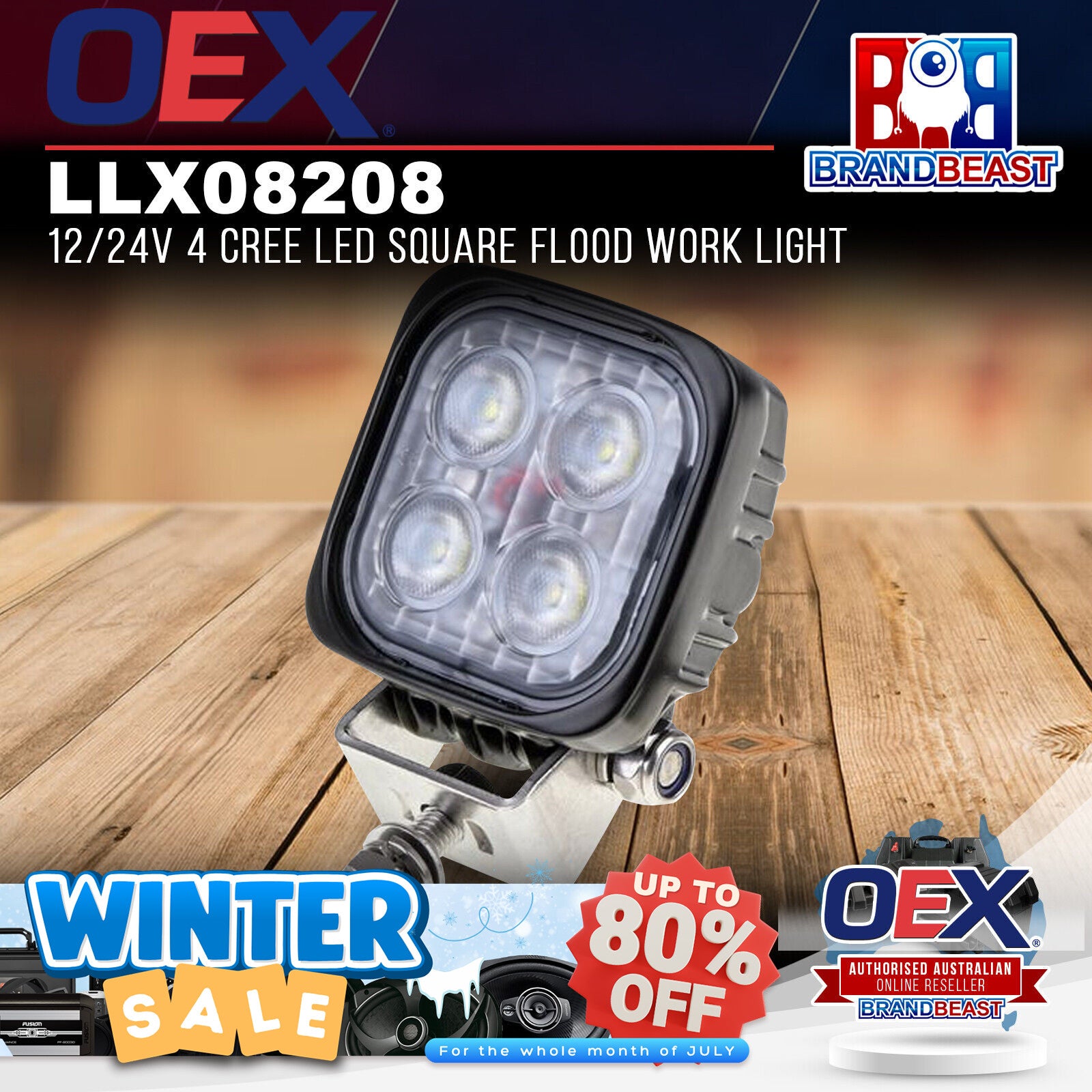

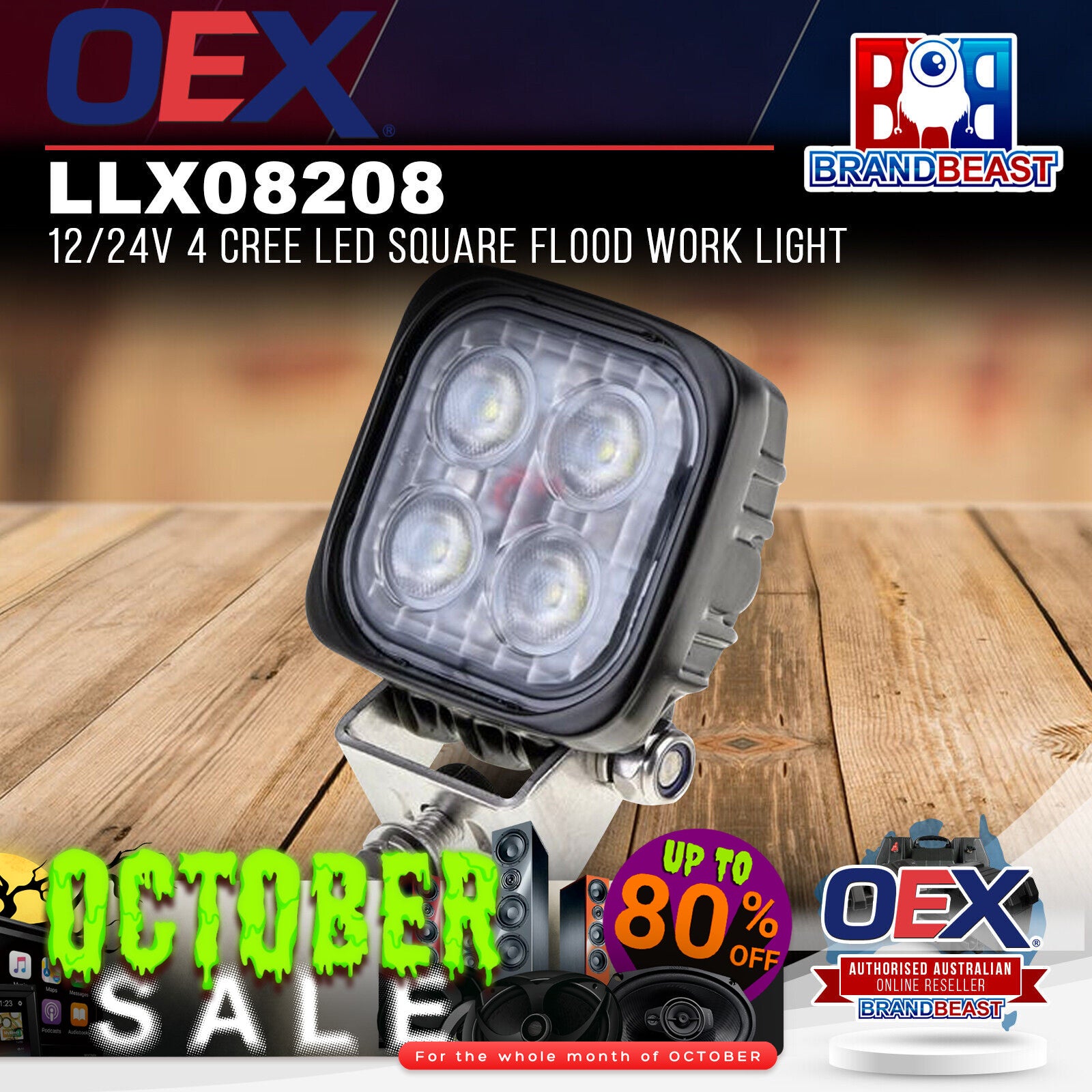

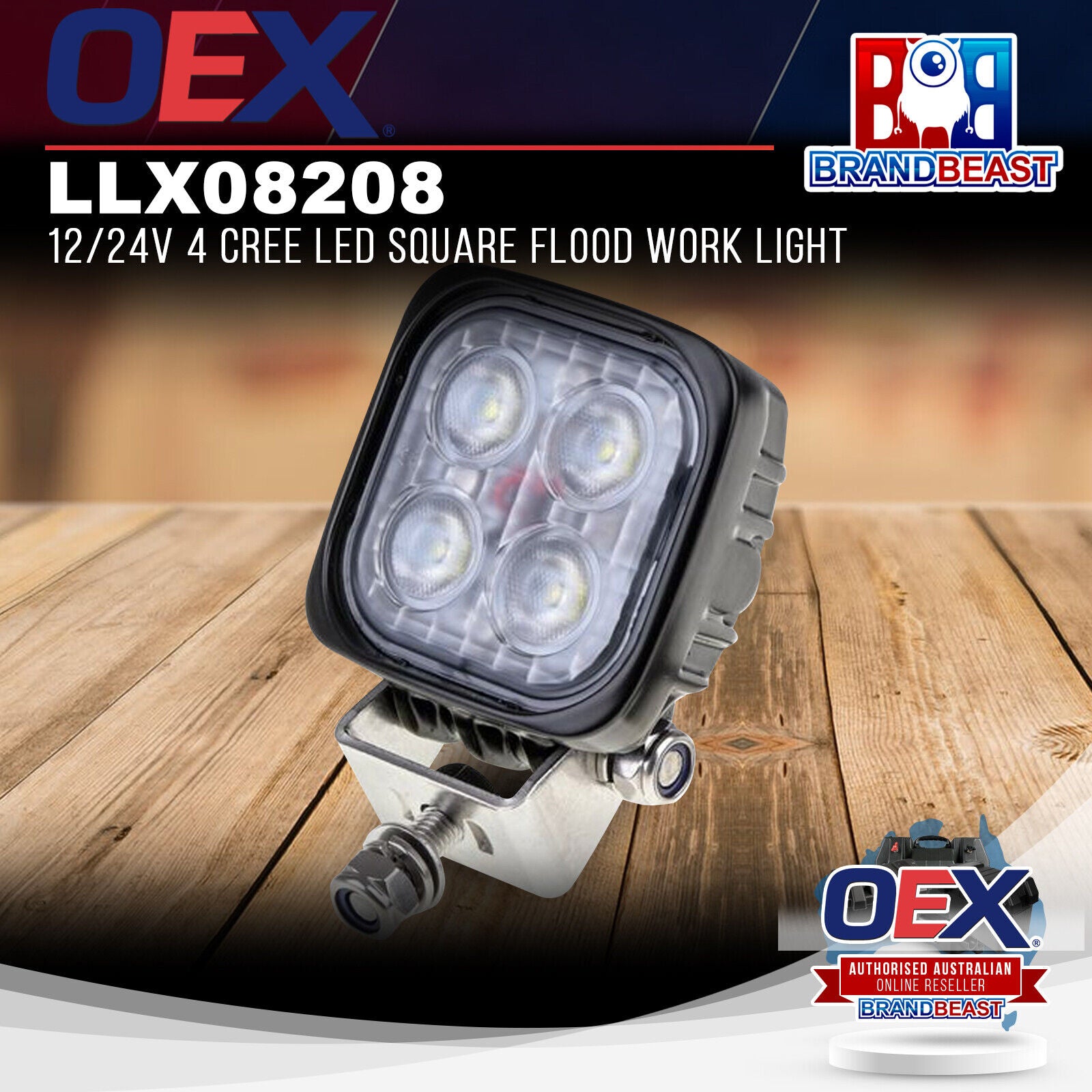

OEX LLX08208 4 Cree LED Square Flood Work Light
The OEX LLX08208 is a 12V/24V square LED flood work light with 4 Cree LEDs, delivering 1081 lumens with an aluminium body, pedestal mount, and IP67 rating.
Product Overview
The LLX08208 is a 12V/24V LED flood work light from OEX, built with an aluminium body and polycarbonate lens. Featuring 4 x 3 watt Cree LEDs in a flood beam pattern, the light delivers 1081 lumens, suited to vehicle and equipment work light applications.
Rated IP67 and CISPR25 compliant, the LLX08208 is built to withstand dust and water immersion. The light mounts via a pedestal mount and connects via a 2 wire connection.
Features & Benefits
4 Cree LEDs: The 4 x 3 watt Cree LED array delivers 1081 lumens through a flood beam pattern, using a well-regarded LED brand for consistent performance.
IP67 Rated: Rated IP67, the light withstands dust and water immersion suited to demanding vehicle and equipment environments.
CISPR25 Rated: Compliant with the CISPR25 electromagnetic compatibility standard.
12V/24V Compatible: Draws 1.0A at 12V or 0.5A at 24V, suiting both vehicle electrical systems.
Aluminium Body: The aluminium body construction supports heat dissipation and durability over long-term use.
Pedestal Mount: The pedestal mounting arrangement suits applications requiring the light to be raised from the mounting surface.
Compact Size: At 91 x 70 x 41.5mm and 0.34kg, the light is compact and easy to fit in tighter mounting locations.
Technical Specs
| Specification | Detail |
| Part No. | LLX08208 |
| Brand | OEX |
| Description | 4 Cree LED Square Flood Work Light, 12V/24V |
| Shape | Rectangle |
| LEDs | 4 x 3W Cree LEDs |
| Light Output | 1081 Lumens |
| Beam Pattern | Flood |
| Voltage | 12V or 24V |
| Current Draw | 1.0A @ 12V, 0.5A @ 24V |
| Body Material | Aluminium |
| Lens Material | Polycarbonate |
| Mounting | Pedestal |
| Connector | 2 Wires |
| Environmental Rating | IP67 |
| Size | 91 x 70 x 41.5mm |
| Weight | 0.34kg |
Compatible With
The LLX08208 suits 12V and 24V vehicle and equipment electrical systems, connecting via a 2 wire connection.
Frequently Asked Questions
What is the light output of the LLX08208?
The LLX08208 delivers 1081 lumens through a flood beam pattern using 4 Cree LEDs.
Is the LLX08208 waterproof?
Yes. The LLX08208 is rated IP67, withstanding dust and water immersion.
Does the LLX08208 suit both 12V and 24V systems?
Yes. The LLX08208 draws 1.0A at 12V or 0.5A at 24V, suiting both electrical systems.
How is the LLX08208 mounted?
The LLX08208 uses a pedestal mount.
What material is the LLX08208 body made from?
The LLX08208 has an aluminium body with a polycarbonate lens.
