Description

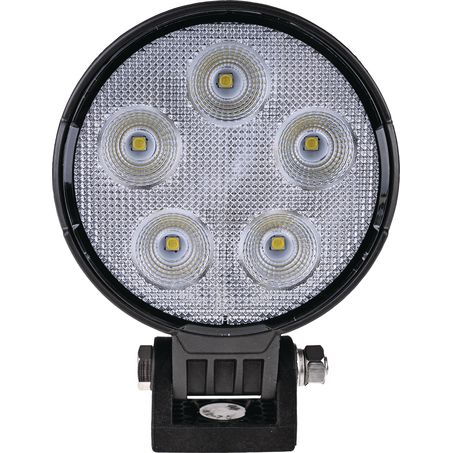

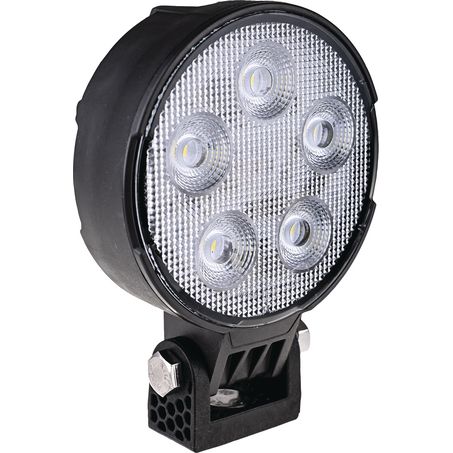

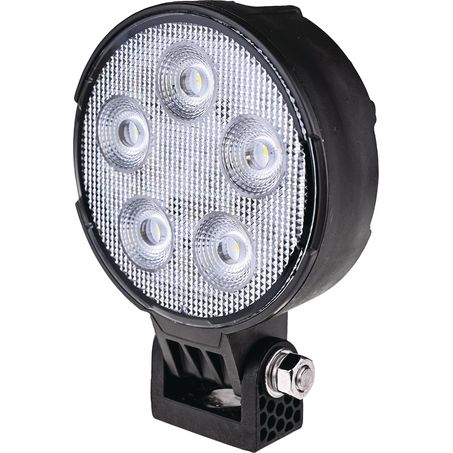

OEX LLX08301 5LED Work Light Nylon Housing Round
Step up your work area lighting with the OEX LLX08301 18W round LED work light delivering 1750 effective lumens from five 4W LEDs in a flood beam pattern, IP67 and IP69K dual-rated waterproof and dustproof thermal plastic nylon housing for reliable performance in demanding outdoor environments, 10-30V wide voltage input compatibility for 12V and 24V system fitment, DT04-2P connector for secure moisture-resistant wiring, single bolt mounting for quick and versatile installation, and OEX ISO 9001 certified quality built for Australian automotive, agricultural, marine, and industrial working conditions.
Product Overview
The OEX LLX08301 is the round-body variant of the mid-range LLX08302 square work light, sharing the same 18W five-LED output, IP67/IP69K dual rating, and 10-30V wide voltage compatibility in a round housing profile suited to applications and mounting positions where a circular light form factor is preferred or required. At 1750 effective lumens from five 4W LEDs, the LLX08301 delivers a 35% increase in flood output over the 4-LED round LLX08309, providing greater area coverage for larger trays, wider equipment bays, and work environments where additional light output makes a meaningful difference to task visibility. The round body of the LLX08301 is well suited to installation in round light apertures and pre-drilled holes, circular flush-mount or surface-mount brackets, and mounting positions on roll bars, light bars, and tubular structures where a round profile provides a cleaner, more symmetrical aesthetic alongside other round lighting and accessory components. The compact 138 x 102 x 45mm body and single bolt mounting system make the LLX08301 straightforward to install across a wide range of positions and orientations, while the lightweight 0.34kg construction minimises mounting hardware requirements. The 10-30V wide voltage input covers 12V and 24V systems without requiring voltage-specific variants, and the dual IP67 and IP69K environmental rating certifies the LLX08301 for continuous submersion and high-pressure high-temperature wash-down across the most demanding Australian field conditions. The DT04-2P connector provides a secure, weatherproof, vibration-resistant plug-and-play connection for clean installation and easy light servicing. Note that no wiring harness is supplied with the LLX08301 — a compatible harness should be sourced separately to suit the specific installation.
Features & Benefits
1750 Effective Lumen Flood Output Five 4W LEDs deliver a 35% increase in flood illumination over the 4-LED LLX08309 round variant, providing greater area coverage for larger trays, wider equipment bays, and work environments where additional light output makes a meaningful difference to task visibility.
Round Housing Profile The circular body suits round light apertures, pre-drilled holes, circular flush and surface mount brackets, and tubular roll bar and light bar mounting positions where a round profile provides a cleaner fit and more symmetrical appearance alongside other round lighting and accessory components.
IP67 and IP69K Dual-Rated Protection Certified for continuous submersion and high-pressure high-temperature wash-down, enabling reliable operation on wash-down equipment, agricultural machinery, marine vessels, and vehicles operating in wet, muddy, and harsh environmental conditions.
18W Efficient High-Output Performance Delivers 1750 lumens from an 18W draw at only 1.3A on 13V, providing strong task lighting output with a minimal electrical system load suitable for multi-light installations without overloading circuits.
Compact 138 x 102 x 45mm Form Factor The round nylon housing fits in a wide range of mounting locations with single bolt installation, offering a practical balance between increased light output and a body size that remains manageable in space-restricted positions.
10-30V Wide Voltage Input Compatible with 12V and 24V electrical systems across passenger vehicles, commercial trucks, agricultural machinery, and marine vessels without requiring voltage-specific variants or additional components.
Thermal Plastic Nylon Housing Lightweight and durable nylon construction resists corrosion, impacts, and UV degradation in harsh outdoor environments while keeping overall weight to just 0.34kg for mounting flexibility in weight-sensitive locations.

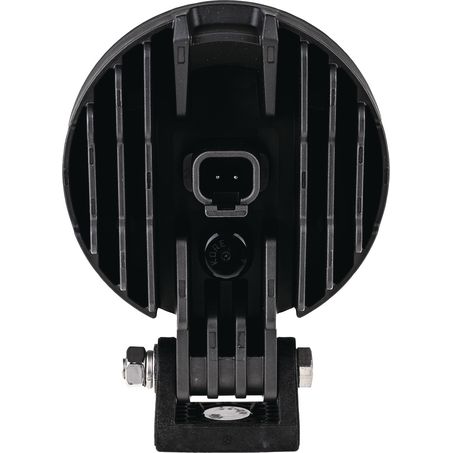

DT04-2P Connector Industry-standard weatherproof connector provides a secure, vibration-resistant, moisture-proof plug-and-play connection that simplifies installation and enables easy light removal or replacement without cutting wiring.
Technical Specs
| Specification |
Detail |
| Brand |
OEX |
| SKU |
LLX08301 |
| Light Output |
1750 Effective Lumen |
| LEDs |
5 x 4W |
| Wattage |
18W |
| Current Draw |
1.3A @ 13V |
| Voltage Input |
10-30V (12V / 24V) |
| Beam Pattern |
Flood |
| Shape |
Round |
| Dimensions |
138mm (H) x 102mm (W) x 45mm (L) |
| Body Material |
Thermal Plastic Nylon |
| Lens Material |
Polycarbonate |
| IP Rating |
IP67 / IP69K |
| Vibration Rating |
20G |
| Connector |
DT04-2P |
| Mount Type |
Single Bolt |
| Weight |
0.34kg |
| Harness |
Not Supplied |
| Warranty |
1 Year |
| Certification |
ISO 9001 |
| Country of Testing |
Australia (Brisbane) |
Compatible With / Goes Well With
The OEX LLX08301 is compatible with 12V and 24V electrical systems across passenger vehicles, utes, trucks, caravans, trailers, agricultural machinery, marine vessels, and industrial mobile equipment. Well suited to ute tray and cargo area illumination, equipment bay and toolbox lighting on service vehicles, underbonnet engine bay lighting, reverse and manoeuvring lights on trailers and caravans, step and boarding area lighting on larger vehicles and machinery, and roll bar and tubular structure auxiliary lighting setups. The round body pairs naturally with other round lighting components and accessories. Also compatible with the LLX08302 5-LED square, LLX08309 4-LED round, and LLX08308 4-LED square work lights for mixed installations requiring different output levels or housing shapes across the same vehicle or equipment build. Pairs well with compatible DT04-2P wiring harnesses and extension leads, OEX automotive cable and cable management accessories, OEX switch panels and rocker switches for light control, and OEX circuit breakers and inline fuse holders for circuit protection.
Frequently Asked Questions
What is the difference between the LLX08301 round and LLX08302 square 5-LED work lights and when should I choose each?
The LLX08301 and LLX08302 are identical in output, electrical specifications, IP rating, and mounting system — the only difference is the housing shape and a slight weight difference of 0.34kg versus 0.38kg. Choose the LLX08301 round body when installing into round light apertures or pre-drilled holes, on roll bars, roof racks, or tubular mounting structures where a round profile fits more naturally, or when the light will be mounted alongside other round accessories for a consistent visual appearance. Choose the LLX08302 square body for rectangular apertures, panel mounts, or when a more industrial flush-panel aesthetic is preferred. Both are equally capable performers — the choice is purely one of fitment and preference.
When should I choose the LLX08301 5-LED over the LLX08309 4-LED round work light?
Choose the LLX08301 when the additional 450 lumens of output (1750 vs 1300) makes a practical difference to the application — typically when illuminating larger areas such as full-length ute trays, wide equipment bays, or boarding areas on larger vehicles and machinery where the 4-LED variant leaves edges of the work area underlit. The LLX08301 is also the better choice when the light will be mounted higher or further from the work surface, as the additional output compensates for the greater throw distance. For compact, close-range task lighting in tight locations, the smaller and lighter LLX08309 remains a practical and cost-effective choice.
Does the LLX08301 come with a wiring harness?
No — the LLX08301 is supplied with the DT04-2P connector fitted to the light but does not include a wiring harness. A compatible DT04-2P wiring harness or pigtail lead will need to be sourced separately to suit the specific installation. Contact F.A.E. for compatible harness options, or enquire about suitable OEX wiring accessories to complete the installation.
Can I use the LLX08301 on a 24V commercial vehicle or agricultural machine?
Yes. The 10-30V wide voltage input rating makes the LLX08301 fully compatible with 24V electrical systems as used in commercial trucks, agricultural tractors, heavy equipment, and specialist vehicles. At 24V, the current draw drops to approximately 0.65A per light — roughly half the 12V draw — making the LLX08301 a very low-draw lighting solution even on a 24V system. Ensure the wiring harness and any in-line fuse or circuit protection used are also rated for 24V operation.
How many LLX08301 work lights can I run from a single 10A circuit?
At 12V, each LLX08301 draws 1.3A. A standard 10A circuit can safely support up to six lights simultaneously with a small safety margin, or up to five lights applying the standard 125% derating rule for continuous loads. At 24V, current draw drops to approximately 0.65A per light, allowing up to twelve lights on a single 10A circuit. For most practical installations involving two to four work lights, a 10A fuse or circuit breaker for a bank of four lights is a clean and appropriate protection arrangement.
