Description

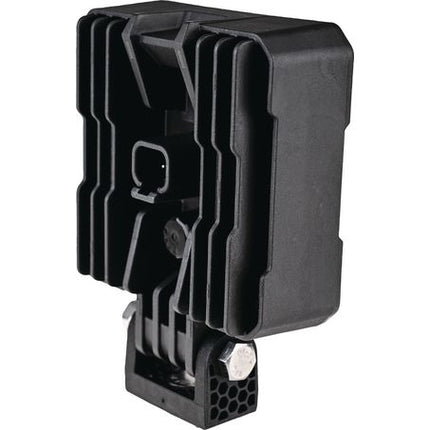

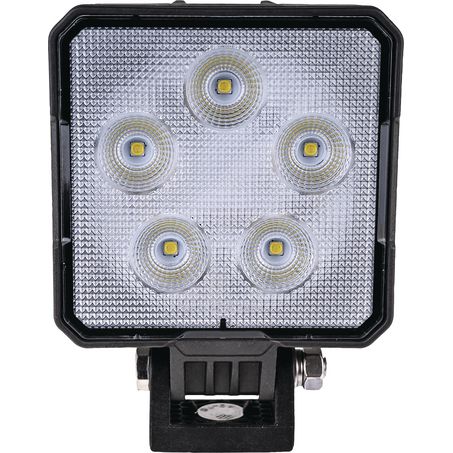

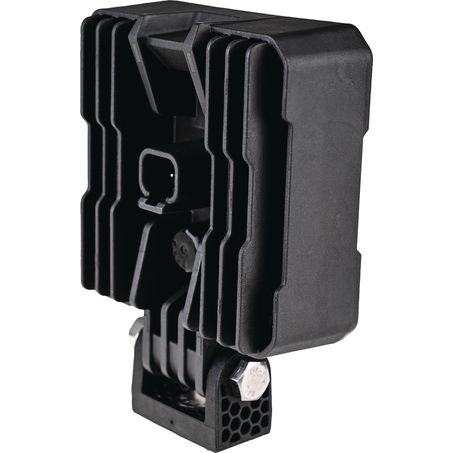

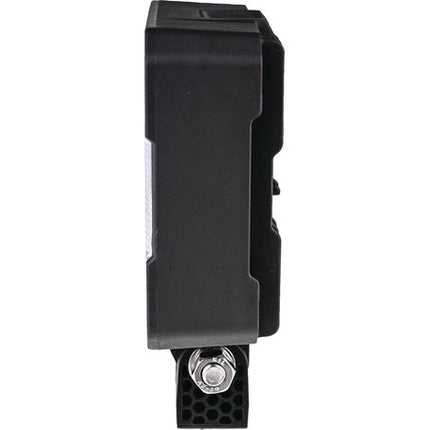

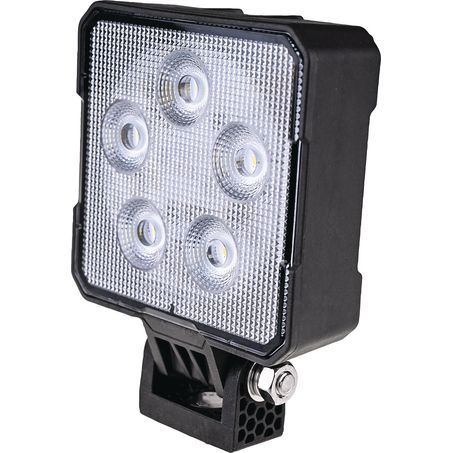

OEX LLX08302 5LED Work Light Nylon Housing Square
Step up your work area lighting with the OEX LLX08302 18W square LED work light delivering 1750 effective lumens from five 4W LEDs in a flood beam pattern, IP67 and IP69K dual-rated waterproof and dustproof thermal plastic nylon housing for reliable performance in demanding outdoor environments, 10-30V wide voltage input compatibility for 12V and 24V system fitment, DT04-2P connector for secure moisture-resistant wiring, single bolt mounting for quick and versatile installation, and OEX ISO 9001 certified quality built for Australian automotive, agricultural, marine, and industrial working conditions.
Product Overview
The OEX LLX08302 is a mid-range compact square LED work light stepping up from the 4-LED LLX08308 with a larger five-LED array and 18W output, delivering 1750 effective lumens — a 35% increase in light output — in a slightly larger 138 x 102 x 45mm form factor that remains practical for installation in confined or restricted mounting locations. The five 4W LEDs generate broad, even flood illumination suited to a wider range of task and area lighting applications where the additional output of the LLX08302 is required over the 4-LED variant, including larger tray and cargo areas, wider equipment bay illumination, underbonnet servicing in low-light conditions, step and boarding area lighting on larger vehicles and machinery, and reverse and manoeuvring lights on trailers, caravans, and agricultural equipment requiring greater area coverage. The 10-30V wide voltage input rating provides genuine compatibility across 12V and 24V electrical systems without requiring voltage-specific variants, covering the full range of passenger vehicles, commercial trucks, agricultural equipment, and marine vessels in a single product. The dual IP67 and IP69K environmental rating certifies the LLX08302 for continuous submersion and high-pressure high-temperature wash-down, ensuring reliable operation on wash-down vehicles, agricultural machinery, marine craft, and equipment exposed to heavy rain, mud, and water spray in demanding Australian field conditions. The DT04-2P connector provides a secure, weatherproof, vibration-resistant plug-and-play connection for clean installation and easy light servicing, and the single bolt mounting system enables quick and flexible positioning across a wide range of bracket and surface mount configurations. Note that no wiring harness is supplied with the LLX08302 — a compatible harness should be sourced separately to suit the specific installation.
Features & Benefits
1750 Effective Lumen Flood Output Five 4W LEDs deliver a 35% increase in flood illumination over the 4-LED LLX08308, providing greater area coverage for larger trays, wider equipment bays, and work environments where additional light output makes a meaningful difference to task visibility.
IP67 and IP69K Dual-Rated Protection Certified for continuous submersion and high-pressure high-temperature wash-down, enabling reliable operation on wash-down equipment, agricultural machinery, marine vessels, and vehicles operating in wet, muddy, and harsh environmental conditions.
18W Efficient High-Output Performance Delivers 1750 lumens from an 18W draw at only 1.3A on 13V, providing strong task lighting output with a minimal electrical system load suitable for multi-light installations without overloading circuits.
Compact 138 x 102 x 45mm Square Form Factor The nylon square housing fits in a wide range of mounting locations with single bolt installation, offering a practical balance between increased light output and a body size that remains manageable in space-restricted positions.
10-30V Wide Voltage Input Compatible with 12V and 24V electrical systems across passenger vehicles, commercial trucks, agricultural machinery, and marine vessels without requiring voltage-specific variants or additional components.
Thermal Plastic Nylon Housing Lightweight and durable nylon construction resists corrosion, impacts, and UV degradation in harsh outdoor environments while keeping overall weight to just 0.38kg for mounting flexibility in weight-sensitive locations.
DT04-2P Connector Industry-standard weatherproof connector provides a secure, vibration-resistant, moisture-proof plug-and-play connection that simplifies installation and enables easy light removal or replacement without cutting wiring.
Single Bolt Mount Versatile single bolt mounting system enables quick installation in a wide range of positions and orientations, compatible with standard bracket and surface mount configurations across automotive, marine, and industrial applications.
Technical Specs
| Specification |
Detail |
| Brand |
OEX |
| SKU |
LLX08302 |
| Light Output |
1750 Effective Lumen |
| LEDs |
5 x 4W |
| Wattage |
18W |
| Current Draw |
1.3A @ 13V |
| Voltage Input |
10-30V (12V / 24V) |
| Beam Pattern |
Flood |
| Shape |
Square |
| Dimensions |
138mm (H) x 102mm (W) x 45mm (L) |
| Body Material |
Thermal Plastic Nylon |
| Lens Material |
Polycarbonate |
| IP Rating |
IP67 / IP69K |
| Vibration Rating |
20G |
| Connector |
DT04-2P |
| Mount Type |
Single Bolt |
| Weight |
0.38kg |
| Harness |
Not Supplied |
| Warranty |
1 Year |
| Certification |
ISO 9001 |
| Country of Testing |
Australia (Brisbane) |
Compatible With / Goes Well With
The OEX LLX08302 is compatible with 12V and 24V electrical systems across passenger vehicles, utes, trucks, caravans, trailers, agricultural machinery, marine vessels, and industrial mobile equipment. Well suited to ute tray and cargo area illumination, equipment bay and toolbox lighting on service vehicles, underbonnet engine bay lighting, reverse and manoeuvring lights on trailers and caravans, step and boarding area lighting on larger vehicles and machinery, and general task lighting across a wide range of vehicle and equipment types. Pairs naturally with the OEX LLX08308 4-LED square and LLX08309 4-LED round work lights for mixed installations requiring different output levels across the same vehicle or equipment build. Pairs well with compatible DT04-2P wiring harnesses and extension leads, OEX automotive cable and cable management accessories, OEX switch panels and rocker switches for light control, and OEX circuit breakers and inline fuse holders for circuit protection.
Frequently Asked Questions
When should I choose the LLX08302 5-LED over the LLX08308 4-LED square work light?
Choose the LLX08302 when the additional 450 lumens of output (1750 vs 1300) makes a practical difference to your application — typically when illuminating larger areas such as full-length ute trays, wide equipment bays, or boarding areas on larger vehicles and machinery where the 4-LED variant leaves edges of the work area underlit. The LLX08302 is also the better choice for applications where the light will be mounted higher or further from the work surface, as the additional output compensates for the greater throw distance. For compact, close-range task lighting in tight locations, the smaller and lighter LLX08308 remains a practical and cost-effective choice.
Does the LLX08302 come with a wiring harness?
No — the LLX08302 is supplied with the DT04-2P connector fitted to the light but does not include a wiring harness. A compatible DT04-2P wiring harness or pigtail lead will need to be sourced separately to suit the specific installation. Contact F.A.E. for compatible harness options, or enquire about suitable OEX wiring accessories to complete the installation.
What does the IP67 and IP69K dual rating mean for a work light installation?
IP67 certifies protection against continuous submersion up to 1 metre depth, while IP69K certifies protection against high-pressure, high-temperature water jets as used in agricultural and industrial wash-down applications. For a work light installed on a wash-down vehicle, agricultural equipment, or a marine vessel subject to heavy weather, carrying both ratings provides comprehensive protection against both submersion events and aggressive cleaning. Many budget work lights carry IP67 alone — the addition of IP69K on the LLX08302 makes it genuinely suitable for wash-down equipment and heavy-duty agricultural applications where high-pressure cleaning is routine.
Can I use the LLX08302 on a 24V commercial vehicle or agricultural machine?
Yes. The 10-30V wide voltage input rating makes the LLX08302 fully compatible with 24V electrical systems as used in commercial trucks, agricultural tractors, heavy equipment, and specialist vehicles. At 24V, the current draw drops to approximately 0.65A per light — roughly half the 12V draw — making the LLX08302 a very low-draw lighting solution even on a 24V system. Ensure the wiring harness and any in-line fuse or circuit protection used are also rated for 24V operation.
How many LLX08302 work lights can I run from a single 10A circuit?
At 12V, each LLX08302 draws 1.3A. A standard 10A circuit can safely support up to six lights simultaneously with a small safety margin, or up to five lights applying the standard 125% derating rule for continuous loads. At 24V, current draw drops to approximately 0.65A per light, allowing up to twelve lights on a single 10A circuit. For most practical installations involving two to four work lights, a 10A fuse or circuit breaker for a bank of four lights is a clean and appropriate protection arrangement.
