Description

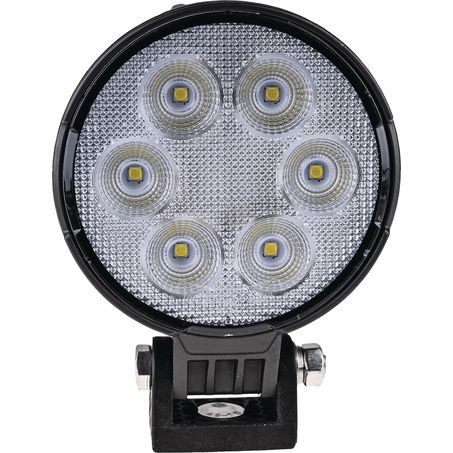

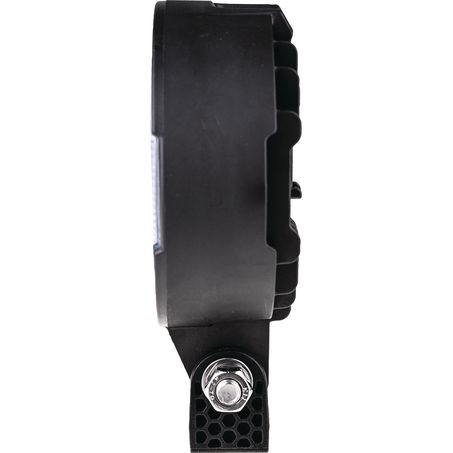

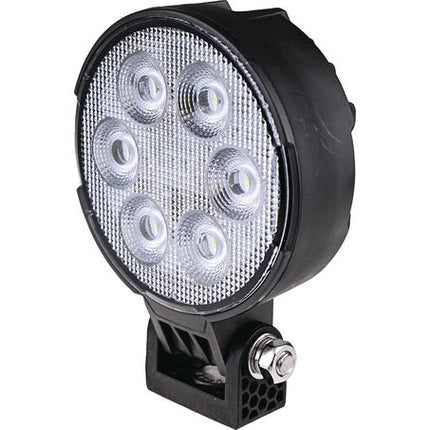

OEX LLX08303 6LED Work Light Nylon Housing Round
Maximise your work area illumination with the OEX LLX08303 24W round LED work light delivering 2300 effective lumens from six 4W LEDs in a flood beam pattern, IP67 and IP69K dual-rated waterproof and dustproof thermal plastic nylon housing for reliable performance in demanding outdoor environments, 10-30V wide voltage input compatibility for 12V and 24V system fitment, DT04-2P connector for secure moisture-resistant wiring, single bolt mounting for quick and versatile installation, and OEX ISO 9001 certified quality built for Australian automotive, agricultural, marine, and industrial working conditions.
Product Overview
The OEX LLX08303 is the round-body variant of the top-of-range LLX08304 square work light, sharing the same 24W six-LED output, IP67/IP69K dual rating, and 10-30V wide voltage compatibility in a round housing profile suited to applications and mounting positions where a circular light form factor is preferred or required. At 2300 effective lumens from six 4W LEDs, the LLX08303 is the highest-output round work light in the compact OEX nylon housing series — delivering a 31% increase over the 5-LED LLX08301 round variant and a 77% increase over the entry-level 4-LED LLX08309 round variant — making it the round light of choice for demanding task and area lighting applications where maximum flood output is required in a circular form factor. The round body of the LLX08303 is well suited to installation in round light apertures and pre-drilled holes, circular flush-mount or surface-mount brackets, and mounting positions on roll bars, light bars, and tubular structures where a round profile provides a cleaner, more symmetrical aesthetic alongside other round lighting and accessory components. The compact 138 x 102 x 45mm body and single bolt mounting system make the LLX08303 straightforward to install across a wide range of positions and orientations, while the lightweight 0.34kg construction minimises mounting hardware requirements. The 10-30V wide voltage input covers 12V and 24V systems without requiring voltage-specific variants, and the dual IP67 and IP69K environmental rating certifies the LLX08303 for continuous submersion and high-pressure high-temperature wash-down across the most demanding Australian field conditions. The DT04-2P connector provides a secure, weatherproof, vibration-resistant plug-and-play connection for clean installation and easy light servicing. Note that no wiring harness is supplied with the LLX08303 — a compatible harness should be sourced separately to suit the specific installation.
Features & Benefits
2300 Effective Lumen Maximum Output The highest lumen output in the compact OEX round nylon work light series — six 4W LEDs deliver a 31% increase over the 5-LED LLX08301 and a 77% increase over the 4-LED LLX08309, providing maximum flood area coverage from a compact round 138 x 102mm body.
Round Housing Profile The circular body suits round light apertures, pre-drilled holes, circular flush and surface mount brackets, and tubular roll bar and light bar mounting positions where a round profile provides a cleaner fit and more symmetrical appearance alongside other round lighting and accessory components.
IP67 and IP69K Dual-Rated Protection Certified for continuous submersion and high-pressure high-temperature wash-down, enabling reliable operation on wash-down equipment, agricultural machinery, marine vessels, and vehicles operating in wet, muddy, and harsh environmental conditions.
24W Efficient High-Output Performance Delivers 2300 lumens from a 24W draw at only 1.7A on 13V, providing the highest output in the compact round nylon work light range with a manageable electrical load suitable for multi-light installations without overloading vehicle circuits.
Compact 138 x 102 x 45mm Form Factor Shares the same practical footprint as the 5-LED LLX08301 round, fitting the same mounting positions and brackets while delivering the maximum output available in the compact round nylon housing form factor.
10-30V Wide Voltage Input Compatible with 12V and 24V electrical systems across passenger vehicles, commercial trucks, agricultural machinery, and marine vessels without requiring voltage-specific variants or additional components.
Thermal Plastic Nylon Housing Lightweight and durable nylon construction resists corrosion, impacts, and UV degradation in harsh outdoor environments while keeping overall weight to just 0.34kg for mounting flexibility in weight-sensitive locations.

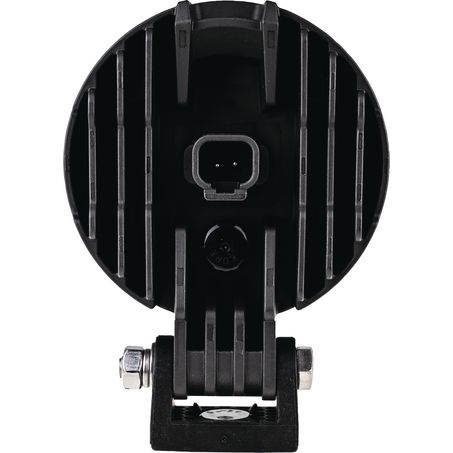

DT04-2P Connector Industry-standard weatherproof connector provides a secure, vibration-resistant, moisture-proof plug-and-play connection that simplifies installation and enables easy light removal or replacement without cutting wiring.
Technical Specs
| Specification |
Detail |
| Brand |
OEX |
| SKU |
LLX08303 |
| Light Output |
2300 Effective Lumen |
| LEDs |
6 x 4W |
| Wattage |
24W |
| Current Draw |
1.7A @ 13V |
| Voltage Input |
10-30V (12V / 24V) |
| Beam Pattern |
Flood |
| Shape |
Round |
| Dimensions |
138mm (H) x 102mm (W) x 45mm (L) |
| Body Material |
Thermal Plastic Nylon |
| Lens Material |
Polycarbonate |
| IP Rating |
IP67 / IP69K |
| Vibration Rating |
20G |
| Connector |
DT04-2P |
| Mount Type |
Single Bolt |
| Weight |
0.34kg |
| Harness |
Not Supplied |
| Warranty |
1 Year |
| Certification |
ISO 9001 |
| Country of Testing |
Australia (Brisbane) |
Compatible With / Goes Well With
The OEX LLX08303 is compatible with 12V and 24V electrical systems across passenger vehicles, utes, trucks, caravans, trailers, agricultural machinery, marine vessels, and industrial mobile equipment. Well suited to full-length ute and truck tray lighting, large equipment bay and service body illumination, professional underbonnet and engine bay lighting, wide reverse and manoeuvring light coverage on large trailers and caravans, boarding and step area lighting on heavy vehicles and plant machinery, and roll bar and tubular structure auxiliary lighting setups requiring maximum compact output. The round body pairs naturally with other round lighting components and accessories. Also compatible with the LLX08304 6-LED square, LLX08301 5-LED round, LLX08302 5-LED square, LLX08309 4-LED round, and LLX08308 4-LED square work lights for mixed output and shape installations across the same vehicle or equipment build. Pairs well with compatible DT04-2P wiring harnesses and extension leads, OEX automotive cable and cable management accessories, OEX switch panels and rocker switches for light control, and OEX circuit breakers and inline fuse holders for circuit protection.
Frequently Asked Questions
What is the difference between the LLX08303 round and LLX08304 square 6-LED work lights and when should I choose each?
The LLX08303 and LLX08304 are identical in output, electrical specifications, and IP rating — the only difference is the housing shape and a slight weight difference of 0.34kg versus 0.38kg. Choose the LLX08303 round body when installing into round light apertures or pre-drilled holes, on roll bars, roof racks, or tubular mounting structures where a round profile fits more naturally, or when the light will be mounted alongside other round accessories for a consistent visual appearance. Choose the LLX08304 square body for rectangular apertures, panel mounts, or when a more industrial flush-panel aesthetic is preferred. Both are equally capable performers at maximum output — the choice is purely one of fitment and preference.
When should I choose the LLX08303 6-LED over the LLX08301 5-LED round work light?
Choose the LLX08303 when maximum flood output is the priority — the 2300 lumen output is 31% higher than the LLX08301's 1750 lumens, making it the better choice for larger tray and equipment bay lighting, professional service body illumination, wide reverse lighting on large trailers, and applications where the light will be mounted at a greater height or distance from the work surface. If the application is well served by 1750 lumens and a slightly lower current draw of 1.3A vs 1.7A is preferable for the circuit, the LLX08301 remains an excellent choice. For the maximum output available in the compact OEX round nylon work light range, the LLX08303 is the top pick.
Does the LLX08303 come with a wiring harness?
No — the LLX08303 is supplied with the DT04-2P connector fitted to the light but does not include a wiring harness. A compatible DT04-2P wiring harness or pigtail lead will need to be sourced separately to suit the specific installation. Contact F.A.E. for compatible harness options, or enquire about suitable OEX wiring accessories to complete the installation.
Can I use the LLX08303 on a 24V commercial vehicle or agricultural machine?
Yes. The 10-30V wide voltage input rating makes the LLX08303 fully compatible with 24V electrical systems as used in commercial trucks, agricultural tractors, heavy equipment, and specialist vehicles. At 24V, the current draw drops to approximately 0.85A per light — roughly half the 12V draw — making the LLX08303 a very efficient lighting solution on 24V systems. Ensure the wiring harness and any in-line fuse or circuit protection used are also rated for 24V operation.
How many LLX08303 work lights can I run from a single 10A circuit?
At 12V, each LLX08303 draws 1.7A. A standard 10A circuit can safely support up to five lights simultaneously with a small safety margin, or up to four lights applying the standard 125% derating rule for continuous loads. At 24V, current draw drops to approximately 0.85A per light, allowing up to eight lights on a single 10A circuit. For most practical installations involving two to four work lights, a 10A fuse or circuit breaker for a bank of four lights is a clean and appropriate protection arrangement.
