Description

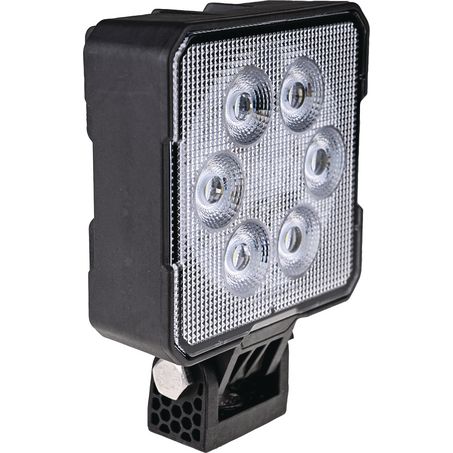

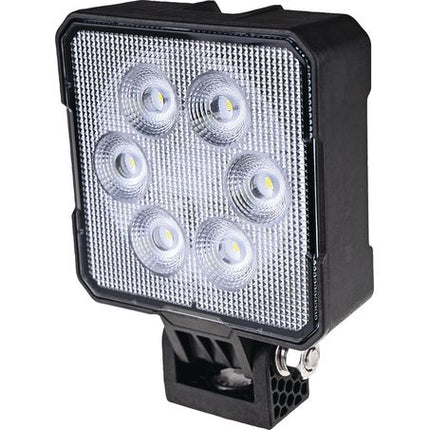

OEX LLX08304 6LED Work Light Nylon Housing Square
Maximise your work area illumination with the OEX LLX08304 24W square LED work light delivering 2300 effective lumens from six 4W LEDs in a flood beam pattern, IP67 and IP69K dual-rated waterproof and dustproof thermal plastic nylon housing for reliable performance in demanding outdoor environments, 10-30V wide voltage input compatibility for 12V and 24V system fitment, DT04-2P connector for secure moisture-resistant wiring, single bolt mounting for quick and versatile installation, and OEX ISO 9001 certified quality built for Australian automotive, agricultural, marine, and industrial working conditions.
Product Overview
The OEX LLX08304 is the highest-output variant in the compact nylon housing work light series, delivering professional-grade 2300 effective lumens from six 4W LEDs in the same practical 138 x 102 x 45mm form factor shared with the 5-LED LLX08302 — a 31% increase in light output over the LLX08302 and a 77% increase over the entry-level 4-LED LLX08308. At 24W and 1.7A draw on 13V, the LLX08304 provides the highest lumen output available in the compact OEX nylon work light range while still maintaining an efficient, low-draw electrical footprint suitable for multi-light installations across vehicle electrical systems. The six-LED array makes the LLX08304 the go-to choice for demanding task and area lighting applications where maximum flood illumination from a compact body is required — including full-length ute and truck tray lighting, large equipment bay and service body illumination, underbonnet and engine bay lighting for professional servicing operations, wide reverse and manoeuvring light coverage on large trailers and caravans, boarding and step area lighting on heavy vehicles and plant machinery, and work site area lighting on agricultural and mining mobile equipment. The 10-30V wide voltage input covers 12V and 24V systems, and the dual IP67 and IP69K environmental rating certifies the LLX08304 for continuous submersion and high-pressure high-temperature wash-down, ensuring reliable long-term performance across the most demanding Australian field, marine, and agricultural working conditions. The DT04-2P connector provides a secure, weatherproof, vibration-resistant plug-and-play connection for clean installation and easy light servicing. Note that no wiring harness is supplied with the LLX08304 — a compatible harness should be sourced separately to suit the specific installation.
Features & Benefits
2300 Effective Lumen Maximum Output The highest lumen output in the compact OEX nylon work light series — six 4W LEDs deliver a 31% increase over the 5-LED LLX08302 and a 77% increase over the 4-LED LLX08308, providing maximum flood area coverage from a compact 138 x 102mm body.
IP67 and IP69K Dual-Rated Protection Certified for continuous submersion and high-pressure high-temperature wash-down, enabling reliable operation on wash-down equipment, agricultural machinery, marine vessels, and vehicles operating in wet, muddy, and harsh environmental conditions.
24W Efficient High-Output Performance Delivers 2300 lumens from a 24W draw at only 1.7A on 13V, providing the highest output in the compact nylon work light range with a manageable electrical load suitable for multi-light installations without overloading vehicle circuits.
Compact 138 x 102 x 45mm Square Form Factor Shares the same practical footprint as the 5-LED LLX08302, fitting the same mounting positions and brackets while delivering the maximum output available in the compact nylon housing form factor.
10-30V Wide Voltage Input Compatible with 12V and 24V electrical systems across passenger vehicles, commercial trucks, agricultural machinery, and marine vessels without requiring voltage-specific variants or additional components.
Thermal Plastic Nylon Housing Lightweight and durable nylon construction resists corrosion, impacts, and UV degradation in harsh outdoor environments while keeping overall weight to just 0.38kg for mounting flexibility in weight-sensitive locations.

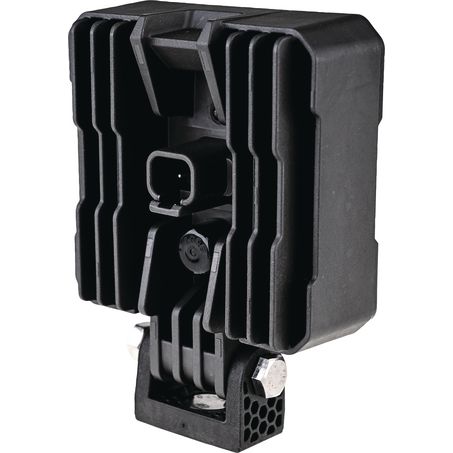

DT04-2P Connector Industry-standard weatherproof connector provides a secure, vibration-resistant, moisture-proof plug-and-play connection that simplifies installation and enables easy light removal or replacement without cutting wiring.

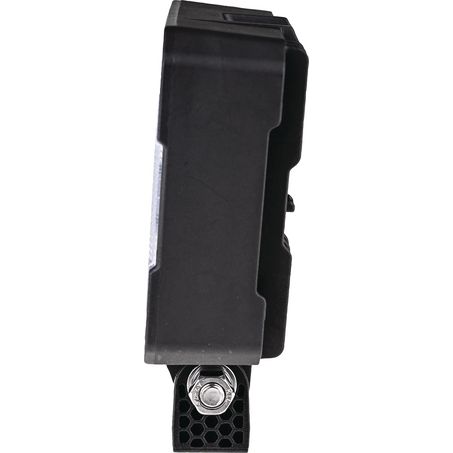

Single Bolt Mount Versatile single bolt mounting system enables quick installation in a wide range of positions and orientations, compatible with standard bracket and surface mount configurations across automotive, marine, and industrial applications.
Technical Specs
| Specification |
Detail |
| Brand |
OEX |
| SKU |
LLX08304 |
| Light Output |
2300 Effective Lumen |
| LEDs |
6 x 4W |
| Wattage |
24W |
| Current Draw |
1.7A @ 13V |
| Voltage Input |
10-30V (12V / 24V) |
| Beam Pattern |
Flood |
| Shape |
Square |
| Dimensions |
138mm (H) x 102mm (W) x 45mm (L) |
| Body Material |
Thermal Plastic Nylon |
| Lens Material |
Polycarbonate |
| IP Rating |
IP67 / IP69K |
| Vibration Rating |
20G |
| Connector |
DT04-2P |
| Mount Type |
Single Bolt |
| Weight |
0.38kg |
| Harness |
Not Supplied |
| Warranty |
1 Year |
| Certification |
ISO 9001 |
| Country of Testing |
Australia (Brisbane) |
Compatible With / Goes Well With
The OEX LLX08304 is compatible with 12V and 24V electrical systems across passenger vehicles, utes, trucks, caravans, trailers, agricultural machinery, marine vessels, and industrial mobile equipment. Well suited to full-length ute and truck tray lighting, large equipment bay and service body illumination, professional underbonnet and engine bay lighting, wide reverse and manoeuvring light coverage on large trailers and caravans, boarding and step area lighting on heavy vehicles and plant machinery, and general work site area lighting on mobile agricultural and mining equipment. Pairs naturally with the OEX LLX08303 6-LED round variant and the LLX08302 5-LED square and LLX08308 4-LED square work lights for mixed output installations across the same vehicle or equipment build. Pairs well with compatible DT04-2P wiring harnesses and extension leads, OEX automotive cable and cable management accessories, OEX switch panels and rocker switches for light control, and OEX circuit breakers and inline fuse holders for circuit protection.
Frequently Asked Questions
When should I choose the LLX08304 6-LED over the LLX08302 5-LED square work light?
Choose the LLX08304 when maximum flood output from the compact nylon housing form factor is the priority — the 2300 lumen output is 31% higher than the LLX08302's 1750 lumens, making it the better choice for larger tray and equipment bay lighting, professional service body illumination, wide reverse lighting on large trailers, and applications where the light will be mounted at a greater height or distance from the work surface. If your application is well served by 1750 lumens and a slightly lower current draw (1.3A vs 1.7A) is preferable for the circuit, the LLX08302 remains an excellent choice. For the maximum output available in the compact OEX nylon work light range, the LLX08304 is the clear pick.
Does the LLX08304 come with a wiring harness?
No — the LLX08304 is supplied with the DT04-2P connector fitted to the light but does not include a wiring harness. A compatible DT04-2P wiring harness or pigtail lead will need to be sourced separately to suit the specific installation. Contact F.A.E. for compatible harness options, or enquire about suitable OEX wiring accessories to complete the installation.
What does the IP67 and IP69K dual rating mean for a work light installation?
IP67 certifies protection against continuous submersion up to 1 metre depth, while IP69K certifies protection against high-pressure, high-temperature water jets as used in agricultural and industrial wash-down applications. For a work light installed on wash-down equipment, agricultural machinery, or a marine vessel subject to heavy weather, carrying both ratings provides comprehensive protection against submersion events and aggressive cleaning. Many budget work lights carry IP67 alone — the addition of IP69K on the LLX08304 makes it genuinely suitable for wash-down equipment and heavy-duty agricultural applications where high-pressure cleaning is routine.
Can I use the LLX08304 on a 24V commercial vehicle or agricultural machine?
Yes. The 10-30V wide voltage input rating makes the LLX08304 fully compatible with 24V electrical systems as used in commercial trucks, agricultural tractors, heavy equipment, and specialist vehicles. At 24V, the current draw drops to approximately 0.85A per light — roughly half the 12V draw — making the LLX08304 a very efficient lighting solution on 24V systems. Ensure the wiring harness and any in-line fuse or circuit protection used are also rated for 24V operation.
How many LLX08304 work lights can I run from a single 10A circuit?
At 12V, each LLX08304 draws 1.7A. A standard 10A circuit can safely support up to five lights simultaneously with a small safety margin, or up to four lights applying the standard 125% derating rule for continuous loads. At 24V, current draw drops to approximately 0.85A per light, allowing up to eight lights on a single 10A circuit. For most practical installations involving two to four work lights, a 10A fuse or circuit breaker for a bank of four lights is a clean and appropriate protection arrangement.
