Description

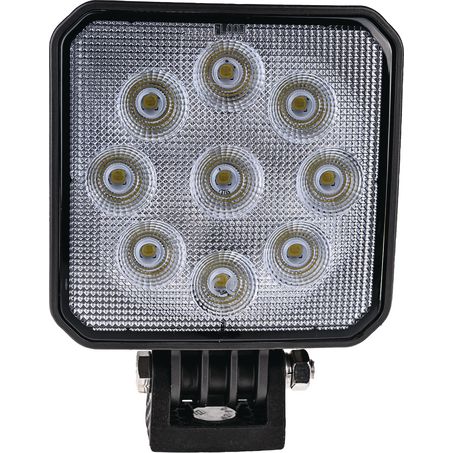

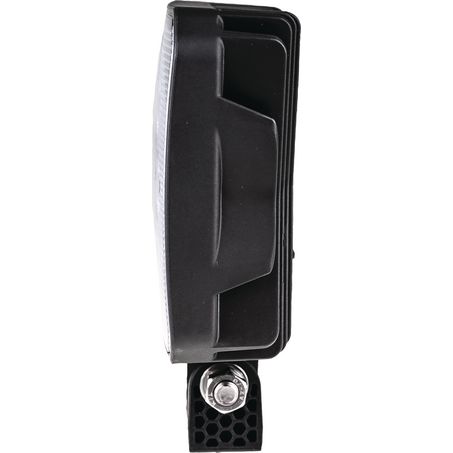

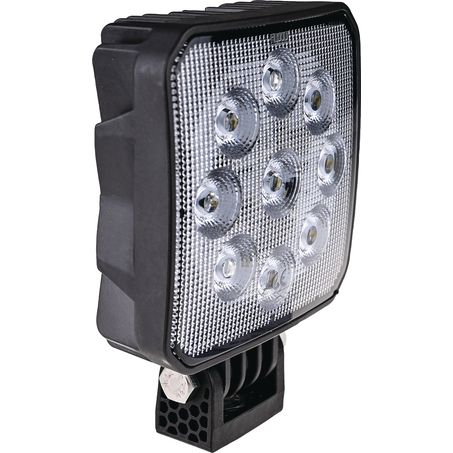

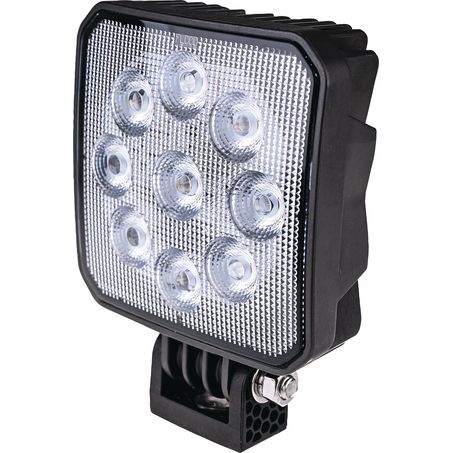

OEX LLX08305 9LED Work Light Nylon Housing Square
Deliver serious work area illumination with the OEX LLX08305 36W square LED work light delivering 3650 effective lumens from nine 4W LEDs in a flood beam pattern, IP67 and IP69K dual-rated waterproof and dustproof thermal plastic nylon housing for reliable performance in demanding outdoor environments, 10-30V wide voltage input compatibility for 12V and 24V system fitment, DT04-2P connector for secure moisture-resistant wiring, single bolt mounting for quick and versatile installation, and OEX ISO 9001 certified quality built for Australian automotive, agricultural, marine, and industrial working conditions.
Product Overview
The OEX LLX08305 is the highest-output square variant in the OEX nylon work light series, delivering a standout 3650 effective lumens from nine 4W LEDs — a 40% increase over the 6-LED LLX08304 square and the highest lumen output of any square or round body in the compact nylon housing range — in a practical 146 x 110 x 47mm form factor that remains manageable in a wide range of mounting positions. At 36W and 2.6A on 13V, the LLX08305 achieves its exceptional 3650 lumen output with a notably efficient current draw, consuming less current than the 8-LED oval LLX08306 at 3A while delivering 40% more light — making it the most lumen-efficient option in the entire nylon work light range and the clear choice for applications where maximum flood output in a square body is the absolute priority. The nine-LED array makes the LLX08305 ideally suited to the most demanding task and area lighting applications in the compact nylon work light range, including large service body and equipment bay illumination requiring broad, powerful flood coverage, full-length truck and ute tray lighting, professional underbonnet servicing area lighting, wide reverse lighting coverage on heavy trailers and agricultural equipment, flood lighting for work site operations on mobile plant and mining equipment, and marine deck and workstation area lighting requiring maximum output from a compact mounting footprint. The 10-30V wide voltage input covers 12V and 24V systems without requiring voltage-specific variants, and the dual IP67 and IP69K environmental rating certifies the LLX08305 for continuous submersion and high-pressure high-temperature wash-down across the most demanding Australian field, marine, and agricultural working conditions. The DT04-2P connector provides a secure, weatherproof, vibration-resistant plug-and-play connection for clean installation and easy light servicing. Note that no wiring harness is supplied with the LLX08305 — a compatible harness should be sourced separately to suit the specific installation.
Features & Benefits
3650 Effective Lumen Maximum Output The highest lumen output of any square or round body in the compact OEX nylon work light range — nine 4W LEDs deliver a 40% increase over the 6-LED LLX08304 and a remarkable 181% increase over the entry-level 4-LED LLX08308, providing serious flood area coverage from a compact 146 x 110mm square body.
Exceptional Lumen-Per-Watt Efficiency Delivers 3650 lumens from just 2.6A at 13V — lower current draw than the 8-LED oval LLX08306 at 3A, yet 40% more light output — making the LLX08305 the most lumen-efficient option in the entire OEX compact nylon work light range.
IP67 and IP69K Dual-Rated Protection Certified for continuous submersion and high-pressure high-temperature wash-down, enabling reliable operation on wash-down equipment, agricultural machinery, marine vessels, and vehicles operating in wet, muddy, and harsh environmental conditions.
36W High-Output Performance Delivers 3650 lumens from a 36W draw at 2.6A on 13V, achieving the highest light output in the compact nylon range with a current draw that remains practical for multi-light circuit installations on standard vehicle electrical systems.
Compact 146 x 110 x 47mm Square Form Factor The nine-LED square body delivers maximum output in a practical footprint suitable for panel mounts, equipment bays, tray mounts, and bracket installations where a square body fits the mounting position cleanly.
10-30V Wide Voltage Input Compatible with 12V and 24V electrical systems across passenger vehicles, commercial trucks, agricultural machinery, and marine vessels without requiring voltage-specific variants or additional components.
Thermal Plastic Nylon Housing Lightweight and durable nylon construction resists corrosion, impacts, and UV degradation in harsh outdoor environments while keeping overall weight to just 0.38kg — notably lighter than the 8-LED oval LLX08306 at 0.42kg despite higher lumen output.
DT04-2P Connector Industry-standard weatherproof connector provides a secure, vibration-resistant, moisture-proof plug-and-play connection that simplifies installation and enables easy light removal or replacement without cutting wiring.
Technical Specs
| Specification |
Detail |
| Brand |
OEX |
| SKU |
LLX08305 |
| Light Output |
3650 Effective Lumen |
| LEDs |
9 x 4W |
| Wattage |
36W |
| Current Draw |
2.6A @ 13V |
| Voltage Input |
10-30V (12V / 24V) |
| Beam Pattern |
Flood |
| Shape |
Square |
| Dimensions |
146mm (H) x 110mm (W) x 47mm (L) |
| Body Material |
Thermal Plastic Nylon |
| Lens Material |
Polycarbonate |
| IP Rating |
IP67 / IP69K |
| Vibration Rating |
20G |
| Connector |
DT04-2P |
| Mount Type |
Single Bolt |
| Weight |
0.38kg |
| Harness |
Not Supplied |
| Warranty |
1 Year |
| Certification |
ISO 9001 |
| Country of Testing |
Australia (Brisbane) |
Compatible With / Goes Well With
The OEX LLX08305 is compatible with 12V and 24V electrical systems across passenger vehicles, utes, trucks, caravans, trailers, agricultural machinery, marine vessels, and industrial mobile equipment. Well suited to large service body and equipment bay illumination, full-length truck and ute tray lighting, professional underbonnet and engine bay lighting, wide reverse and manoeuvring coverage on heavy trailers and agricultural equipment, work site flood lighting on mobile plant and mining equipment, and marine deck and workstation area lighting requiring maximum compact output. Pairs naturally with the OEX LLX08306 8-LED oval, LLX08304 6-LED square, and LLX08303 6-LED round work lights for mixed output and shape installations across the same vehicle or equipment build. Pairs well with compatible DT04-2P wiring harnesses and extension leads, OEX automotive cable and cable management accessories, OEX switch panels and rocker switches for light control, and OEX circuit breakers and inline fuse holders for circuit protection.
Frequently Asked Questions
When should I choose the LLX08305 9-LED over the LLX08304 6-LED square work light?
Choose the LLX08305 when maximum flood output from a square body is the absolute priority. At 3650 lumens versus 2300 lumens on the LLX08304, the LLX08305 delivers 58% more light output from a body only marginally larger — 146 x 110mm versus 138 x 102mm — making it the better choice for large service bodies, full-length tray lighting, wide equipment bay illumination, and applications where the light is mounted at a greater height or distance from the work surface requiring greater output to maintain useful illumination at the work area. For applications well served by 2300 lumens or where circuit current draw needs to be kept low across a multi-light installation, the LLX08304 remains an excellent and efficient choice.
How does the LLX08305 compare to the LLX08306 8-LED oval in terms of output and efficiency?
Despite having one more LED and higher wattage, the LLX08305 delivers substantially more light than the LLX08306 — 3650 lumens versus 2600 lumens, a 40% difference — while actually drawing less current at 2.6A versus 3A on 12V. This makes the LLX08305 the more lumen-efficient option of the two. Choose the LLX08305 when maximum output and square panel-mount fitment are the priorities. Choose the LLX08306 oval when the wide horizontal profile and broader lateral spread of the oval body better suits the mounting position, such as tray edges, cab steps, and horizontal rail mounts.
Does the LLX08305 come with a wiring harness?
No — the LLX08305 is supplied with the DT04-2P connector fitted to the light but does not include a wiring harness. A compatible DT04-2P wiring harness or pigtail lead will need to be sourced separately to suit the specific installation. Contact F.A.E. for compatible harness options, or enquire about suitable OEX wiring accessories to complete the installation.
Can I use the LLX08305 on a 24V commercial vehicle or agricultural machine?
Yes. The 10-30V wide voltage input rating makes the LLX08305 fully compatible with 24V electrical systems as used in commercial trucks, agricultural tractors, heavy equipment, and specialist vehicles. At 24V, the current draw drops to approximately 1.3A per light — roughly half the 12V draw — making the LLX08305 an impressively efficient lighting solution on 24V systems delivering 3650 lumens from just 1.3A per light. Ensure the wiring harness and any in-line fuse or circuit protection used are also rated for 24V operation.
How many LLX08305 work lights can I run from a single 10A circuit?
At 12V, each LLX08305 draws 2.6A. A standard 10A circuit can safely support up to three lights simultaneously with a small safety margin, or up to three lights comfortably applying the standard 125% derating rule. At 24V, current draw drops to approximately 1.3A per light, allowing up to six lights on a single 10A circuit. For installations requiring four or more LLX08305 lights on 12V, a 15A circuit with appropriate fuse or circuit breaker protection is recommended to accommodate the combined draw comfortably.
