Description

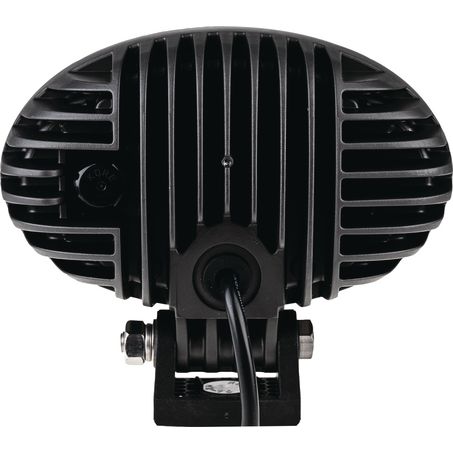

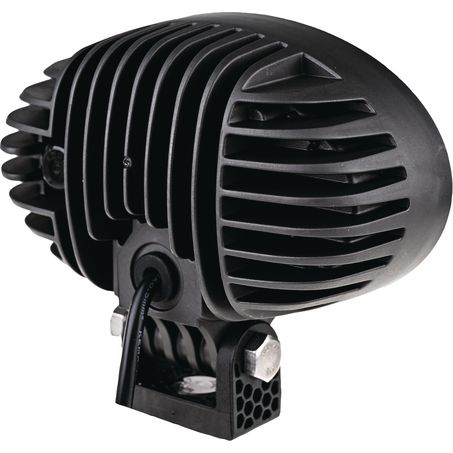

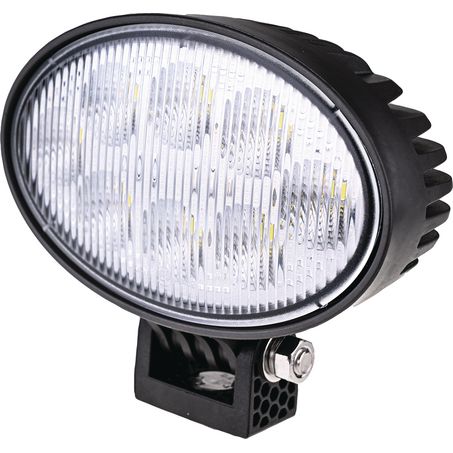

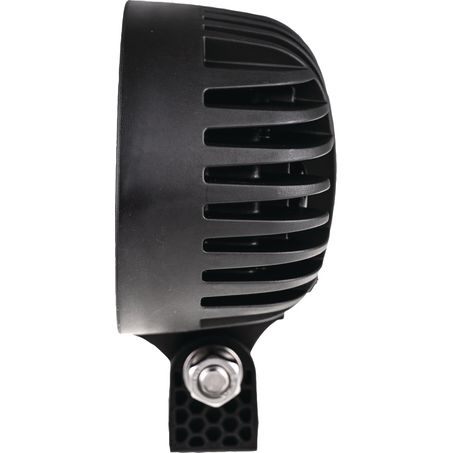

OEX LLX08306 8LED Work Light Nylon Housing Oval
Expand your work area coverage with the OEX LLX08306 32W oval LED work light delivering 2600 effective lumens from eight 4W LEDs in a flood beam pattern, IP67 and IP69K dual-rated waterproof and dustproof thermal plastic nylon housing for reliable performance in demanding outdoor environments, 10-30V wide voltage input compatibility for 12V and 24V system fitment, DT04-2P connector for secure moisture-resistant wiring, single bolt mounting for quick and versatile installation, and OEX ISO 9001 certified quality built for Australian automotive, agricultural, marine, and industrial working conditions.
Product Overview
The OEX LLX08306 is the oval-body variant in the OEX nylon work light series, introducing a distinct wide-format 121 x 143 x 72mm form factor that delivers 2600 effective lumens from eight 4W LEDs — the highest output in the compact nylon housing range — in a horizontal oval profile specifically suited to applications where wide lateral flood coverage is the priority. The oval body of the LLX08306 produces a naturally wider spread of flood illumination across the horizontal plane compared to equivalent square and round lights of similar dimensions, making it particularly well matched to wide tray and flatbed lighting, full-width cab and bonnet step lighting, broad equipment bay and service body illumination, wide reverse lighting coverage on trucks and large trailers, and marine cockpit and deck area lighting where a wide, low-profile light spread is more practical than a tall square or round body. At 32W and 3A on 13V, the LLX08306 is the highest-wattage variant in the compact nylon work light range, delivering 2600 lumens — a 13% increase over the 6-LED square and round variants — with a compact 0.42kg body that remains practical for a wide range of mounting locations. The 10-30V wide voltage input covers 12V and 24V systems, and the dual IP67 and IP69K environmental rating certifies the LLX08306 for continuous submersion and high-pressure high-temperature wash-down, ensuring reliable long-term performance across the most demanding Australian field, marine, and agricultural working conditions. The DT04-2P connector provides a secure, weatherproof, vibration-resistant plug-and-play connection for clean installation and easy light servicing. Note that no wiring harness is supplied with the LLX08306 — a compatible harness should be sourced separately to suit the specific installation.
Features & Benefits
2600 Effective Lumen Maximum Output The highest lumen output in the compact OEX nylon work light range — eight 4W LEDs deliver 13% more output than the 6-LED variants, providing maximum flood area coverage from a wide-format oval body suited to broad lateral illumination requirements.
Oval Housing Profile The wide horizontal oval body produces a naturally broader lateral flood spread than equivalent square or round lights, making it ideal for wide tray, flatbed, cab step, deck, and equipment bay lighting where horizontal coverage across the full width of the work area is the priority.
IP67 and IP69K Dual-Rated Protection Certified for continuous submersion and high-pressure high-temperature wash-down, enabling reliable operation on wash-down equipment, agricultural machinery, marine vessels, and vehicles operating in wet, muddy, and harsh environmental conditions.
32W High-Output Performance Delivers 2600 lumens from a 32W draw at 3A on 13V, providing the highest output in the compact OEX nylon work light range with a current draw that remains manageable for multi-light circuit installations.
Wide-Format 121 x 143 x 72mm Form Factor The oval body occupies a low-profile footprint that fits neatly along the front edge of trays, cab steps, and horizontal mounting rails where a tall square or round body would be impractical or visually intrusive.
10-30V Wide Voltage Input Compatible with 12V and 24V electrical systems across passenger vehicles, commercial trucks, agricultural machinery, and marine vessels without requiring voltage-specific variants or additional components.
Thermal Plastic Nylon Housing Lightweight and durable nylon construction resists corrosion, impacts, and UV degradation in harsh outdoor environments while keeping overall weight to just 0.42kg for mounting flexibility in weight-sensitive locations.
DT04-2P Connector Industry-standard weatherproof connector provides a secure, vibration-resistant, moisture-proof plug-and-play connection that simplifies installation and enables easy light removal or replacement without cutting wiring.
Technical Specs
| Specification |
Detail |
| Brand |
OEX |
| SKU |
LLX08306 |
| Light Output |
2600 Effective Lumen |
| LEDs |
8 x 4W |
| Wattage |
32W |
| Current Draw |
3A @ 13V |
| Voltage Input |
10-30V (12V / 24V) |
| Beam Pattern |
Flood |
| Shape |
Oval |
| Dimensions |
121mm (H) x 143mm (W) x 72mm (L) |
| Body Material |
Thermal Plastic Nylon |
| Lens Material |
Polycarbonate |
| IP Rating |
IP67 / IP69K |
| Vibration Rating |
20G |
| Connector |
DT04-2P |
| Mount Type |
Single Bolt |
| Weight |
0.42kg |
| Harness |
Not Supplied |
| Warranty |
1 Year |
| Certification |
ISO 9001 |
| Country of Testing |
Australia (Brisbane) |
Compatible With / Goes Well With
The OEX LLX08306 is compatible with 12V and 24V electrical systems across passenger vehicles, utes, trucks, caravans, trailers, agricultural machinery, marine vessels, and industrial mobile equipment. Well suited to full-width ute and truck tray edge lighting, cab and bonnet step illumination, wide equipment bay and service body lighting, broad reverse and manoeuvring coverage on large trailers and trucks, marine cockpit and deck area lighting, and horizontal mounting positions along rails and crossbars where the oval profile fits naturally. Pairs well with the OEX LLX08304 6-LED square and LLX08303 6-LED round work lights for mixed shape and output installations across the same vehicle or equipment build. Pairs well with compatible DT04-2P wiring harnesses and extension leads, OEX automotive cable and cable management accessories, OEX switch panels and rocker switches for light control, and OEX circuit breakers and inline fuse holders for circuit protection.
Frequently Asked Questions
What advantages does the oval LLX08306 have over the square and round work lights in the OEX range?
The oval body of the LLX08306 provides a wider lateral flood spread across the horizontal plane compared to a square or round light of similar dimensions, making it better suited to applications where broad left-to-right coverage is the priority rather than a symmetrical pool of light. Typical examples include mounting along the front edge of a ute tray to illuminate the full tray width, fitting across cab steps to light the full step width for safe boarding, or mounting on a horizontal rail along a boat deck where a low-profile wide-format light fits the space more naturally than a taller square or round body. For applications where coverage width is less important than overall area lighting, the LLX08303 6-LED round or LLX08304 6-LED square are equally strong performers.
When should I choose the LLX08306 8-LED oval over the LLX08304 6-LED square?
Choose the LLX08306 when wide lateral flood coverage or maximum output from a horizontal oval form factor is the priority. The LLX08306 delivers 2600 lumens vs 2300 lumens on the LLX08304 — a 13% increase — and the oval body produces a wider horizontal spread better suited to tray edge, step, and deck applications. Choose the LLX08304 when a square panel-mount profile is preferred, or when the mounting position suits a symmetrical square body better than a wide oval. The LLX08306 draws 3A vs 1.7A for the LLX08304, so the higher current draw should also be factored into circuit planning for multi-light installations.
Does the LLX08306 come with a wiring harness?
No — the LLX08306 is supplied with the DT04-2P connector fitted to the light but does not include a wiring harness. A compatible DT04-2P wiring harness or pigtail lead will need to be sourced separately to suit the specific installation. Contact F.A.E. for compatible harness options, or enquire about suitable OEX wiring accessories to complete the installation.
Can I use the LLX08306 on a 24V commercial vehicle or agricultural machine?
Yes. The 10-30V wide voltage input rating makes the LLX08306 fully compatible with 24V electrical systems as used in commercial trucks, agricultural tractors, heavy equipment, and specialist vehicles. At 24V, the current draw drops to approximately 1.5A per light — roughly half the 12V draw — making the LLX08306 an efficient lighting solution on 24V systems. Ensure the wiring harness and any in-line fuse or circuit protection used are also rated for 24V operation.
How many LLX08306 work lights can I run from a single 10A circuit?
At 12V, each LLX08306 draws 3A. A standard 10A circuit can safely support up to three lights simultaneously with a small safety margin, or up to two lights applying the standard 125% derating rule for continuous loads on a 10A circuit. At 24V, current draw drops to approximately 1.5A per light, allowing up to five lights on a single 10A circuit. For installations requiring more than two LLX08306 lights on 12V, a 15A or 20A circuit with appropriate fuse or circuit breaker protection is recommended to accommodate the combined draw comfortably.
