Description

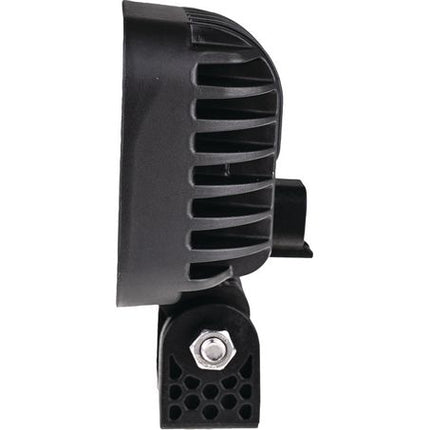

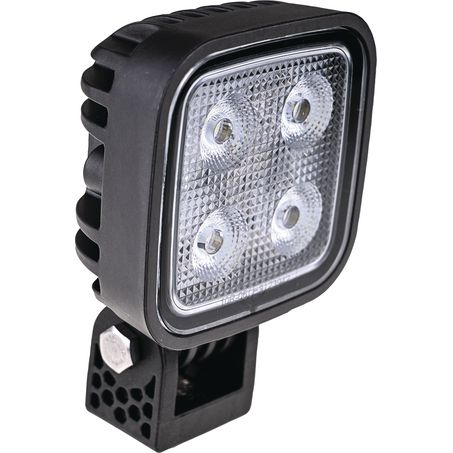

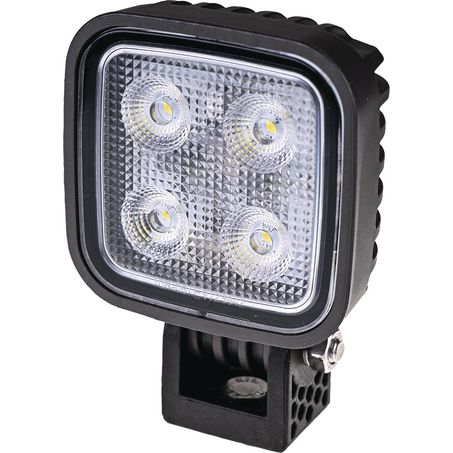

OEX LLX08308 4LED Work Light Nylon Housing Square
Brighten your work area with the OEX LLX08308 compact 12W square LED work light delivering 1300 effective lumens from four 3W LEDs in a flood beam pattern, IP67 and IP69K dual-rated waterproof and dustproof thermal plastic nylon housing for reliable performance in demanding outdoor environments, 10-30V wide voltage input compatibility for 12V and 24V system fitment, DT04-2P connector for secure moisture-resistant wiring, single bolt mounting for quick and versatile installation, lightweight 0.22kg construction for low-profile fitment, and OEX ISO 9001 certified quality built for Australian automotive, agricultural, marine, and industrial working conditions.
Product Overview
The OEX LLX08308 is a compact and versatile square LED work light engineered for reliable task and area illumination in automotive, agricultural, marine, and industrial applications where a durable, low-profile, high-output light is required in a confined or weight-sensitive mounting position. The 12W draw from four 3W LEDs generates 1300 effective lumens in a wide flood beam pattern, providing broad, even illumination of the immediate work area — ideal for underbonnet engine bay lighting, tray and cargo area illumination, equipment bay lighting, reverse and manoeuvring lights, entry and step lighting, and general task lighting on trucks, utes, caravans, trailers, agricultural machinery, and marine vessels. The compact 97 x 71 x 49mm form factor and single bolt mounting system make the LLX08308 exceptionally easy to install in tight or restricted locations where larger work lights would not fit, while the lightweight 0.22kg construction minimises mounting hardware requirements and reduces load on lightweight panels and brackets. The 10-30V wide voltage input rating provides genuine compatibility across 12V and 24V electrical systems without requiring voltage-specific variants, covering the full range of passenger vehicles, commercial trucks, agricultural equipment, and marine vessels in a single product. The dual IP67 and IP69K environmental rating certifies the LLX08308 for continuous submersion and high-pressure high-temperature wash-down, ensuring reliable operation on wash-down vehicles, agricultural machinery, marine craft, and equipment exposed to heavy rain, mud, and water spray in demanding Australian field conditions. The DT04-2P connector provides a secure, weatherproof, vibration-resistant plug-and-play connection widely used in professional automotive and agricultural wiring, enabling clean installation and easy light servicing without cutting wiring. Note that no wiring harness is supplied with the LLX08308 — a compatible harness should be sourced separately to suit your specific installation.
Features & Benefits
1300 Effective Lumen Flood Output Four 3W LEDs deliver broad, even flood illumination of the immediate work area from a 12W draw at only 0.9A on 13V, providing excellent task lighting efficiency with minimal electrical system load.
IP67 and IP69K Dual-Rated Protection Certified for continuous submersion and high-pressure high-temperature wash-down, enabling reliable operation on wash-down equipment, agricultural machinery, marine vessels, and vehicles operating in wet, muddy, and harsh environmental conditions.
Compact 97 x 71 x 49mm Form Factor The square nylon housing fits in tight and restricted mounting locations where larger work lights will not, with single bolt mounting for quick, low-profile installation on panels, brackets, roll bars, and equipment frames.
10-30V Wide Voltage Input Compatible with 12V and 24V electrical systems across passenger vehicles, commercial trucks, agricultural machinery, and marine vessels without requiring voltage-specific variants or additional components.
Thermal Plastic Nylon Housing Lightweight and durable nylon construction resists corrosion, impacts, and UV degradation in harsh outdoor environments while keeping the overall weight to just 0.22kg for mounting flexibility in weight-sensitive locations.
DT04-2P Connector Industry-standard weatherproof connector provides a secure, vibration-resistant, moisture-proof plug-and-play connection that simplifies installation and enables easy light removal or replacement without cutting wiring.
Single Bolt Mount Versatile single bolt mounting system enables quick installation in a wide range of positions and orientations, compatible with standard bracket and surface mount configurations across automotive, marine, and industrial applications.
Technical Specs
| Specification |
Detail |
| Brand |
OEX |
| SKU |
LLX08308 |
| Light Output |
1300 Effective Lumen |
| LEDs |
4 x 3W |
| Wattage |
12W |
| Current Draw |
0.9A @ 13V |
| Voltage Input |
10-30V (12V / 24V) |
| Beam Pattern |
Flood |
| Shape |
Square |
| Dimensions |
97mm (H) x 71mm (W) x 49mm (L) |
| Body Material |
Thermal Plastic Nylon |
| Lens Material |
Polycarbonate |
| IP Rating |
IP67 / IP69K |
| Vibration Rating |
20G |
| Connector |
DT04-2P |
| Mount Type |
Single Bolt |
| Weight |
0.22kg |
| Harness |
Not Supplied |
| Warranty |
1 Year |
| Certification |
ISO 9001 |
| Country of Testing |
Australia (Brisbane) |
Compatible With / Goes Well With
The OEX LLX08308 is compatible with 12V and 24V electrical systems across passenger vehicles, utes, trucks, caravans, trailers, agricultural machinery, marine vessels, and industrial mobile equipment. Well suited to underbonnet engine bay lighting, tray and cargo area illumination, equipment bay and toolbox lighting, reverse and manoeuvring lights, step and entry lighting, and general task lighting across a wide range of vehicle and equipment types. Pairs well with compatible DT04-2P wiring harnesses and extension leads, OEX automotive cable and cable management accessories, OEX switch panels and rocker switches for light control, OEX circuit breakers and inline fuse holders for circuit protection, and mounting brackets compatible with single bolt 97mm square light bodies.
Frequently Asked Questions
What applications is the LLX08308 best suited to as a flood beam work light?
The LLX08308's wide flood beam pattern makes it ideal for illuminating the immediate work area at close to medium range rather than projecting light at distance. Typical applications include underbonnet engine bay lighting for roadside repairs and servicing, ute tray and cargo area illumination for loading and unloading in the dark, equipment bay and toolbox lighting on service vehicles, reverse and manoeuvring lights on trailers and caravans, entry and step lighting on RVs and motorhomes, and general task lighting on agricultural machinery, fishing vessels, and mobile plant equipment. For applications requiring long-distance forward illumination, a dedicated driving light such as the Great Whites GWR7145KIT or GWR7245KIT would be more appropriate.
Does the LLX08308 come with a wiring harness?
No — the LLX08308 is supplied with the DT04-2P connector fitted to the light but does not include a wiring harness. A compatible DT04-2P wiring harness or pigtail lead will need to be sourced separately to suit your specific installation. Contact F.A.E. for compatible harness options, or enquire about suitable OEX wiring accessories to complete the installation.
What does the IP67 and IP69K dual rating mean for a work light installation?
IP67 certifies protection against continuous submersion up to 1 metre depth, while IP69K certifies protection against high-pressure, high-temperature water jets as used in agricultural and industrial wash-down applications. For a work light installed on a wash-down vehicle, agricultural equipment, or a marine vessel subject to heavy weather, carrying both ratings provides comprehensive protection against both submersion events and aggressive cleaning. Many budget work lights carry IP67 alone — the addition of IP69K on the LLX08308 makes it genuinely suitable for wash-down equipment and heavy-duty agricultural applications where high-pressure cleaning is routine.
Can I use the LLX08308 on a 24V commercial vehicle or agricultural machine?
Yes. The 10-30V wide voltage input rating makes the LLX08308 fully compatible with 24V electrical systems as used in commercial trucks, agricultural tractors, heavy equipment, and specialist vehicles. At 24V, the current draw will be approximately 0.5A — roughly half the 12V draw — making the LLX08308 an extremely low-draw lighting solution on 24V systems. Ensure the wiring harness and any in-line fuse or circuit protection used are also rated for 24V operation.
How many LLX08308 work lights can I run from a single 10A circuit?
At 12V, each LLX08308 draws 0.9A. A standard 10A circuit can safely support up to eight lights simultaneously with a small safety margin remaining, or up to six lights for a comfortable 125% derating that protects the circuit and wiring. At 24V, current draw drops to approximately 0.5A per light, allowing up to sixteen lights on a single 10A circuit. For most practical installations involving two to four work lights, a 5A fuse or circuit breaker per pair is an appropriate and tidy protection arrangement.
