Description

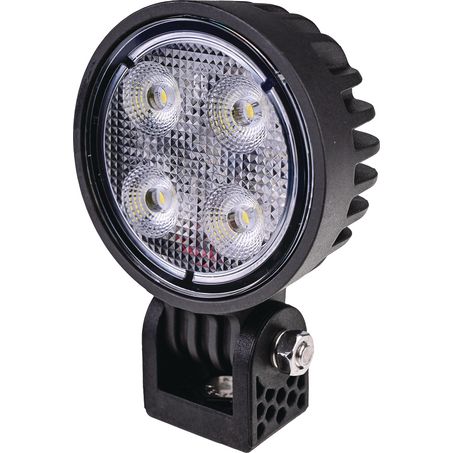

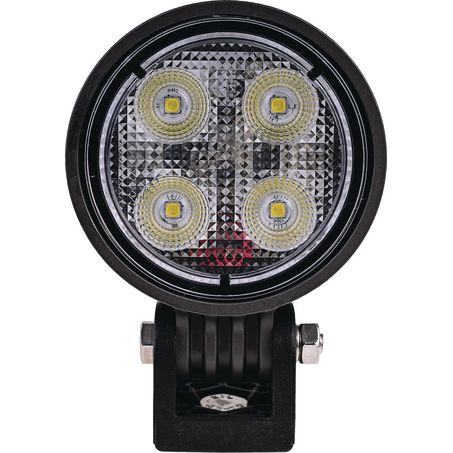

OEX LLX08309 4LED Work Light Nylon Housing Round
Brighten your work area with the OEX LLX08309 compact 12W round LED work light delivering 1300 effective lumens from four 3W LEDs in a flood beam pattern, IP67 and IP69K dual-rated waterproof and dustproof thermal plastic nylon housing for reliable performance in demanding outdoor environments, 10-30V wide voltage input compatibility for 12V and 24V system fitment, DT04-2P connector for secure moisture-resistant wiring, single bolt mounting for quick and versatile installation, lightweight 0.22kg construction for low-profile fitment, and OEX ISO 9001 certified quality built for Australian automotive, agricultural, marine, and industrial working conditions.
Product Overview
The OEX LLX08309 is the round-body variant of the compact LLX08308 square work light, sharing the same professional-grade 12W LED output, IP67/IP69K dual rating, and 10-30V wide voltage compatibility in a round housing profile suited to applications and mounting positions where a circular light form factor is preferred or required. The round body of the LLX08309 is particularly well suited to installation in round light apertures and pre-drilled holes, circular flush-mount or surface-mount brackets, and mounting positions on roll bars, light bars, and tubular structures where a round profile provides a cleaner, more symmetrical aesthetic alongside other round lighting and accessory components. The 12W draw from four 3W LEDs generates 1300 effective lumens in a wide flood beam pattern, providing broad, even illumination of the immediate work area — ideal for underbonnet engine bay lighting, tray and cargo area illumination, equipment bay lighting, reverse and manoeuvring lights, entry and step lighting, and general task lighting on trucks, utes, caravans, trailers, agricultural machinery, and marine vessels. The compact 97 x 71 x 49mm body and single bolt mounting system make the LLX08309 straightforward to install in a wide range of positions and orientations, while the 0.22kg lightweight construction minimises mounting hardware requirements. The 10-30V wide voltage input covers 12V and 24V systems without requiring voltage-specific variants, and the dual IP67 and IP69K environmental rating certifies the LLX08309 for continuous submersion and high-pressure high-temperature wash-down across the most demanding Australian field conditions. The DT04-2P connector provides a secure, weatherproof, vibration-resistant plug-and-play connection for clean installation and easy light servicing. Note that no wiring harness is supplied with the LLX08309 — a compatible harness should be sourced separately to suit the specific installation.
Features & Benefits
1300 Effective Lumen Flood Output Four 3W LEDs deliver broad, even flood illumination of the immediate work area from a 12W draw at only 0.9A on 13V, providing excellent task lighting efficiency with minimal electrical system load.
Round Housing Profile The circular body suits round light apertures, pre-drilled holes, circular flush and surface mount brackets, and tubular roll bar and light bar mounting positions where a round profile provides a cleaner fit and more symmetrical appearance than a square light body.
IP67 and IP69K Dual-Rated Protection Certified for continuous submersion and high-pressure high-temperature wash-down, enabling reliable operation on wash-down equipment, agricultural machinery, marine vessels, and vehicles operating in wet, muddy, and harsh environmental conditions.
Compact 97 x 71 x 49mm Form Factor The round nylon housing fits in tight and restricted mounting locations with single bolt mounting for quick, low-profile installation on panels, brackets, roll bars, and equipment frames.
10-30V Wide Voltage Input Compatible with 12V and 24V electrical systems across passenger vehicles, commercial trucks, agricultural machinery, and marine vessels without requiring voltage-specific variants or additional components.
Thermal Plastic Nylon Housing Lightweight and durable nylon construction resists corrosion, impacts, and UV degradation in harsh outdoor environments while keeping the overall weight to just 0.22kg for mounting flexibility in weight-sensitive locations.

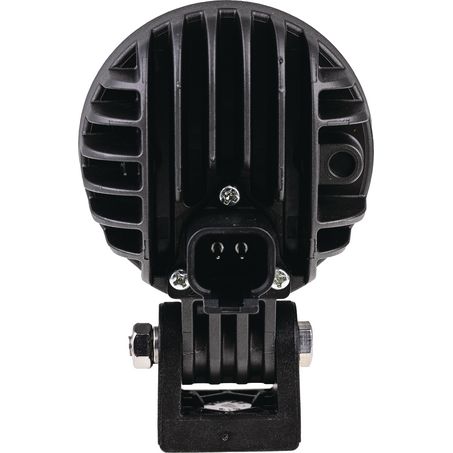

DT04-2P Connector Industry-standard weatherproof connector provides a secure, vibration-resistant, moisture-proof plug-and-play connection that simplifies installation and enables easy light removal or replacement without cutting wiring.
Single Bolt Mount Versatile single bolt mounting system enables quick installation in a wide range of positions and orientations, compatible with standard bracket and surface mount configurations across automotive, marine, and industrial applications.
Technical Specs
| Specification |
Detail |
| Brand |
OEX |
| SKU |
LLX08309 |
| Light Output |
1300 Effective Lumen |
| LEDs |
4 x 3W |
| Wattage |
12W |
| Current Draw |
0.9A @ 13V |
| Voltage Input |
10-30V (12V / 24V) |
| Beam Pattern |
Flood |
| Shape |
Round |
| Dimensions |
97mm (H) x 71mm (W) x 49mm (L) |
| Body Material |
Thermal Plastic Nylon |
| Lens Material |
Polycarbonate |
| IP Rating |
IP67 / IP69K |
| Vibration Rating |
20G |
| Connector |
DT04-2P |
| Mount Type |
Single Bolt |
| Weight |
0.22kg |
| Harness |
Not Supplied |
| Warranty |
1 Year |
| Certification |
ISO 9001 |
| Country of Testing |
Australia (Brisbane) |
Compatible With / Goes Well With
The OEX LLX08309 is compatible with 12V and 24V electrical systems across passenger vehicles, utes, trucks, caravans, trailers, agricultural machinery, marine vessels, and industrial mobile equipment. Well suited to underbonnet engine bay lighting, tray and cargo area illumination, equipment bay and toolbox lighting, reverse and manoeuvring lights, step and entry lighting, roll bar and light bar auxiliary lighting, and general task lighting across a wide range of vehicle and equipment types. The round body pairs naturally with other round lighting components and accessories on roll bars, roof racks, and tubular mounting systems. Also compatible with the LLX08308 square variant for mixed installations where both round and square positions are required. Pairs well with compatible DT04-2P wiring harnesses and extension leads, OEX automotive cable and cable management accessories, OEX switch panels and rocker switches for light control, and OEX circuit breakers and inline fuse holders for circuit protection.
Frequently Asked Questions
What is the difference between the LLX08309 round and LLX08308 square work lights and when should I choose each?
The LLX08309 and LLX08308 are identical in output, electrical specifications, IP rating, mounting system, and overall dimensions — the only difference is the housing shape. Choose the LLX08309 round body when installing into round light apertures or pre-drilled holes, on roll bars, roof racks, or tubular mounting structures where a round profile fits more naturally, or when the light will be mounted alongside other round accessories for a consistent visual appearance. Choose the LLX08308 square body when installing in rectangular apertures or panels, or when a more industrial flush-panel aesthetic is preferred. Both are equally capable performers — the choice is purely one of fitment and preference.
Does the LLX08309 come with a wiring harness?
No — the LLX08309 is supplied with the DT04-2P connector fitted to the light but does not include a wiring harness. A compatible DT04-2P wiring harness or pigtail lead will need to be sourced separately to suit the specific installation. Contact F.A.E. for compatible harness options, or enquire about suitable OEX wiring accessories to complete the installation.
What applications is the LLX08309 best suited to as a flood beam work light?
The LLX08309's wide flood beam pattern makes it ideal for illuminating the immediate work area at close to medium range rather than projecting light at distance. Typical applications include underbonnet engine bay lighting for roadside repairs and servicing, ute tray and cargo area illumination for loading in the dark, equipment bay and toolbox lighting on service vehicles, reverse and manoeuvring lights on trailers and caravans, step and entry lighting on RVs and motorhomes, and general task lighting on agricultural machinery, fishing vessels, and roll bar-mounted auxiliary lighting setups. For applications requiring long-distance forward illumination, a dedicated driving light is more appropriate.
Can I use the LLX08309 on a 24V commercial vehicle or agricultural machine?
Yes. The 10-30V wide voltage input rating makes the LLX08309 fully compatible with 24V electrical systems as used in commercial trucks, agricultural tractors, heavy equipment, and specialist vehicles. At 24V, the current draw drops to approximately 0.5A — roughly half the 12V draw — making the LLX08309 an extremely low-draw lighting solution on 24V systems. Ensure the wiring harness and any in-line fuse or circuit protection used are also rated for 24V operation.
How many LLX08309 work lights can I run from a single 10A circuit?
At 12V, each LLX08309 draws 0.9A. A standard 10A circuit can safely support up to eight lights simultaneously with a small safety margin, or up to six lights applying the standard 125% derating rule for continuous loads. At 24V, current draw drops to approximately 0.5A per light, allowing up to sixteen lights on a single 10A circuit. For most practical installations involving two to four work lights, a 5A fuse or circuit breaker per pair is a clean and appropriate protection arrangement.
