Description

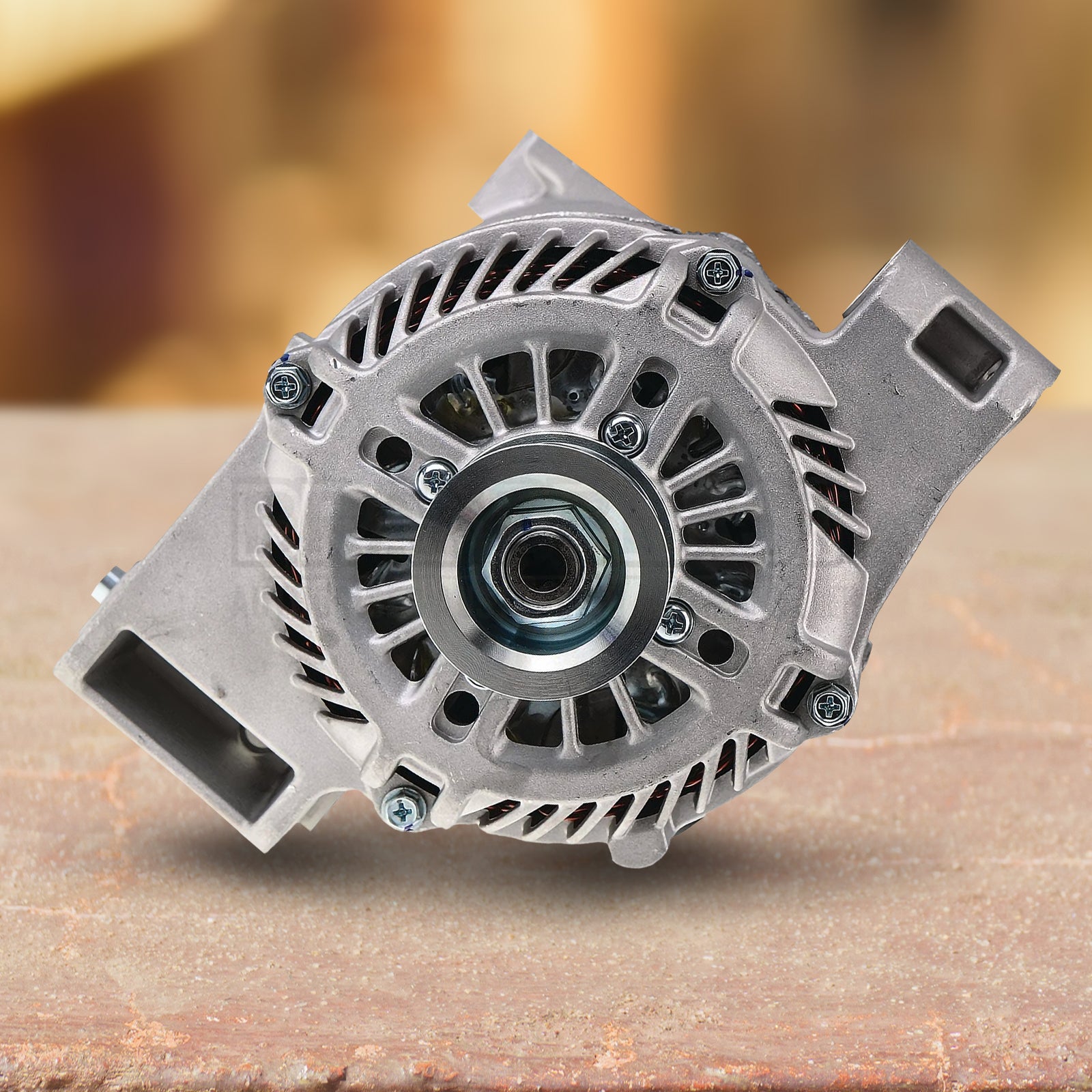

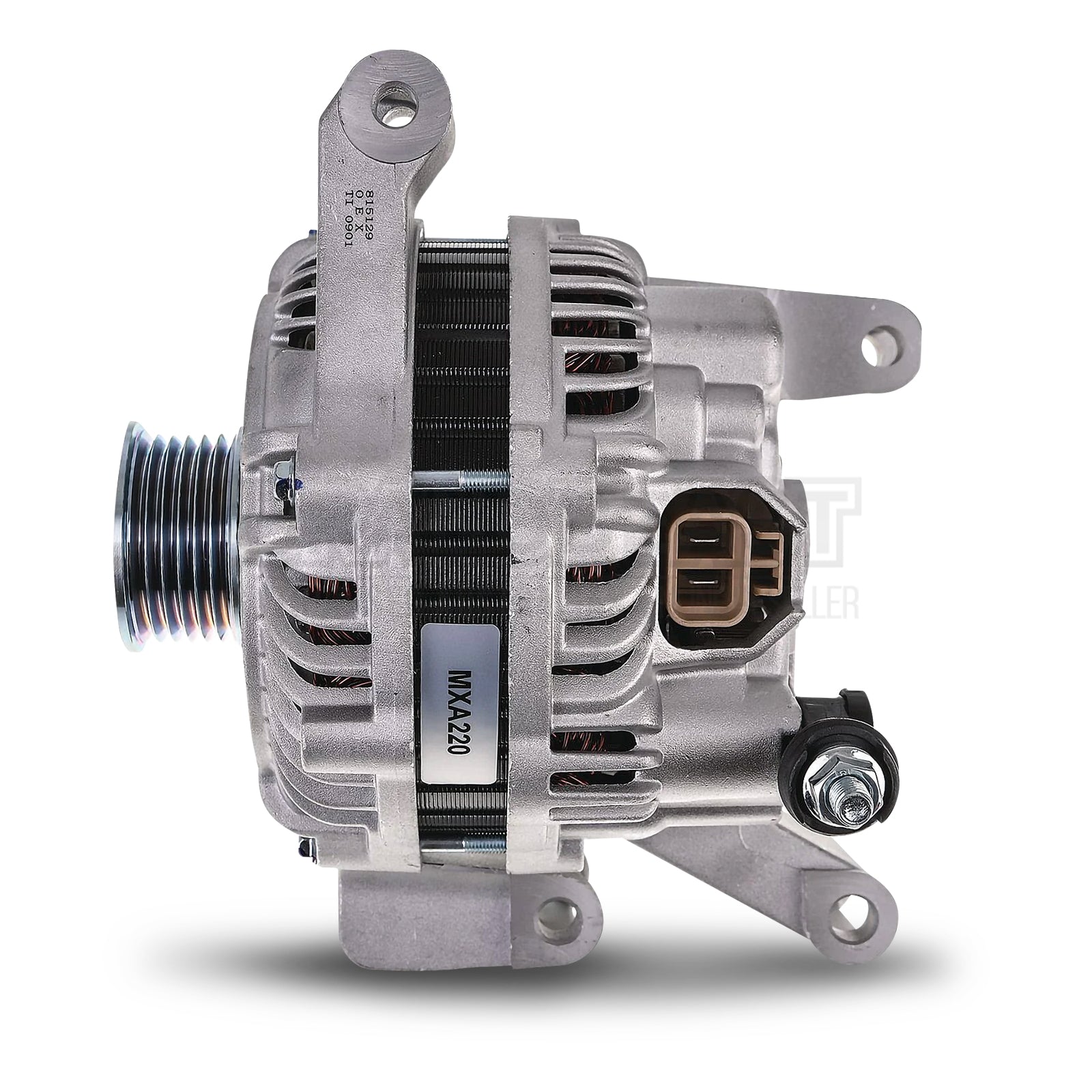

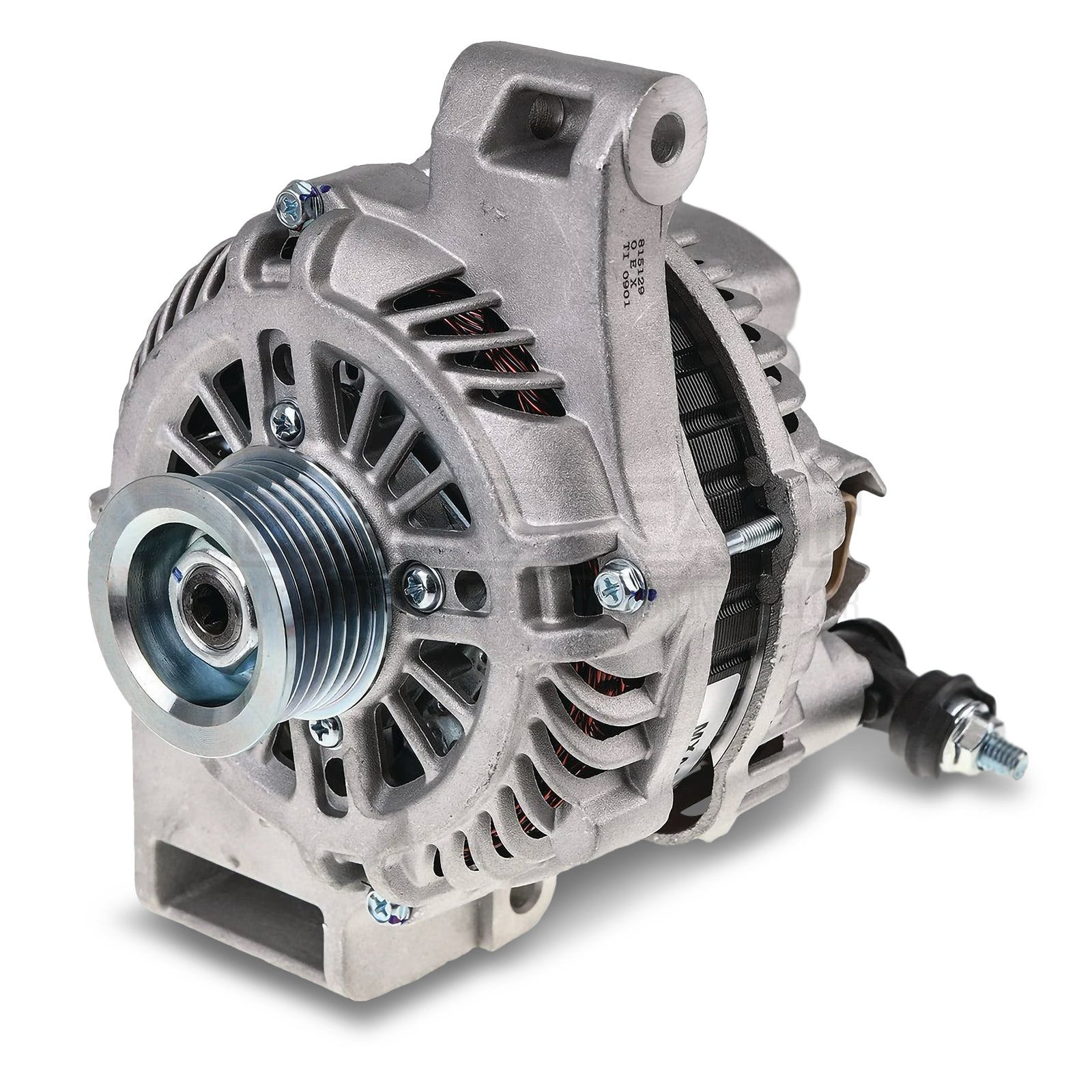

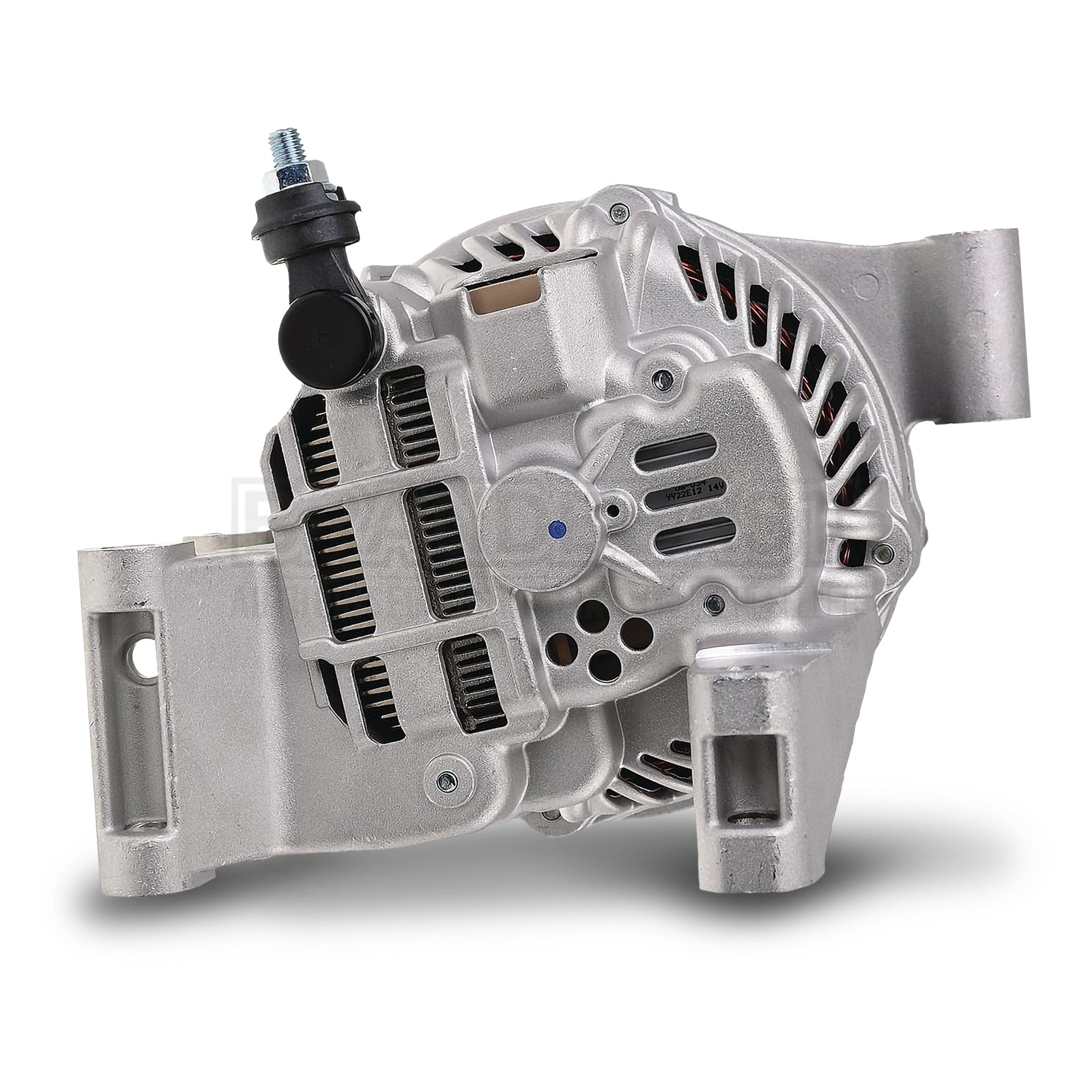

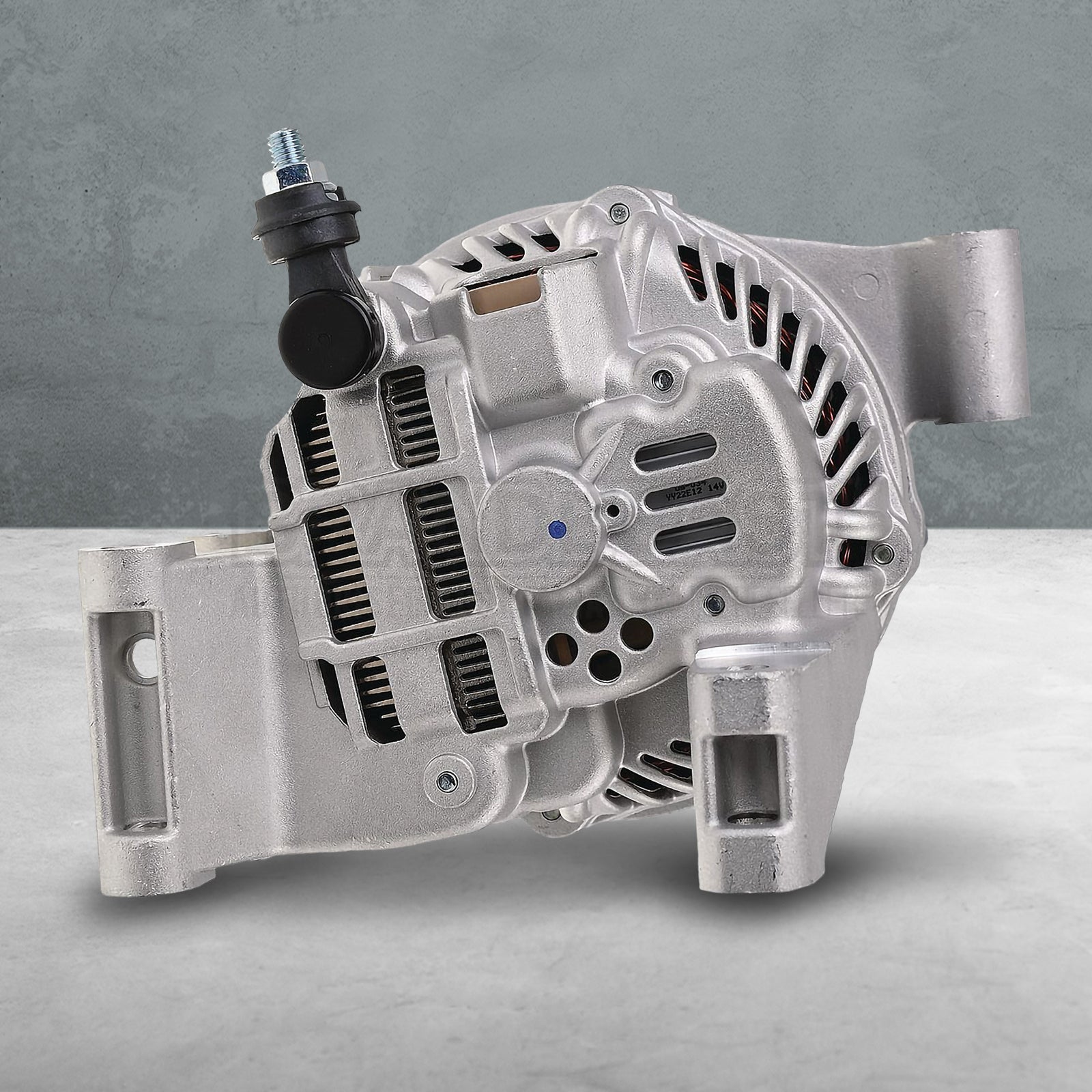

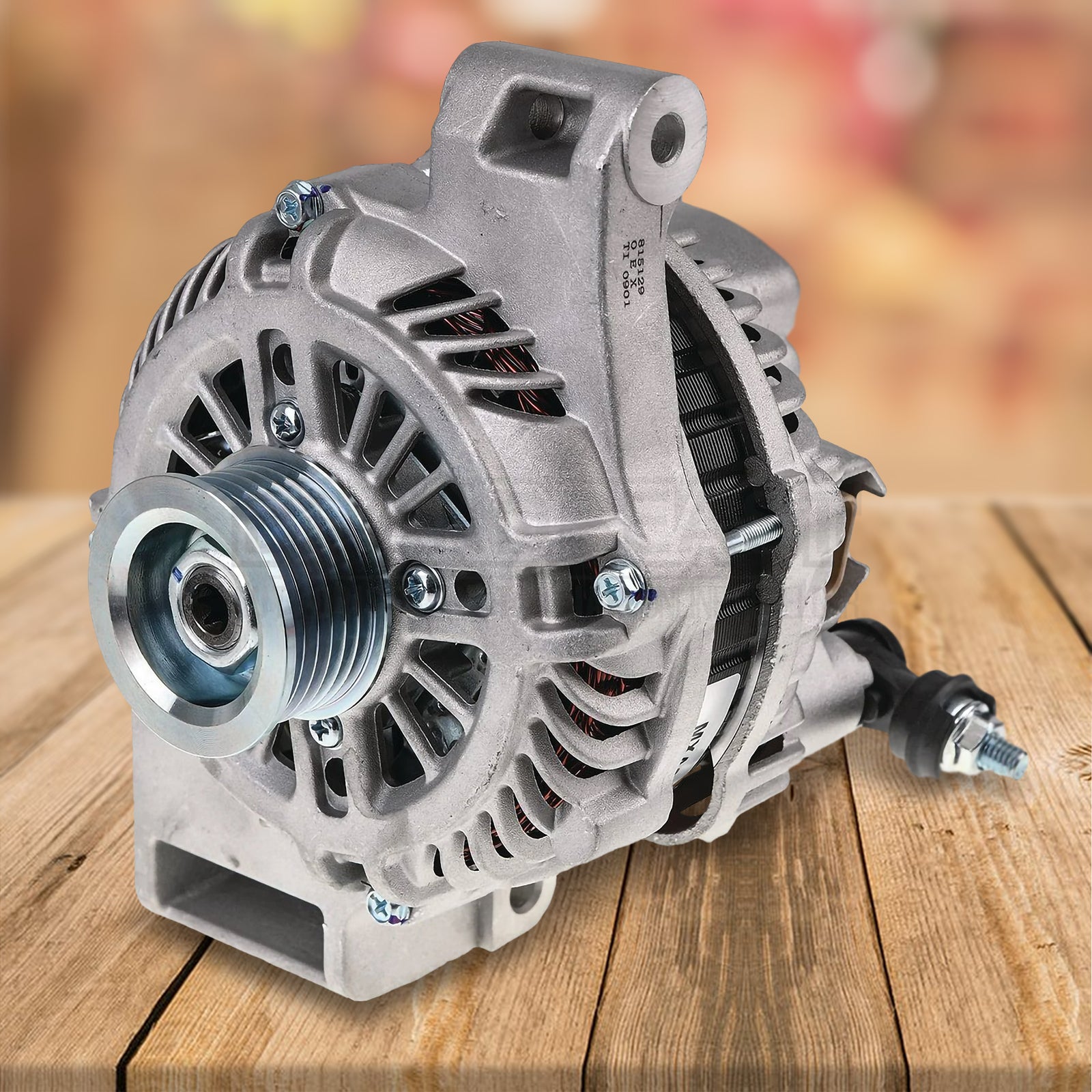

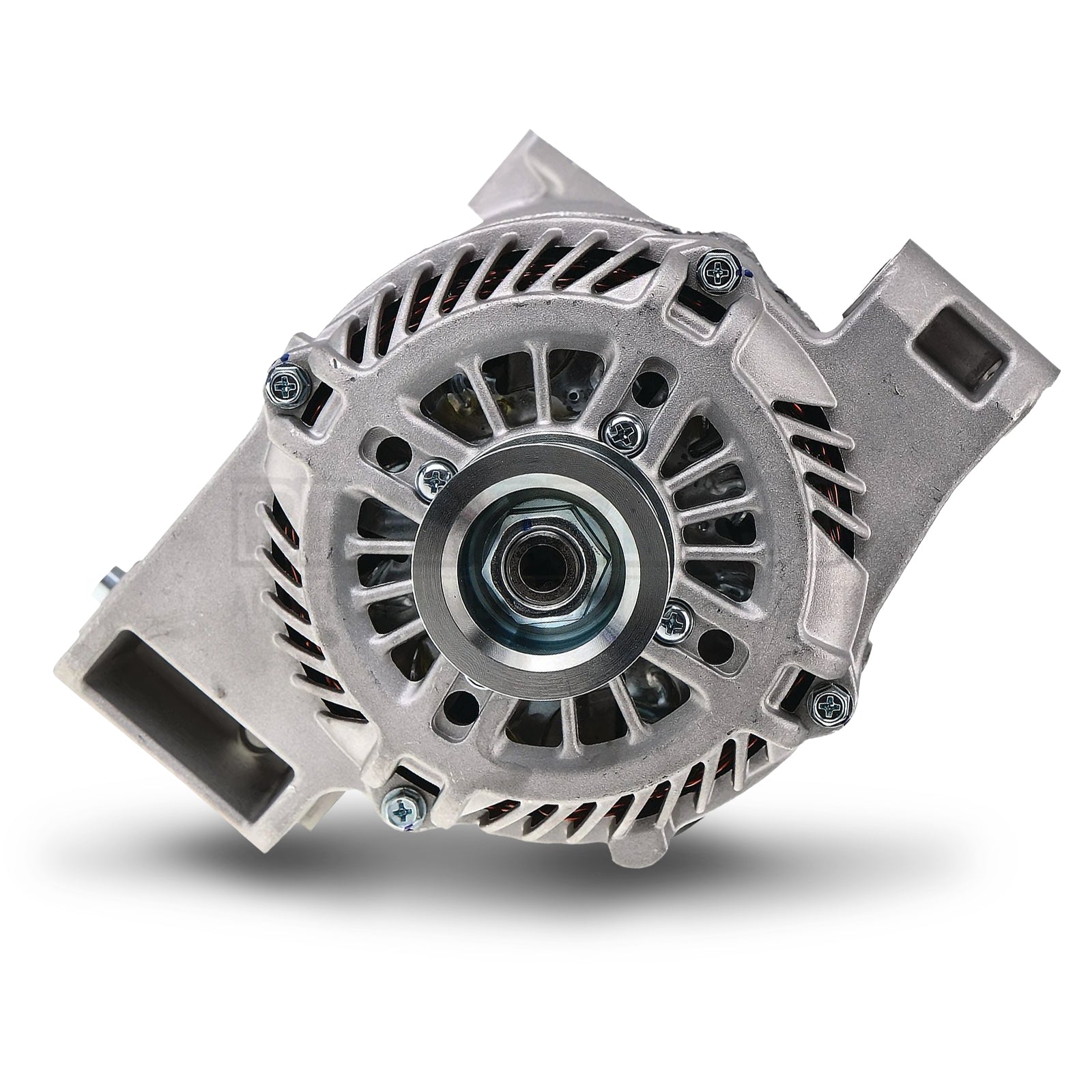

OEX MXA220 Alternator 12V 90A Mitsubishi Style
The OEX MXA220 is a new 12V 90A alternator, Mitsubishi style, featuring an internal regulator with a 2 pin regulator plug, pad mount, and a 6 groove pulley.
Product Overview
The MXA220 is a new 12V Mitsubishi style alternator from OEX, delivering 90A of output through an internal regulator. Built with a pad mounting arrangement and a mount centre to centre distance of 181mm, the MXA220 features a 6 groove pulley with a 49mm outside diameter.
This unit has a 2 pin regulator plug. For applications requiring a 3 pin regulator plug, use the MXA2063 instead.
Features & Benefits
90A Output at 12V: Delivers 90A of charging output on a standard 12V electrical system.
Internal Regulator, 2 Pin Plug: The internal regulator uses a 2 pin plug; for a 3 pin regulator plug, use the MXA2063 instead.
Pad Mount: The pad mounting arrangement matches the original Mitsubishi style fitment for straightforward installation.
6 Groove Pulley: The 6 groove pulley at 49mm outside diameter suits the specified fitment applications.
Mitsubishi Style Design: Built to Mitsubishi style specifications for compatible fitment across applications originally equipped with a matching Mitsubishi unit.
New Unit: Supplied new, not reconditioned.
Technical Specs
| Specification | Detail |
| Part No. | MXA220 |
| Brand | OEX |
| Type | Alternator |
| Voltage | 12V |
| Power Rating | 90A |
| Regulator Type | Internal, 2 Pin Plug |
| Suits Unit Make | Mitsubishi |
| Alternator Mount | Pad |
| Mount Cnt to Cnt | 181mm |
| Mount Centres B | 135mm |
| Mount Leg Thickness | 75mm |
| Pivot Hole Diameter | 9mm / 10mm |
| Pulley Outside Diameter | 49mm |
| Pulley Section | 6 Groove |
| Pin Code | IR29 |
| New / Reman. | New |
| Weight | 5.9kg |
Compatible With
The MXA220 is a Mitsubishi style 12V 90A alternator with a pad mount and 2 pin regulator plug. For applications requiring a 3 pin regulator plug, use the MXA2063 instead. Confirm fitment against your original alternator's mounting dimensions and pin code (IR29) before ordering.
Frequently Asked Questions
How many pins does the regulator plug have on the MXA220?
The MXA220 has a 2 pin regulator plug. If your application requires a 3 pin plug, use the MXA2063 instead.
What voltage and output does the MXA220 provide?
The MXA220 is a 12V alternator delivering 90A of output.
What is the difference between the MXA220 and MXA230?
Both deliver 90A at 12V, but the MXA220 uses a pad mount with a 6 groove pulley and 2 pin regulator plug, while the MXA230 uses a twin leg mount with a 4 groove pulley.
How is the MXA220 mounted?
The MXA220 uses a pad mount with a 181mm mounting centre to centre distance.
Is the MXA220 new or reconditioned?
The MXA220 is supplied new.
