Description

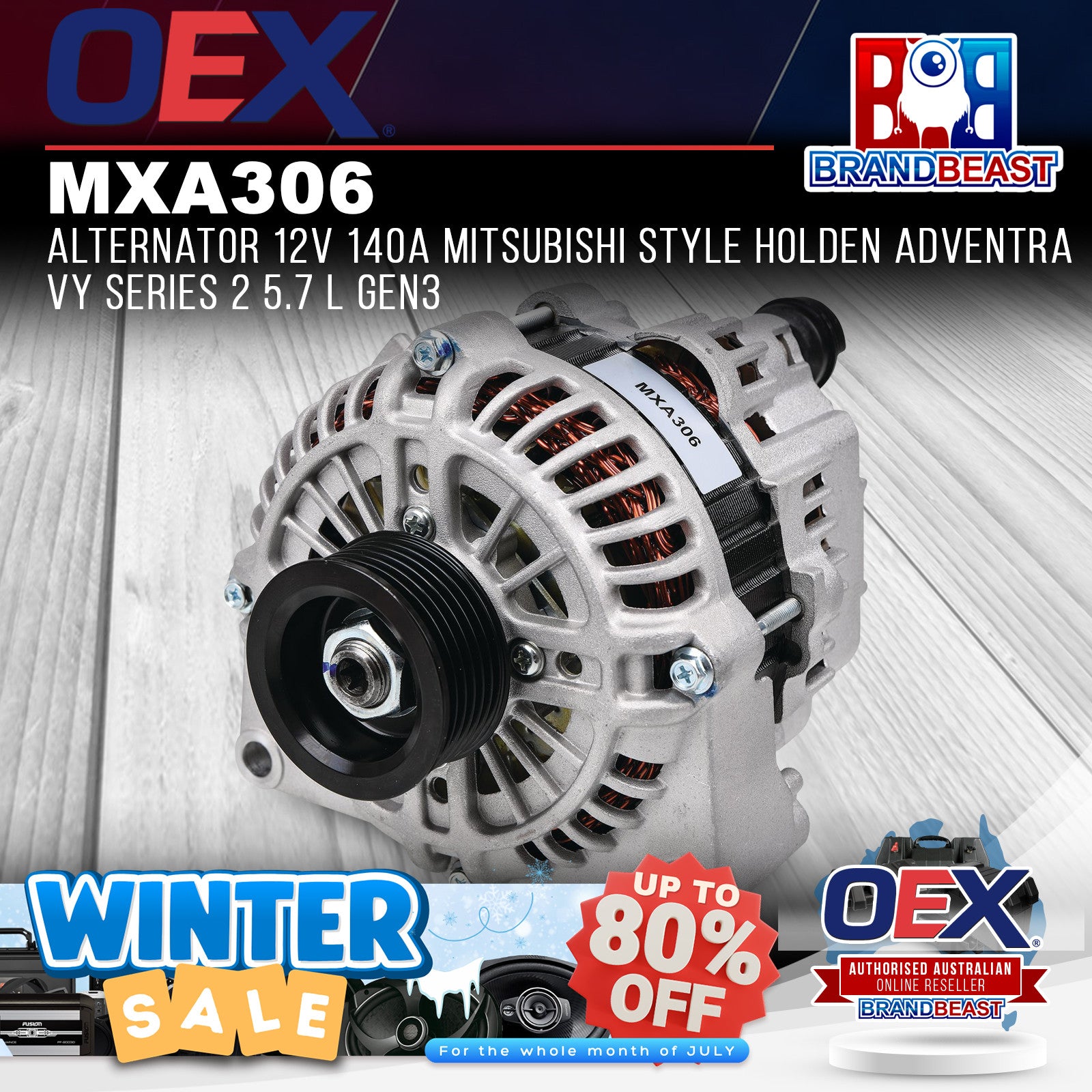

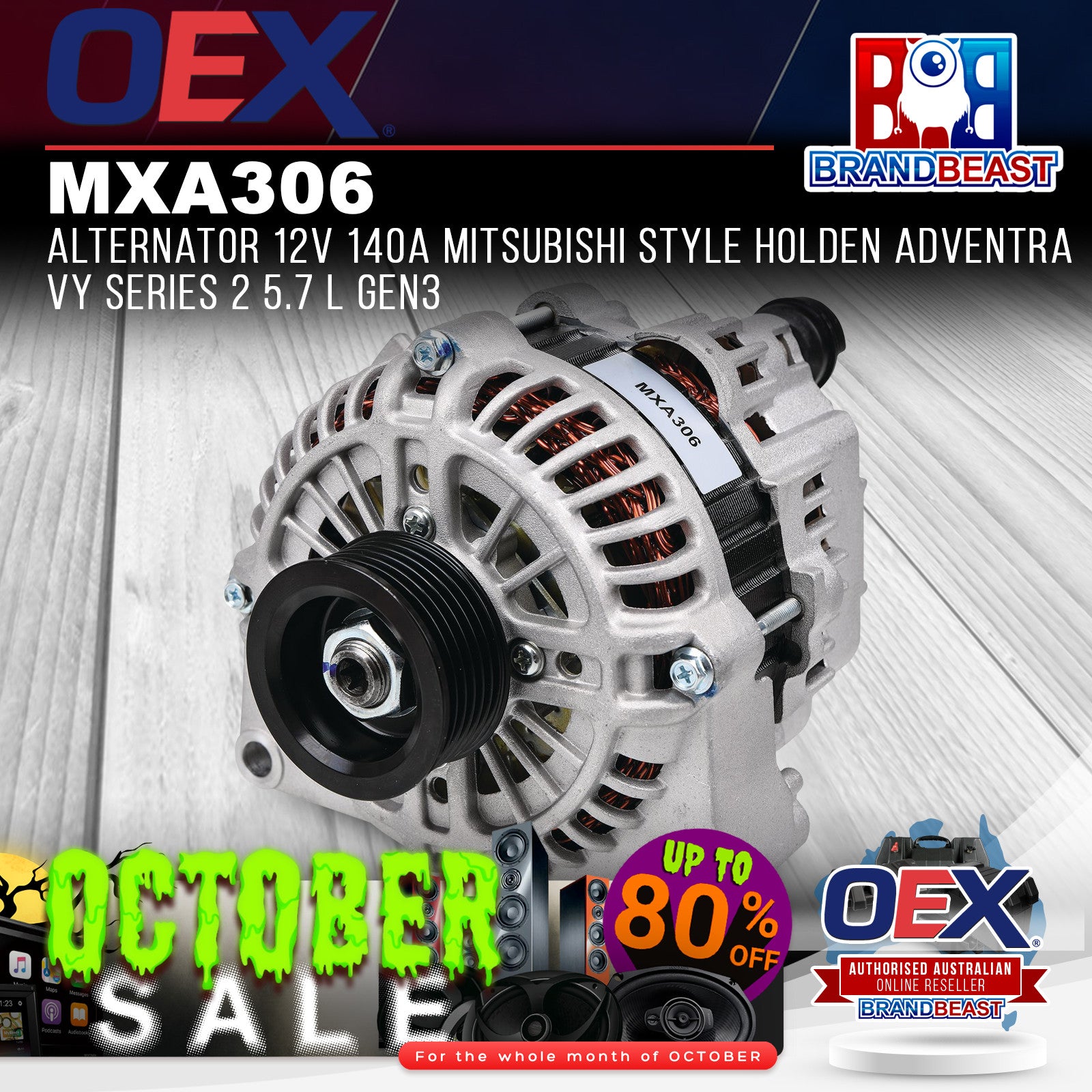

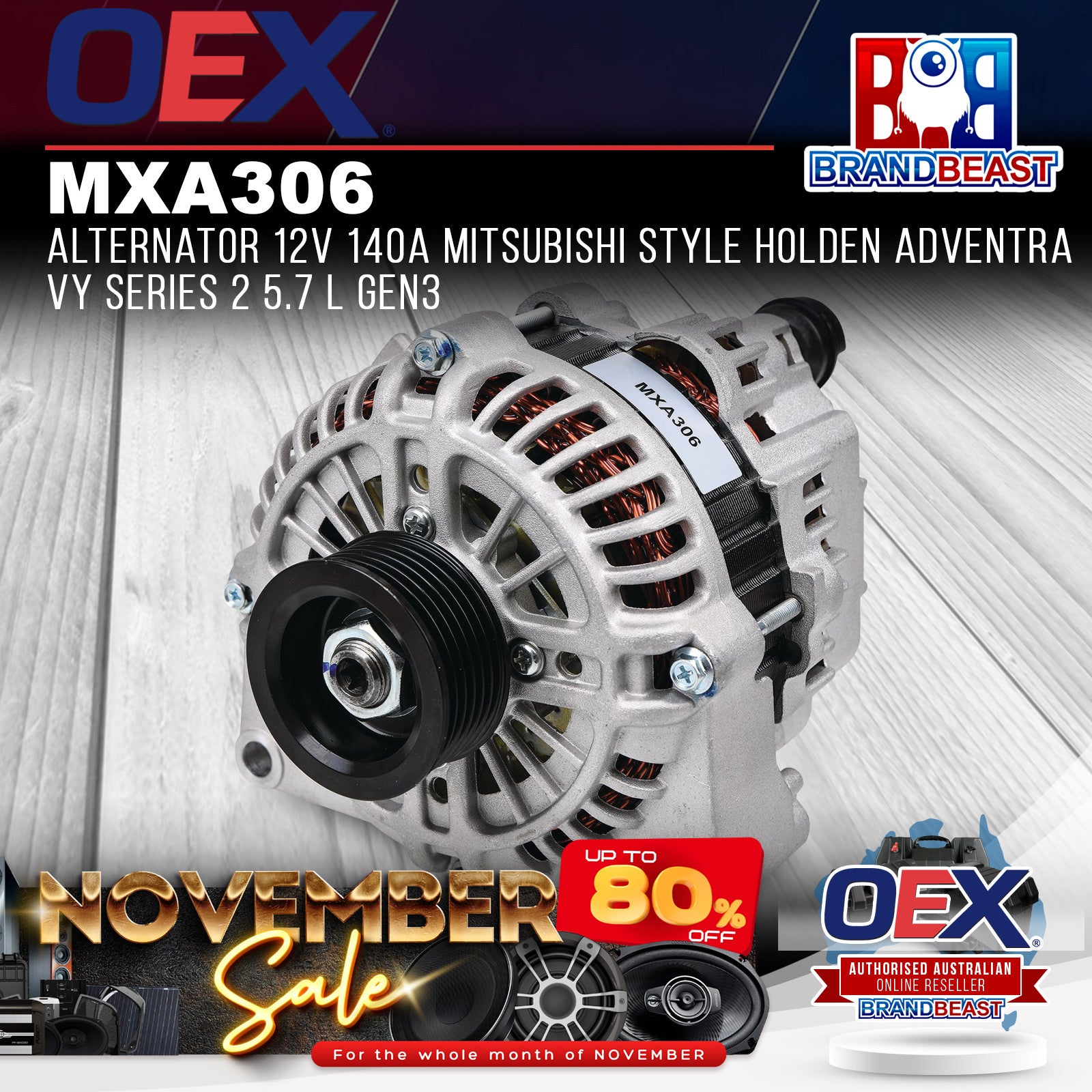

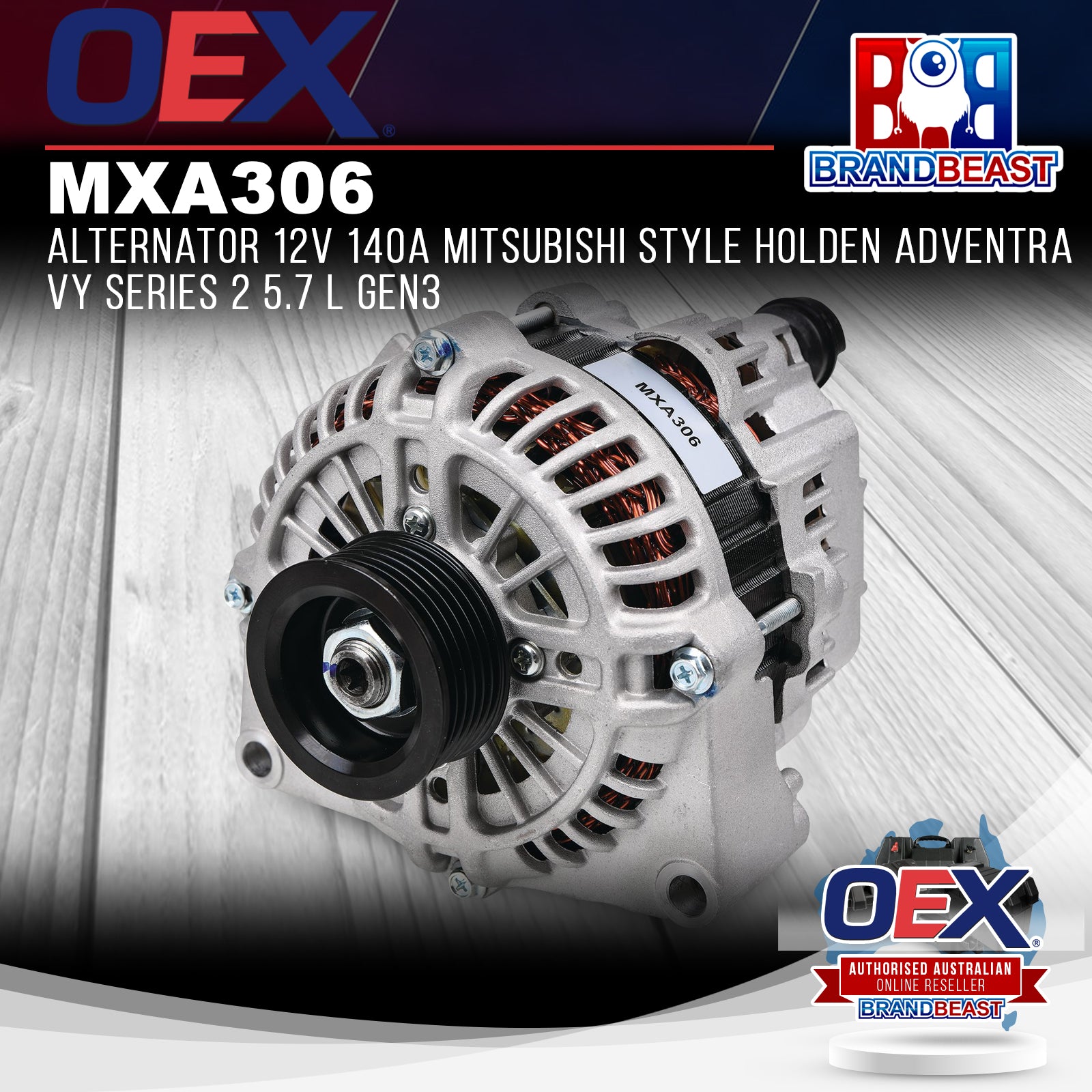

OEX MXA306 Alternator 12V 140A Mitsubishi Style
The OEX MXA306 is a new 12V 140A alternator, Mitsubishi style, suited to the Holden Adventra VY Series 2 5.7L Gen3, featuring an internal regulator, single leg mount, and a 6 groove pulley.
Product Overview
The MXA306 is a new 12V Mitsubishi style alternator from OEX, delivering 140A of output through an internal regulator, and is a match for the Holden Adventra VY Series 2 5.7L Gen3. Built with a single leg mount and a mount centre to centre distance of 139mm, the MXA306 features a 6 groove pulley with a 57.5mm outside diameter.
This unit is fitted with a standard regulator and has a pin lug length of 51mm. An adaptor is available to suit HXK-32 and HXK-24 applications. Importantly, the MXA306 will not interchange with the MXA2020, MXA332, or MXA330, so confirm the correct part number before ordering.
Features & Benefits
140A Output at 12V: Delivers 140A of charging output on a standard 12V electrical system.
Internal Regulator: Fitted with a standard internal regulator, keeping the charging system compact.
Single Leg Mount: The single leg mounting arrangement matches the original Mitsubishi style fitment for straightforward installation.
6 Groove Pulley: The 6 groove pulley at 57.5mm outside diameter suits the specified fitment applications.
Suits Holden Adventra VY Series 2 5.7L Gen3: Specifically matched to this application, ensuring correct fitment and function.
Adaptor Available for HXK-32, HXK-24: An adaptor is available to suit HXK-32 and HXK-24 applications, extending fitment flexibility.
Not Interchangeable with MXA2020, MXA332, or MXA330: Despite similar appearance and specifications, this unit will not interchange with these other part numbers.
New Unit: Supplied new, not reconditioned.
Technical Specs
| Specification | Detail |
| Part No. | MXA306 |
| Brand | OEX |
| Type | Alternator |
| Voltage | 12V |
| Power Rating | 140A |
| Regulator Type | Internal (Standard) |
| Suits Unit Make | Mitsubishi |
| Suits Vehicle | Holden Adventra VY Series 2 5.7L Gen3 |
| Alternator Mount | Single Leg |
| Mount Cnt to Cnt | 139mm |
| Mount Leg Thickness | 50mm |
| Adjusting Hole Diameter | 10.5mm |
| Pivot Hole Diameter | 10.5mm |
| Pulley Outside Diameter | 57.5mm |
| Pulley Section | 6 Groove |
| Pin Code | IR49 |
| Pin Lug Length | 51mm |
| Adaptor Compatibility | HXK-32, HXK-24 |
| New / Reman. | New |
| Weight | 5.96kg |
Compatible With
The MXA306 is a Mitsubishi style 12V 140A alternator suited to the Holden Adventra VY Series 2 5.7L Gen3, with an adaptor available for HXK-32 and HXK-24 applications. This unit will not interchange with the MXA2020, MXA332, or MXA330; confirm your vehicle and application match before ordering.
Frequently Asked Questions
Which vehicle does the MXA306 suit?
The MXA306 is suited to the Holden Adventra VY Series 2 5.7L Gen3.
Can I use the MXA306 in place of the MXA2020 or MXA332?
No. The MXA306 will not interchange with the MXA2020, MXA332, or MXA330, despite similar specifications.
What voltage and output does the MXA306 provide?
The MXA306 is a 12V alternator delivering 140A of output.
Is an adaptor available for other applications?
Yes. An adaptor is available to suit HXK-32 and HXK-24 applications.
Is the MXA306 new or reconditioned?
The MXA306 is supplied new.
