Description

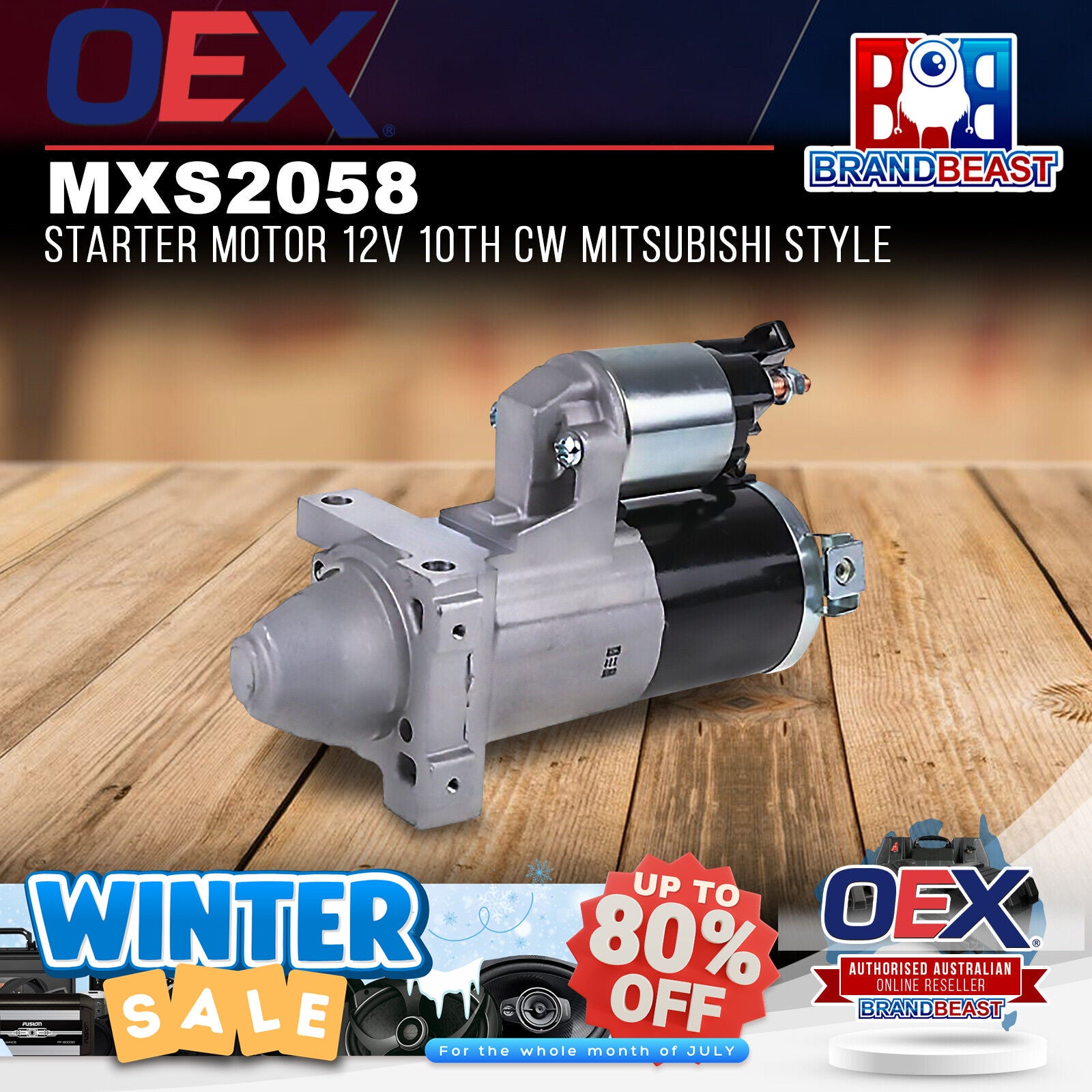

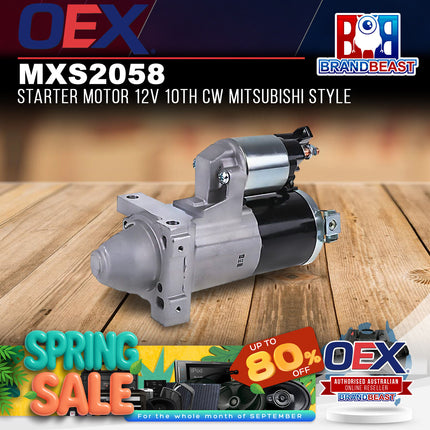

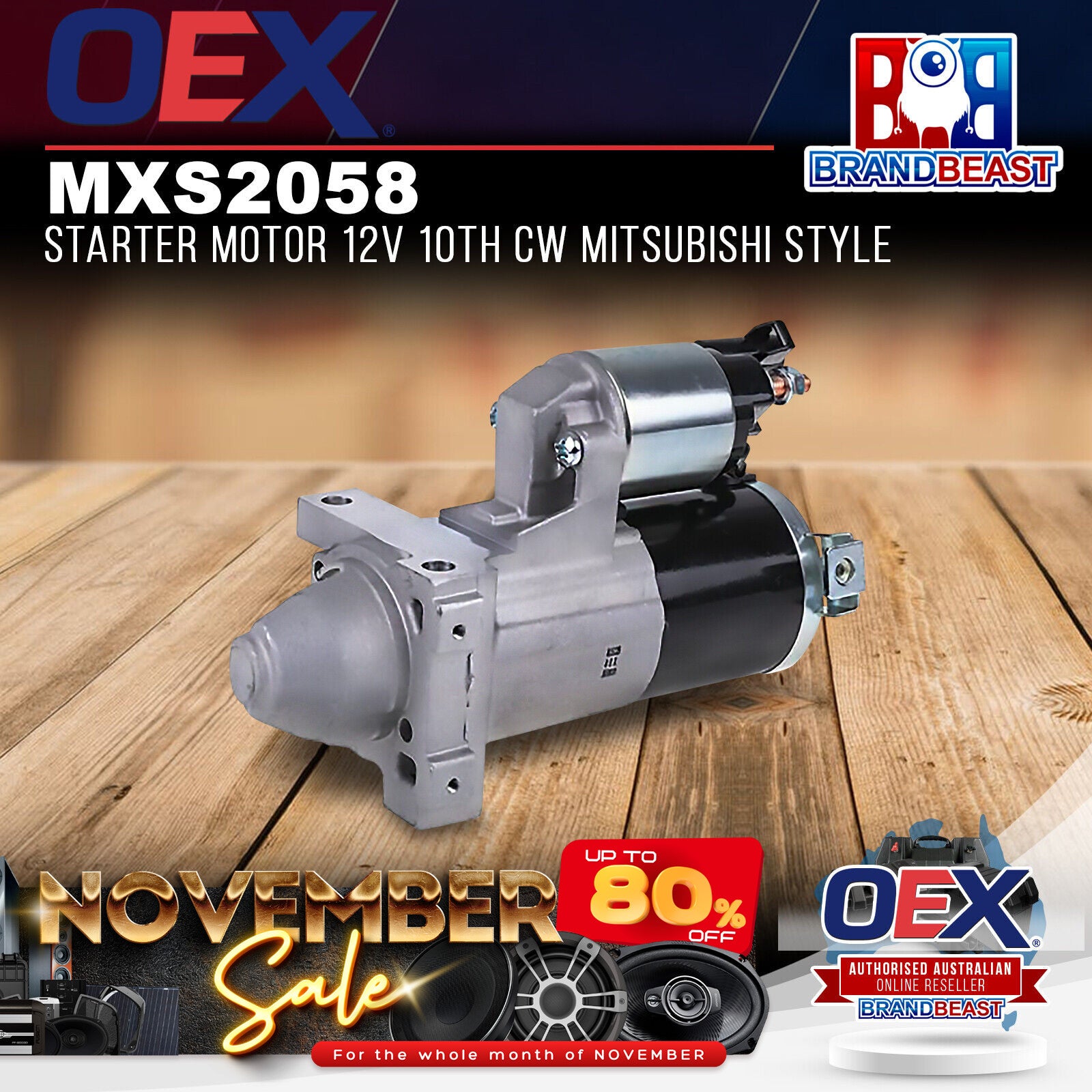

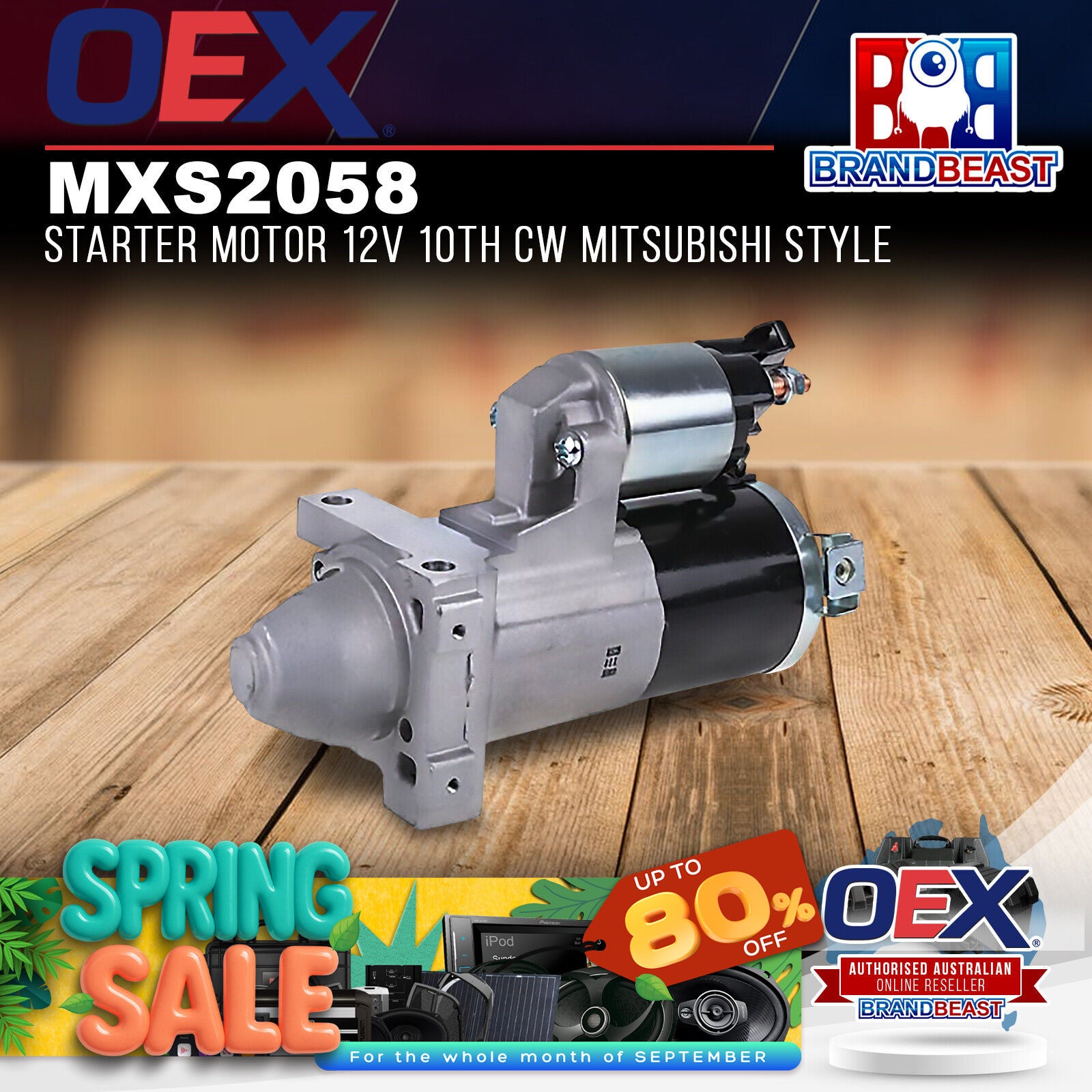

OEX MXS2058 Starter Motor 12V 10 Tooth CW Mitsubishi Style
The OEX MXS2058 is a new 12V starter motor with a 10 tooth clockwise rotation pinion, Mitsubishi style, delivering 1.4kW power output with a pad mount and moulded plug solenoid.
Product Overview
The MXS2058 is a new 12V Mitsubishi style starter motor from OEX, featuring a 10 tooth clockwise rotation pinion and a pad mounting arrangement with an 82mm mount thickness. Delivering 1.4kW of power, the MXS2058 is built to a 58mm flange diameter with 73mm mounting centres and an overall length of 224mm.
The solenoid on this unit has a moulded plug for the start terminal. If your application requires a standard blade terminal instead, use the MXS340.
Features & Benefits
1.4kW Power Rating: The 1.4kW power rating provides reliable cranking performance suited to the applications this starter is designed for.
10 Tooth Pinion, Clockwise Rotation: The 10 tooth pinion with clockwise rotation must match the application exactly for correct fitment.
Mitsubishi Style Design: Built to Mitsubishi style specifications for compatible fitment across applications originally equipped with a matching Mitsubishi unit.
Pad Mount, 82mm Thickness: The pad mounting arrangement with 82mm mount thickness suits the specified fitment applications.
Moulded Plug Solenoid: The solenoid uses a moulded plug for the start terminal; for applications requiring a standard blade terminal, use the MXS340 instead.
New Unit: Supplied new, not reconditioned.
Technical Specs
| Specification | Detail |
| Part No. | MXS2058 |
| Brand | OEX |
| Type | Starter Motor |
| Voltage | 12V |
| Power Rating | 1.4kW |
| Number of Teeth | 10 |
| Rotation | CW (Clockwise) |
| Suits Unit Make | Mitsubishi |
| Flange Diameter | 58mm |
| Mount Centres A | 73mm |
| Mount Hole Diameter | 10mm |
| Mount Thickness | 82mm |
| Overall Length | 224mm |
| Pinion at Rest | 9mm |
| Pinion Diameter | 28mm |
| Starter Mount Type | Pad |
| Wet / Dry Clutch | Dry |
| Solenoid Terminal | Moulded Plug |
| New / Reman. | New |
| Weight | 3.12kg |
Compatible With
The MXS2058 is a Mitsubishi style 10 tooth starter motor with a moulded plug solenoid. If your application uses a standard blade terminal rather than a moulded plug, use the MXS340 instead. Confirm your original starter's specifications match before ordering.
Frequently Asked Questions
What terminal type does the MXS2058 use?
The MXS2058 solenoid has a moulded plug for the start terminal. For a standard blade terminal instead, use the MXS340.
What is the power rating of the MXS2058?
The MXS2058 has a 1.4kW power rating.
How many teeth does the MXS2058 pinion have?
The MXS2058 has a 10 tooth pinion with clockwise rotation.
What mounting type does the MXS2058 use?
The MXS2058 uses a pad mounting arrangement with an 82mm mount thickness and a dry clutch design.
Is the MXS2058 new or reconditioned?
The MXS2058 is supplied new.
