Description

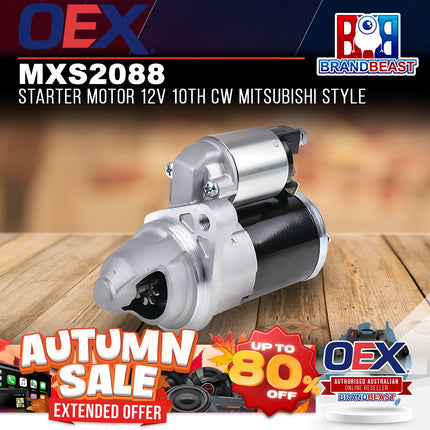

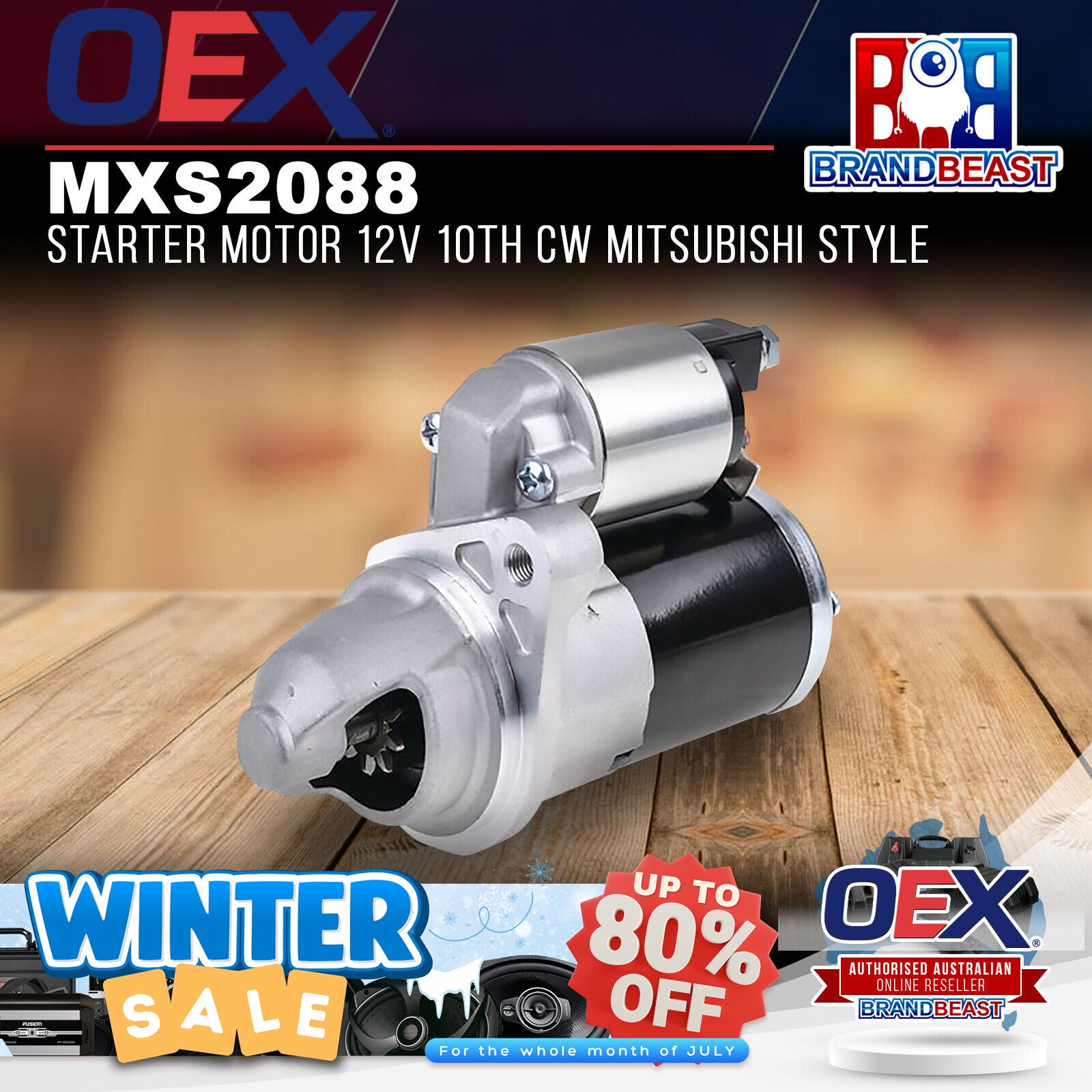

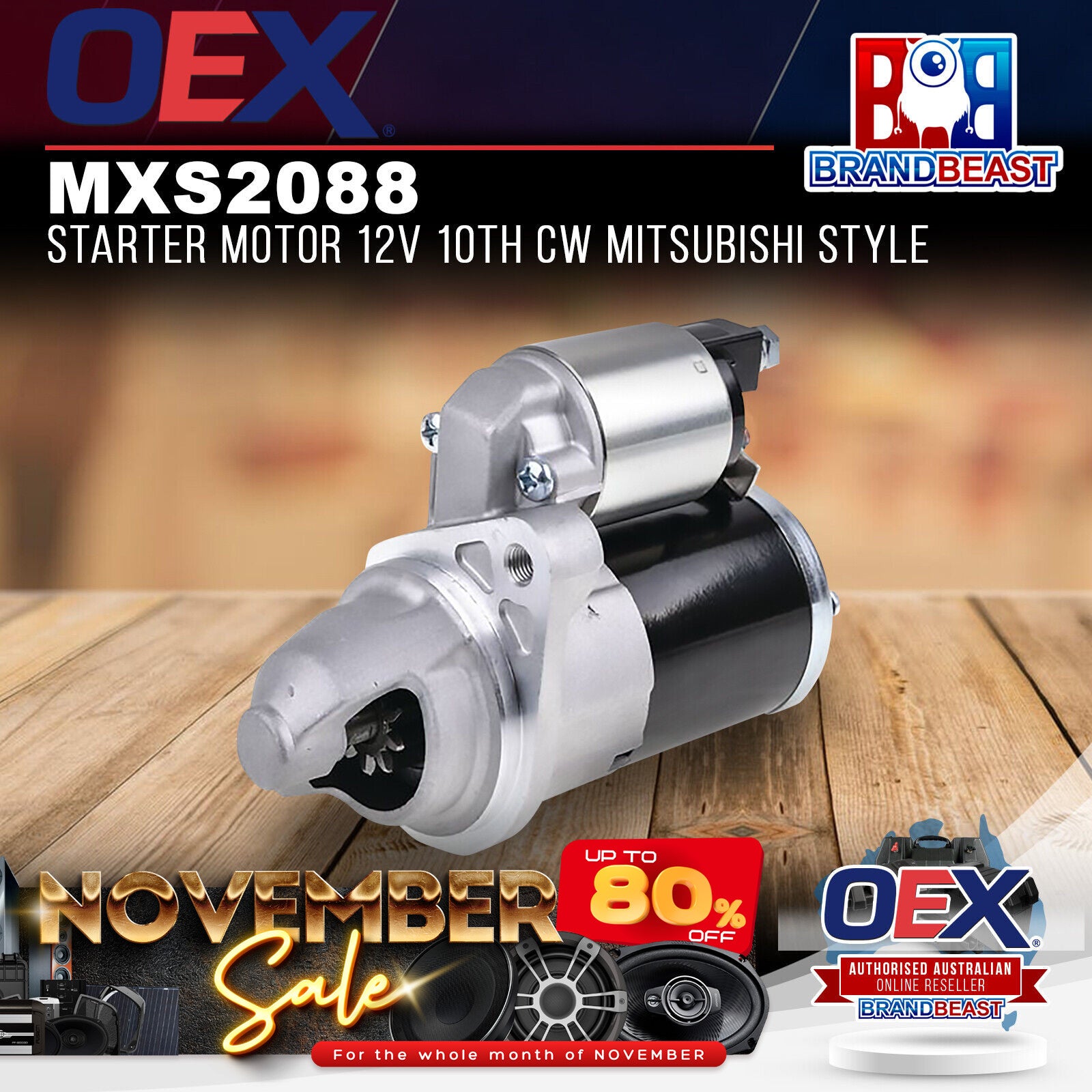

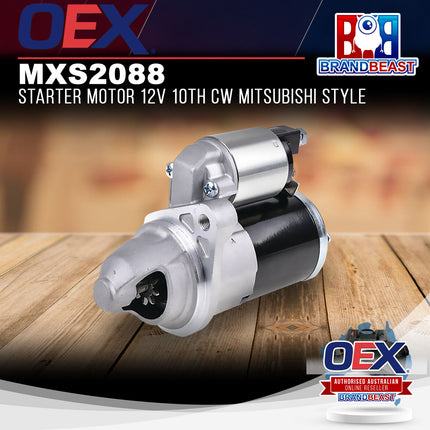

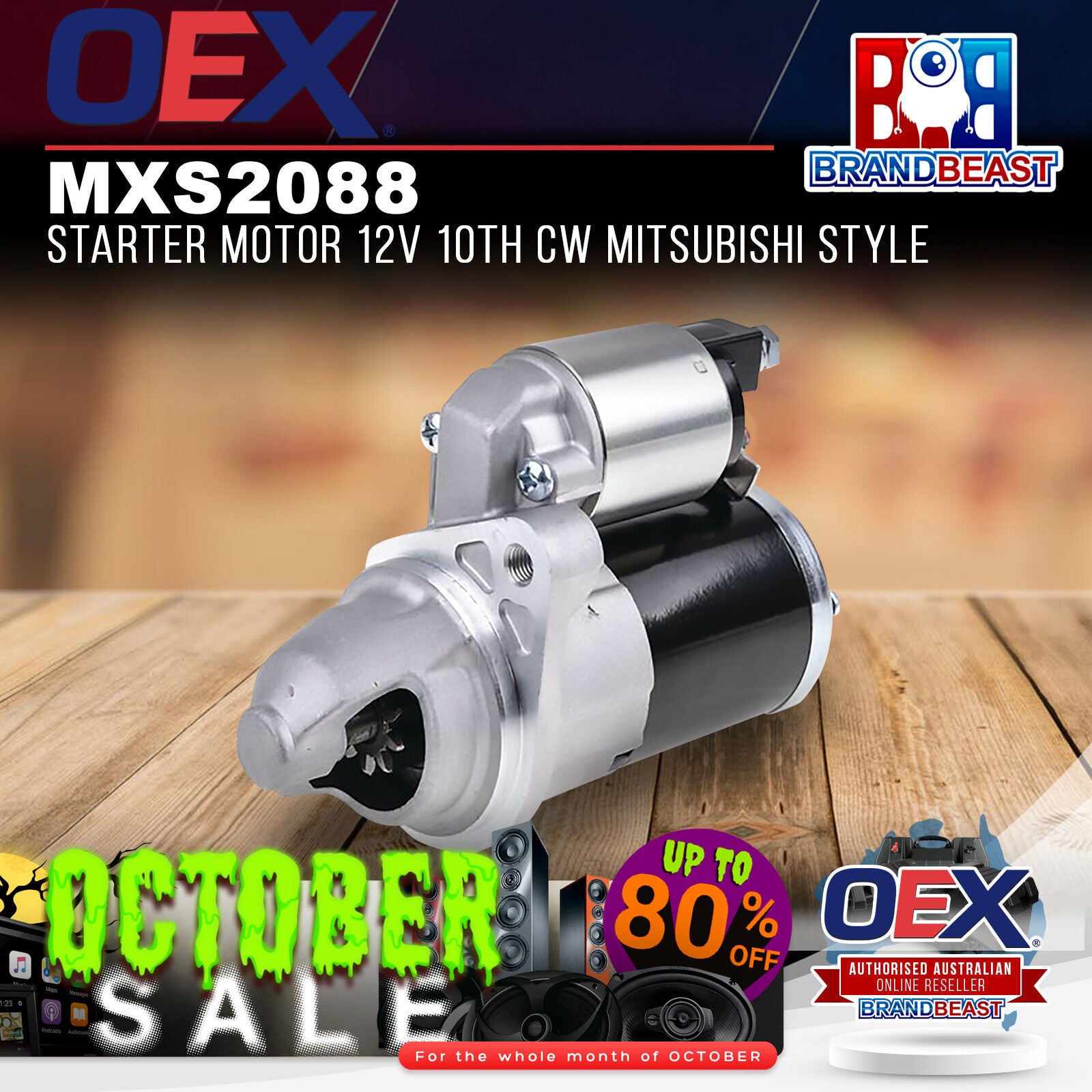

OEX MXS2088 Starter Motor 12V 10 Tooth CW Mitsubishi Style
The OEX MXS2088 is a new 12V starter motor with a 10 tooth clockwise rotation pinion, Mitsubishi style, delivering 1.6kW power output with a compact 2 hole dry clutch mount.
Product Overview
The MXS2088 is a new 12V Mitsubishi style starter motor from OEX, featuring a 10 tooth clockwise rotation pinion and a 2 hole dry clutch mounting arrangement. Delivering 1.6kW of power, the MXS2088 is built to a 74mm flange diameter with 113mm mounting centres and a compact overall length of 183mm.
The OEX brand is sourced from market leading original equipment manufacturers and aftermarket suppliers. OEX products are sourced from ISO certified factories, and each product is backed by a comprehensive nationwide warranty.
Features & Benefits
1.6kW Power Rating: The 1.6kW power rating provides reliable cranking performance suited to the applications this starter is designed for.
10 Tooth Pinion, Clockwise Rotation: The 10 tooth pinion with clockwise rotation must match the application exactly for correct fitment.
Mitsubishi Style Design: Built to Mitsubishi style specifications for compatible fitment across applications originally equipped with a matching Mitsubishi unit.
Compact 183mm Length: At just 183mm overall length and 2.72kg, the MXS2088 is a compact, lightweight unit suited to space-constrained installations.
2 Hole Dry Clutch Mount: The 2 hole mounting arrangement with a dry clutch design suits the specified fitment applications.
ISO Certified Manufacturing: Sourced from ISO certified factories, supporting consistent quality and reliability.
New Unit: Supplied new, not reconditioned.
Technical Specs
| Specification | Detail |
| Part No. | MXS2088 |
| Brand | OEX |
| Type | Starter Motor |
| Voltage | 12V |
| Power Rating | 1.6kW |
| Number of Teeth | 10 |
| Rotation | CW (Clockwise) |
| Suits Unit Make | Mitsubishi |
| Flange Diameter | 74mm |
| Mount Centres A | 113mm |
| Mount Hole Diameter | M10x1.25 |
| Overall Length | 183mm |
| Pinion at Rest | 21mm |
| Pinion Diameter | 31mm |
| Starter Mount Type | 2 Hole |
| Wet / Dry Clutch | Dry |
| New / Reman. | New |
| Weight | 2.72kg |
Compatible With
The MXS2088 is a Mitsubishi style 10 tooth starter motor with a compact 183mm overall length. Confirm your original starter's specifications match before ordering, as similar 10 tooth Mitsubishi style units in the range differ substantially in overall length.
Frequently Asked Questions
What is the power rating of the MXS2088?
The MXS2088 has a 1.6kW power rating.
How many teeth does the MXS2088 pinion have?
The MXS2088 has a 10 tooth pinion with clockwise rotation.
How compact is the MXS2088?
The MXS2088 has an overall length of just 183mm and weighs 2.72kg, making it one of the more compact units in OEX's Mitsubishi style starter range.
What mounting type does the MXS2088 use?
The MXS2088 uses a 2 hole mounting arrangement with a dry clutch design.
Is the MXS2088 new or reconditioned?
The MXS2088 is supplied new.
