Description

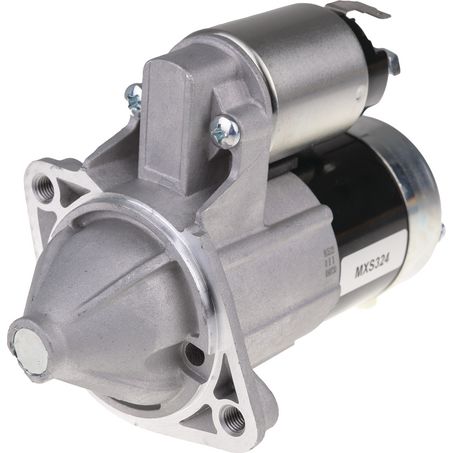

OEX MXS324 Starter Motor 12V 8 Tooth CW Mitsubishi Style
The OEX MXS324 is a new 12V starter motor with an 8 tooth clockwise rotation pinion, Mitsubishi style, delivering 0.9kW power output with a 2 hole dry clutch mount.
Product Overview
The MXS324 is a new 12V Mitsubishi style starter motor from OEX, featuring an 8 tooth clockwise rotation pinion and a 2 hole dry clutch mounting arrangement. Delivering 0.9kW of power, the MXS324 is built to a 77mm flange diameter with 105mm mounting centres and an overall length of 195mm.
The OEX brand is sourced from market leading original equipment manufacturers and aftermarket suppliers. OEX products are sourced from ISO certified factories, and each product is backed by a comprehensive nationwide warranty.
Features & Benefits
0.9kW Power Rating: The 0.9kW power rating provides reliable cranking performance suited to the applications this starter is designed for.
8 Tooth Pinion, Clockwise Rotation: The 8 tooth pinion with clockwise rotation must match the application exactly for correct fitment.
Mitsubishi Style Design: Built to Mitsubishi style specifications for compatible fitment across applications originally equipped with a matching Mitsubishi unit.
Compact 195mm Length: The 195mm overall length is the shortest of OEX's similar 8 tooth Mitsubishi style units, suiting specific fitment requirements.
2 Hole Dry Clutch Mount: The 2 hole mounting arrangement with a dry clutch design suits the specified fitment applications.
ISO Certified Manufacturing: Sourced from ISO certified factories, supporting consistent quality and reliability.
New Unit: Supplied new, not reconditioned.
Technical Specs
| Specification | Detail |
| Part No. | MXS324 |
| Brand | OEX |
| Type | Starter Motor |
| Voltage | 12V |
| Power Rating | 0.9kW |
| Number of Teeth | 8 |
| Rotation | CW (Clockwise) |
| Suits Unit Make | Mitsubishi |
| Flange Diameter | 77mm |
| Mount Centres A | 105mm |
| Mount Hole Diameter | M10x1.25 |
| Overall Length | 195mm |
| Pinion at Rest | 9mm |
| Pinion Diameter | 28mm |
| Starter Mount Type | 2 Hole |
| Wet / Dry Clutch | Dry |
| New / Reman. | New |
| Weight | 2.8kg |
Compatible With
The MXS324 is a Mitsubishi style 8 tooth starter motor. Confirm your original starter's specifications match before ordering, including overall length and pinion at rest, as similar 8 tooth units such as the MXS325 and MXS333 differ in these dimensions and power rating.
Frequently Asked Questions
What is the power rating of the MXS324?
The MXS324 has a 0.9kW power rating.
How many teeth does the MXS324 pinion have?
The MXS324 has an 8 tooth pinion with clockwise rotation.
What is the difference between the MXS324, MXS325, and MXS333?
All three are 8 tooth Mitsubishi style starters with the same flange and mounting dimensions, but they differ in overall length (195mm, 207mm, and 210mm respectively), pinion at rest measurement, and power rating (0.9kW, 1.2kW, and 1.2kW). The MXS333 is also specifically noted for automatic transmission use.
What mounting type does the MXS324 use?
The MXS324 uses a 2 hole mounting arrangement with a dry clutch design.
Is the MXS324 new or reconditioned?
The MXS324 is supplied new.
