Description

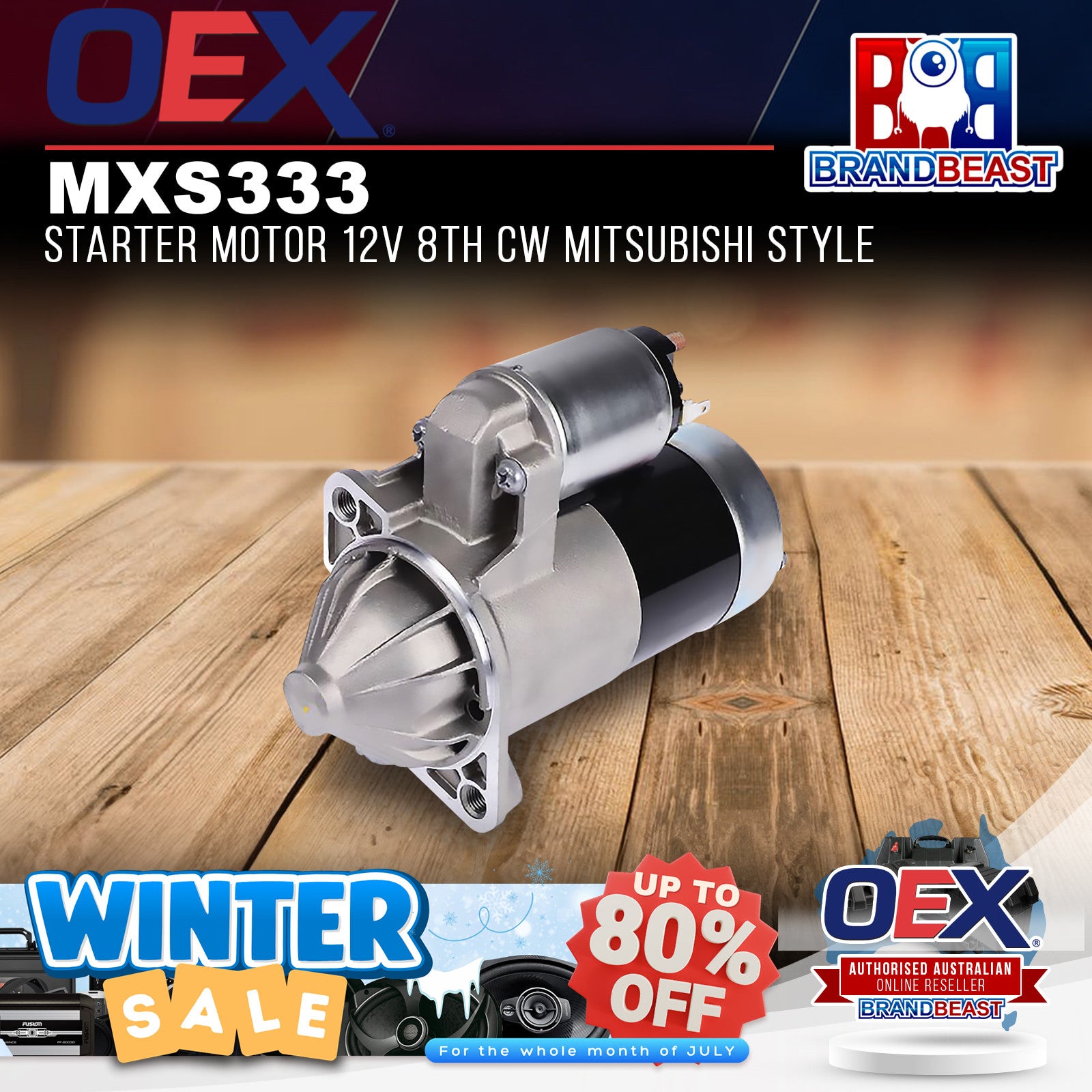

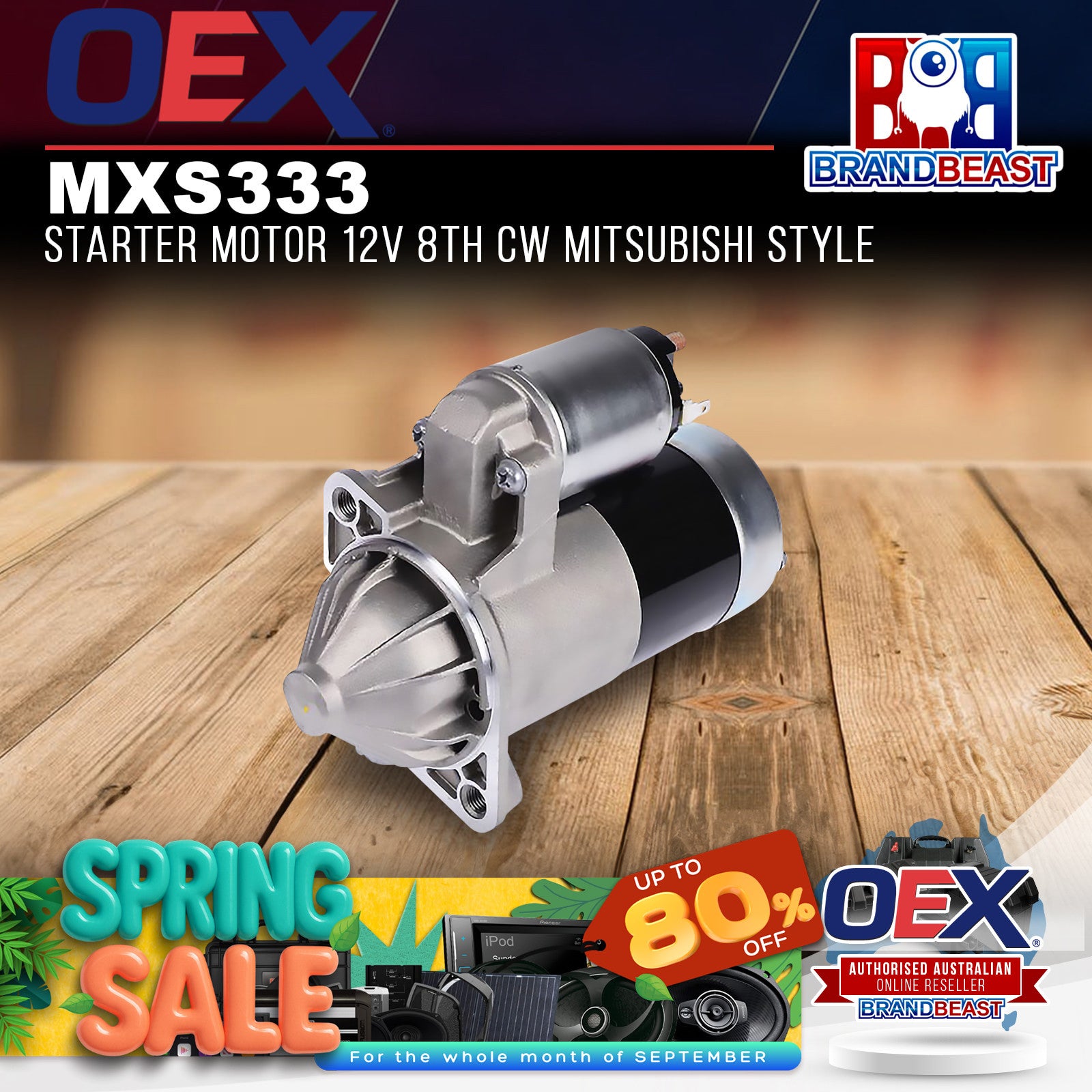

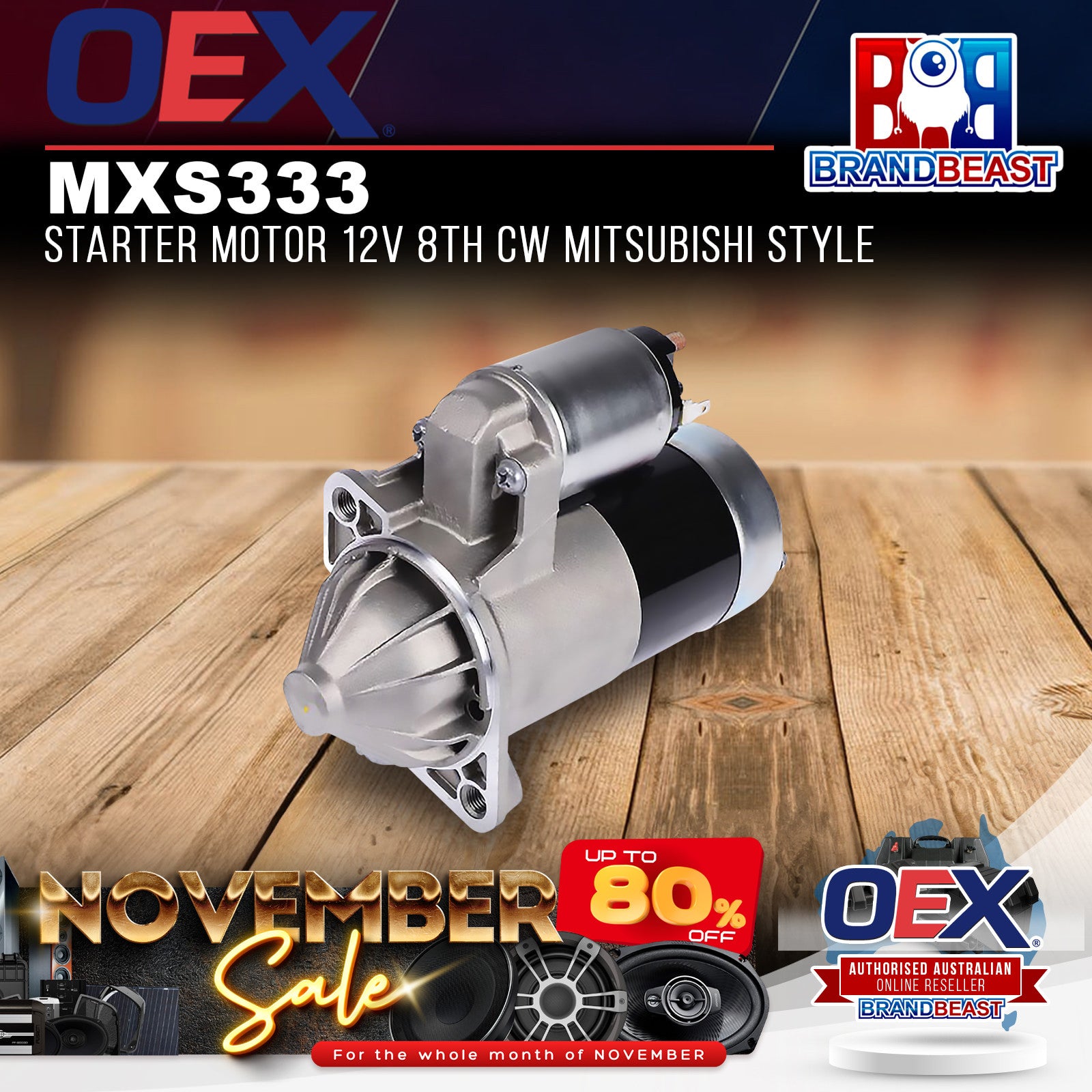

OEX MXS333 Starter Motor 12V 8 Tooth CW Mitsubishi Style
The OEX MXS333 is a new 12V starter motor with an 8 tooth clockwise rotation pinion, Mitsubishi style, designed for automatic transmission applications, delivering 1.2kW power output with a 2 hole dry clutch mount.
Product Overview
The MXS333 is a new 12V Mitsubishi style starter motor from OEX, featuring an 8 tooth clockwise rotation pinion and a 2 hole dry clutch mounting arrangement. Delivering 1.2kW of power, the MXS333 is built to a 77mm flange diameter with 105mm mounting centres and an overall length of 210mm.
This unit is designed for automatic transmission applications. For manual transmission applications, use the MXS322 instead. Always check the pinion at rest measurement before ordering to confirm correct fitment.
Features & Benefits
1.2kW Power Rating: The 1.2kW power rating provides reliable cranking performance suited to the applications this starter is designed for.
8 Tooth Pinion, Clockwise Rotation: The 8 tooth pinion with clockwise rotation must match the application exactly for correct fitment.
Designed for Automatic Transmission: This unit is specified for automatic transmission applications; for manual transmission, use the MXS322 instead.
Mitsubishi Style Design: Built to Mitsubishi style specifications for compatible fitment across applications originally equipped with a matching Mitsubishi unit.
2 Hole Dry Clutch Mount: The 2 hole mounting arrangement with a dry clutch design suits the specified fitment applications.
New Unit: Supplied new, not reconditioned.
Technical Specs
| Specification | Detail |
| Part No. | MXS333 |
| Brand | OEX |
| Type | Starter Motor |
| Voltage | 12V |
| Power Rating | 1.2kW |
| Number of Teeth | 8 |
| Rotation | CW (Clockwise) |
| Suits Unit Make | Mitsubishi |
| Transmission | Automatic |
| Flange Diameter | 77mm |
| Mount Centres A | 105mm |
| Mount Hole Diameter | M10x1.25 |
| Overall Length | 210mm |
| Pinion at Rest | 10mm |
| Pinion Diameter | 28mm |
| Starter Mount Type | 2 Hole |
| Wet / Dry Clutch | Dry |
| New / Reman. | New |
| Weight | 3.2kg |
Compatible With
The MXS333 is a Mitsubishi style 8 tooth starter motor for automatic transmission applications. For manual transmission, use the MXS322 instead. Confirm your original starter's pinion at rest measurement matches before ordering.
Frequently Asked Questions
Is the MXS333 for automatic or manual transmission?
The MXS333 is designed for automatic transmission applications. For manual transmission, use the MXS322.
What should I check before ordering the MXS333?
Check the pinion at rest measurement against your original starter to confirm correct fitment.
What is the power rating of the MXS333?
The MXS333 has a 1.2kW power rating.
How many teeth does the MXS333 pinion have?
The MXS333 has an 8 tooth pinion with clockwise rotation.
Is the MXS333 new or reconditioned?
The MXS333 is supplied new.
