Description

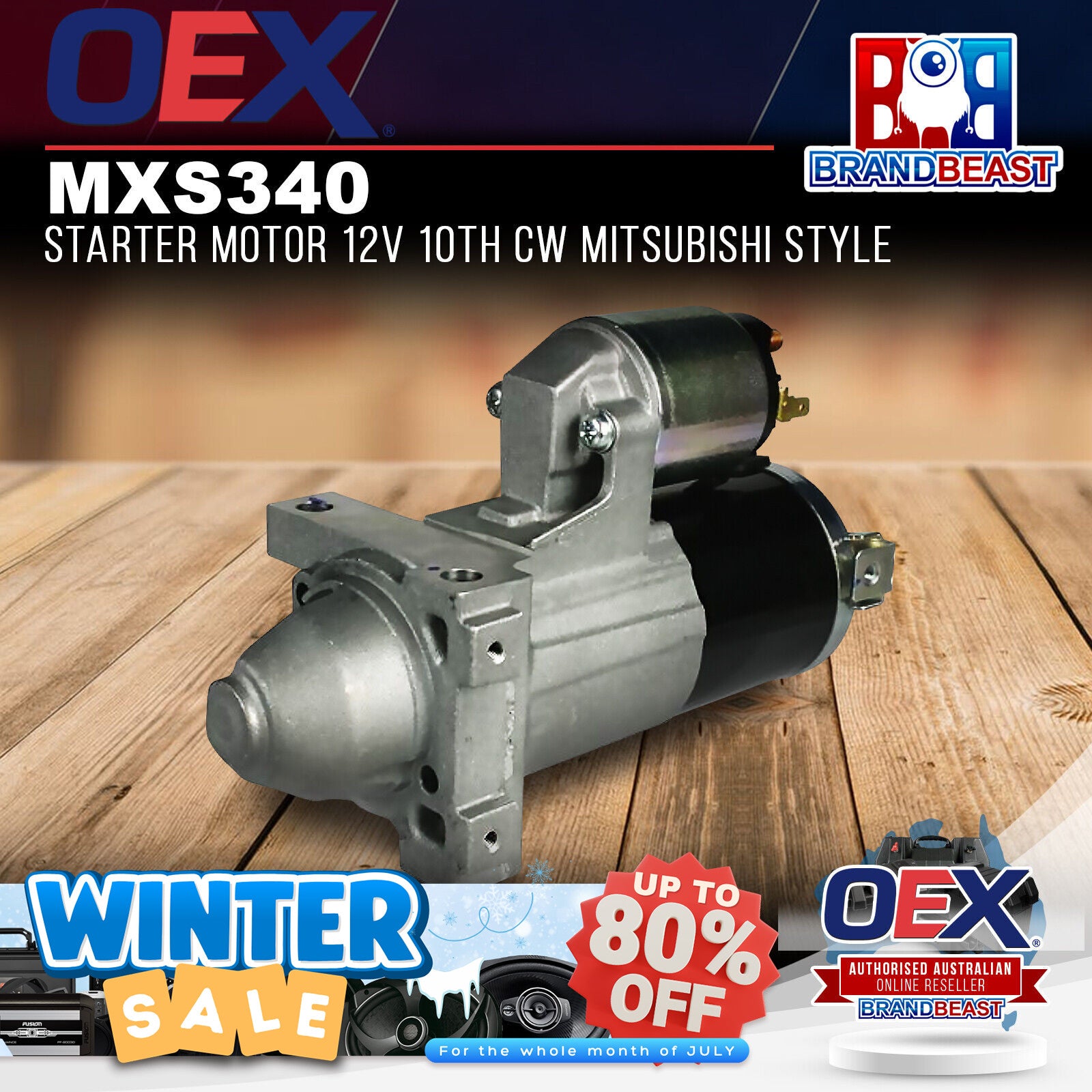

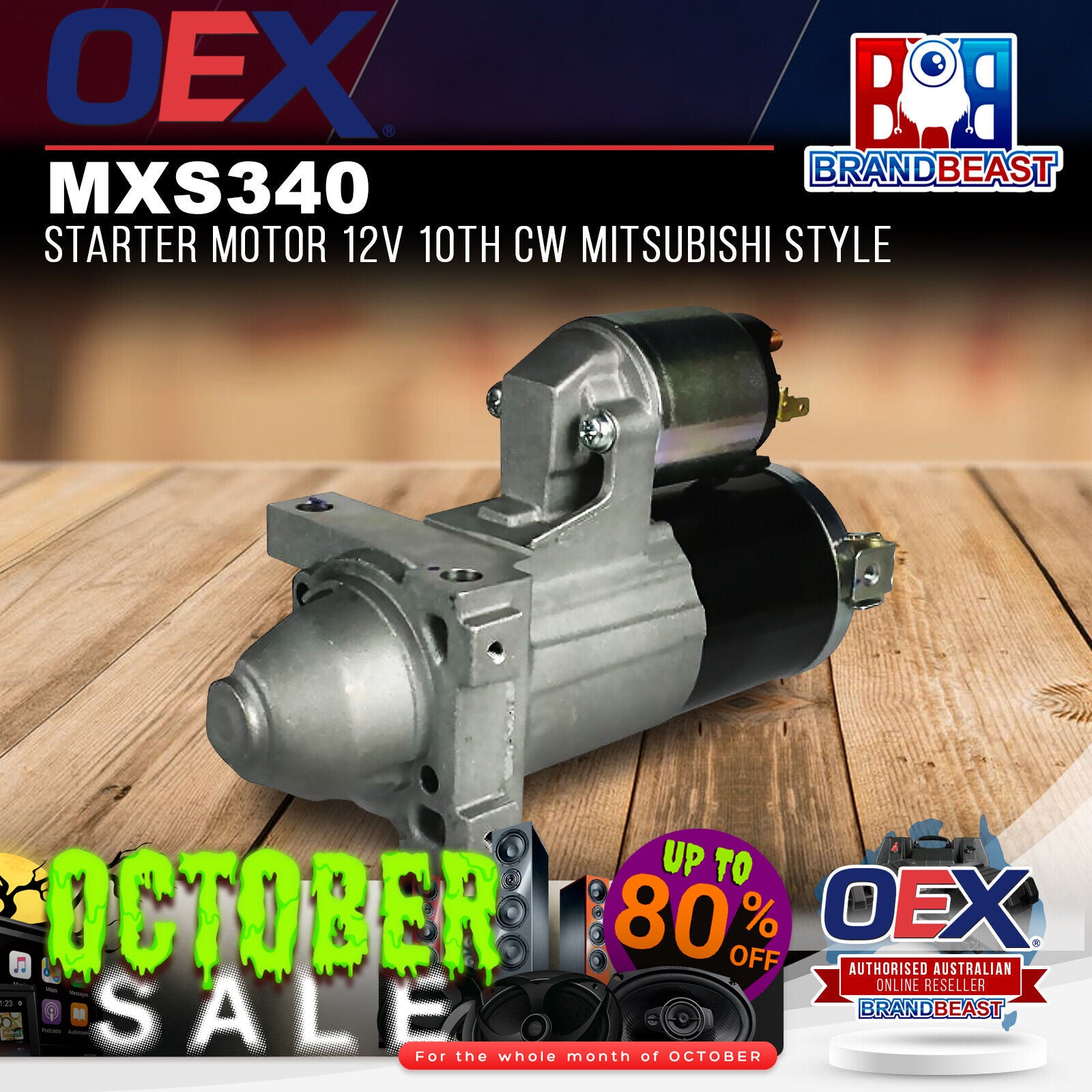

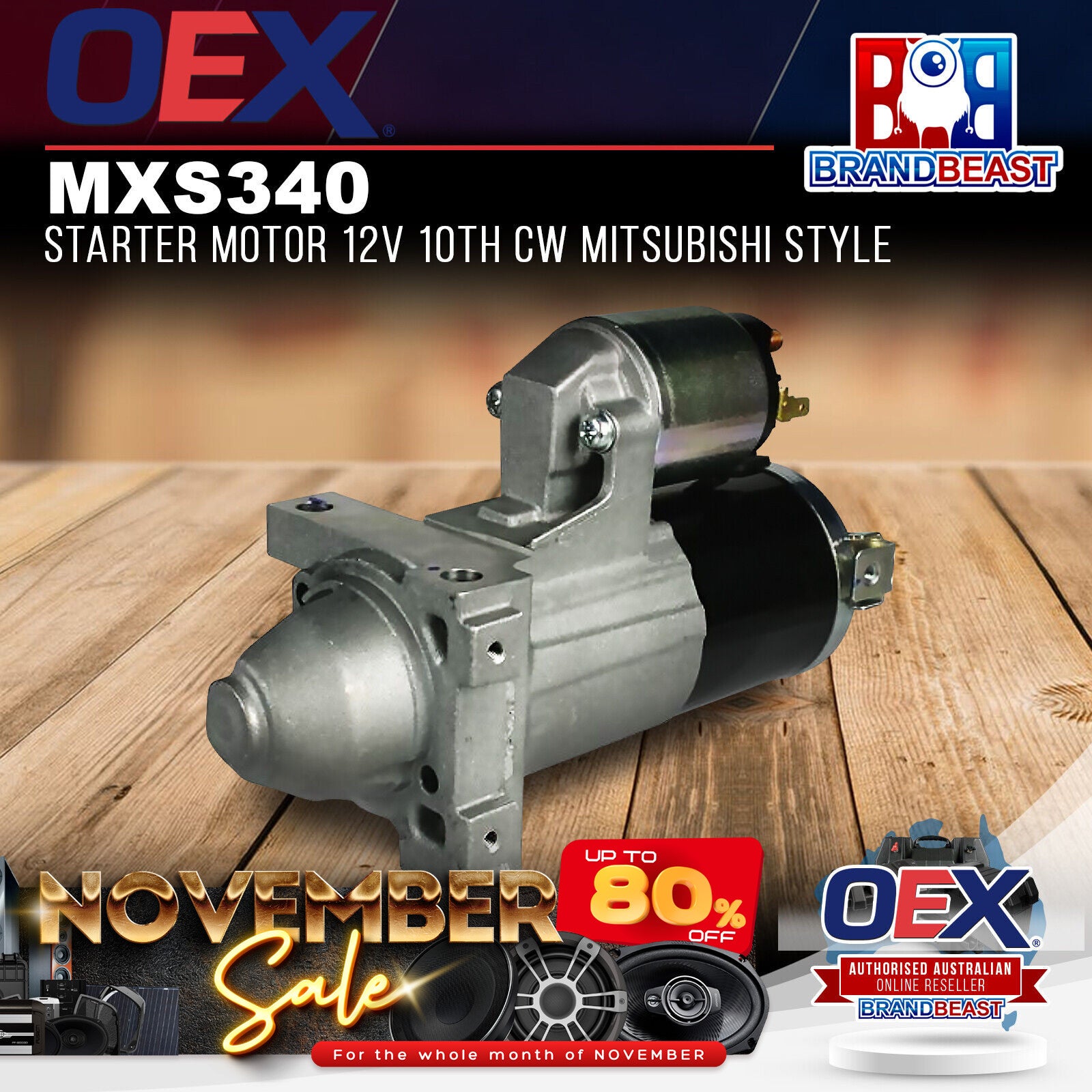

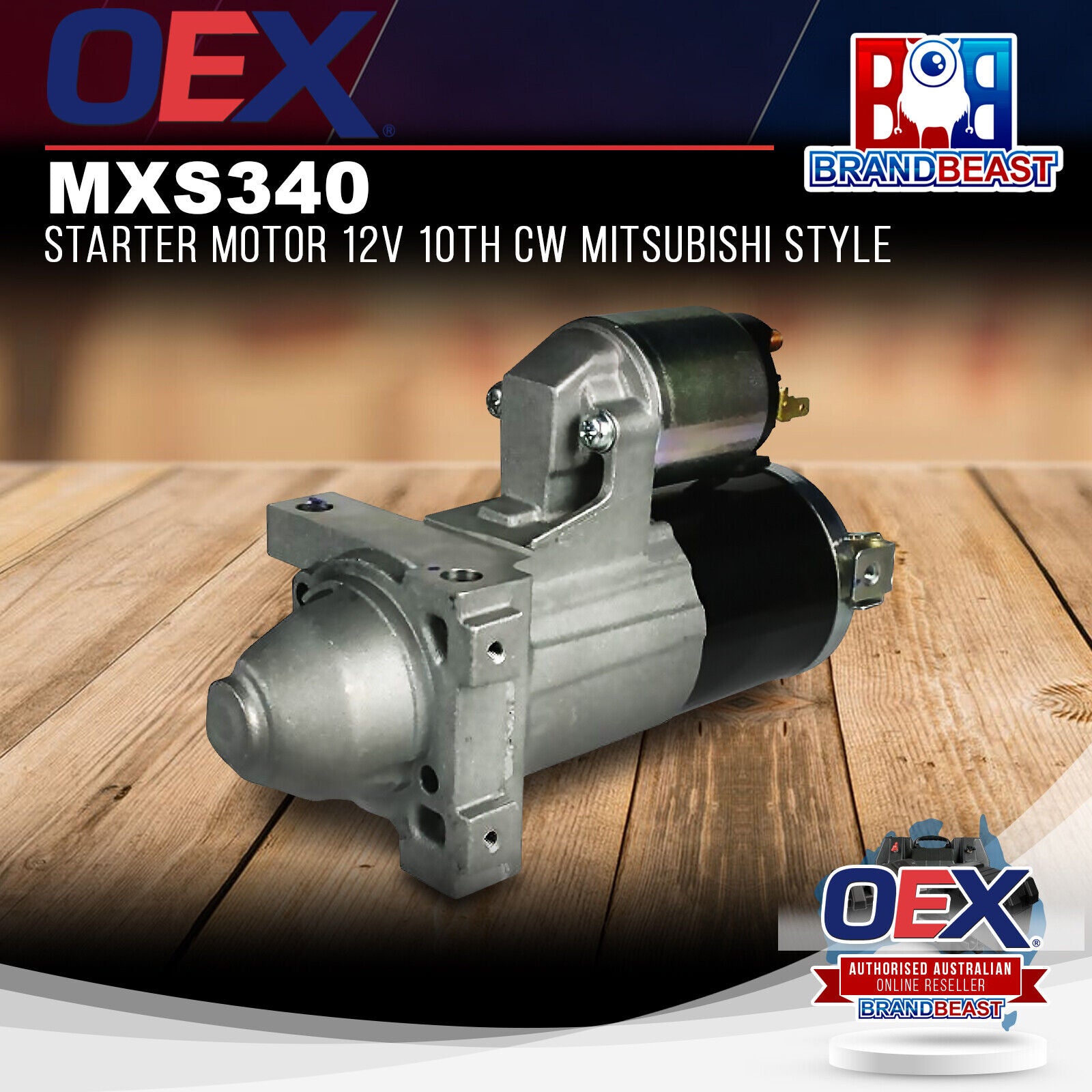

OEX MXS340 Starter Motor 12V 10 Tooth CW Mitsubishi Style
The OEX MXS340 is a new 12V starter motor with a 10 tooth clockwise rotation pinion, Mitsubishi style, delivering 1.4kW power output with a pad mount and standard blade terminal solenoid.
Product Overview
The MXS340 is a new 12V Mitsubishi style starter motor from OEX, featuring a 10 tooth clockwise rotation pinion and a pad mounting arrangement. Delivering 1.4kW of power, the MXS340 is built to a 58mm flange diameter with 73mm mounting centres and an overall length of 216mm.
The solenoid on this unit has a standard blade terminal for the start terminal. If your application requires a moulded plug instead, use the MXS2058.
Features & Benefits
1.4kW Power Rating: The 1.4kW power rating provides reliable cranking performance suited to the applications this starter is designed for.
10 Tooth Pinion, Clockwise Rotation: The 10 tooth pinion with clockwise rotation must match the application exactly for correct fitment.
Mitsubishi Style Design: Built to Mitsubishi style specifications for compatible fitment across applications originally equipped with a matching Mitsubishi unit.
Pad Mount: The pad mounting arrangement with a dry clutch design suits the specified fitment applications.
Standard Blade Terminal Solenoid: The solenoid uses a standard blade terminal for the start terminal; for applications requiring a moulded plug, use the MXS2058 instead.
New Unit: Supplied new, not reconditioned.
Technical Specs
| Specification | Detail |
| Part No. | MXS340 |
| Brand | OEX |
| Type | Starter Motor |
| Voltage | 12V |
| Power Rating | 1.4kW |
| Number of Teeth | 10 |
| Rotation | CW (Clockwise) |
| Suits Unit Make | Mitsubishi |
| Flange Diameter | 58mm |
| Mount Centres A | 73mm |
| Mount Hole Diameter | 10mm |
| Overall Length | 216mm |
| Pinion at Rest | 10mm |
| Pinion Diameter | 28mm |
| Starter Mount Type | Pad |
| Wet / Dry Clutch | Dry |
| Solenoid Terminal | Standard Blade |
| New / Reman. | New |
| Weight | 3.18kg |
Compatible With
The MXS340 is a Mitsubishi style 10 tooth starter motor with a standard blade terminal solenoid. If your application uses a moulded plug rather than a blade terminal, use the MXS2058 instead. Confirm your original starter's specifications match before ordering.
Frequently Asked Questions
What terminal type does the MXS340 use?
The MXS340 solenoid has a standard blade terminal for the start terminal. For a moulded plug instead, use the MXS2058.
What is the power rating of the MXS340?
The MXS340 has a 1.4kW power rating.
How many teeth does the MXS340 pinion have?
The MXS340 has a 10 tooth pinion with clockwise rotation.
What mounting type does the MXS340 use?
The MXS340 uses a pad mounting arrangement with a dry clutch design.
Is the MXS340 new or reconditioned?
The MXS340 is supplied new.
