Description

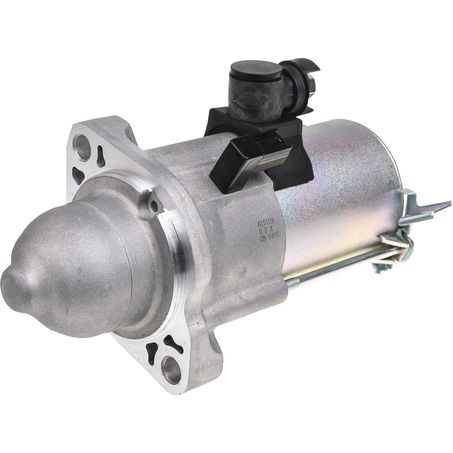

OEX MXS823 Starter Motor 12V 9 Tooth CW Mitsuba Style
The OEX MXS823 is a new 12V starter motor with a 9 tooth clockwise rotation pinion, Mitsuba style, delivering 1.6kW power output with a 2 hole dry clutch mount.
Product Overview
The MXS823 is a new 12V Mitsuba style starter motor from OEX, featuring a 9 tooth clockwise rotation pinion and a 2 hole dry clutch mounting arrangement. Delivering 1.6kW of power, the MXS823 is built to a 75mm flange diameter with 106mm mounting centres and an overall length of 218mm.
Voltage drop to the starter (low voltage) can cause the solenoid contacts to chatter and burn. Please make sure to check the battery condition and cables before fitting the new starter motor, to avoid this issue affecting the new unit.
Features & Benefits
1.6kW Power Rating: The 1.6kW power rating provides reliable cranking performance suited to the applications this starter is designed for.
9 Tooth Pinion, Clockwise Rotation: The 9 tooth pinion with clockwise rotation must match the application exactly for correct fitment.
Mitsuba Style Design: Built to Mitsuba style specifications for compatible fitment across applications originally equipped with a matching Mitsuba unit.
2 Hole Dry Clutch Mount: The 2 hole mounting arrangement with a dry clutch design suits the specified fitment applications.
New Unit: Supplied new, not reconditioned.
Technical Specs
| Specification | Detail |
| Part No. | MXS823 |
| Brand | OEX |
| Type | Starter Motor |
| Voltage | 12V |
| Power Rating | 1.6kW |
| Number of Teeth | 9 |
| Rotation | CW (Clockwise) |
| Suits Unit Make | Mitsuba |
| Flange Diameter | 75mm |
| Mount Centres A | 106mm |
| Mount Hole Diameter | 11mm |
| Overall Length | 218mm |
| Pinion at Rest | 33mm |
| Pinion Diameter | 30mm |
| Starter Mount Type | 2 Hole |
| Wet / Dry Clutch | Dry |
| New / Reman. | New |
| Weight | 2.94kg |
Compatible With
The MXS823 is a Mitsuba style 9 tooth starter motor. Confirm your original starter's specifications match before ordering, and check battery condition and cables prior to fitting to avoid voltage drop related issues with the new unit.
Frequently Asked Questions
What should I check before fitting the MXS823?
Check the battery condition and cables before fitting the new starter motor. Voltage drop to the starter (low voltage) can cause the solenoid contacts to chatter and burn.
What is the power rating of the MXS823?
The MXS823 has a 1.6kW power rating.
How many teeth does the MXS823 pinion have?
The MXS823 has a 9 tooth pinion with clockwise rotation.
Is the MXS823 new or reconditioned?
The MXS823 is supplied new.
What mounting type does the MXS823 use?
The MXS823 uses a 2 hole mounting arrangement with a dry clutch design.
