Description

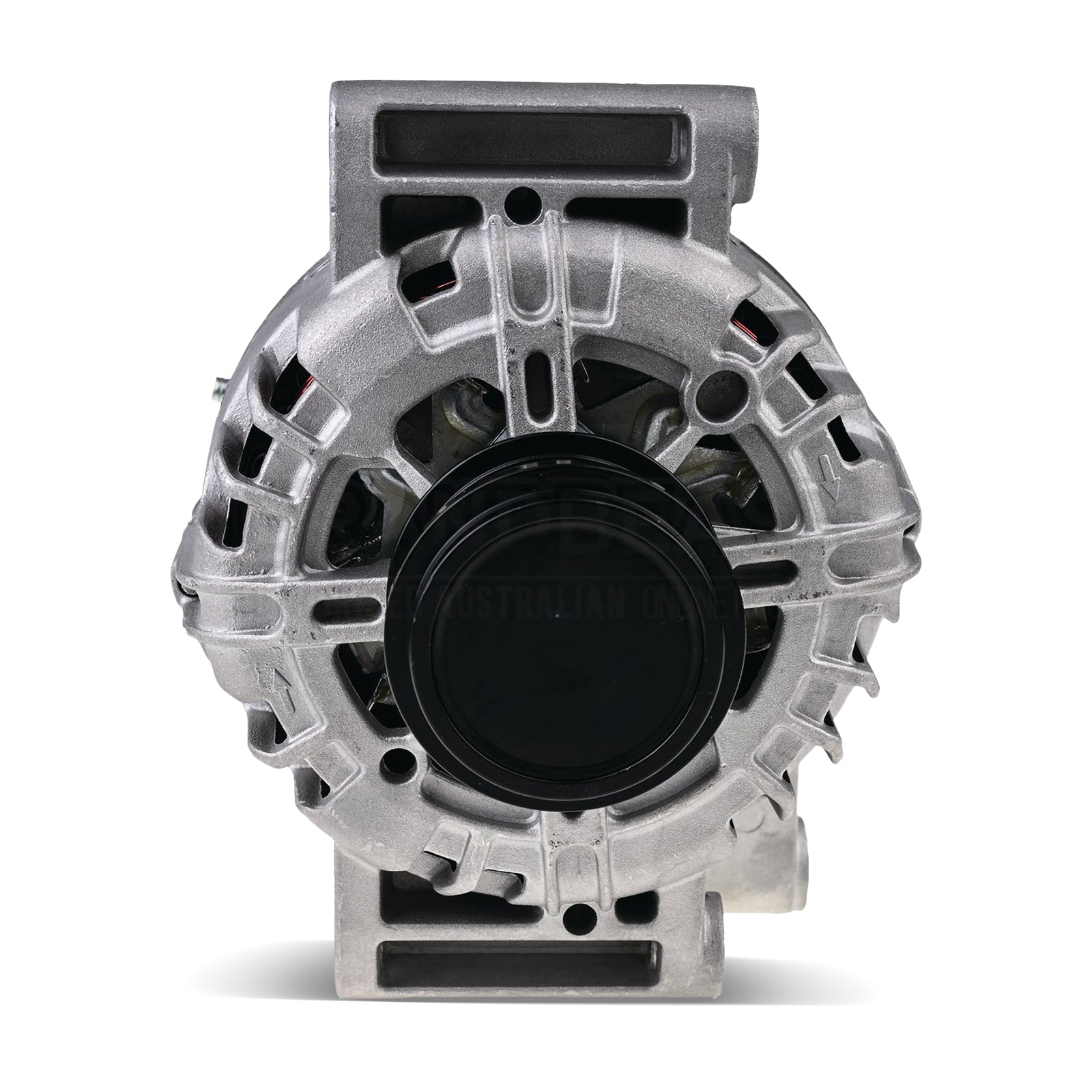

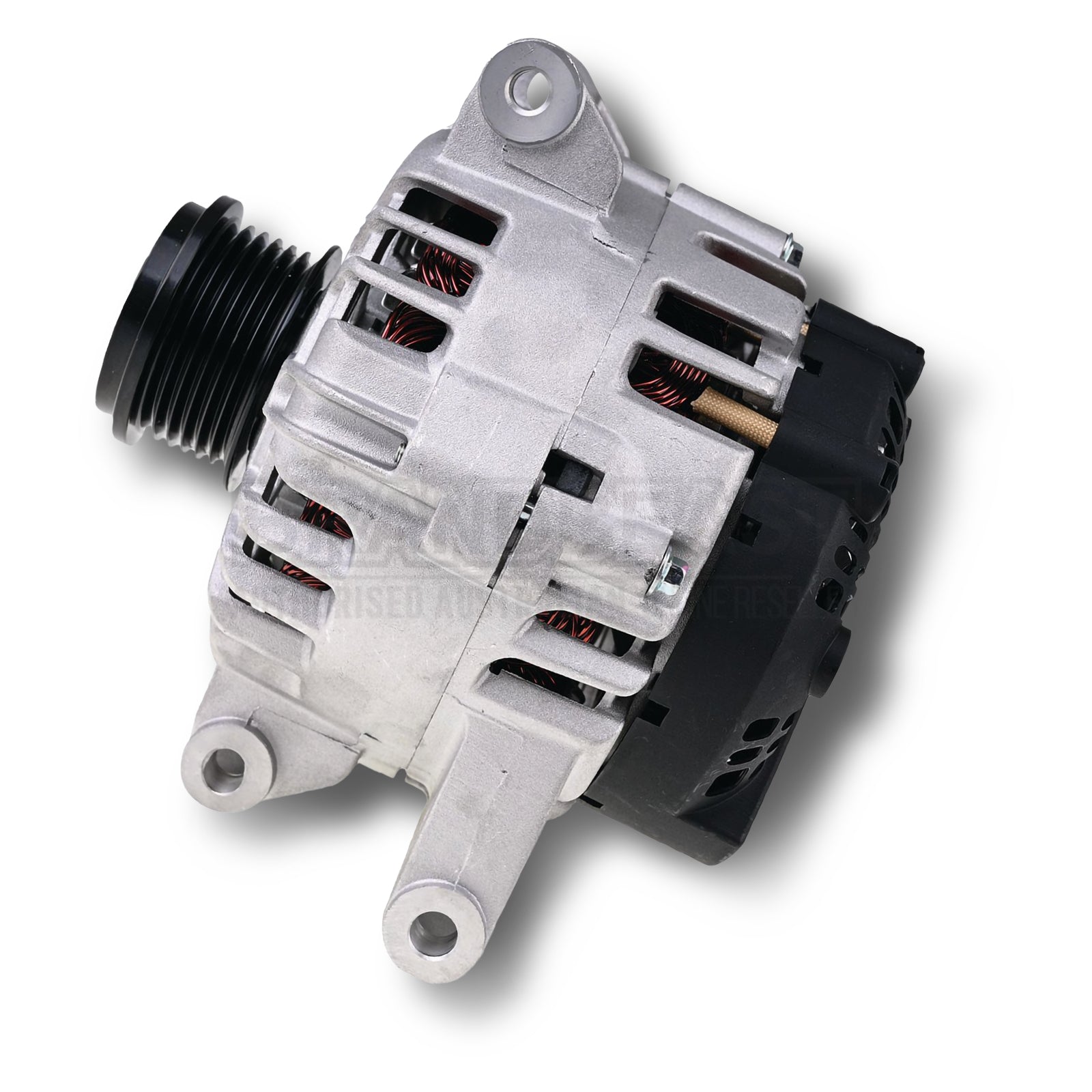

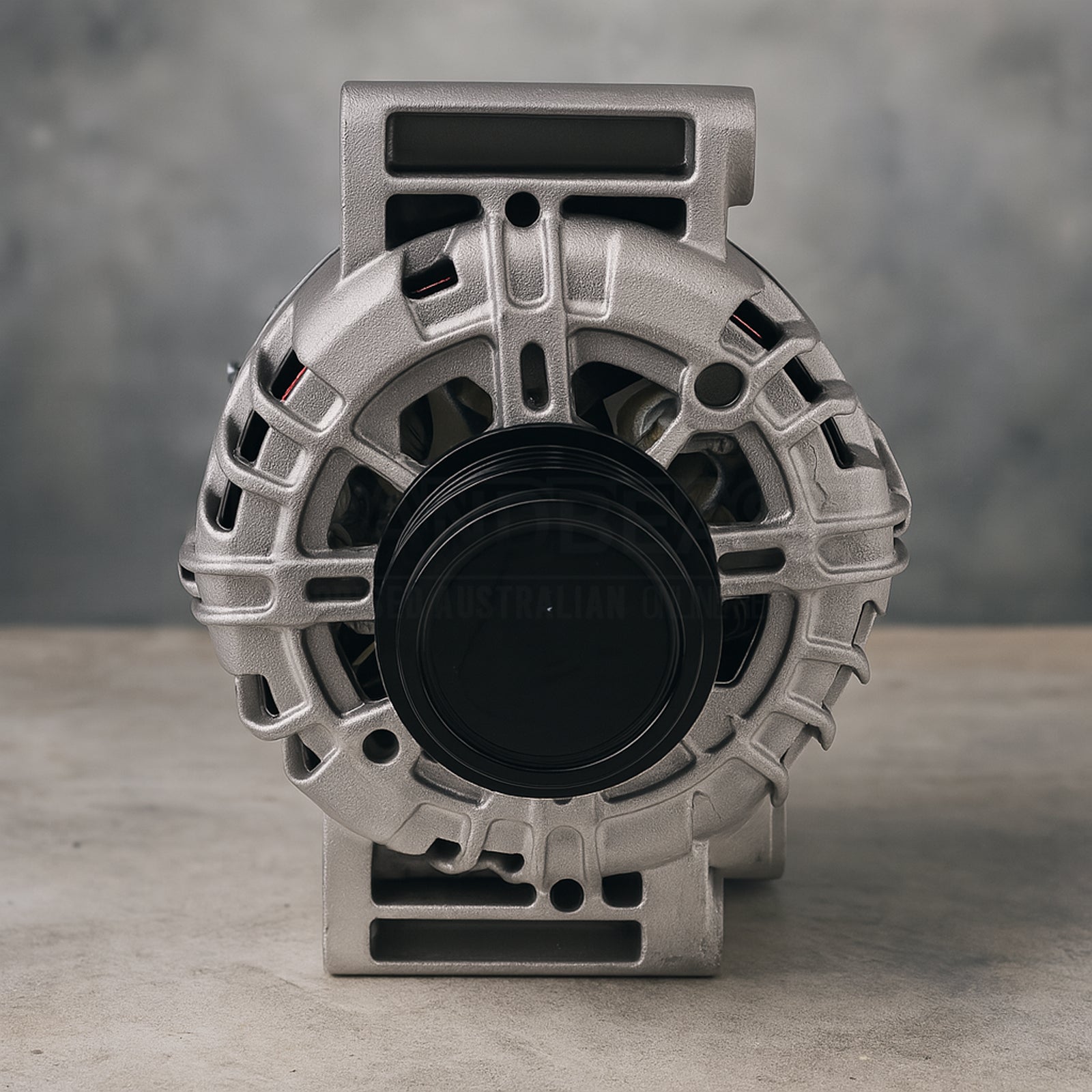

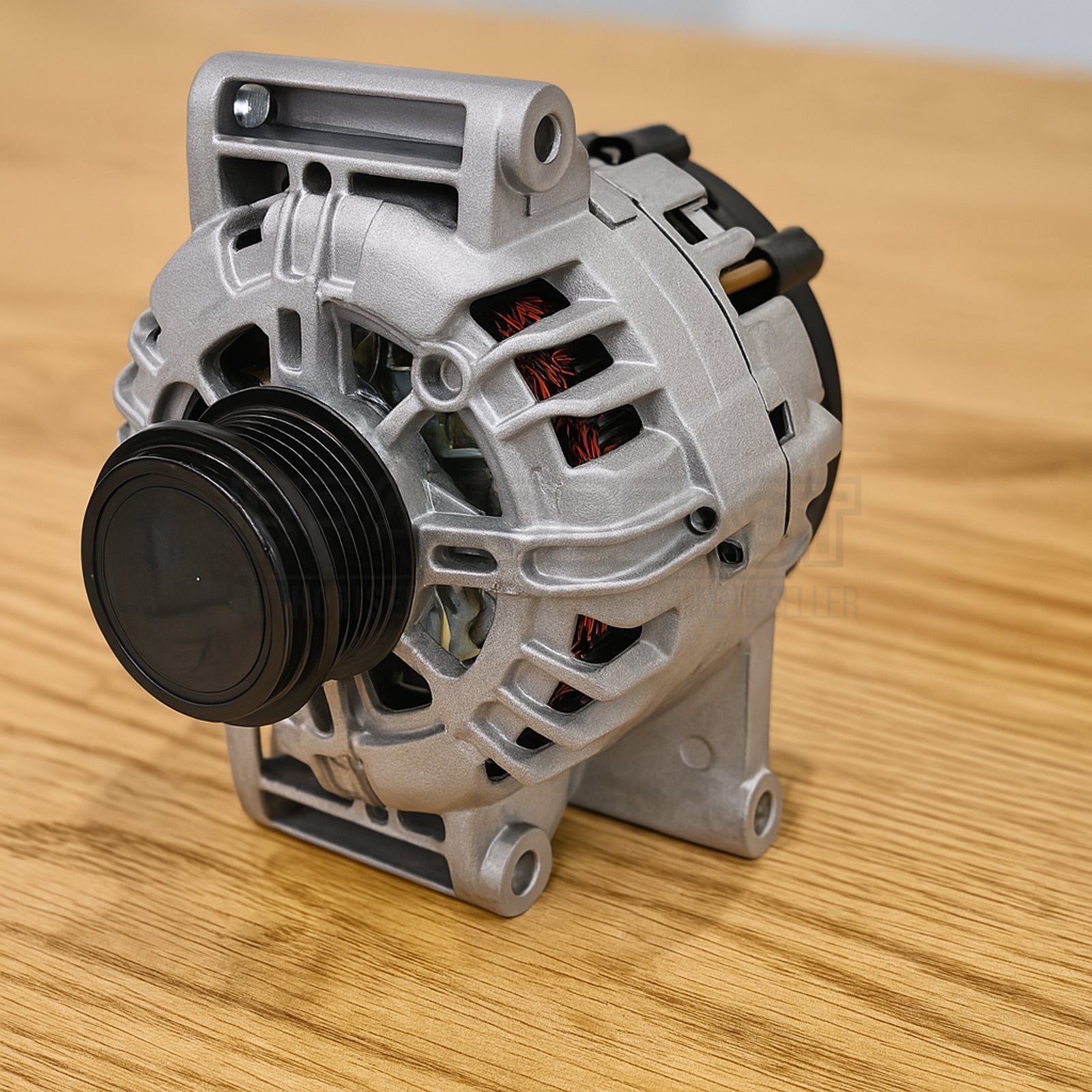

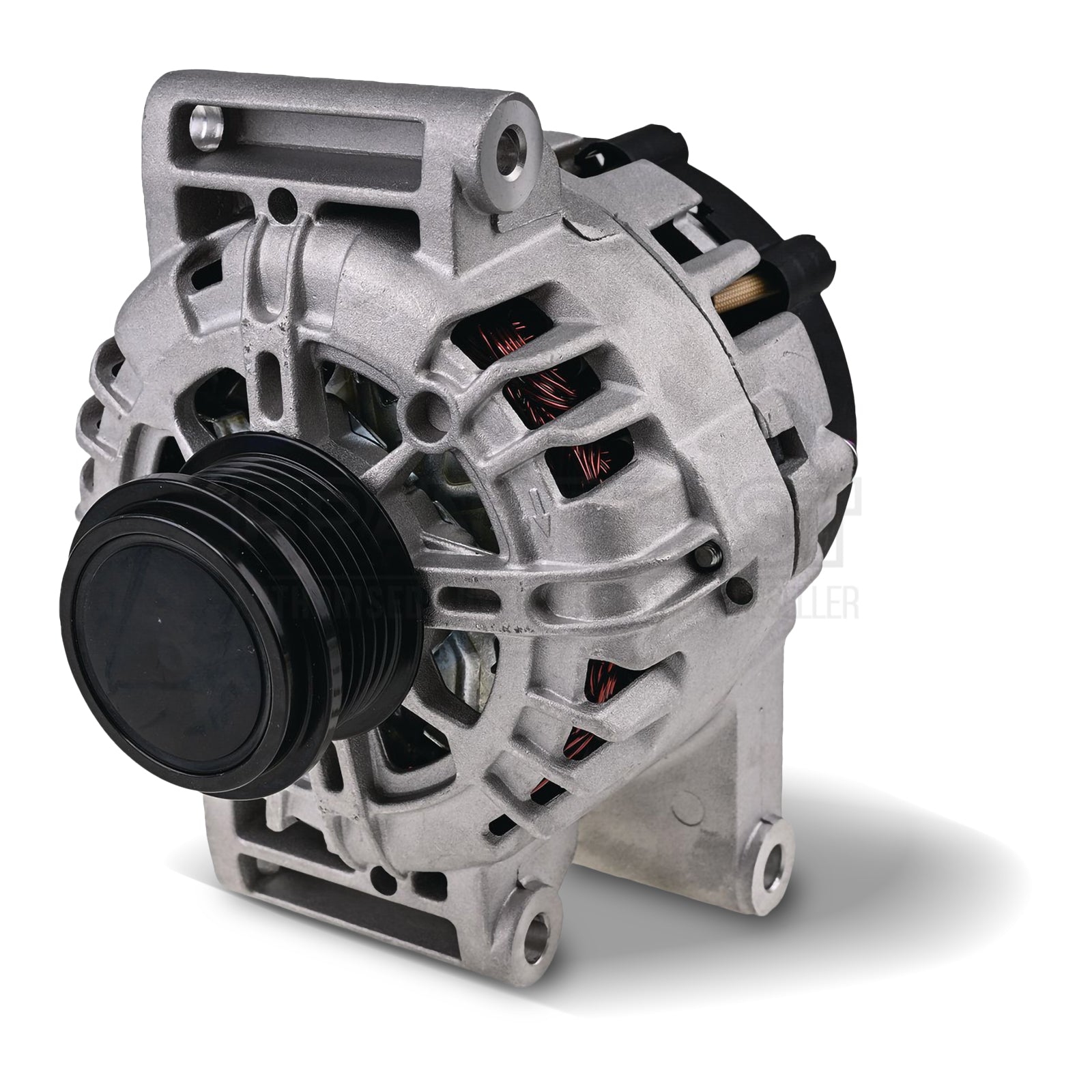

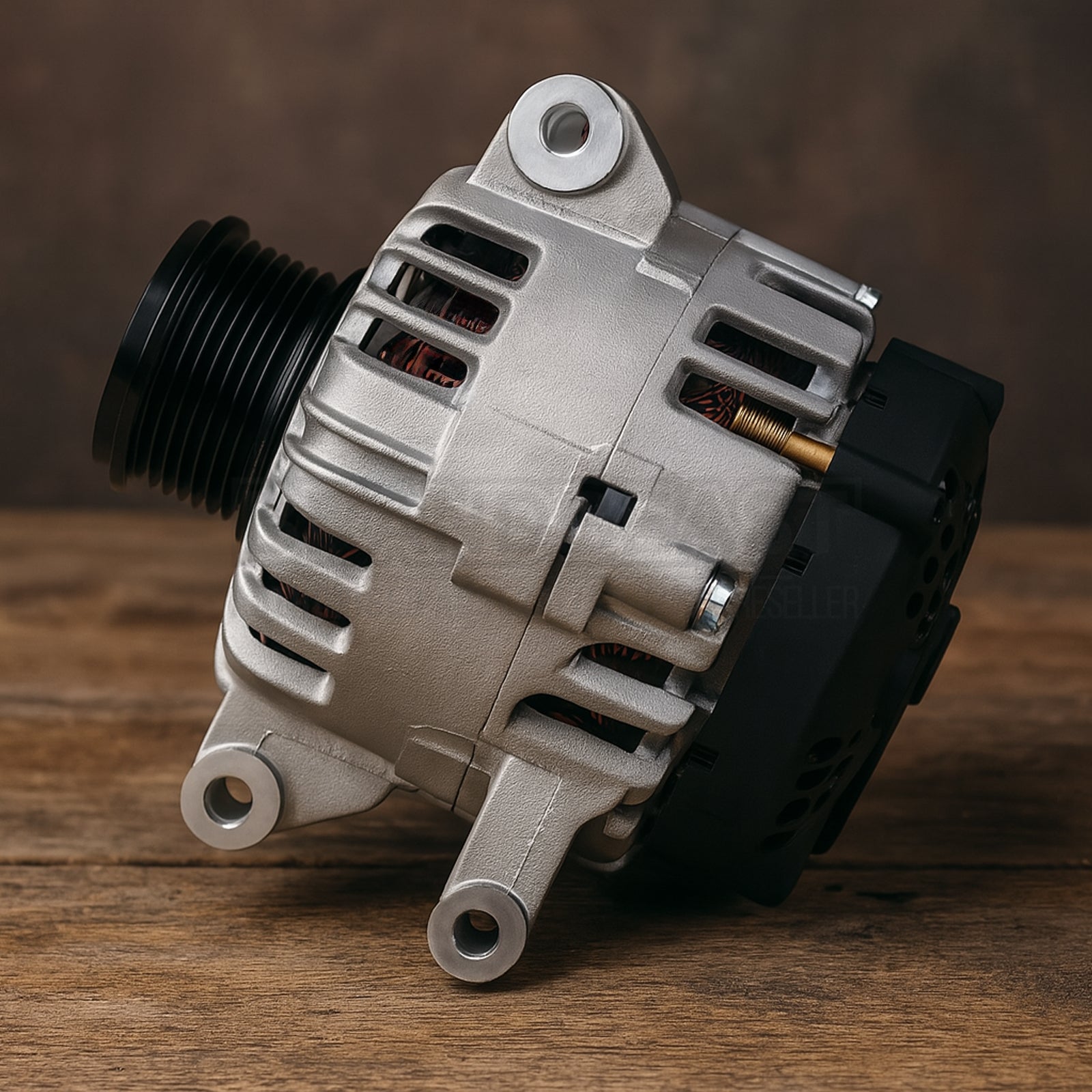

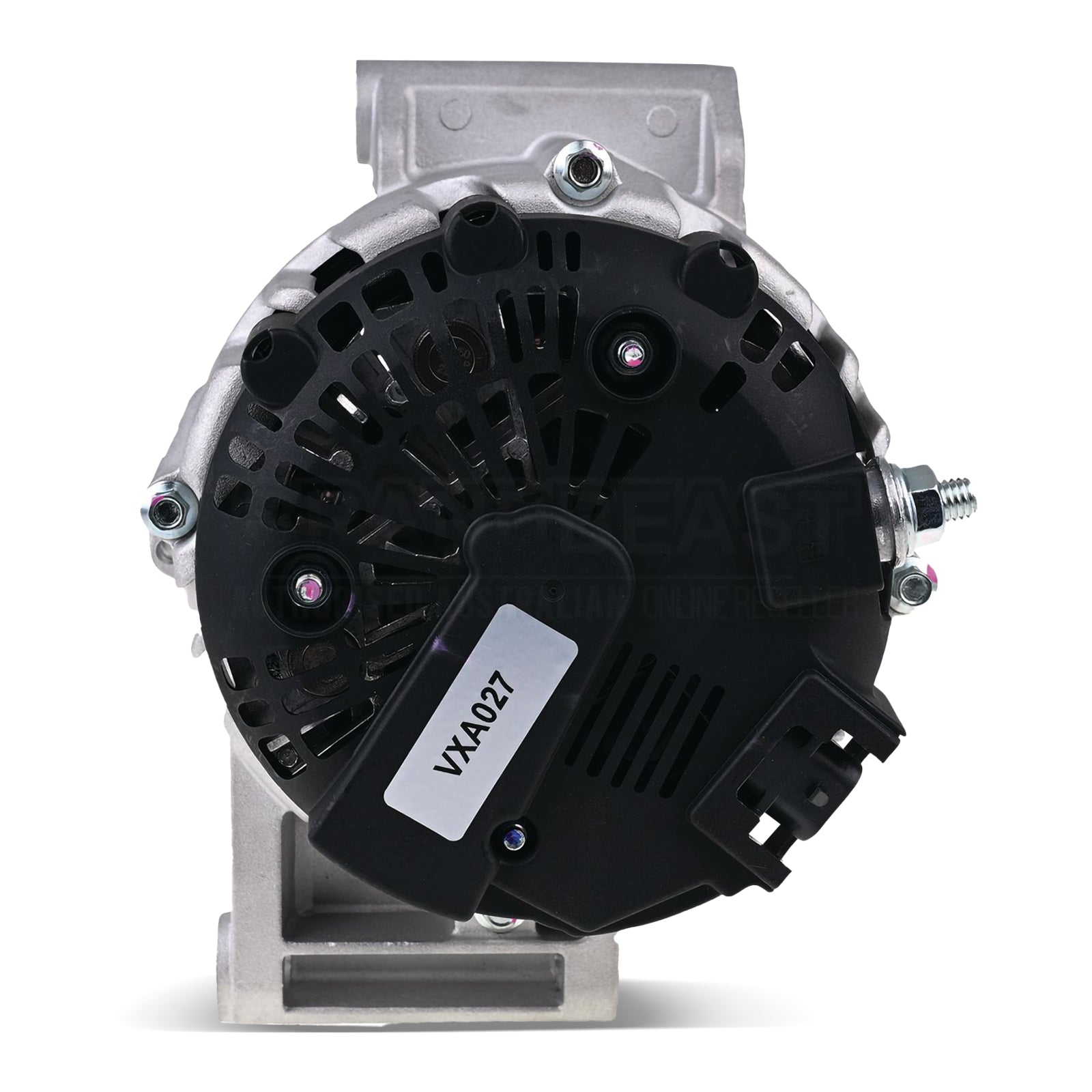

OEX VXA027 Alternator 12V 120A Valeo Style
The OEX VXA027 is a new 12V 120A alternator, Valeo style, featuring an internal regulator, pad mount, and a 6 groove pulley.
Product Overview
The VXA027 is a new 12V Valeo style high-output replacement alternator from OEX, delivering 120A of output through an internal regulator. Built with a pad mounting arrangement and a mount centre to centre distance of 163mm, the VXA027 features a 6 groove pulley with a 55mm outside diameter.
Features & Benefits
120A Output at 12V: Delivers a strong 120A of charging output on a standard 12V electrical system.
Internal Regulator: An internal regulator keeps the charging system compact without needing a separate external regulator unit.
Pad Mount: The pad mounting arrangement matches the original Valeo style fitment for straightforward installation.
6 Groove Pulley: The 6 groove pulley at 55mm outside diameter suits the specified fitment applications.
Valeo Style Design: Built to Valeo style specifications for compatible fitment across applications originally equipped with a matching Valeo unit.
New Unit: Supplied new, not reconditioned.
Technical Specs
| Specification | Detail |
| Part No. | VXA027 |
| Brand | OEX |
| Type | Alternator |
| Voltage | 12V |
| Power Rating | 120A |
| Regulator Type | Internal |
| Suits Unit Make | Valeo |
| Alternator Mount | Pad |
| Mount Cnt to Cnt | 163mm |
| Mount Centres A | 56mm |
| Mount Leg Thickness | 79mm |
| Adjusting Hole Diameter | 8mm |
| Pivot Hole Diameter | 9mm |
| Pulley Outside Diameter | 55mm |
| Pulley Section | 6 Groove |
| Pin Code | IR212 |
| New / Reman. | New |
| Weight | 6.04kg |
Compatible With
The VXA027 is a Valeo style 12V 120A alternator with a pad mount and 163mm mounting centre to centre distance. Confirm fitment against your original alternator's mounting dimensions and pin code (IR212) before ordering.
Frequently Asked Questions
What voltage and output does the VXA027 provide?
The VXA027 is a 12V alternator delivering 120A of output.
What type of regulator does the VXA027 use?
The VXA027 uses an internal regulator.
How is the VXA027 mounted?
The VXA027 uses a pad mount with a 163mm mounting centre to centre distance.
What pulley does the VXA027 use?
The VXA027 uses a 6 groove pulley with a 55mm outside diameter.
Is the VXA027 new or reconditioned?
The VXA027 is supplied new.
