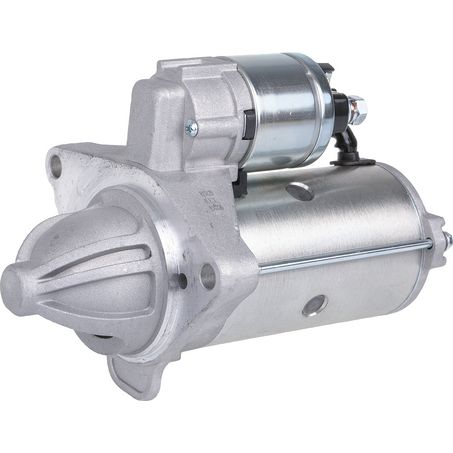

OEX VXS919 Starter Motor 12V 9 Tooth CW Valeo Style
The OEX VXS919 is a new 12V starter motor with a 9 tooth clockwise rotation pinion, Valeo style, delivering 2.2kW power output with a 2 hole dry clutch mount.
Product Overview
The VXS919 is a new 12V Valeo style starter motor from OEX, featuring a 9 tooth clockwise rotation pinion and a 2 hole dry clutch mounting arrangement. Delivering 2.2kW of power, the VXS919 is built to a 76mm flange diameter with 124mm mounting centres and an overall length of 216mm.
Correct fitment on a starter motor is critical, so always confirm by OE number where possible. If the OE number isn't available, confirm the number of teeth on the pinion and the pinion at rest measurement before ordering. This 9 tooth unit is not interchangeable with 11 tooth units such as the VXS946.
Features & Benefits
2.2kW Power Rating: The 2.2kW power rating provides reliable cranking performance suited to the applications this starter is designed for.
9 Tooth Pinion, Clockwise Rotation: The 9 tooth pinion with clockwise rotation must match the application exactly; it is not interchangeable with 11 tooth units such as the VXS946.
Valeo Style Design: Built to Valeo style specifications for compatible fitment across applications originally equipped with a matching Valeo unit.
2 Hole Dry Clutch Mount: The 2 hole mounting arrangement with a dry clutch design suits the specified fitment applications.
New Unit: Supplied new, not reconditioned.
Technical Specs
| Specification | Detail |
| Part No. | VXS919 |
| Brand | OEX |
| Type | Starter Motor |
| Voltage | 12V |
| Power Rating | 2.2kW |
| Number of Teeth | 9 |
| Rotation | CW (Clockwise) |
| Suits Unit Make | Valeo |
| Flange Diameter | 76mm |
| Mount Centres A | 124mm |
| Mount Hole Diameter | 10mm |
| Overall Length | 216mm |
| Pinion at Rest | 20mm |
| Pinion Diameter | 28mm |
| Starter Mount Type | 2 Hole |
| Wet / Dry Clutch | Dry |
| New / Reman. | New |
| Weight | 3.74kg |
Compatible With
The VXS919 is a Valeo style 9 tooth starter motor. Please confirm fitment by OE number where possible. If the OE number is not available, confirm the number of teeth on the pinion and the pinion at rest measurement before ordering. This unit is not interchangeable with 11 tooth units such as the VXS946.
Frequently Asked Questions
How do I confirm the VXS919 will fit my vehicle?
Confirm fitment by OE number where possible. If the OE number isn't available, confirm the number of teeth on the pinion (9 for this unit) and the pinion at rest measurement (20mm) against your original starter.
Can the VXS919 be used in place of an 11 tooth starter?
No. The VXS919 is a 9 tooth unit and is not interchangeable with 11 tooth units such as the VXS946.
Is the VXS919 new or reconditioned?
The VXS919 is supplied new.
What is the power rating of the VXS919?
The VXS919 has a 2.2kW power rating.
What mounting type does the VXS919 use?
The VXS919 uses a 2 hole mounting arrangement with a dry clutch design.
