BAINTECH BTAnderson-Single Surface Mount Single Anderson Plug Panel - 50A Heavy-Duty Mounting System for Solar, Dual Battery & Charging Applications
Create professional Anderson plug connections with simplified installation using the BAINTECH BTAnderson-Single Surface Mount Single Anderson Plug Panel — a robust mounting solution engineered for reliable 50 amp electrical connectivity in demanding touring environments. This heavy-duty surface mount panel features a genuine 50 amp continuous-rated Anderson plug with premium UL silver-coated copper contacts for maximum conductivity and exceptional corrosion resistance — designed for straightforward surface mounting that installs directly onto flat panels, bulkheads, or walls without requiring complex cutouts or recessed installation — includes black UV-stabilized PVC housing with complete surface mounting plate for quick, secure installation on vehicle panels, caravan walls, camper trailer floors, or boat consoles — features Baintech's improved terminal design with tinned copper inserts specifically engineered to prevent short circuits and ensure reliable long-term connections — and delivers the robust construction quality that has made Baintech Australia's most trusted name in 12V electrical accessories. Perfect for retrofitting Anderson plug access points to existing panels, creating dedicated solar panel connections, establishing auxiliary battery charging stations, or installing electrical connection points where flush mounting isn't practical, the BAINTECH Surface Mount Single Anderson Panel provides professional-grade 50 amp connectivity with simplified installation that gets your electrical system operational quickly without panel modification or precision cutting.
Product Overview
The BAINTECH BTAnderson-Single Surface Mount Panel addresses a fundamental installation challenge faced by 4WD owners, caravan retrofitters, and boat operators — the need to add professional Anderson plug connection points to existing panels where cutting large openings for flush mounting isn't practical, desirable, or possible. This surface-mount design attaches directly to panel surfaces using the included mounting hardware, eliminating the precision cutting, panel modification, and potential mistakes associated with flush mounting systems. The complete panel assembly simply bolts onto any flat surface, providing robust 50 amp Anderson connectivity for high-power applications including solar panel connections, dual battery charging circuits, DC-DC charger outputs, inverter connections, and portable equipment power. The single Anderson plug configuration delivers clean, dedicated connectivity without the complexity of multi-function panels, making it ideal for straightforward applications where only Anderson plug capability is required. The 50 amp continuous rating with UL silver-coated copper contacts ensures superior conductivity and corrosion resistance for reliable performance in coastal salt air, tropical humidity, and dusty outback conditions, while maintaining consistent electrical performance through thousands of connection cycles. Australian adventurers, caravan retrofitters, marine installers, and DIY enthusiasts choose Baintech surface mount panels when they need professional electrical connectivity without modifying existing panels, want quick installation with minimal tools, or require flexible placement where flush mounting presents structural or waterproofing challenges.
Key Features
50 Amp Continuous Rating with Silver-Coated Contacts Features a genuine 50 amp continuous-rated Anderson plug incorporating UL-certified silver-coated copper contacts delivering superior electrical conductivity and exceptional corrosion resistance. This professional-grade connection handles high-power applications including solar arrays up to 700+ watts, dual battery charging systems, DC-DC charger connections, and inverter circuits without contact overheating or voltage drop, maintaining reliable performance through thousands of connection cycles in harsh Australian touring conditions.
Simplified Surface Mounting Installation Designed specifically for surface mounting directly onto flat panels, bulkheads, walls, or floors without requiring precision cutouts, recessed cavities, or complex panel modifications. The complete assembly with integrated mounting plate simply bolts to any flat surface using standard fasteners, dramatically reducing installation time and eliminating the risk of incorrectly sized or positioned cutouts that can ruin expensive panels or compromise structural integrity and waterproofing.
Professional Black UV-Stabilized Housing Constructed from high-quality UV-stabilized PVC material that resists degradation, cracking, and color fading under continuous exposure to intense Australian sun. The professional black finish matches most vehicle and caravan interiors, while the robust construction maintains structural integrity through temperature extremes from -20°C to +70°C, sustained vibration on corrugated roads, and years of harsh touring conditions including coastal salt spray and outback dust storms.
Complete PVC Surface Mounting Plate Included Comes with a complete PVC surface mounting plate providing secure, stable mounting on flat surfaces without additional hardware purchases. The integrated mounting plate distributes installation loads across a larger surface area preventing stress concentration that could crack thin panels, while providing proper spacing for cable entry and connection access behind the panel assembly for straightforward wiring without interference.
Improved Anti-Short Circuit Terminal Design Features Baintech's enhanced terminal design with improved spacing, insulation barriers, and connection geometry specifically engineered to prevent accidental short circuits during installation and operation. This safety-focused design eliminates dangerous failure modes where loose terminal screws, wayward wire strands, or improper cable routing creates shorts that can damage batteries, destroy sensitive electronics, or start electrical fires in confined vehicle spaces.
Quality Tinned Copper Terminal Inserts Incorporates tinned copper wire terminal inserts accepting heavy-gauge automotive cable (typically 8-10mm² for 50A applications) required for high-current Anderson plug circuits. The tinned copper construction resists corrosion far superior to bare copper terminals, maintains secure screw-clamp connection pressure without cold flow, and provides reliable long-term electrical connections that won't develop high-resistance joints requiring periodic maintenance tightening.
Heavy-Duty Construction for Demanding Use Built with reinforced end plate design, strong mounting platform, and durable contact materials designed specifically for continuous heavy-duty use in demanding Australian touring environments. The robust construction withstands thousands of Anderson plug connection and disconnection cycles without contact degradation, housing cracks, or mechanical failures, ensuring reliable performance through decades of outback travel, beach adventures, and off-road expeditions.
Retrofit-Friendly Design for Existing Installations Ideal for retrofitting Anderson plug capability to existing caravans, camper trailers, boats, or 4WDs where cutting panels for flush mounting would compromise waterproofing, structural strength, or factory warranties. The surface-mount approach preserves original panels while adding essential electrical functionality, making it perfect for upgrading older vehicles or adding auxiliary power points without permanent panel modifications that can't be reversed.
Versatile Application for Multiple Uses Suitable for diverse applications including dedicated solar panel input connections, auxiliary battery charging points, DC-DC charger outputs, inverter power connections, portable equipment power access, or any scenario requiring robust 50 amp Anderson plug connectivity. The clean single-function design provides focused capability without unnecessary complexity, making it ideal for straightforward electrical installations requiring only Anderson plug access.
Part of Australia's Largest Socket Range Represents one component in Baintech's comprehensive socket range — Australia's most extensive selection of 12V electrical mounting solutions. This broad product ecosystem ensures you can source matching panels, accessories, and components from a single manufacturer with consistent quality standards, compatible designs, and coordinated aesthetics across your entire electrical installation project, simplifying multi-component installations.
Technical Specifications
Specification
Details
Part Number
BTAnderson-Single
Current Rating
50 Amps Continuous
Plug Type
Anderson SB50 Style (Industry Standard)
Contact Material
UL Silver-Coated Copper
Housing Material
UV-Stabilized PVC
Color
Black
Mounting Style
Surface Mount (Complete with Mounting Plate)
Mounting Hardware
Included (Bolts to Flat Surfaces)
Panel Modification Required
None (Surface Mounts to Existing Panels)
Terminal Type
Screw Clamp - Tinned Copper Wire Inserts
Wire Gauge Capacity
6-10mm² (Approximately 10-7 AWG)
Operating Temperature
-20°C to +70°C
UV Protection
UV-Stabilized for Australian Conditions
Safety Features
Improved Anti-Short Terminal Design
Vibration Resistance
Heavy-Duty Off-Road Rated
Cable Entry
Rear Access via Mounting Plate
Panel Thickness Accommodation
3-12mm (Typical Vehicle/Caravan Panels)
Suitable Applications
4WD, Caravan, Motorhome, Camper Trailer, Marine - Solar, Dual Battery & Charging Connections
Frequently Asked Questions
What's the main advantage of surface mounting versus flush mounting?
Surface mounting requires no panel cutting or modification — you simply bolt the complete assembly to any flat surface, making installation faster, easier, and completely reversible. This is ideal for retrofitting Anderson plug access to existing vehicles without compromising panels, for rental vehicles or caravans where permanent modifications aren't desired, or for installations where cutting precise openings is difficult or risky. Flush mounting provides a more integrated appearance but requires precise cutting and irreversible panel modification.
Can I use this for my 350W solar blanket connection?
Yes, a 350 watt solar blanket produces approximately 16-18 amps maximum current, which is well within the 50 amp continuous rating of this Anderson plug panel. This makes it an ideal permanent mounting solution for solar input connections on caravans, camper trailers, or 4WD auxiliary battery systems, providing a secure, weather-resistant connection point that eliminates cable clutter and temporary connections prone to corrosion and failure.
How thick can the mounting surface be for proper installation?
The surface mount design accommodates typical vehicle and caravan panel thicknesses from 3mm to 12mm, with cables entering from behind the mounting surface through appropriate cable entry points. For thicker panels or unusual mounting scenarios, verify that sufficient space exists behind the mounting surface for cable routing, terminal connections, and proper bend radius on heavy-gauge Anderson plug wiring to prevent cable strain and connection stress.
Can I mount this on the exterior of my vehicle or does it need interior mounting?
While the UV-stabilized housing withstands outdoor conditions, this panel is designed primarily for interior or protected mounting locations such as under bullbars, in storage compartments, behind protective panels, or in covered areas. The Anderson plug is weather-resistant when connected but should be protected from direct heavy rain, submersion, or pressure washing when unmated. For fully exposed exterior mounting, consider additional weather protection or mounting in locations sheltered from direct water exposure.
What wire size do I need for 50 amp applications?
For 50 amp continuous applications, use minimum 10mm² (7 B&S) automotive cable for runs under 3 meters, or 13.5mm² (6 B&S) for longer cable runs to minimize voltage drop. The panel's terminal blocks accept wire sizes from approximately 6mm² to 10mm². Always ensure your Anderson plug circuit has appropriate fusing (typically 50-60 amp) based on your wire gauge and intended application to prevent overheating and electrical fires.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
BAINTECH BTAnderson-Dual Surface Mount Dual Anderson Plug Panel - Twin 50A Heavy-Duty Mounting System for Multiple Solar, Battery & Charging Circuits
Maximize electrical connectivity with the BAINTECH BTAnderson-Dual Surface Mount Dual Anderson Plug Panel — a versatile twin-socket mounting solution engineered for reliable dual 50 amp electrical connections in demanding touring environments. This professional-grade surface mount panel features two genuine 50 amp continuous-rated Anderson plugs with premium UL silver-coated copper contacts for maximum conductivity and exceptional corrosion resistance — designed for straightforward surface mounting that installs directly onto flat panels, bulkheads, or walls without requiring complex cutouts or recessed installation — includes black UV-stabilized PVC housing with complete surface mounting plate for quick, secure installation on vehicle panels, caravan walls, camper trailer floors, or boat consoles — features Baintech's improved terminal design with tinned copper inserts specifically engineered to prevent short circuits and ensure reliable long-term connections — and delivers the robust construction quality trusted by thousands of Australian tourers and marine operators. Perfect for creating dedicated connection points for multiple solar panels, separating input and output circuits, establishing dual battery charging stations, or managing independent electrical systems, the BAINTECH Dual Anderson Panel provides professional-grade twin 50 amp connectivity with simplified installation that eliminates panel modification while maintaining complete circuit independence.
Product Overview
The BAINTECH BTAnderson-Dual Surface Mount Panel represents the ideal solution for Australian tourers and marine operators who need multiple Anderson plug connection points in a single compact mounting location. This dual-socket configuration addresses common scenarios where separate circuits require dedicated Anderson plug connectivity — such as managing both fixed solar panel input and portable solar blanket connections, separating auxiliary battery charging from inverter supply circuits, or providing independent power access for different electrical systems within the same vehicle or caravan. By consolidating two Anderson plugs into a single panel assembly, you eliminate the need for multiple separate panels consuming valuable mounting space and creating cluttered installations with tangled cables. The surface-mount design revolutionizes retrofit installations, allowing professional electrical connectivity to be added to existing caravans, camper trailers, boats, or 4WDs without cutting panels, compromising waterproofing, or risking expensive installation mistakes. Each Anderson plug maintains independent 50 amp continuous rating with UL silver-coated copper contacts ensuring superior conductivity and corrosion resistance in harsh Australian conditions. Australian adventurers, caravan retrofitters, solar system installers, and marine operators choose the dual Anderson panel when they need multiple high-current connection points consolidated into one professional mounting solution, want quick installation without panel modification, or require circuit separation for safety and functionality while minimizing dashboard or panel space consumption.
Key Features
Dual 50 Amp Anderson Plugs for Multiple Circuits Features two independent 50 amp continuous-rated Anderson plugs, each incorporating UL-certified silver-coated copper contacts delivering superior electrical conductivity and exceptional corrosion resistance. This dual-socket configuration enables simultaneous connection of multiple high-power circuits including separate solar panel inputs, independent battery charging circuits, dedicated inverter connections, or isolated electrical systems — each maintaining full 50 amp capacity without shared current limitations or circuit interaction.
Independent Circuit Management and Separation Provides complete electrical isolation between both Anderson plugs, allowing safe operation of independent circuits without interaction, shared loads, or interference. This circuit separation is essential for managing different voltage sources, separating charging inputs from power outputs, isolating solar panel connections from battery circuits, or maintaining independent electrical systems within the same vehicle — all while consolidating connection points into one space-efficient panel.
Simplified Surface Mounting Installation Designed specifically for surface mounting directly onto flat panels, bulkheads, walls, or floors without requiring precision cutouts, recessed cavities, or complex panel modifications. The complete assembly with integrated mounting plate simply bolts to any flat surface using standard fasteners, dramatically reducing installation time and eliminating risks associated with incorrectly sized cutouts that can ruin expensive panels or compromise structural integrity and waterproofing in caravans and boats.
Space-Efficient Dual-Socket Design Consolidates two 50 amp Anderson plug connection points into a single compact panel assembly, maximizing electrical connectivity while minimizing the mounting space consumed on installation surfaces. This intelligent integration is particularly valuable when retrofitting multiple connection points to existing caravans, camper trailers, or boats where adding two separate panels would create cluttered, unprofessional appearances or exhaust available mounting space on crowded panels and bulkheads.
Professional Black UV-Stabilized Housing Constructed from high-quality UV-stabilized PVC material that resists degradation, cracking, and color fading under continuous exposure to intense Australian sun. The professional black finish matches most vehicle and caravan interiors, while the robust construction maintains structural integrity through temperature extremes from -20°C to +70°C, sustained vibration on corrugated roads, and years of harsh touring conditions including coastal salt spray and outback dust storms.
Complete PVC Surface Mounting Plate Included Comes with a complete PVC surface mounting plate providing secure, stable mounting on flat surfaces without additional hardware purchases. The integrated mounting plate distributes installation loads across a larger surface area preventing stress concentration on thin panels, while providing proper spacing for cable entry and rear-access terminal connections behind the panel assembly for straightforward wiring without cable interference or routing conflicts.
Improved Anti-Short Circuit Terminal Design Features Baintech's enhanced terminal design with improved spacing, insulation barriers, and connection geometry specifically engineered to prevent accidental short circuits during installation and operation. This safety-focused design eliminates dangerous failure modes where loose terminal screws, wayward wire strands, or improper cable routing creates shorts that can damage batteries, destroy sensitive electronics, or start electrical fires — critical when managing multiple high-current circuits in confined spaces.
Quality Tinned Copper Terminal Inserts Incorporates tinned copper wire terminal inserts on both Anderson plug circuits accepting heavy-gauge automotive cable (typically 8-10mm² for 50A applications) required for high-current connections. The tinned copper construction resists corrosion far superior to bare copper terminals, maintains secure screw-clamp connection pressure without cold flow, and provides reliable long-term electrical connections that won't develop high-resistance joints requiring periodic maintenance.
Heavy-Duty Construction for Demanding Use Built with reinforced end plate design, strong mounting platform, and durable contact materials designed specifically for continuous heavy-duty use in demanding Australian touring environments. The robust construction withstands thousands of Anderson plug connection and disconnection cycles across both sockets without contact degradation, housing cracks, or mechanical failures, ensuring reliable performance through decades of outback travel and marine adventures.
Versatile Multi-Circuit Applications Ideal for diverse dual-circuit scenarios including fixed solar and portable solar connections, battery input and inverter output separation, dual battery system management, independent accessory circuits, backup power connections, or any application requiring two separate 50 amp Anderson plug connections within close proximity. The clean dual-function design provides focused capability with complete circuit independence for safe, professional electrical installations.
Technical Specifications
Specification
Details
Part Number
BTAnderson-Dual
Number of Anderson Plugs
2 (Independent Circuits)
Current Rating Per Plug
50 Amps Continuous
Total Potential Current
100 Amps (Across Both Circuits)
Plug Type
Anderson SB50 Style (Industry Standard)
Contact Material
UL Silver-Coated Copper
Circuit Isolation
Independent (No Circuit Interaction)
Housing Material
UV-Stabilized PVC
Color
Black
Mounting Style
Surface Mount (Complete with Mounting Plate)
Mounting Hardware
Included (Bolts to Flat Surfaces)
Panel Modification Required
None (Surface Mounts to Existing Panels)
Terminal Type
Screw Clamp - Tinned Copper Wire Inserts
Wire Gauge Capacity
6-10mm² per Circuit (Approximately 10-7 AWG)
Operating Temperature
-20°C to +70°C
UV Protection
UV-Stabilized for Australian Conditions
Safety Features
Improved Anti-Short Terminal Design
Vibration Resistance
Heavy-Duty Off-Road Rated
Cable Entry
Rear Access via Mounting Plate
Panel Thickness Accommodation
3-12mm (Typical Vehicle/Caravan Panels)
Suitable Applications
4WD, Caravan, Motorhome, Camper Trailer, Marine - Multiple Solar, Battery & Charging Circuits
Frequently Asked Questions
Can I use both Anderson plugs simultaneously without overloading the panel?
Yes, each Anderson plug operates as an independent 50 amp circuit with complete electrical isolation. You can safely use both plugs simultaneously at their full 50 amp capacity (100 amps total across both circuits), provided each individual circuit is properly fused and wired appropriately for its intended load. The panel itself has no shared current limitations — each Anderson plug maintains its full 50 amp continuous rating regardless of whether the other plug is in use.
What's a common use case for having two Anderson plugs in one panel?
Common applications include having one Anderson plug for fixed roof-mounted solar panels and another for portable solar blanket connections, separating battery charging input from inverter power output to prevent back-feeding, managing dual battery systems with independent charging circuits, or providing separate connection points for different solar arrays. The dual configuration prevents cable swapping and maintains dedicated circuits for different electrical functions.
Do both Anderson plugs share the same terminal connections or are they completely separate?
Both Anderson plugs have completely independent terminal connections with no shared wiring or circuit interaction. Each plug requires its own separate cable connections on the rear terminals, allowing you to wire them to different batteries, different solar arrays, different loads, or completely independent electrical systems. This complete isolation ensures safe operation without voltage conflicts or unintended circuit interaction.
Can I wire both Anderson plugs to the same battery for redundancy?
Yes, you can wire both Anderson plugs to the same battery if desired, creating two independent connection points for the same electrical system. This is useful for having multiple solar panel connection options, providing both primary and backup charging inputs, or allowing different equipment to connect to the same power source without unplugging other devices. Ensure each circuit has appropriate individual fusing even when connected to the same battery.
What wire gauge do I need for each circuit?
Each 50 amp Anderson plug circuit requires minimum 10mm² (7 B&S) automotive cable for runs under 3 meters, or 13.5mm² (6 B&S) for longer cable runs to minimize voltage drop. Wire each circuit independently based on its actual current requirements — if one circuit only carries 20 amps, it can use lighter gauge wire appropriate for that load, while the other circuit might require full 50 amp cabling. Always provide appropriate fusing for each circuit based on wire gauge and load.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
BAINTECH BTSWITCH6-DA 6-Way Switch Panel with Dual Anderson, USB, Ciga Socket & Voltmeter - Complete Electrical Control Center for 4WD, Caravan & Marine
Transform your electrical system control with the BAINTECH BTSWITCH6-DA 6-Way Switch Panel — a comprehensive all-in-one electrical command center combining six customizable rocker switches, dual Anderson plugs, USB charging, cigarette lighter socket, and digital voltmeter in one professional aluminum panel. This pre-wired switch panel features six bright blue LED rocker switches with 15 amp fuse protection for controlling lights, accessories, winches, pumps, and other 12V/24V equipment — includes dual Anderson plug connections for solar panel input, battery charging, or high-current accessory circuits — integrates Ciga socket for traditional 12V accessories and dual USB ports for modern device charging — features digital voltmeter providing real-time battery voltage monitoring for charge state assessment — and delivers IP68 waterproof rating ensuring reliable operation in harsh marine, off-road, and weather-exposed environments. Built from durable anodized aluminum with professional 180mm x 110mm dimensions and complete with customizable indicator labels for personalized switch identification, the BAINTECH 6-Way Switch Panel eliminates the complexity of separate components, tangled wiring, and multiple mounting locations by consolidating complete electrical control and connectivity into one space-efficient, professionally pre-wired panel that installs quickly in caravans, camper trailers, boats, 4WDs, or any application requiring centralized electrical system management.
Product Overview
The BAINTECH BTSWITCH6-DA represents the ultimate integrated electrical control solution for Australian tourers, marine operators, and off-road enthusiasts who demand professional-grade functionality without the installation complexity of separate components. This comprehensive panel consolidates six independently switched circuits, two Anderson plug connections, USB device charging, traditional Ciga socket power, and battery voltage monitoring into a single compact unit that replaces the clutter of multiple switches, scattered sockets, and flying leads with one organized command center. The pre-wired design with integrated 15 amp fuse holders eliminates hours of wiring work, reduces installation errors, and ensures professional circuit protection from the moment you connect power and accessories. Each of the six blue LED rocker switches features individual circuit control with illuminated status indication, allowing independent operation of accessories including camp lighting, water pumps, fridges, lighting bars, awning lights, and winches without affecting other circuits. The dual Anderson plug configuration provides versatile high-current connectivity for solar panel input and output circuits, battery charging connections, or portable equipment power access. The integrated digital voltmeter delivers continuous battery voltage monitoring without requiring separate gauge installation, enabling quick assessment of battery charge state and charging system performance. Australian caravan builders, 4WD retrofitters, boat owners, and camper trailer manufacturers choose the BAINTECH 6-Way Switch Panel for its combination of comprehensive functionality, professional construction quality, IP68 waterproof protection, and installation simplicity that transforms complex electrical projects into straightforward bolt-on installations.
Key Features
Six Customizable Blue LED Rocker Switches Features six independent rocker switches with bright blue LED illumination providing clear on/off status indication in all lighting conditions. Each switch includes customizable labeling using the supplied indicator labels (lights, winch, accessories, pump, etc.), allowing personalized identification matching your specific electrical system. The high-quality rocker switches deliver reliable tactile feedback, withstand millions of switching cycles, and handle 15 amp loads per circuit for controlling most 12V and 24V accessories without external relays.
Pre-Wired with Integrated 15A Fuse Protection Comes completely pre-wired with professional-grade wiring harness and integrated 15 amp fuse holders protecting each switched circuit independently. This factory pre-wiring eliminates hours of complex installation work, ensures correct wire sizing and routing, prevents installation errors that cause electrical fires, and provides immediate circuit protection without requiring separate fuse panel installation. Simply connect main power input and attach accessories to the labeled output wires for quick commissioning.
Dual Anderson Plug High-Current Connectivity Incorporates two independent 50 amp Anderson plug connections providing versatile high-current capability for solar panel input, battery charging circuits, DC-DC charger connections, inverter supply, or portable equipment power access. The dual Anderson configuration enables circuit separation (input/output) or multiple connection points without cable swapping, while maintaining the robust weather-resistant connection quality Anderson plugs are known for in demanding touring environments.
Integrated Ciga Socket and Dual USB Charging Includes standard 12V cigarette lighter socket for traditional 12V accessories alongside dual USB charging ports for modern smartphones, tablets, cameras, and GPS devices. This triple-output configuration provides comprehensive power access for both legacy cigarette lighter accessories and modern USB devices within one integrated panel, eliminating the need for separate socket installations, USB adapter clutter, and multiple mounting locations.
Digital Voltmeter Battery Monitoring Features built-in digital voltmeter providing continuous real-time battery voltage display accurate to 0.1V, enabling quick assessment of battery charge state, charging system performance, and load voltage under accessory operation. This integrated voltage monitoring eliminates the need for separate gauge installation while providing essential data for battery management decisions, charging optimization, and early detection of electrical system issues before they cause failures.
IP68 Waterproof Protection Rating Engineered with IP68 waterproof rating ensuring reliable operation in harsh marine environments, wet weather conditions, spray-exposed mounting locations, and dusty off-road applications. The sealed construction protects internal electronics, switch contacts, and connections from water immersion up to 1 meter depth, salt spray, mud, dust, and moisture ingress that destroys unprotected electrical components in touring and marine applications.
Durable Anodized Aluminum Construction Built from professional-grade anodized aluminum providing superior strength, corrosion resistance, heat dissipation, and electromagnetic shielding compared to plastic panels. The aluminum construction withstands physical impact, maintains structural integrity through temperature extremes from -20°C to +70°C, resists UV degradation, and provides excellent heat dissipation for sustained high-current operation without thermal derating or component overheating.
Compact 180mm x 110mm Professional Dimensions Designed with space-efficient 180mm x 110mm footprint that installs easily in crowded dashboards, caravan control panels, boat helm consoles, or camper trailer walls without consuming excessive space. The compact dimensions combined with comprehensive functionality maximize electrical capability per square centimeter of panel real estate, ideal for modern vehicles where mounting space is limited but electrical system complexity continues increasing.
12V and 24V System Compatibility Works seamlessly with both 12 volt and 24 volt electrical systems, making it suitable for light vehicles, heavy trucks, buses, boats, and commercial applications. The universal voltage compatibility eliminates the need to specify different panels for different voltage systems, while the digital voltmeter automatically displays correct voltage regardless of system voltage without requiring configuration or calibration.
Complete with Customizable Indicator Labels Includes comprehensive label set with common applications (lights, winch, accessories, pump, fridge, awning, etc.) enabling personalized switch identification matching your specific electrical system layout. The professional labels create clear switch identification preventing confusion and accidental activation, while the customizable approach ensures the panel adapts to your unique accessory configuration rather than forcing generic labeling that doesn't match your installation.
Simple Four-Point Mounting Installation Features four corner mounting holes with 4mm diameter countersunk screw accommodation providing secure, low-profile installation on any flat surface. The countersunk design creates flush mounting that won't snag clothing or equipment, while the four-point mounting ensures secure retention through vibration, physical impact, and the demanding conditions of off-road travel without panel flex or mounting failure.
Technical Specifications
Specification
Details
Part Number
BTSWITCH6-DA
Number of Switches
6 Independent Rocker Switches
Switch Current Rating
15 Amps per Circuit
Switch Illumination
Blue LED (On/Off Indication)
Fuse Protection
15A Fuse Holders (Pre-Wired, Per Circuit)
Anderson Plugs
Dual 50A Anderson Connections
Ciga Socket
1 x 12V Cigarette Lighter Socket
USB Ports
Dual USB-A Charging Ports
Voltmeter
Digital Display (0.1V Resolution)
Voltage Compatibility
12V & 24V DC Systems
Waterproof Rating
IP68 (Water Immersion to 1 Meter)
Panel Material
Anodized Aluminum
Panel Dimensions
180mm x 110mm
Mounting Holes
4 x 4mm Diameter (Countersunk)
Operating Temperature
-20°C to +70°C
Indicator Labels
Included (Lights, Winch, Accessories, Custom)
Pre-Wiring
Complete Factory Harness with Fuse Holders
Warranty
12 Months Manufacturer Warranty
Suitable Applications
4WD, Caravan, Motorhome, Camper Trailer, Marine, Truck, Bus
Frequently Asked Questions
Can I control high-draw accessories like winches and fridges with the 15A switches?
The 15 amp switch rating handles most 12V accessories directly including LED light bars, water pumps, interior lighting, and many fridges. However, electric winches, large inverters, and some high-draw accessories exceed 15 amps and require the switches to control external relays rather than direct load switching. For loads exceeding 15 amps, wire the switch to activate a heavy-duty relay that handles the actual high-current switching, protecting the panel switches from overload and extending their service life.
Are the Anderson plugs and switches on separate circuits or do they share power?
The six switches, Anderson plugs, Ciga socket, and USB ports all require main power input connection (typically to your battery positive and negative), but they operate as independent circuits. The switches control their individual accessory outputs, the Anderson plugs provide their own high-current connections, and the Ciga/USB outlets operate independently. Ensure your main power supply to the panel uses appropriately heavy gauge wire and fusing for the combined potential load.
Is the panel waterproof enough for exterior mounting on a boat or exposed locations?
The IP68 rating certifies protection against water immersion up to 1 meter depth, making it suitable for most marine applications and weather-exposed mounting. However, "waterproof" doesn't mean infinitely submersible — the rating covers temporary immersion and heavy spray rather than permanent underwater installation. For fully exposed exterior mounting, ensure cable entry points use proper IP68 glands, and consider additional weather protection for connections behind the panel to maintain long-term reliability.
Can I add more switches or modify the panel configuration?
The panel comes pre-wired with fixed configuration (6 switches, dual Anderson, Ciga, USB, voltmeter) and isn't designed for user modification. If you need different switch counts or configurations, Baintech offers various panel options. Attempting to modify the pre-wired harness or add components can compromise waterproofing, void warranty, and create electrical safety issues. Choose the panel configuration matching your needs rather than modifying this model.
How do I identify which output wire controls which switch?
The pre-wired harness includes labeled output wires corresponding to each switch position. During installation, refer to the included wiring diagram showing wire colors and switch positions, then connect your accessories to the appropriate labeled wires. Apply your chosen indicator labels to the panel switches matching the connected accessories, creating clear visual identification for daily use. Take photos during installation for future reference if accessories require disconnection.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
BAINTECH BTSWITCH4-DA 4-Way Switch Panel with Dual Anderson, USB, Ciga Socket & Voltmeter - Complete Electrical Control Center for 4WD, Caravan & Marine
Streamline your electrical system control with the BAINTECH BTSWITCH4-DA 4-Way Switch Panel — a comprehensive all-in-one electrical command center combining four customizable rocker switches, dual Anderson plugs, USB charging, cigarette lighter socket, and digital voltmeter in one professional aluminum panel. This pre-wired switch panel features four bright blue LED rocker switches with 15 amp fuse protection for controlling lights, accessories, pumps, and other 12V/24V equipment — includes dual Anderson plug connections for solar panel input, battery charging, or high-current accessory circuits — integrates Ciga socket for traditional 12V accessories and USB ports for modern device charging — features digital voltmeter providing real-time battery voltage monitoring for charge state assessment — and delivers IP68 waterproof rating ensuring reliable operation in harsh marine, off-road, and weather-exposed environments. Built from durable anodized aluminum with professional 131mm x 120mm compact dimensions and complete with customizable indicator labels for personalized switch identification, the BAINTECH 4-Way Switch Panel eliminates the complexity of separate components, tangled wiring, and multiple mounting locations by consolidating complete electrical control and connectivity into one space-efficient, professionally pre-wired panel that installs quickly in caravans, camper trailers, boats, 4WDs, or any application requiring centralized electrical system management.
Product Overview
The BAINTECH BTSWITCH4-DA represents the ideal compact electrical control solution for Australian tourers, marine operators, and off-road enthusiasts who need professional-grade functionality in a space-efficient package. This comprehensive panel consolidates four independently switched circuits, two Anderson plug connections, USB device charging, traditional Ciga socket power, and battery voltage monitoring into a single compact unit that replaces the clutter of multiple switches, scattered sockets, and flying leads with one organized command center. The pre-wired design with integrated 15 amp fuse holders eliminates hours of wiring work, reduces installation errors, and ensures professional circuit protection from the moment you connect power and accessories. Each of the four blue LED rocker switches features individual circuit control with illuminated status indication, allowing independent operation of accessories including camp lighting, water pumps, fridges, and lighting bars without affecting other circuits. The dual Anderson plug configuration provides versatile high-current connectivity for solar panel input and output circuits, battery charging connections, or portable equipment power access. The integrated digital voltmeter delivers continuous battery voltage monitoring without requiring separate gauge installation, enabling quick assessment of battery charge state and charging system performance. Australian caravan builders, 4WD retrofitters, boat owners, and camper trailer manufacturers choose the BAINTECH 4-Way Switch Panel for its combination of comprehensive functionality in a compact footprint, professional construction quality, IP68 waterproof protection, and installation simplicity that transforms complex electrical projects into straightforward bolt-on installations.
Key Features
Four Customizable Blue LED Rocker Switches Features four independent rocker switches with bright blue LED illumination providing clear on/off status indication in all lighting conditions. Each switch includes customizable labeling using the supplied indicator labels (lights, pump, accessories, fridge, etc.), allowing personalized identification matching your specific electrical system. The high-quality rocker switches deliver reliable tactile feedback, withstand millions of switching cycles, and handle 15 amp loads per circuit for controlling most 12V and 24V accessories without external relays.
Pre-Wired with Integrated 15A Fuse Protection Comes completely pre-wired with professional-grade wiring harness and two integrated 15 amp fuse holders protecting switched circuits independently. This factory pre-wiring eliminates hours of complex installation work, ensures correct wire sizing and routing, prevents installation errors that cause electrical fires, and provides immediate circuit protection without requiring separate fuse panel installation. Simply connect main power input and attach accessories to the labeled output wires for quick commissioning.
Dual Anderson Plug High-Current Connectivity Incorporates two independent 50 amp Anderson plug connections providing versatile high-current capability for solar panel input, battery charging circuits, DC-DC charger connections, inverter supply, or portable equipment power access. The dual Anderson configuration enables circuit separation (input/output) or multiple connection points without cable swapping, while maintaining the robust weather-resistant connection quality Anderson plugs are known for in demanding touring environments.
Integrated Ciga Socket and USB Charging Includes standard 12V cigarette lighter socket for traditional 12V accessories alongside USB charging ports for modern smartphones, tablets, cameras, and GPS devices. This dual-output configuration provides comprehensive power access for both legacy cigarette lighter accessories and modern USB devices within one integrated panel, eliminating the need for separate socket installations, USB adapter clutter, and multiple mounting locations.
Digital Voltmeter Battery Monitoring Features built-in digital voltmeter providing continuous real-time battery voltage display accurate to 0.1V, enabling quick assessment of battery charge state, charging system performance, and load voltage under accessory operation. This integrated voltage monitoring eliminates the need for separate gauge installation while providing essential data for battery management decisions, charging optimization, and early detection of electrical system issues before they cause failures.
IP68 Waterproof Protection Rating Engineered with IP68 waterproof rating ensuring reliable operation in harsh marine environments, wet weather conditions, spray-exposed mounting locations, and dusty off-road applications. The sealed construction protects internal electronics, switch contacts, and connections from water immersion up to 1 meter depth, salt spray, mud, dust, and moisture ingress that destroys unprotected electrical components in touring and marine applications.
Durable Anodized Aluminum Construction Built from professional-grade anodized aluminum providing superior strength, corrosion resistance, heat dissipation, and electromagnetic shielding compared to plastic panels. The aluminum construction withstands physical impact, maintains structural integrity through temperature extremes from -20°C to +70°C, resists UV degradation, and provides excellent heat dissipation for sustained high-current operation without thermal derating or component overheating.
Compact 131mm x 120mm Space-Efficient Design Designed with space-efficient 131mm x 120mm footprint that installs easily in crowded dashboards, caravan control panels, boat helm consoles, or camper trailer walls without consuming excessive space. The compact dimensions combined with comprehensive functionality maximize electrical capability per square centimeter of panel real estate, ideal for applications where mounting space is limited but electrical system control requirements remain substantial.
12V and 24V System Compatibility Works seamlessly with both 12 volt and 24 volt electrical systems, making it suitable for light vehicles, heavy trucks, buses, boats, and commercial applications. The universal voltage compatibility eliminates the need to specify different panels for different voltage systems, while the digital voltmeter automatically displays correct voltage regardless of system voltage without requiring configuration or calibration.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!

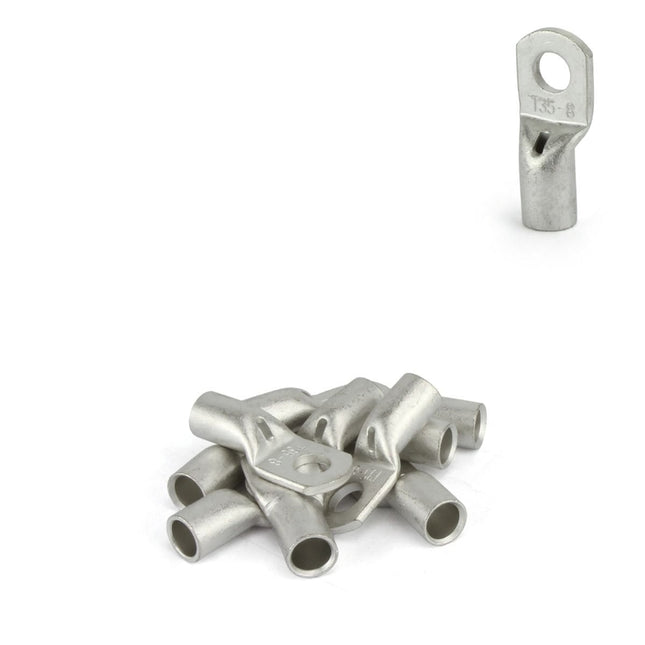

DNA S35-8-H - 2 AWG 8.2mm Copper Battery Cable Lug With Inspection Window 10 Pack
Premium oxygen-free copper battery cable lugs engineered for maximum conductivity and reliability in high-current automotive electrical systems. Manufactured from 99.9% oxygen-free high conductivity copper ensuring superior electrical performance with minimal resistance and voltage drop, these professional-grade cable lugs feature electro tin plating providing exceptional corrosion resistance in harsh automotive environments and facilitating superior crimping connections. Each lug includes integrated inspection window allowing visual verification of proper cable insertion depth before crimping ensuring reliable mechanical and electrical connection critical for high-current applications. Designed for 2 B&S (AWG) cable with 8.2mm cable entry size accommodating standard automotive battery cables, power distribution wiring, and high-current car audio installations, with 8.2mm ring hole size fitting M8 bolt terminals commonly found on batteries, alternators, distribution blocks, and amplifier terminals. Rated for maximum 170 Amps continuous current capacity suitable for protecting high-power car audio systems, dual-battery setups, inverter installations, and auxiliary electrical circuits requiring substantial current handling. Wide operating temperature range (-55°C to 155°C) ensures reliable performance across extreme environmental conditions from Arctic cold to under-hood heat, maintaining consistent electrical characteristics and mechanical integrity throughout vehicle lifetime. The inspection window design eliminates guesswork during installation allowing installers to visually confirm cable has been inserted to proper depth before crimping, preventing inadequate crimp connections that cause high resistance, overheating, voltage drop, and potential connection failure under load. Supplied in convenient 10-pack ziplock poly bag with hang hole for organized storage and retail display, ideal for professional car audio installers, auto electricians, marine electrical systems, 4WD dual-battery installations, and workshop inventory requiring premium-quality copper cable terminations for reliable high-current electrical connections.
Product Overview
Premium 2 AWG copper battery cable lugs manufactured from 99.9% oxygen-free high conductivity copper with electro tin plating for superior corrosion resistance. Features inspection window for visual verification of proper cable insertion depth before crimping. Rated for 170 Amps maximum current capacity with wide operating temperature range (-55°C to 155°C).
Important Notes:
Proper Crimping Tool Required: These lugs require hydraulic crimping tool or heavy-duty mechanical crimper designed for 2 AWG battery cable lugs. Standard plier-type crimpers or hammer crimpers produce inadequate connections causing high resistance, overheating, and connection failure. Proper crimping creates gas-tight cold-weld connection between copper lug and cable strands. Professional installers should use calibrated hydraulic crimper with dies specifically sized for 2 AWG lugs ensuring consistent, reliable crimps meeting electrical standards.
Cable Preparation Critical: Strip cable insulation to length matching lug barrel (typically 15-20mm). Twist cable strands tightly before insertion to prevent fraying. Insert cable until copper strands visible through inspection window - if window remains empty, cable not inserted far enough for reliable crimp. Use wire brush to clean oxidation from cable strands before insertion. Apply electrical contact enhancer or anti-oxidant compound to bare copper before crimping for long-term reliability.
Heat Shrink Insulation Recommended: After crimping, cover exposed copper and crimp barrel with adhesive-lined heat shrink tubing rated for automotive temperatures. This prevents corrosion, provides mechanical strain relief, and insulates connection preventing accidental shorts. Standard 3:1 heat shrink in 12-15mm diameter suitable for 2 AWG lugs. Marine and underbody installations require dual-wall adhesive heat shrink for maximum moisture protection.
Torque Specifications Matter: When bolting lug to terminal, use proper torque preventing under-tightening (poor connection, high resistance) or over-tightening (damaged threads, cracked lug). Typical torque for M8 bolts: 10-12 Nm (89-106 in-lbs). Use star/lock washers preventing vibration loosening. Apply electrical contact grease to bolt threads and terminal interface reducing corrosion and improving conductivity.
Current Rating Considerations: 170 Amp maximum rating applies to properly crimped connections using quality 2 AWG copper cable in free-air conditions. Actual safe continuous current depends on cable length, ambient temperature, insulation type, and bundling with other cables. For car audio: 170A suitable for systems up to approximately 2000W RMS. For dual-battery systems, consider continuous alternator output and charging current requirements.
Key Features
99.9% Oxygen-Free High Conductivity Copper - Premium OFHC copper construction ensures maximum electrical conductivity, minimal resistance, and superior current-carrying capacity compared to standard copper alloys.
Electro Tin Plating - Professional electrolytic tin plating provides exceptional corrosion resistance in harsh automotive environments and facilitates superior crimping connections.
Integrated Inspection Window - Visual verification window allows installers to confirm proper cable insertion depth before crimping ensuring reliable mechanical and electrical connections.
2 AWG / 2 B&S Cable Size - Designed for standard 2 American Wire Gauge (2 B&S Australian) automotive battery cable used in high-current electrical systems.
8.2mm Cable Entry Size - Precise barrel diameter accommodates 2 AWG stranded copper cable with tight fit ensuring maximum contact area during crimping.
8.2mm Ring Hole Size - M8 bolt hole compatible with standard automotive battery terminals, alternators, distribution blocks, and amplifier power terminals.
170 Amp Maximum Current Rating - Substantial current capacity suitable for high-power car audio systems, dual-battery installations, and auxiliary electrical circuits.
Wide Temperature Range - Operating range -55°C to 155°C ensures reliable performance from Arctic conditions to under-hood heat and tropical climates.
Professional-Grade Construction - Manufactured to automotive electrical standards ensuring consistent quality, reliable performance, and long service life.
Corrosion Resistant Design - Tin plating combined with copper construction provides excellent resistance to oxidation, moisture, and chemical exposure.
Visual Crimping Verification - Inspection window eliminates guesswork confirming proper installation before energizing circuit preventing inadequate connections.
10-Pack Quantity - Cost-effective bulk packaging ideal for professional installers, multiple installations, or workshop inventory stock.
Battery Terminal Compatible - Ring terminal design fits standard automotive battery posts, heavy-duty battery terminals, and marine battery systems.
Car Audio Applications - Ideal for high-power amplifier installations, multiple amplifier systems, and competition car audio requiring maximum conductivity.
Dual-Battery Systems - Suitable for 4WD dual-battery setups, caravan electrical systems, and auxiliary power distribution requiring reliable high-current connections.
Marine-Grade Performance - Tin plating and copper construction suitable for marine electrical systems with proper heat shrink protection.
Organized Packaging - Ziplock poly bag with hang hole for convenient storage, easy identification, and retail display.
Technical Specifications
Specification
Details
Brand
DNA
Product Type
Battery Cable Lug / Ring Terminal
SKU
S35-8-H
Cable Size
2 AWG / 2 B&S
Material
99.9% Oxygen-Free High Conductivity Copper
Plating
Electro Tin Plated
Cable Entry Size
8.2mm
Ring Hole Size
8.2mm (M8 Bolt Compatible)
Maximum Current Rating
170 Amps
Operating Temperature Range
-55°C to 155°C
Terminal Type
Ring Terminal with Inspection Window
Inspection Window
Yes - Visual Cable Insertion Verification
Crimping Method
Hydraulic or Heavy-Duty Mechanical Crimper Required
Corrosion Resistance
Excellent (Tin Plating on Copper)
Applications
Car Audio, Dual-Battery Systems, Marine, RV, 4WD
Pack Quantity
10 Pieces
Packaging
Ziplock Poly Bag with Hang Hole
Standards Compliance
Automotive Electrical Standards
Typical Bolt Torque
10-12 Nm (89-106 in-lbs) for M8
Recommended Heat Shrink
12-15mm Diameter, 3:1 Ratio, Adhesive-Lined
Warranty
Standard Manufacturer Warranty
Frequently Asked Questions
Q: How do I properly crimp these lugs and what tools do I need?
A: Proper crimping requires hydraulic crimping tool or heavy-duty mechanical crimper with dies specifically sized for 2 AWG battery lugs. Process: (1) Strip cable insulation 15-20mm exposing copper strands, (2) Twist strands tightly, clean with wire brush, (3) Insert cable into lug barrel until copper strands visible through inspection window, (4) Position crimper die centered on barrel crimp area, (5) Apply full hydraulic pressure or complete mechanical crimp cycle, (6) Verify crimp created visible indentation around entire barrel circumference, (7) Perform pull test - properly crimped lug should not slide off cable with firm pulling. Never use plier-type or hammer crimpers - these produce inadequate connections causing high resistance and overheating under load.
Q: What cable size is 2 AWG and what can I use it for?
A: 2 AWG (American Wire Gauge), also called 2 B&S (Australian), is heavy-gauge automotive cable approximately 6.5mm diameter (conductor only, excluding insulation). Current capacity: approximately 170-190 Amps in free air, 130-150 Amps in typical automotive installations. Common applications: main battery cables for high-output alternators, car audio amplifiers 1500-2500W RMS, dual-battery isolator systems, inverter power cables up to 2000W, winch power cables, auxiliary lighting circuits. For car audio: use 2 AWG for amplifiers drawing 120-150A maximum current, or when cable runs exceed 5 meters requiring reduced voltage drop.
Q: Why is the inspection window important?
A: The inspection window allows visual verification that cable has been inserted to proper depth before crimping. If cable not inserted far enough, crimp only compresses on cable insulation or partial conductor, creating high-resistance connection that overheats under load and fails prematurely. Proper insertion shows copper strands visible through window, confirming full engagement between cable and lug barrel. This simple visual check prevents most common installation errors causing electrical problems, voltage drop, and connection failures in high-current systems. Always verify window shows copper before crimping.
Q: Do I need heat shrink and what size should I use?
A: Yes, heat shrink tubing is essential for professional installations. Heat shrink provides: (1) Corrosion protection sealing crimped connection from moisture and contaminants, (2) Mechanical strain relief preventing cable flexing at crimp point, (3) Electrical insulation preventing accidental shorts. Use 3:1 shrink ratio adhesive-lined heat shrink, 12-15mm diameter for 2 AWG lugs. Length: extend heat shrink to cover entire lug barrel plus 10-20mm of cable insulation. For marine, underbody, or engine bay installations, use dual-wall adhesive heat shrink for maximum moisture protection. Apply heat evenly with heat gun until adhesive melts and seeps from ends indicating complete seal.
Q: Can I solder these lugs instead of crimping?
A: No, never solder battery cable lugs intended for crimping. Reasons: (1) Solder melts at 180-250°C - well below lug's 155°C operating limit but achievable in high-resistance connections or engine bay heat, (2) Solder wicks into cable strands reducing flexibility and creating stress concentration points causing cable breakage, (3) Solder has higher resistance than crimped copper-to-copper contact reducing current capacity, (4) Automotive vibration causes work-hardened solder joints to crack and fail, (5) Soldered connections impossible to inspect for quality without destructive testing. Proper hydraulic crimping creates superior gas-tight cold-weld connection exceeding solder joint strength and conductivity. Crimping is the only approved method for automotive battery cable terminations.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
AXIS APS201B - 2-Sensor Parking System with Audible Buzzer
User-friendly 2-sensor parking system designed for passenger vehicle front or rear bumper installation featuring audible buzzer proximity alerts with increasing tone frequency as obstacles approach, adjustable detection range via DIP switches with front setting 0.3-0.9m and rear setting 0.3-2.5m, paintable 18mm ABS sensors with IP68 water resistance for harsh weather conditions, wide 9-32V DC input range compatible with 12V and 24V vehicle electrical systems, auto on/off function with brake activation for front installation convenience, tow bar adjustment capability for rear mounting with trailers or accessories, comprehensive installation kit with 8m buzzer cable and 3.5m sensor cables, ideal for sedans, wagons, SUVs, commercial vans, delivery vehicles, and fleet applications requiring affordable reliable parking assistance.
Product Overview
The AXIS APS201B is a user-friendly 2-sensor parking system engineered to provide essential parking assistance for passenger vehicles through audible proximity alerts helping drivers avoid costly bumper damage, scratches, and collisions during tight parking manoeuvres. The system uses two ultrasonic sensors mounted in the bumper that detect obstacles and trigger an audible buzzer with increasing beep frequency as the vehicle approaches objects, providing clear distance guidance without requiring drivers to look away from their mirrors or surroundings. The flexible DIP switch configuration allows installation on either front or rear bumpers with appropriate detection range settings - front mode detects 0.3-0.9m for low-speed manoeuvring, while rear mode extends to 0.3-2.5m for reversing applications. The paintable 18mm ABS sensors blend seamlessly with vehicle bumpers after colour matching, maintaining factory appearance while adding modern parking assistance. Wide 9-32V DC compatibility suits both standard 12V passenger vehicles and 24V commercial vehicles, while IP68 water resistance ensures reliable operation in rain, car washes, and harsh Australian weather conditions.
Important Notes:
Professional Installation Recommended: Drilling bumpers and routing cables requires automotive experience. Professional fitting ensures proper sensor positioning and wiring.
Bumper Drilling Required: Installation requires drilling 18.3mm holes in bumper. Measure carefully and ensure no internal structures interfere with sensor placement.
Paintable Sensors: Sensors should be painted to match bumper colour for seamless appearance. Use automotive paint suitable for ABS plastic.
2 Sensors Only: System includes two sensors suitable for basic front OR rear coverage. For comprehensive protection consider 4-sensor systems covering full bumper width.
Not Reversing Camera: Audible-only alerts without visual display. Consider combining with reversing camera for comprehensive parking assistance.
Key Features
2 Ultrasonic Sensors - Detects obstacles and provides audible proximity alerts preventing bumper damage during parking.
Audible Buzzer Alerts - 70-90dB buzzer with increasing beep frequency as obstacles approach providing clear distance guidance.
Front or Rear Installation - DIP switch selection configures system for front bumper or rear bumper use with appropriate detection ranges.
Adjustable Detection Range - Front setting: 0.3-0.9m for low-speed manoeuvring. Rear setting: 0.3-2.5m for reversing applications.
Paintable ABS Sensors - 18mm sensors can be painted to match bumper colour for seamless factory appearance.
IP68 Water Resistance - Fully waterproof sensors operate reliably in rain, car washes, and harsh weather conditions.
Wide Voltage Compatibility - 9-32V DC input range suitable for 12V passenger vehicles and 24V commercial vehicles.
Auto On/Off with Brake - Front installation automatically activates when brake applied for low-speed parking manoeuvres.
Tow Bar Adjustment - Rear installation supports tow bar adjustments preventing false alerts from trailers or bike racks.
Comprehensive Cable Lengths - 8m buzzer cable and 3.5m sensor cables accommodate various vehicle sizes and mounting locations.
Easy DIP Switch Configuration - Simple switch settings adjust system behaviour without complex programming or tools.
Compact Control Box - 100 x 54 x 24mm control unit easily concealed behind dashboard or in boot area.
Wide Temperature Range - Operates reliably from -30°C to +85°C suitable for extreme Australian climate conditions.
Low Power Consumption - 20-150mA @ 12V efficient operation minimizes battery drain during use.
Affordable Protection - Cost-effective parking assistance preventing expensive bumper repairs and collision damage.
Technical Specifications
Specification
Details
Brand
AXIS
Model
APS201B
SKU
APS201B
Barcode
9321886016376
Product Type
2-Sensor Parking System with Buzzer
Number of Sensors
2 Ultrasonic Sensors
Rated Voltage
12/24V DC
Operating Range
9-32V DC
Operating Current
20-150mA @ 12V
Alert Type
Audible Buzzer (70-90dB @ 10cm)
Buzzer Cable Length
8 Metres
Control Box Dimensions
100 x 54 x 24mm
Power Lead Length
4.5 Metres
DIP Switch 1
Front or Rear Use Selection
DIP Switch 2
Rear Range Select / Tow Bar Adjustment
Front Mode Detection
0.3-0.9 Metres
Rear Mode Detection
0.3-2.5 Metres
Auto Activation
Yes - With Brake (Front Installation)
Sensor Type
Paintable ABS Plastic
Sensor Size
18mm Diameter
Sensor Hole Cut-out
18.3mm
Sensor Cable Length
3.5 Metres Each
Sensor Installation Height
Front: 400-500mm, Rear: 500-600mm
Water Resistance
IP68 (Fully Waterproof)
Operating Temperature
-30°C to +85°C
Sensor Dimensions
21W x 21H x 19.5D mm
Installation Type
In-Bumper Mount (Drilling Required)
Vehicle Compatibility
Passenger Vehicles, SUVs, Vans, 12V/24V Systems
Warranty
Standard Manufacturer Warranty
Country of Origin
To be added
Frequently Asked Questions
Q: Can I install sensors on both front and rear bumpers, or is it front OR rear only?
A: The APS201B includes only 2 sensors and one control box configured for either front OR rear bumper installation, not both simultaneously. The DIP switch selects front mode (0.3-0.9m detection) or rear mode (0.3-2.5m detection). For comprehensive front AND rear coverage, you would need to purchase two separate APS201B systems or consider a 4-sensor or 8-sensor system designed for dual bumper installation. Most users install on the rear bumper as reversing is typically where parking assistance is most needed, though front installation helps with tight parking spaces and low obstacles.
Q: Do I need to paint the sensors, and will they work if I don't?
A: The sensors are paintable ABS plastic designed to be colour-matched to your vehicle's bumper for seamless appearance. They come in unpainted black/grey and will function perfectly without painting, but won't match most vehicle colours resulting in visible sensor dots on your bumper. For professional appearance, we recommend having the sensors painted by an automotive painter or body shop using paint suitable for ABS plastic before or after installation. Some users choose to leave sensors unpainted for a discrete "OEM" look, while others prefer perfect colour matching for invisible integration.
Q: How difficult is installation, and can I do it myself?
A: Installation requires drilling two 18.3mm holes in your bumper at specified heights (front: 400-500mm, rear: 500-600mm), routing sensor cables through the bumper to the control box location, connecting power to appropriate circuits (reverse lights for rear, brake signal for front), and mounting the control box and buzzer. If you're comfortable with basic automotive electrical work and drilling your bumper, DIY installation is feasible with careful measurements and proper tools. However, many users prefer professional installation ($150-250 typically) to ensure correct sensor positioning, avoid drilling mistakes, proper cable routing, and correct electrical connections. Incorrect sensor height or positioning significantly affects detection performance.
Q: What's the tow bar adjustment feature, and do I need it?
A: The tow bar adjustment feature (DIP Switch 2) is specifically for rear installations on vehicles with tow bars, bike racks, or rear-mounted accessories. When enabled, it adjusts the sensor detection pattern to ignore fixed objects directly behind the bumper (like a tow ball or bike rack) preventing constant false alerts while still detecting moving obstacles or objects that shouldn't be there. If you have a tow bar or rear accessories, enable this adjustment. If you have a clear bumper with no permanent rear fixtures, leave it disabled for maximum detection range. This feature makes the system practical for vehicles that regularly tow trailers or carry rear-mounted equipment.
Q: Will this system work with my 24V commercial vehicle or truck?
A: Yes, the APS201B features a wide 9-32V DC operating range making it fully compatible with both standard 12V passenger vehicles AND 24V commercial vehicles, light trucks, buses, or heavy-duty applications. The system automatically adapts to the voltage present in your vehicle's electrical system. This versatility makes the APS201B suitable for mixed fleets operating both passenger vehicles and commercial trucks, delivery vans, or service vehicles. Installation procedures are identical regardless of voltage, though 24V vehicles may require professional installation to ensure proper integration with existing electrical systems and compliance with commercial vehicle standards.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
AXIS APS401 - 4-Sensor Parking System with LED Display and Audible Buzzer
Comprehensive 4-sensor parking system designed for passenger vehicle front or rear bumper installation featuring LED visual display and audible buzzer proximity alerts with dual alert system providing both visual distance indicators and increasing tone frequency as obstacles approach, adjustable detection range via DIP switches with front setting 0.3-0.9m and rear setting 0.3-2.5m, paintable 18mm ABS sensors with IP67 water resistance for reliable all-weather operation, wide 9-32V DC input range compatible with 12V and 24V vehicle electrical systems, auto on/off function with brake activation for front installation convenience, tow bar adjustment capability for rear mounting with trailers or accessories, 8m LED display cable and 2.5m sensor cables for flexible installation, ideal for sedans, wagons, SUVs, commercial vans, delivery vehicles, and fleet applications requiring comprehensive parking assistance with visual feedback.
Product Overview
The AXIS APS401 is a comprehensive 4-sensor parking system engineered to provide superior parking assistance for passenger vehicles through combined visual LED display and audible proximity alerts helping drivers avoid costly bumper damage, scratches, and collisions during tight parking manoeuvres. The system uses four ultrasonic sensors mounted across the bumper providing full-width coverage that detects obstacles and triggers both an LED visual display showing precise distance zones and an audible buzzer with increasing beep frequency as the vehicle approaches objects. The dual alert system allows drivers to monitor distance visually while still receiving audible warnings, providing comprehensive feedback without requiring constant attention to the display. The flexible DIP switch configuration allows installation on either front or rear bumpers with appropriate detection range settings - front mode detects 0.3-0.9m for low-speed manoeuvring, while rear mode extends to 0.3-2.5m for reversing applications. The paintable 18mm ABS sensors blend seamlessly with vehicle bumpers after colour matching maintaining factory appearance while adding modern parking assistance.
Important Notes:
Professional Installation Recommended: Drilling bumpers and routing cables requires automotive experience. Professional fitting ensures proper sensor positioning and LED display mounting.
Bumper Drilling Required: Installation requires drilling four 18.3mm holes in bumper. Careful measurement essential to avoid internal structures and ensure proper sensor spacing.
Paintable Sensors: Sensors should be painted to match bumper colour for seamless appearance. Use automotive paint suitable for ABS plastic.
4 Sensors for Front OR Rear: System includes four sensors for comprehensive single-bumper coverage (front OR rear). For dual bumper protection, purchase two systems.
LED Display Mounting: Display requires visible dashboard or windscreen mounting location. Consider display placement during installation planning.
Key Features
4 Ultrasonic Sensors - Full-width bumper coverage detects obstacles across entire parking area preventing blind spots.
LED Visual Display - Clear LED distance indicators show proximity zones providing at-a-glance visual feedback.
Audible Buzzer Alerts - 70-90dB buzzer with increasing beep frequency provides audible distance guidance.
Dual Alert System - Combined visual and audible alerts provide comprehensive feedback for confident parking.
Front or Rear Installation - DIP switch selection configures system for front bumper or rear bumper use.
Adjustable Detection Range - Front setting: 0.3-0.9m for manoeuvring. Rear setting: 0.3-2.5m for reversing.
Paintable ABS Sensors - 18mm sensors can be painted to match bumper colour for seamless factory appearance.
IP67 Water Resistance - Weatherproof sensors operate reliably in rain, car washes, and harsh conditions.
Wide Voltage Compatibility - 9-32V DC input suitable for 12V passenger vehicles and 24V commercial vehicles.
Auto On/Off with Brake - Front installation automatically activates when brake applied for parking convenience.
Tow Bar Adjustment - Rear installation supports tow bar adjustments preventing false alerts from trailers.
8m LED Display Cable - Extended cable length accommodates various dashboard and windscreen mounting locations.
2.5m Sensor Cables - Adequate length for most vehicle bumper installations with routing flexibility.
Compact Control Box - 100 x 54 x 24mm control unit easily concealed behind dashboard or in boot.
Wide Temperature Range - Operates reliably from -30°C to +70°C suitable for Australian climate extremes.
Technical Specifications
Specification
Details
Brand
AXIS
Model
APS401
SKU
APS401
Barcode
9321886015539
Product Type
4-Sensor Parking System with LED Display
Number of Sensors
4 Ultrasonic Sensors
Rated Voltage
12/24V DC
Operating Range
9-32V DC
Operating Current
20-150mA @ 12V
Alert Type
LED Visual Display + Audible Buzzer (70-90dB)
LED Display Cable
8 Metres
Control Box Dimensions
100 x 54 x 24mm
Power Lead Length
4.5 Metres
DIP Switch 1
Front or Rear Use Selection
DIP Switch 2
Range Select / Tow Bar Adjustment
Front Mode Detection
0.3-0.9 Metres
Rear Mode Detection
0.3-2.5 Metres
Auto Activation
Yes - With Brake (Front Installation)
Sensor Type
Paintable ABS Plastic
Sensor Size
18mm Diameter
Sensor Hole Cut-out
18.3mm
Sensor Cable Length
2.5 Metres Each
Sensor Installation Height
Front: 400-500mm, Rear: 500-600mm
Water Resistance
IP67 (Weatherproof)
Operating Temperature
-30°C to +70°C
Installation Type
In-Bumper Mount (Drilling Required)
Vehicle Compatibility
Passenger Vehicles, SUVs, Vans, 12V/24V Systems
Warranty
Standard Manufacturer Warranty
Country of Origin
To be added
Frequently Asked Questions
Q: What's the advantage of the LED display compared to buzzer-only parking sensors?
A: The LED display provides visual distance indicators showing exactly how close you are to obstacles through colour-coded zones (typically green=safe, amber=caution, red=danger), allowing you to judge distance at a glance without relying solely on beep frequency interpretation. This is especially helpful in noisy environments where buzzer sounds might be difficult to hear, or when you need precise distance feedback for tight parking spaces. The dual system gives you both visual confirmation and audible alerts, providing redundant safety feedback. Many drivers find the LED display more intuitive than counting beeps, particularly when parking in challenging spaces requiring millimetre-perfect positioning.
Q: Can I install all 4 sensors on the rear bumper, or should I split them between front and rear?
A: The APS401 includes 4 sensors designed for comprehensive coverage of either front OR rear bumper, not split between both. Installing all 4 sensors on one bumper provides full-width coverage eliminating blind spots on that bumper. Most users install all 4 sensors on the rear bumper since reversing is where parking assistance is most critical. For complete front AND rear protection, you would need two APS401 systems (8 sensors total) or consider an 8-sensor system designed for dual bumper coverage. The 4-sensor single-bumper configuration provides significantly better coverage than 2-sensor systems, detecting obstacles across the entire bumper width.
Q: How do I mount the LED display, and will it obstruct my view?
A: The LED display is compact and typically mounts on the dashboard top near the windscreen base, attached with double-sided tape or the included mounting bracket. The 8m cable provides flexibility to position the display where it's easily visible without obstructing your forward view - common locations include dashboard center near climate controls, upper dashboard near rearview mirror base, or A-pillar area. The display should be positioned where you can see it with minimal eye movement while still watching mirrors during parking. Most users find positioning near the top center of the dashboard provides good visibility without obstruction. Consider display placement during installation planning to ensure convenient viewing angle and cable routing.
Q: What's the difference between front mode and rear mode detection ranges?
A: Front mode (0.3-0.9m) is optimized for forward parking and low-speed manoeuvring where you need close-range detection for parking barriers, poles, or low obstacles. The shorter range prevents constant alerts from distant objects during normal driving. Rear mode (0.3-2.5m) provides extended detection for reversing where you need more advance warning as your view behind is typically more limited than forward view. The 2.5m range gives adequate warning time to stop before contacting obstacles while reversing. Front sensors automatically activate when brakes are applied at low speeds, while rear sensors activate when reverse gear is engaged, ensuring appropriate detection range for each driving situation.
Q: Will this system work if I have a tow bar or bike rack permanently mounted?
A: Yes, the tow bar adjustment feature (DIP Switch 2) specifically addresses this situation for rear installations. When enabled, the system adjusts the sensor detection pattern to ignore fixed objects directly behind the bumper like tow balls, bike racks, or rear-mounted accessories, preventing constant false alerts while still detecting moving obstacles or objects that shouldn't be there. This makes the APS401 practical for vehicles with permanent rear fixtures. However, the sensors cannot distinguish between your trailer and other obstacles, so when towing you should rely on mirrors and cameras rather than parking sensors, as the trailer itself will trigger constant alerts regardless of adjustment settings.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
AXIS APS401B - 4-Sensor Parking System with Selectable Buzzer Volume and Dual Mounting
Versatile 4-sensor parking system designed for passenger vehicle front or rear bumper installation featuring audible buzzer proximity alerts with selectable 70-110dB volume levels accommodating different hearing preferences and noise environments, dual mounting options with traditional in-bumper drilling or innovative under-mount installation eliminating visible holes for factory appearance preservation, adjustable detection range via DIP switches with front setting 0.3-1.5m for extended low-speed coverage, paintable 18mm ABS sensors with IP68 water resistance for harsh weather conditions, wide 9-32V DC input range compatible with 12V and 24V vehicle electrical systems, auto on/off function with brake activation for front installation convenience, tow bar adjustment capability for rear mounting with trailers or accessories, 8m buzzer cable and 3.5m sensor cables for flexible installation, ideal for sedans, wagons, SUVs, commercial vans, and fleet applications requiring customizable parking assistance without visual displays.
Product Overview
The AXIS APS401B is a versatile 4-sensor parking system engineered to provide comprehensive parking assistance for passenger vehicles through audible proximity alerts with unique customization options addressing individual preferences and vehicle aesthetics. The system uses four ultrasonic sensors mounted across the bumper providing full-width coverage that detects obstacles and triggers an audible buzzer with selectable volume levels (70-110dB) allowing users to adjust alert loudness for their hearing comfort and vehicle noise environment - quieter settings for sensitive hearing or quiet cabins, louder settings for noisy work vehicles or hearing-impaired drivers. The innovative dual mounting system offers both traditional in-bumper installation requiring 18.3mm holes and under-mount installation that attaches sensors beneath the bumper edge eliminating visible drilling for owners wanting factory appearance preservation. The flexible DIP switch configuration allows installation on either front or rear bumpers with front mode extended detection to 1.5m providing earlier warning during low-speed manoeuvring compared to standard systems.
Important Notes:
Professional Installation Recommended: Both mounting methods and electrical connections require automotive experience. Professional fitting ensures optimal sensor positioning and performance.
Mounting Method Selection: Choose in-bumper (drilled) or under-mount (no drilling) based on appearance preferences and bumper design compatibility.
Paintable Sensors: In-bumper sensors should be painted to match bumper colour. Under-mount sensors remain hidden beneath bumper edge.
4 Sensors for Front OR Rear: System includes four sensors for comprehensive single-bumper coverage (front OR rear only).
Extended Front Range: 0.3-1.5m front detection range longer than standard systems providing earlier warning during parking manoeuvres.
Key Features
4 Ultrasonic Sensors - Full-width bumper coverage detects obstacles across entire parking area preventing blind spots.
Selectable Buzzer Volume - Adjustable 70-110dB volume levels accommodate different hearing preferences and noise environments.
Dual Mounting Options - Choose traditional in-bumper drilling or innovative under-mount installation for no-drill factory appearance.
Extended Front Detection - 0.3-1.5m front range provides earlier warning during low-speed parking and manoeuvring.
Audible Proximity Alerts - Increasing beep frequency as obstacles approach provides clear distance guidance.
Front or Rear Installation - DIP switch selection configures system for front bumper or rear bumper use.
Paintable ABS Sensors - 18mm in-bumper sensors can be painted to match vehicle colour for seamless integration.
IP68 Water Resistance - Fully waterproof sensors operate reliably in rain, car washes, and harsh weather.
Wide Voltage Compatibility - 9-32V DC input suitable for 12V passenger vehicles and 24V commercial vehicles.
Auto On/Off with Brake - Front installation automatically activates when brake applied for parking convenience.
Tow Bar Adjustment - Rear installation supports adjustments preventing false alerts from trailers or bike racks.
Extended Cable Lengths - 8m buzzer cable and 3.5m sensor cables accommodate various vehicle sizes and installations.
Compact Control Box - 100 x 54 x 24mm control unit easily concealed behind dashboard or in boot.
Wide Temperature Range - Operates reliably from -30°C to +85°C suitable for extreme Australian conditions.
No Display Needed - Audible-only system reduces installation complexity and dashboard clutter for minimalist approach.
Technical Specifications
Specification
Details
Brand
AXIS
Model
APS401B
SKU
APS401B
Barcode
9321886016321
Product Type
4-Sensor Parking System with Buzzer
Number of Sensors
4 Ultrasonic Sensors
Rated Voltage
12/24V DC
Operating Range
9-32V DC
Operating Current
20-150mA @ 12V
Alert Type
Audible Buzzer (70-110dB Selectable)
Buzzer Cable Length
8 Metres
Control Box Dimensions
100 x 54 x 24mm
Power Lead Length
4.5 Metres
DIP Switch 1
Front or Rear Use Selection
DIP Switch 2
Rear Range Select / Tow Bar Adjustment
Front Mode Detection
0.3-1.5 Metres
Rear Mode Detection
Not Specified (Standard Range)
Auto Activation
Yes - With Brake (Front Installation)
Sensor Type
Paintable ABS Plastic
Sensor Size
18mm Diameter
Sensor Hole Cut-out
18.3mm (In-Bumper Mount)
Sensor Cable Length
3.5 Metres Each
Mounting Options
In-Bumper Mount (Drilled) or Under-Mount (No Drilling)
Sensor Installation Height
Front: 400-500mm, Rear: 500-600mm
Water Resistance
IP68 (Fully Waterproof)
Operating Temperature
-30°C to +85°C
Sensor Dimensions
26W x 26H x 23.8D mm
Under Mount Dimensions
61W x 31H x 22.4D mm
Vehicle Compatibility
Passenger Vehicles, SUVs, Vans, 12V/24V Systems
Warranty
Standard Manufacturer Warranty
Country of Origin
To be added
Frequently Asked Questions
Q: What's the difference between in-bumper mount and under-mount installation?
A: In-bumper mount is the traditional method requiring drilling four 18.3mm holes in your bumper face with sensors visible (but paintable to match). Under-mount installation attaches sensors beneath the bumper edge using brackets, eliminating visible holes and maintaining factory appearance - sensors remain hidden below the bumper lip. Choose in-bumper for maximum flexibility and standard appearance, or under-mount if you want no-drill installation preserving resale value or lease return requirements. Under-mount effectiveness depends on bumper design - some bumper shapes may not accommodate under-mount properly. Professional installer can advise which method suits your specific vehicle best.
Q: Why would I want to adjust the buzzer volume, and how loud is 110dB?
A: The selectable 70-110dB volume range accommodates different users and environments. Lower 70dB setting suits quiet vehicle cabins, sensitive hearing, or drivers who find standard parking sensors too loud or annoying. Higher 110dB setting benefits noisy work vehicles (diesels, commercial vans), hearing-impaired drivers, or vehicles with poor sound insulation where standard volume might not be audible. For reference, 70dB is similar to normal conversation volume, while 110dB approaches maximum comfortable listening levels. Most users start at mid-range and adjust based on preference. The adjustability makes this system suitable for diverse users from elderly drivers needing louder alerts to younger drivers preferring subtle warnings.
Q: What's the advantage of the extended 1.5m front detection range?
A: The extended 0.3-1.5m front detection (compared to standard 0.3-0.9m systems) provides significantly earlier warning when approaching obstacles during forward parking or low-speed manoeuvring. The extra 0.6m warning distance gives you more reaction time to stop, particularly useful when parking in tight spaces, approaching parking barriers that might damage low bumpers, or detecting low obstacles like parking bollards or concrete wheelstops. This extended range is especially valuable for vehicles with limited forward visibility, drivers new to their vehicle's dimensions, or situations requiring millimetre-perfect parking positioning. The system still detects close objects (0.3m minimum) while providing advance warning much earlier than standard systems.
Q: Can I install all 4 sensors on one bumper for maximum coverage?
A: Yes, the APS401B is designed with all 4 sensors intended for installation on either front OR rear bumper (not split between both), providing comprehensive full-width coverage eliminating blind spots on that bumper. Most users install all 4 sensors on the rear bumper since reversing typically requires more assistance due to limited rearward visibility. The 4-sensor configuration detects obstacles across the entire bumper width, significantly superior to 2-sensor systems that may miss objects between sensors. For complete front AND rear protection, you would need two APS401B systems (8 sensors total), though most drivers find single-bumper coverage adequate with primary installation on the rear.
Q: Does the under-mount installation work as well as drilling into the bumper?
A: Under-mount installation can work effectively when properly installed on compatible bumper designs, though in-bumper mounting is generally considered optimal for sensor performance. Under-mount sensors detect obstacles from beneath the bumper edge which slightly alters the detection pattern compared to forward-facing drilled sensors - you may experience marginally different detection angles or ranges. Success depends heavily on your specific bumper shape, ground clearance, and sensor positioning. Some bumpers with complex curves, excessive ground clearance, or inward-angled lower edges may not suit under-mount installation. Professional installers can assess your vehicle and recommend the most suitable mounting method. Many users successfully use under-mount achieving excellent results without visible bumper modifications.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
AXIS APS401R - 4-Sensor Commercial Parking System with Rubber Sensors and LED Display
Heavy-duty 4-sensor parking system specifically designed for commercial vehicles with steel bumpers featuring rugged angled rubber sensors engineered for tough industrial environments, LED visual display and audible buzzer proximity alerts providing dual alert system with visual distance indicators and increasing tone frequency, dual mounting options with traditional in-bumper drilling or under-mount installation suitable for steel bumper applications, adjustable detection range via DIP switches with front setting 0.3-0.9m and rear setting 0.3-2.5m, IP68 water resistance for harsh weather and commercial wash conditions, wide 9-32V DC input range compatible with 12V and 24V commercial vehicle electrical systems, auto on/off function with brake activation, tow bar adjustment capability for trailers and commercial accessories, 8m LED display cable and 3.5m sensor cables, ideal for delivery vans, trucks, buses, work vehicles, fleet operations, construction equipment, and commercial applications requiring durable parking assistance.
Product Overview
The AXIS APS401R is a heavy-duty 4-sensor parking system specifically engineered for commercial vehicle applications where standard plastic sensors would not survive the demanding operating conditions of steel bumpers, industrial environments, and heavy-duty commercial use. The rugged angled rubber sensors withstand impacts, vibration, temperature extremes, and harsh conditions encountered in delivery operations, construction sites, mining environments, and fleet applications where standard ABS sensors would crack or fail. The system provides comprehensive parking assistance through combined LED visual display showing precise distance zones and audible buzzer alerts with increasing frequency as obstacles approach. The dual mounting system accommodates both traditional in-bumper drilling through steel bumpers and under-mount installation beneath bumper edges, providing installation flexibility for various commercial vehicle configurations. Wide 9-32V DC compatibility ensures operation across diverse fleet vehicles from 12V light commercials to 24V trucks and buses.
Important Notes:
Commercial Vehicle Focus: Specifically designed for steel bumpers and commercial applications. Rubber sensors withstand harsh conditions standard ABS sensors cannot.
Professional Installation Essential: Steel bumper drilling and commercial vehicle electrical integration requires qualified technicians with appropriate tools and expertise.
Steel Bumper Drilling: Installation through steel bumpers requires specialized drill bits, cutting fluid, and rust prevention treatment around drilled holes.
4 Sensors for Front OR Rear: System includes four sensors for comprehensive single-bumper coverage (front OR rear only).
LED Display Mounting: Display requires visible mounting location in commercial vehicle cabin considering driver sight lines and dashboard configuration.
Key Features
Rugged Angled Rubber Sensors - Heavy-duty construction withstands impacts, vibration, and harsh commercial environments where plastic sensors fail.
LED Visual Display - Clear distance indicators provide at-a-glance visual feedback ideal for commercial drivers.
Audible Buzzer Alerts - 70-90dB buzzer with increasing beep frequency provides audible distance guidance.
Dual Alert System - Combined visual and audible alerts ensure comprehensive feedback in noisy commercial environments.
Steel Bumper Compatible - Specifically designed for installation through steel commercial vehicle bumpers.
Dual Mounting Options - Traditional in-bumper drilling or under-mount installation for commercial vehicle flexibility.
Front or Rear Installation - DIP switch selection configures system for front bumper or rear bumper use.
Adjustable Detection Range - Front: 0.3-0.9m for manoeuvring. Rear: 0.3-2.5m for reversing and loading docks.
IP68 Water Resistance - Fully waterproof sensors operate reliably in rain, commercial washes, and harsh industrial conditions.
Wide Voltage Compatibility - 9-32V DC input suitable for 12V light commercial and 24V heavy commercial vehicles.
Auto On/Off with Brake - Front installation automatically activates when brake applied for commercial parking convenience.
Tow Bar Adjustment - Supports adjustments for commercial trailers, tail lifts, and rear equipment preventing false alerts.
Extended Cable Lengths - 8m LED display cable and 3.5m sensor cables accommodate larger commercial vehicle dimensions.
Commercial Temperature Range - Operates reliably from -30°C to +85°C suitable for extreme climate and industrial conditions.
Fleet Application Ready - Durable construction and wide compatibility ideal for mixed fleet installations across vehicle types.
Technical Specifications
Specification
Details
Brand
AXIS
Model
APS401R
SKU
APS401R
Barcode
9321886016291
Product Type
4-Sensor Commercial Parking System with LED Display
Number of Sensors
4 Ultrasonic Rubber Sensors
Rated Voltage
12/24V DC
Operating Range
9-32V DC
Operating Current
20-150mA @ 12V
Alert Type
LED Visual Display + Audible Buzzer (70-90dB)
LED Display Cable
8 Metres
Control Box Dimensions
100 x 54 x 24mm
Power Lead Length
4.5 Metres
DIP Switch 1
Front or Rear Use Selection
DIP Switch 2
Front Range Select / Tow Bar Adjustment
Front Mode Detection
0.3-0.9 Metres
Rear Mode Detection
0.3-2.5 Metres
Auto Activation
Yes - With Brake (Front Installation)
Sensor Type
Angled Rubber (Heavy-Duty)
Sensor Size
20mm Diameter
Sensor Hole Cut-out
18.8mm
Sensor Cable Length
3.5 Metres Each
Mounting Options
In-Bumper Mount (Steel) or Under-Mount
Sensor Installation Height
Front: 400-500mm, Rear: 500-600mm
Water Resistance
IP68 (Fully Waterproof)
Operating Temperature
-30°C to +85°C
Sensor Dimensions
26W x 26H x 23.8D mm
Under Mount Dimensions
61W x 31H x 22.4D mm
Vehicle Compatibility
Commercial Vehicles, Vans, Trucks, Buses, 12V/24V Systems
Application Focus
Steel Bumpers, Commercial Fleets, Industrial Use
Warranty
Standard Manufacturer Warranty
Country of Origin
To be added
Frequently Asked Questions
Q: Why do I need rubber sensors instead of standard ABS plastic sensors for commercial vehicles?
A: Rubber sensors are significantly more durable than ABS plastic sensors for commercial vehicle environments. The angled rubber construction withstands repeated impacts from loading dock walls, industrial equipment, vibration from heavy-duty suspension systems, temperature extremes in commercial operations, and physical abuse that would crack standard plastic sensors. Steel bumpers also conduct more vibration and impact forces than plastic bumpers - rubber sensors absorb these forces better preventing premature failure. For delivery vans, trucks, buses, or work vehicles operating in industrial environments, construction sites, or heavy-duty applications, rubber sensors provide the longevity and reliability that plastic sensors cannot match in commercial service.
Q: Can I install this system through a steel bumper, and what's involved?
A: Yes, the APS401R is specifically designed for steel bumper installation. However, drilling through steel bumpers requires specialized equipment and expertise - high-quality HSS or cobalt drill bits, cutting fluid to prevent overheating, accurate measurement and marking, debur tools for clean holes, and rust prevention treatment (primer/paint) around drilled holes to prevent corrosion. Most commercial vehicle owners opt for professional installation by qualified technicians with appropriate tools and experience drilling steel bumpers safely. Improper drilling can damage bumper structural integrity, create sharp edges, or start rust that spreads over time. Professional installation typically costs more than passenger vehicle installation but ensures proper execution and long-term durability.
Q: Will this system work on my 24V truck or bus?
A: Yes, the APS401R features wide 9-32V DC operating range making it fully compatible with both 12V light commercial vehicles (vans, utilities) and 24V heavy commercial vehicles (trucks, buses, large delivery vehicles). The system automatically adapts to your vehicle's electrical system voltage. This versatility makes the APS401R ideal for mixed commercial fleets operating both light and heavy vehicles, allowing standardized parking sensor installation across entire fleet using single product. Installation procedures are similar regardless of voltage, though professional installation is strongly recommended for commercial vehicles to ensure proper electrical integration and compliance with commercial vehicle standards.
Q: What's the advantage of the LED display for commercial drivers?
A: The LED display is particularly beneficial for commercial drivers who may be less familiar with their vehicle's exact dimensions (rental trucks, pool vehicles, multiple fleet vehicles) or who frequently manoeuvre in tight loading docks, warehouses, or urban delivery areas. The visual distance indicators show exactly how much clearance remains at a glance without requiring drivers to interpret beep frequency patterns, especially helpful in noisy commercial environments where buzzer sounds might be difficult to distinguish. The display remains visible even when cab noise from diesel engines, air brakes, or industrial sounds makes audible alerts less effective. Many fleet operators find LED displays reduce parking damage incidents compared to buzzer-only systems.
Q: Can I install sensors on both front and rear bumpers for complete protection?
A: The APS401R includes 4 sensors designed for installation on either front OR rear bumper (not split between both), providing comprehensive coverage on one bumper. For complete front AND rear protection on commercial vehicles, you would need two APS401R systems (8 sensors total). Most commercial operators prioritize rear bumper installation since reversing causes the majority of parking damage in commercial operations - loading dock collisions, backing into obstacles, or blind spot issues while reversing. Front installation benefits vehicles frequently parking in tight urban spaces or loading bays requiring precise front positioning. Consider your specific operational needs and damage history when deciding single or dual bumper coverage.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
AXIS APS401T - 4-Sensor Heavy-Duty Truck Parking System with Extended Cables
Professional-grade 4-sensor parking system specifically engineered for trucks, buses, RVs, and caravans featuring heavy-duty angled rubber sensors designed for commercial vehicle steel bumpers and harsh operating conditions, extended 15.8m buzzer cable length accommodating large truck cabins and long wheelbase vehicles, audible buzzer proximity alerts with increasing frequency as obstacles approach, 0.3-1.5m detection range optimized for truck reversing and loading dock applications, IP67 dust and waterproof control box withstanding harsh commercial environments and weather exposure, rugged IP68 waterproof rubber sensors for extreme conditions, wide 9-32V DC input range compatible with 12V and 24V commercial vehicle electrical systems, dual mounting options with in-bumper steel drilling or under-mount installation, ideal for trucks, buses, motorhomes, caravans, delivery vehicles, fleet operations, construction equipment, and heavy-duty commercial applications requiring reliable durable parking assistance.
Product Overview
The AXIS APS401T is a heavy-duty 4-sensor parking system specifically engineered for trucks, buses, RVs, and caravans where standard passenger vehicle parking sensors would be inadequate due to vehicle size, electrical system differences, and harsh operating conditions. The rugged angled rubber sensors withstand the demanding conditions of commercial vehicle operations including steel bumper vibration, loading dock impacts, extreme temperatures, and industrial environments where standard plastic sensors would fail. The extended 15.8m buzzer cable is specifically designed for large vehicle cabins, long wheelbase trucks, motorhomes, and buses where standard 8m cables would not reach from rear bumper to driver position. The IP67 rated control box provides superior dust and water protection for mounting in exposed locations under vehicles or in engine bays where passenger vehicle control boxes would fail. Wide 9-32V DC compatibility ensures operation across diverse commercial vehicles from 12V campervans to 24V semi-trailers and coaches.
Important Notes:
Truck/Commercial Vehicle Focus: Specifically designed for trucks, buses, RVs, and caravans. Extended cables and heavy-duty construction exceed passenger vehicle requirements.
Professional Installation Required: Commercial vehicle electrical integration and steel bumper mounting requires qualified technicians with commercial vehicle experience.
Extended Cable Lengths: 15.8m buzzer cable accommodates large vehicles. Excess cable should be secured properly, not cut or shortened.
No Visual Display: Audible-only system reduces complexity for commercial installations. Consider adding aftermarket display if visual feedback needed.
IP67 Control Box: Higher water/dust resistance allows exposed mounting locations unsuitable for standard control boxes.
Key Features
Heavy-Duty Rubber Sensors - Rugged angled construction withstands commercial vehicle vibration, impacts, and harsh operating conditions.
Extended 15.8m Buzzer Cable - Specifically designed for trucks, buses, motorhomes, and long wheelbase vehicles where standard cables won't reach.
Audible Proximity Alerts - Clear buzzer with increasing beep frequency provides distance guidance for truck reversing operations.
0.3-1.5m Detection Range - Optimized range for truck loading docks, reversing manoeuvres, and commercial parking applications.
IP67 Control Box - Dust and waterproof control unit suitable for exposed mounting under vehicle or in engine bay.
IP68 Waterproof Sensors - Fully waterproof sensors operate reliably in rain, commercial washes, and extreme weather conditions.
12V/24V Compatible - Wide 9-32V DC input suitable for light commercial 12V and heavy commercial 24V electrical systems.
Dual Mounting Options - In-bumper steel drilling or under-mount installation for commercial vehicle flexibility.
Angled Rubber Construction - Durable material absorbs impacts and vibration better than plastic sensors in truck applications.
Wide Temperature Range - Operates reliably from -30°C to +85°C suitable for extreme climate and commercial conditions.
2.1m Sensor Cables - Adequate length for truck bumper installations with routing flexibility through large vehicle structures.
Commercial Grade Wiring - Heavy-duty cables and connections withstand commercial vehicle electrical environments.
Fleet Application Ready - Durable construction ideal for fleet installations across mixed commercial vehicle types.
RV and Caravan Compatible - Perfect for motorhomes, caravans, and recreational vehicles requiring extended cable reach.
No Complex Configuration - Simple operation without DIP switches or complex setup reduces installation time and training requirements.
Technical Specifications
Specification
Details
Brand
AXIS
Model
APS401T
SKU
APS401T
Barcode
9321886015034
Product Type
4-Sensor Truck Parking System with Buzzer
Number of Sensors
4 Ultrasonic Rubber Sensors
Rated Voltage
12/24V DC
Operating Range
9-32V DC
Operating Current
350mA @ 12V
Detection Range
0.3-1.5 Metres
Alert Type
Audible Buzzer
Buzzer Cable Length
15.8 Metres (Extended for Trucks)
Control Box Water Resistance
IP67 (Dust/Waterproof)
Control Box Dimensions
106W x 27H x 80D mm
Power Lead Length
1.4 Metres
Sensor Type
Angled Rubber (Heavy-Duty)
Sensor Size
20mm Diameter
Sensor Dimensions
26W x 26H x 23.8D mm
Sensor Cable Length
2.1 Metres Each
Mounting Options
In-Bumper Mount (Steel) or Under-Mount
Sensor Water Resistance
IP68 (Fully Waterproof)
Operating Temperature
-30°C to +85°C
Under Mount Dimensions
61W x 31H x 22.4D mm
Vehicle Compatibility
Trucks, Buses, RVs, Caravans, 12V/24V Commercial Vehicles
Application Focus
Heavy-Duty Commercial, Fleet, Recreational Vehicles
Visual Display
No - Audible Only
Warranty
Standard Manufacturer Warranty
Country of Origin
To be added
Frequently Asked Questions
Q: Why does this system have a 15.8m buzzer cable, and do I need that length?
A: The extended 15.8m cable is specifically designed for trucks, buses, motorhomes, and caravans where the distance from rear bumper to driver's cabin significantly exceeds passenger vehicles. Standard 8m cables used in car systems won't reach the driver position in large vehicles. For example, a semi-trailer, coach bus, or large motorhome may have 10-12+ metres from rear sensors to the cab, requiring the extended cable. Even if your vehicle doesn't need the full 15.8m, excess cable should be neatly coiled and secured (not cut) under the vehicle or in accessible locations for future use or vehicle changes within your fleet.
Q: Will this system work on my motorhome or caravan, or is it only for commercial trucks?
A: Yes, the APS401T is perfect for motorhomes, caravans, RVs, and recreational vehicles. While marketed for "trucks," the system suits any large vehicle requiring extended cable reach and durable sensors. Motorhomes and caravans benefit from the 15.8m cable accommodating their length, heavy-duty sensors withstanding travel conditions, and wide voltage compatibility for various RV electrical systems. Many RV owners install on the rear to prevent reversing damage to expensive recreational vehicles. The system works equally well on 12V campervans and motorhomes as it does on 24V commercial vehicles.
Q: Can I install this system myself, or do I need professional help?
A: While technically possible for experienced DIYers with commercial vehicle knowledge, professional installation is strongly recommended for trucks and large vehicles. Installation involves drilling steel bumpers (requiring specialized tools and rust prevention), routing cables through large vehicle structures, integrating with 12V or 24V electrical systems, mounting control box in exposed locations requiring IP67 protection, and ensuring proper sensor positioning for truck-specific applications. Professional installers experienced with commercial vehicles understand appropriate mounting heights for truck bumpers, cable routing avoiding pinch points or heat sources, and proper electrical integration. Installation costs vary ($200-400 typically) but ensure reliable long-term operation.
Q: What's the advantage of the IP67 control box compared to standard parking sensors?
A: The IP67 dust and waterproof rating provides significantly superior protection compared to standard passenger vehicle control boxes, allowing mounting in exposed locations under trucks, in engine bays, or on chassis rails where standard boxes would fail from water ingress or dust accumulation. Commercial vehicles often lack protected mounting locations available in passenger cars, requiring control boxes that withstand direct weather exposure, underbody water spray, pressure washing, and dusty environments. The IP67 rating ensures reliable operation in harsh commercial conditions where standard IP65 or lower rated boxes would corrode or fail prematurely.
Q: Does this system work with 24V trucks and buses, or only 12V vehicles?
A: Yes, the APS401T features wide 9-32V DC operating range making it fully compatible with both 12V light commercial vehicles (vans, motorhomes, utilities) and 24V heavy commercial vehicles (trucks, semi-trailers, buses, coaches). The system automatically adapts to your vehicle's electrical system voltage without requiring configuration or voltage selection. This versatility makes the APS401T ideal for mixed commercial fleets operating diverse vehicle types, allowing standardized parking sensor systems across entire fleet regardless of voltage differences. Installation procedures are similar for both voltages, though 24V integration should be performed by technicians experienced with heavy commercial electrical systems.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
AXIS APS401W - 4-Sensor Wireless Truck Parking System with LED Display
Advanced wireless 4-sensor parking system specifically engineered for trucks, buses, and coaches featuring wireless transmitter eliminating cable routing between rear bumper control box and cab-mounted LED display simplifying installation in large vehicles, LED visual display with directional indicators showing precise obstacle location and distance, integrated buzzer with mute function for visual-only operation, extended 0.3-2.6m detection range ideal for truck reversing and loading dock applications, IP67 dust and waterproof control box for exposed mounting, IP68 waterproof angled sensors withstanding extreme -40°C to +80°C temperatures, adjustable range settings with tow bar and spare wheel tire compensation, up to 30m wireless transmission range accommodating trucks, buses, and articulated vehicles, wide 10-30V DC input compatible with 12V and 24V commercial systems, dual mounting options, ideal for trucks, buses, coaches, motorhomes, and commercial fleet applications requiring simplified wireless installation.
Product Overview
The AXIS APS401W is an advanced wireless 4-sensor parking system specifically engineered for trucks, buses, and coaches where the innovative wireless design eliminates the complex cable routing required in large commercial vehicles between rear bumper sensors and cab-mounted display. Traditional wired systems require running cables through truck chassis, along frame rails, and through multiple bulkheads - a time-consuming installation process. The APS401W wireless transmitter communicates up to 30m between the rear-mounted control box and cab-mounted LED display, dramatically simplifying installation while maintaining reliable communication. The LED display provides directional visual indicators showing exactly which sensor detects obstacles and at what distance, combined with audible buzzer alerts featuring mute function for drivers preferring visual-only operation in noisy truck cabins. The extended 0.3-2.6m detection range accommodates truck-specific applications including loading docks, reversing into tight spaces, and commercial parking areas. Adjustable range settings compensate for permanent rear fixtures like spare wheel carriers or tow bars preventing false alerts.
Important Notes:
Wireless Installation Advantage: No cable routing between control box and display simplifies truck/bus installation significantly compared to wired systems.
30m Wireless Range: Adequate for most trucks and buses. Verify distance from rear bumper to cab if operating articulated or unusually long vehicles.
Professional Installation Recommended: While wireless simplifies installation, commercial vehicle electrical integration and sensor mounting still requires expertise.
Tow Bar/Spare Wheel Adjustment: Range adjustment compensates for permanent rear fixtures. System cannot distinguish trailer from obstacles when towing.
Display Requires Power: While wireless data transmission eliminates one cable, display still requires 12V/24V power connection in cab.
Key Features
Wireless Communication - Up to 30m wireless range eliminates complex cable routing through truck chassis simplifying installation.
LED Visual Display - Directional indicators show precise obstacle location and distance for confident truck reversing.
Integrated Buzzer with Mute - Audible alerts with mute function allows visual-only operation in noisy commercial cabins.
Extended 2.6m Detection - Longer range ideal for truck loading docks, reversing operations, and commercial parking applications.
IP67 Waterproof Control Box - Dust and water resistant allowing exposed mounting under vehicles or on chassis.
IP68 Waterproof Sensors - Fully waterproof sensors operate reliably in extreme weather and commercial wash conditions.
Extreme Temperature Range - Operates from -40°C to +80°C suitable for severe climate and industrial environments.
12V/24V Compatible - Wide 10-30V DC input suitable for light commercial 12V and heavy commercial 24V systems.
Adjustable Range Settings - Tow bar and spare wheel compensation prevents false alerts from permanent rear fixtures.
Dual Mounting Options - In-bumper drilling or under-mount installation for commercial vehicle flexibility.
22mm Angled Sensors - Heavy-duty construction withstands commercial vehicle vibration and impacts.
Directional Detection - Display shows which specific sensor detects obstacles for precise positioning feedback.
Simplified Installation - Wireless design reduces installation time and complexity in large commercial vehicles.
Fleet Application Ready - Reliable wireless communication and durable construction ideal for mixed fleet installations.
Compact Display - 108 x 30 x 51mm display easily mounts on truck dashboard or windscreen area.
Technical Specifications
Specification
Details
Brand
AXIS
Model
APS401W
SKU
APS401W
Barcode
9321886015041
Product Type
4-Sensor Wireless Truck Parking System with LED Display
Number of Sensors
4 Ultrasonic Angled Sensors
Rated Voltage
12/24V DC
Operating Range
10-30V DC
Operating Current
130mA @ 12V
Detection Range
0.3-2.6 Metres
Alert Type
LED Visual Display with Directional Indicators + Buzzer
Buzzer Mute
Yes - Visual-Only Operation Available
Display Dimensions
108W x 30H x 51D mm
Range Adjustment
Min-Max for Tow Bar / Spare Wheel Compensation
Wireless Communication
Yes - Up to 30m Range
Control Box Water Resistance
IP67 (Dust/Waterproof)
Control Box Power Leads
1.0 Metre
Sensor Type
Angled Heavy-Duty
Sensor Size
22mm Diameter
Sensor Dimensions
25.6W x 25.5H x 22D mm
Sensor Cable
0.15m Fly Lead + 2.4m Extension Lead
Mounting Options
In-Bumper Mount or Under-Mount
Ultrasonic Frequency
58KHz
Sensor Water Resistance
IP68 (Fully Waterproof)
Operating Temperature
-40°C to +80°C
Under Mount Dimensions
70W x 37H x 30D mm
Vehicle Compatibility
Trucks, Buses, Coaches, Motorhomes, 12V/24V Commercial Vehicles
Application Focus
Large Commercial Vehicles Requiring Wireless Installation
Warranty
Standard Manufacturer Warranty
Country of Origin
To be added
Frequently Asked Questions
Q: What's the main advantage of wireless parking sensors compared to wired systems?
A: The wireless design eliminates the most challenging aspect of truck parking sensor installation - running cables from the rear bumper through the truck chassis, along frame rails, through cab firewall, and to the dashboard display. This cable routing can take hours and requires drilling access holes, dealing with chassis obstructions, and protecting cables from heat and moving parts. The APS401W wireless transmitter communicates up to 30m from rear control box to cab display wirelessly, reducing installation time by 50-70% and eliminating cable-related failure points. This is especially valuable for buses and coaches with passenger compartments between rear and cab, or articulated trucks where cable routing is extremely complex.
Q: Will the 30m wireless range work for my truck or bus?
A: The 30m wireless transmission range accommodates most trucks, buses, and coaches. Measure the distance from your rear bumper (where control box mounts) to your cab dashboard (where display mounts) - most rigid trucks are 8-12m, buses 10-15m, and even large coaches rarely exceed 20m, providing adequate margin. The wireless signal penetrates metal chassis and body panels, though very thick steel or aluminum structures may slightly reduce range. For articulated trucks or B-double configurations, the wireless range may be marginal - verify your specific vehicle length. If uncertain, professional installers can test signal strength before final installation.
Q: Does the wireless display still need power, or is it completely wireless?
A: The display requires 12V or 24V power connection in the cab - only the data communication between sensors and display is wireless. You'll need to connect the display to your vehicle's electrical system (typically tapping into ignition-switched power for automatic on/off). The wireless design eliminates the long signal cable from rear to cab but doesn't eliminate electrical power requirements. Installation still requires basic automotive electrical knowledge for power connections, though significantly simpler than routing complete cable assemblies through the vehicle. Most installers can power the display from existing cab circuits without extensive wiring modifications.
Q: What does the tow bar/spare wheel range adjustment do?
A: This adjustment allows the system to ignore permanent rear fixtures like spare wheel carriers mounted on the bumper or tow balls/hitches that would otherwise trigger constant false alerts. You adjust the detection range to start beyond these fixed objects, so the sensors only alert for obstacles that shouldn't be there. However, this adjustment cannot distinguish between your trailer and other obstacles - when actively towing a trailer, you should disable the parking sensors or rely on mirrors and cameras, as the trailer itself will trigger alerts regardless of range settings. The adjustment is for permanent vehicle-mounted fixtures, not temporarily attached trailers.
Q: Can I use this system on a motorhome or RV, or is it only for commercial trucks?
A: Absolutely, the APS401W is excellent for motorhomes, RVs, coaches, and recreational vehicles. While marketed for "trucks and buses," the wireless design particularly benefits large motorhomes where running cables from rear to cab through living quarters would be extremely difficult. The extended 2.6m detection range suits longer vehicles, the LED display helps with RV reversing in campgrounds, and the wide voltage compatibility works with various RV electrical systems. Many RV owners choose wireless systems specifically to avoid invasive cable installation through finished interior spaces. The system works equally well on luxury motorhomes as commercial coaches.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
AXIS AVT3 - Commercial Vehicle GPS Tracker with 4G LTE and Fleet Management
Rugged IP67 rated 4G LTE GPS tracking device designed for commercial vehicles, trailers, and heavy equipment featuring high-sensitivity 72-channel GLONASS GPS tracking with internal antennas, accident and rollover detection with automatic incident reconstruction, driver ID via RFID/iButton for access control and logbooking, driver safety monitoring including speeding, harsh acceleration, braking, and cornering alerts, remote immobilization capability for theft prevention and fleet security, geofence alerts with up to 500 downloadable geofences, GPS jamming detection, real-time tracking while moving, preventative maintenance reminders based on distance and run hours, lone worker safety with duress pendant support, sensor monitoring for seatbelts and panic buttons, 1100mAh backup battery with intelligent power management, 10+ days flash memory storage for out-of-coverage areas, 8-36V DC operation with self-resetting fuse, ideal for fleet management, equipment monitoring, theft recovery, driver safety programs, and commercial vehicle compliance.
Product Overview
The AXIS AVT3 is a professional-grade 4G LTE GPS tracking device engineered specifically for commercial vehicle fleet management, equipment monitoring, and asset protection in demanding Australian conditions. The ultra-rugged IP67 rated housing withstands fine dust, high-pressure spray, 30-minute submersion in 1m water, and extreme temperatures from -30°C to +60°C, ensuring reliable operation in mining, construction, agriculture, and heavy-duty commercial applications. The high-sensitivity 72-channel GLONASS GPS system with low-noise amplifier provides accurate positioning even in challenging environments with limited sky visibility. Advanced smart technology features including accident and rollover detection automatically save second-by-second GPS data with 60-second pre-incident and 10-second post-incident reconstruction capability, driver ID integration via RFID or iButton for access control and compliance, comprehensive driver safety monitoring detecting speeding, harsh acceleration/braking, and dangerous cornering for insurance and safety programs. The 1100mAh internal backup battery with intelligent power management ensures continuous tracking even when disconnected from vehicle power, while 10+ days flash memory storage preserves tracking data during cellular coverage gaps common in remote Australian operations.
Important Notes:
Subscription Required: Requires ongoing telematics platform subscription for GPS tracking, data transmission, and fleet management features. Contact for subscription pricing.
Professional Installation Recommended: 10-wire harness installation requires automotive electrical expertise for proper power, ground, ignition sensing, and input/output connections.
4G LTE Network: Uses 4G LTE cellular network. Verify coverage in your operating areas, especially remote locations with limited cellular service.
Driver ID Hardware Separate: RFID readers, iButton, or Wiegand interfaces for driver ID sold separately if required.
Backup Battery Charging Limits: Internal battery won't charge below 0°C or above 40°C as safety precaution preventing battery damage.
Key Features
4G LTE Connectivity - High-speed cellular communication for real-time tracking and data transmission with auto-configured APN.
72-Channel GLONASS GPS - High-sensitivity GPS with GLONASS support and low-noise amplifier for accurate positioning in challenging environments.
IP67 Ultra-Rugged Housing - Withstands dust, high-pressure spray, 30-min submersion in 1m water, and -30°C to +60°C temperatures.
Accident & Rollover Detection - Automatic detection with 2-hour flash memory storing second-by-second data for incident reconstruction.
Driver ID Support - Compatible with RFID, iButton, or Wiegand interfaces for driver identification, access control, and logbook compliance.
Driver Safety Monitoring - Tracks speeding, harsh acceleration, braking, cornering, and idling to improve safety and reduce vehicle wear.
Geofence Alerts - Up to 500 downloadable geofences with 100 points each for location-based alerts and fleet management.
Remote Immobilization - Digital outputs connect to relay for remote vehicle shutdown in theft, abuse, or unauthorized use situations.
GPS Jamming Detection - Alerts when GPS interference or jamming detected protecting against theft and tampering.
Real-Time Tracking - Continuous connection while moving for live asset location monitoring and fleet visibility.
Preventative Maintenance - Distance and run-hour based reminders reduce maintenance costs and prevent unexpected breakdowns.
Lone Worker Safety - Interfaces with duress pendants for man-down alerts in lone worker monitoring applications.
Sensor Monitoring - Multiple inputs for seatbelt detection, panic buttons, door switches, and warning device integration.
Theft Recovery Mode - Switches to real-time tracking for stolen asset retrieval with continuous location updates.
Tamper Alerts - Instant notification if device disconnected from power source indicating tampering or theft attempts.
Run Hour & Odometer - Calculates engine hours and distance traveled for asset utilization analysis and billing.
10+ Days Memory Storage - Flash memory stores weeks of tracking data when out of cellular coverage for later upload.
1100mAh Backup Battery - Internal LiPo battery continues tracking when vehicle power disconnected for theft protection.
Intelligent Power Management - Automatically enters <1mA sleep mode when vehicle inactive preventing battery drain.
Self-Resetting Fuse - Built-in automotive fuse simplifies installation and protects device from electrical faults.
Technical Specifications
Specification
Details
Brand
AXIS
Model
AVT3
SKU
AVT3
Barcode
9321886016031
Product Type
4G LTE Commercial Vehicle GPS Tracker
Network Type
4G LTE (LTE-M / NB-IoT)
Cellular Antenna
Internal
APN Configuration
Auto APN Preloaded
GPS Antenna
Internal
GPS Tracking
High Sensitivity 72-Channel GLONASS
GPS Amplifier
Low Noise Signal Booster (LNA)
Accident Detection
Yes - With Incident Reconstruction
Flash Memory Capacity
2 Hours Second-by-Second Data / 10+ Days at 30-Second Intervals
Driver ID
RFID / iButton / Wiegand (Hardware Sold Separately)
Geofence Capacity
Up to 500 Geofences (100 Points Each)
Remote Immobilization
Yes - Via Digital Outputs
GPS Jamming Detection
Yes
Input Voltage
8-36V DC
Operating Current (Moving)
50mA (LTE-M/NB-IoT)
Battery Charging Current
+60mA (When Charging)
Sleep Current
<1mA
Backup Battery
1100mAh LiPo Internal
IP Rating
IP67 (Dust/Water Resistant)
Dimensions
125 x 80 x 25mm
Operating Temperature
-30°C to +60°C (With External Power)
Battery Charging Range
0°C to +40°C (Safety Limitation)
3-Axis Accelerometer
Yes - Movement & G-Force Detection
On-Board Speed Monitoring
Yes - Continuous Speed & Heading
On-Board Temperature
Yes - Internal Temperature Monitoring
Installation Harness
10-Wire, 1 Metre Length
Diagnostic LED
Yes - Operation Status Indicator
Warranty
Standard Manufacturer Warranty
Frequently Asked Questions
Q: Does the AVT3 require an ongoing subscription, and what does it include?
A: Yes, the AVT3 requires an ongoing telematics platform subscription (typically monthly or annual) covering cellular data transmission, GPS tracking platform access, fleet management features, geofence alerts, driver safety reports, and maintenance reminders. Contact us for specific subscription pricing and platform options. The device cannot operate standalone without subscription as GPS tracking data must transmit to and be processed by the telematics platform server.
Q: Can I track my vehicle in real-time, or does it only update periodically?
A: The AVT3 supports both real-time tracking and periodic updates depending on configuration and vehicle status. When moving, the device remains continuously connected providing real-time location updates (typically every 10-30 seconds). When stationary with intelligent power management enabled, it enters sleep mode and updates less frequently to conserve power. The flash memory stores up to 10+ days of tracking data at 30-second intervals when out of cellular coverage.
Q: How does the accident and rollover detection work, and what data is captured?
A: The 3-axis accelerometer continuously monitors vehicle movement, orientation, and G-forces. When extreme velocity changes or orientation shifts exceeding configured thresholds occur, the device triggers accident detection. Second-by-second GPS data including location, speed, heading, and G-forces is saved to flash memory. Upon accident detection, a critical subset (60 seconds before impact + 10 seconds after) automatically uploads for detailed incident reconstruction.
Q: What's involved in installing the AVT3, and can I do it myself?
A: Installation requires connecting the 10-wire harness to vehicle electrical systems including constant 12V/24V power, ground, ignition sense, and optional inputs/outputs for immobilization relays, driver ID readers, or sensors. While mechanically straightforward, proper installation requires automotive electrical knowledge. Professional installation by auto electricians ensures correct power connections, secure mounting, proper configuration, and device activation with the telematics platform.
Q: Will the AVT3 work in remote areas without cellular coverage?
A: The AVT3 includes 10+ days flash memory storage that preserves tracking data when operating outside cellular coverage areas. GPS tracking continues using satellite positioning, with all location and event data saved to internal memory. When the vehicle returns to cellular coverage, stored data automatically uploads reconstructing the complete journey. However, real-time tracking, geofence alerts, and remote commands won't function without cellular connectivity.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
