OEX ACX1101 Split Convoluted Tubing 7mm Internal Diameter 30m Roll Corrugated Polypropylene UL HB/V2 The OEX ACX1101 is a split convoluted tubing sleeve in 7mm internal diameter, supplied in a 30m length. Constructed from corrugated polypropylene with a UL flammability rating of HB or V2, the split design allows cables to be inserted from the side without threading. Rated for continuous operation from -20°C to +90°C with a maximum peak temperature of 120°C. At 7mm ID and 10.4mm OD, it suits a range of individual cables and small wire bundles. Covered by a one year warranty. Product overview The ACX1101 is the workshop-length 30m roll version of the OEX 7mm split convoluted tubing, suited to single-vehicle installations and workshop jobs where the 400m trade-volume ACX1100/400 roll is more than required. The corrugated polypropylene construction provides flexibility for routing around bends while maintaining abrasion and chafing protection. The split design allows cables to be pressed in from the side along the lengthwise opening, making it practical for retrofitting protection to installed harnesses and organising loose cable runs without disconnecting connectors. The UL flammability rating of HB or V2 confirms a tested level of flame resistance suited to general automotive wiring protection use. The operating range of -20°C to +90°C continuous with a 120°C maximum peak temperature covers the wide temperature swings typical of Australian automotive environments, from cold-start mornings to sustained underbonnet heat. The 30m roll suits workshop jobs and single-vehicle installations across automotive, 4WD, caravan, trailer and marine wiring applications. Features and benefits Split design for retrofit installation: Cables snap in from the side without threading, allowing the tubing to be added to existing wiring runs without disconnecting connectors or rerouting cables. Corrugated polypropylene construction: Flexible and resistant to abrasion and chafing, suited to routing through bends and tight spaces in automotive and marine wiring installations. UL flammability rating HB or V2: Tested flame resistance confirming the material meets automotive wiring protection standards for general use applications. 7mm internal diameter and 10.4mm outside diameter: Suits a range of individual cables and small wire bundles up to 7mm maximum diameter. -20°C to +90°C continuous operating range: Covers automotive, underbonnet and cold-climate applications across the operating temperature range typical of Australian conditions. 120°C maximum peak temperature: Provides a safety margin above the continuous rating for short-duration heat exposure. 30m roll: Workshop-friendly length for single-vehicle and multi-circuit jobs without the bulk of the 400m trade roll. One year warranty: Covered by a one year OEX warranty. Technical specs Specification Detail SKU ACX1101 Brand OEX Sleeve Type Split Convoluted Tubing Material Corrugated Polypropylene Inside Diameter 7mm Outside Diameter 10.4mm Maximum Cable Bundle 7mm Length 30m Continuous Operating Temperature -20°C to +90°C Maximum Peak Temperature 120°C Flammability Rating UL HB or V2 Weight 0.36kg Warranty One year Sold As 30m roll Frequently asked questions What is split convoluted tubing? Split convoluted tubing is a flexible ribbed sleeving with a lengthwise split along one side. Cables can be pressed into the split opening rather than threaded through from the end, making it easy to add protection to existing wiring without disconnecting anything. The corrugated construction gives it flexibility and abrasion resistance. What does the UL HB or V2 flammability rating mean? UL flammability ratings indicate how a material behaves when exposed to flame. HB is the base horizontal burn rating, indicating the material burns slowly or self-extinguishes. V2 indicates the material self-extinguishes within 30 seconds of a vertical flame test, though it may drip flaming particles. Both ratings confirm a level of flame resistance suitable for general automotive wiring protection. How does the ACX1101 compare to the ACX1100/400? Both are 7mm split convoluted tubing with the same internal diameter and outside diameter. The ACX1100/400 is manufactured from fire retardant polypropylene and supplied on a 400m high-volume trade roll. The ACX1101 is manufactured from corrugated polypropylene with a UL HB or V2 flammability rating and is supplied on a 30m workshop roll. Select the ACX1101 for single-vehicle jobs and the ACX1100/400 for high-volume trade use. Is this tubing suitable for underbonnet use? Yes. The -20°C to +90°C continuous operating range and 120°C maximum peak temperature make it suitable for most automotive underbonnet environments. For areas with sustained extreme heat exposure, verify the ambient temperature against the tubing rating before use. How do I cut split convoluted tubing to length? Split convoluted tubing can be cut with scissors, side cutters or a sharp blade. Cut between the ribs rather than through them for a cleaner end. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

OEX ACX0928 Australian Made 6 B&S Twin Core Battery Cable Red and Black with Black Outer Sheath 30m Roll OFHC Copper 13.36mm² V90 The OEX ACX0928 is a 6 B&S twin core battery cable with a black outer sheath, supplied on a 30m roll. Red and black conductors each with a 13.36mm² OFHC copper cross-section across 192 strands are enclosed in a common black outer sheath, combining the higher current capacity of 6 B&S battery cable with the convenience of a single protected two-wire run. Rated to V90 (90°C) with UV stabilised PVC insulation and sheath. Compliant with AS/NZS 3808:2000 and RoHS. Covered by a one year warranty. Product overview The ACX0928 steps up from the 8 B&S ACX0927 twin core battery cable with a larger 13.36mm² conductor cross-section and 192 strands per conductor, providing lower resistance and higher current-carrying capacity for longer runs and more demanding dual battery systems, high-capacity winch installations and applications where positive and negative heavy-current feeds need to travel together with protection. The shared black outer sheath routes both conductors in a single neat run, reducing cable management complexity and providing additional mechanical and UV protection compared to two separate single-core cables. At 13.36mm² per conductor with a 192-strand OFHC copper construction, each core provides the high-current capacity of the 6 B&S single core range. The UV stabilised V90 PVC insulation and sheath handle continuous operating temperatures up to 90°C for battery and engine bay installations. The 30m roll suits workshop jobs and single-vehicle heavy-duty installations. Always verify the required cable size with a licensed auto electrician for your specific application, current load and run length. Features and benefits 6 B&S twin core sheathed construction: Red and black conductors in a black outer sheath for clean, protected high-current two-wire runs, combining the current capacity of 6 B&S battery cable with the installation convenience of a single cable. Red and black conductors: Conventional polarity colouring for straightforward positive and negative identification without additional marking or tape. 13.36mm² per conductor: Larger cross-section than the 8 B&S ACX0927 (7.91mm²), providing lower resistance and higher current-carrying capacity for longer runs and more demanding high-current applications. 192-strand construction per conductor: Excellent flexibility for routing through tight engine bay and battery compartment spaces despite the larger conductor gauge. OFHC copper conductors: Oxygen free high conductivity copper minimises resistance for efficient current transfer across high-current battery and supply circuit applications. Australian owned and made: Premium quality copper cable produced locally to Australian automotive wiring standards. UV stabilised PVC insulation and sheath: Resists degradation in sun-exposed and engine bay environments, extending the service life of the cable in exposed installation positions. V90 temperature rating (90°C): Insulation and sheath rated for continuous operation at up to 90°C, suited to battery and engine bay installation environments. AS/NZS 3808:2000 compliant: Meets the Australian and New Zealand standard for insulated conductors and cables for internal wiring of equipment. RoHS compliant: Meets hazardous substance restrictions. 30m roll: Workshop-friendly length for heavy-duty single-vehicle and multi-circuit installations. Technical specs Specification Detail SKU ACX0928 Brand OEX Cable Type Twin Core Battery Cable, Sheathed Gauge 6 B&S Conductor Cross Section 13.36mm² per conductor Conductor Strands 192 per conductor Strand Diameter 0.3mm Conductor Material OFHC Copper Voltage Rating Up to 110V Insulation Type PVC Temperature Rating V90 (90°C) UV Stabilised Yes Conductor Colours Red and black Sheath Colour Black Length 30m Weight 11.25kg Compliance AS/NZS 3808:2000, RoHS Warranty One year Sold As 30m roll Frequently asked questions What is 6 B&S gauge and how does it compare to 8 B&S? 6 B&S (Brown and Sharpe) is equivalent to approximately 6 AWG and corresponds to a conductor cross-section of around 13.36mm² per conductor. It is larger than 8 B&S (7.91mm²), delivering lower resistance and higher current-carrying capacity. Select 6 B&S for longer runs or applications with higher current demand than the 8 B&S ACX0927 can comfortably handle. What is the advantage of twin core battery cable over two separate single core cables? A twin core sheathed cable keeps positive and negative conductors together in a single protected run, resulting in a neater installation with less cable management. The shared outer sheath also provides additional mechanical and UV protection compared to two individual cables routed separately. How do I tell which conductor is positive and which is negative? The red conductor is positive and the black conductor is negative or return, following standard automotive wiring colour convention. What does AS/NZS 3808:2000 compliance mean? AS/NZS 3808:2000 is the Australian and New Zealand standard covering insulated conductors and cables for internal wiring of equipment. Compliance confirms the cable meets defined requirements for conductor construction, insulation properties and performance. Is this cable available in other sizes? OEX produces twin core battery cable in a range of B&S sizes. Contact us for available size options to suit your application. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

OEX ACX0927 Australian Made 8 B&S Twin Core Battery Cable Red and Black with Black Outer Sheath 30m Roll OFHC Copper 7.91mm² V90 The OEX ACX0927 is an 8 B&S twin core battery cable with a black outer sheath, supplied on a 30m roll. Red and black conductors each with a 7.91mm² OFHC copper cross-section across 112 strands are enclosed in a common black outer sheath, combining the high-current capacity of 8 B&S battery cable with the convenience of a single protected two-wire run. Rated to V90 (90°C) with UV stabilised PVC insulation and sheath. Compliant with AS/NZS 3808:2000 and RoHS. Covered by a one year warranty. Product overview The ACX0927 combines the conductor specification of the OEX 8 B&S single core battery cable range with a twin core sheathed format, allowing positive and negative high-current feeds to travel together in a single protected cable run. This makes it well suited to dual battery system main feeds, winch and recovery equipment power and return cables, battery interconnect two-wire runs and any application where positive and negative heavy-current feeds need to be routed together neatly and efficiently. At 7.91mm² per conductor with a 112-strand OFHC copper construction, each core provides the high-current capacity of the 8 B&S single core range while the shared black outer sheath provides additional mechanical and UV protection and results in a neater, more professional installation than routing two separate single-core cables. The UV stabilised V90 PVC insulation and sheath handle continuous operating temperatures up to 90°C for battery and engine bay installations. The 30m roll suits workshop jobs and single-vehicle heavy-duty installations. Always verify the required cable size with a licensed auto electrician for your specific application, current load and run length. Features and benefits 8 B&S twin core sheathed construction: Red and black conductors in a black outer sheath for clean, protected high-current two-wire runs, combining the current capacity of 8 B&S battery cable with the installation convenience of a single cable. Red and black conductors: Conventional polarity colouring for straightforward positive and negative identification without additional marking or tape. 7.91mm² per conductor: High-current 8 B&S cross-section for demanding automotive battery applications including dual battery feeds, winch power and return cables and heavy-duty accessory wiring. 112-strand construction per conductor: Provides flexibility for routing through tight engine bay and battery compartment spaces despite the large conductor gauge. OFHC copper conductors: Oxygen free high conductivity copper minimises resistance for efficient current transfer across high-current battery and supply circuit applications. Australian owned and made: Premium quality copper cable produced locally to Australian automotive wiring standards. UV stabilised PVC insulation and sheath: Resists degradation in sun-exposed and engine bay environments, extending the service life of the cable in exposed installation positions. V90 temperature rating (90°C): Insulation and sheath rated for continuous operation at up to 90°C, suited to battery and engine bay installation environments. AS/NZS 3808:2000 compliant: Meets the Australian and New Zealand standard for insulated conductors and cables for internal wiring of equipment. RoHS compliant: Meets hazardous substance restrictions. 30m roll: Workshop-friendly length for heavy-duty single-vehicle and multi-circuit installations. Technical specs Specification Detail SKU ACX0927 Brand OEX Cable Type Twin Core Battery Cable, Sheathed Gauge 8 B&S Conductor Cross Section 7.91mm² per conductor Conductor Strands 112 per conductor Strand Diameter 0.3mm Conductor Material OFHC Copper Voltage Rating Up to 110V Insulation Type PVC Temperature Rating V90 (90°C) UV Stabilised Yes Conductor Colours Red and black Sheath Colour Black Length 30m Weight 4.22kg Compliance AS/NZS 3808:2000, RoHS Warranty One year Sold As 30m roll Frequently asked questions What is the advantage of twin core battery cable over two separate single core cables? A twin core sheathed cable keeps positive and negative conductors together in a single protected run, resulting in a neater installation with less cable management. The shared outer sheath also provides additional mechanical and UV protection compared to two individual cables routed separately. What is 8 B&S gauge? 8 B&S (Brown and Sharpe) is equivalent to approximately 8 AWG and corresponds to a conductor cross-section of around 7.91mm² per conductor. It is a standard sizing reference used by Australian auto electricians for battery and heavy-duty automotive cable. How do I tell which conductor is positive and which is negative? The red conductor is positive and the black conductor is negative or return, following standard automotive wiring colour convention. What does AS/NZS 3808:2000 compliance mean? AS/NZS 3808:2000 is the Australian and New Zealand standard covering insulated conductors and cables for internal wiring of equipment. Compliance confirms the cable meets defined requirements for conductor construction, insulation properties and performance. Is this cable available in other sizes? OEX produces twin core battery cable in a range of B&S sizes. Contact us for available size options to suit your application. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

OEX ACX0914 Australian Made 0 B&S Single Core Battery Cable Red 30m Roll OFHC Copper 49.2mm² V90 The OEX ACX0914 is a 0 B&S single core battery cable in red, supplied on a 30m roll. With a 49.2mm² OFHC copper conductor across 696 strands, this is the largest cable in the OEX B&S battery cable range and is engineered for the most extreme high-current positive supply installations including commercial vehicle battery systems, heavy equipment starter motor feeds and high-capacity power distribution where no smaller gauge will suffice. The red insulation colour suits positive supply runs in conventional automotive wiring colour coding. The PVC insulation is UV stabilised and rated to V90 (90°C). Compliant with AS/NZS 3808:2000 and RoHS. Covered by a one year warranty. Weighs 15.78kg. Product overview The ACX0914 is the red variant of the OEX 0 B&S single core battery cable, sharing the same conductor specification and insulation rating as the black ACX0912. Red is the conventional positive wiring colour in automotive and marine electrical installations, making the ACX0914 the natural choice for battery positive supply cables on heavy commercial vehicles, high-capacity starter motor and alternator positive leads, and industrial and marine main positive power distribution where maximum conductor cross-section is required. At 49.2mm² with a 696-strand OFHC copper conductor, the ACX0914 delivers the lowest resistance and highest current-carrying capacity of any cable in the OEX B&S range, sitting above the 2 B&S (32.17mm²) and 4 B&S (20.29mm²) cables. The 696-strand construction delivers remarkable flexibility for a cable of this enormous cross-section, making it manageable to route and terminate in heavy commercial installation environments. The UV stabilised V90 PVC insulation handles continuous operating temperatures up to 90°C. The 30m roll suits trade workshops running multiple heavy commercial installations. Always consult a qualified auto electrician or electrical engineer when specifying cable for extreme current applications. Features and benefits 0 B&S gauge — the largest in the OEX battery cable range: Maximum current-carrying capacity and minimum resistance for the most extreme high-current positive supply applications in commercial and industrial wiring where no smaller gauge is sufficient. Red colour coding for positive supply runs: Red is the conventional positive wiring colour in automotive and marine electrical installations, assisting with circuit identification in extreme high-current commercial battery supply circuits. 49.2mm² conductor cross-section: Significantly larger than 2 B&S (32.17mm²), providing the lowest resistance and highest current-carrying capacity of any cable in the OEX B&S range. 696-strand construction: Remarkable flexibility for a cable of this cross-section, making the ACX0914 manageable to route and terminate in heavy commercial installation environments despite the very large gauge. OFHC copper conductor: Oxygen free high conductivity copper minimises resistance for efficient current transfer across the most extreme current commercial and industrial battery and positive supply circuit applications. Australian owned and made: Premium quality copper cable produced locally to Australian automotive wiring standards. UV stabilised PVC insulation: Resists degradation in sun-exposed and engine bay environments. V90 temperature rating (90°C): PVC insulation rated for continuous operation at up to 90°C, suited to battery and engine bay installation environments in commercial and heavy vehicle applications. AS/NZS 3808:2000 compliant: Meets the Australian and New Zealand standard for insulated conductors and cables for internal wiring of equipment. RoHS compliant: Meets hazardous substance restrictions. 30m roll: Trade-length supply for workshops running multiple heavy commercial installations from a single roll. Technical specs Specification Detail SKU ACX0914 Brand OEX Cable Type Single Core Battery Cable Gauge 0 B&S Conductor Cross Section 49.2mm² Conductor Strands 696 Strand Diameter 0.3mm Conductor Material OFHC Copper Voltage Rating Up to 110V Insulation Type PVC Temperature Rating V90 (90°C) UV Stabilised Yes Cable Colour Red Length 30m Weight 15.78kg Compliance AS/NZS 3808:2000, RoHS Warranty One year Sold As 30m roll Frequently asked questions What is 0 B&S gauge? 0 B&S (Brown and Sharpe), also referred to as 1/0 AWG, corresponds to a conductor cross-section of around 49.2mm². It is the largest size in the OEX B&S battery cable range and is used in the most demanding heavy commercial and industrial high-current applications. Always consult a qualified auto electrician or electrical engineer when specifying cable for extreme current applications. How does 0 B&S compare to 2 B&S and 4 B&S? 0 B&S has the largest conductor cross-section in the OEX B&S range at 49.2mm², compared to 2 B&S (32.17mm²) and 4 B&S (20.29mm²). It delivers the lowest resistance and highest current-carrying capacity of any cable in the range, suited to the most extreme commercial and industrial applications where the 2 B&S cable would be insufficient. How does the ACX0914 differ from the ACX0912? Both are 0 B&S single core battery cables with identical conductor and insulation specifications. The ACX0912 is black and supplied on a 10m roll suited to single heavy commercial installations. The ACX0914 is red and supplied on a 30m roll suited to trade workshops running multiple positive supply installations. Select based on polarity requirements and the quantity needed. What does V90 mean? V90 is the Australian cable insulation classification indicating the PVC insulation is rated for continuous operation at up to 90°C. It is the standard specification for automotive-grade PVC insulated cable in Australia and confirms suitability for battery and engine bay installation positions. Is this cable available in other sizes or colours? OEX produces battery cable in a range of B&S sizes and colours. Contact us for available size and colour options to suit your specific application. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

OEX ACX0908 Australian Made 2 B&S Single Core Battery Cable Black 30m Roll OFHC Copper 32.17mm² V90 The OEX ACX0908 is a 2 B&S single core battery cable in black, supplied on a 30m roll. With a 32.17mm² OFHC copper conductor across 455 strands, this is the largest cable in the OEX B&S battery cable range and is engineered for extreme high-current applications where maximum conductor cross-section, minimum resistance and outstanding flexibility are all required. The PVC insulation is UV stabilised and rated to V90 (90°C). Compliant with AS/NZS 3808:2000 and RoHS. Covered by a one year warranty. Weighs 10.71kg. Product overview At 32.17mm² with a 455-strand OFHC copper conductor, the ACX0908 delivers the lowest resistance and highest current-carrying capacity in the OEX B&S battery cable range, sitting above the 4 B&S (20.29mm²), 6 B&S (13.36mm²) and 8 B&S (7.91mm²) cables. This makes it suited to the most extreme high-current applications — heavy-duty battery interconnect and main supply cables, high-capacity winch and recovery equipment power feeds, commercial and heavy vehicle starter motor wiring, and high-current dual battery and auxiliary power system main feeds where no smaller cable in the range would be sufficient. The 455-strand construction delivers exceptional flexibility for a cable of this cross-section, making it manageable to route through tight engine bay and battery compartment spaces despite the very large gauge. The UV stabilised V90 PVC insulation handles continuous operating temperatures up to 90°C for battery and engine bay installations. The 30m roll suits workshop jobs and single-vehicle heavy-duty installations. Always verify the required cable size with a licensed auto electrician for your specific application, current load and run length. Features and benefits 2 B&S gauge — the largest in the OEX battery cable range: Maximum current-carrying capacity and minimum resistance for the most extreme high-current automotive and commercial vehicle applications. 32.17mm² conductor cross-section: Significantly larger than 4 B&S (20.29mm²), providing the lowest resistance and highest current-carrying capacity in the OEX B&S battery cable range. 455-strand construction: Exceptional flexibility for a cable of this cross-section, making the ACX0908 manageable to route through tight engine bay and battery compartment spaces despite the very large gauge. OFHC copper conductor: Oxygen free high conductivity copper minimises resistance for efficient current transfer across the most demanding extreme-current battery and supply circuit applications. Australian owned and made: Premium quality copper cable produced locally to Australian automotive wiring standards. UV stabilised PVC insulation: Resists degradation in sun-exposed and engine bay environments. V90 temperature rating (90°C): PVC insulation rated for continuous operation at up to 90°C, suited to battery and engine bay installation environments. AS/NZS 3808:2000 compliant: Meets the Australian and New Zealand standard for insulated conductors and cables for internal wiring of equipment. RoHS compliant: Meets hazardous substance restrictions. 30m roll: Workshop-friendly length for single-vehicle heavy-duty installations. Technical specs Specification Detail SKU ACX0908 Brand OEX Cable Type Single Core Battery Cable Gauge 2 B&S Conductor Cross Section 32.17mm² Conductor Strands 455 Strand Diameter 0.3mm Conductor Material OFHC Copper Voltage Rating Up to 110V Insulation Type PVC Temperature Rating V90 (90°C) UV Stabilised Yes Cable Colour Black Length 30m Weight 10.71kg Compliance AS/NZS 3808:2000, RoHS Warranty One year Sold As 30m roll Frequently asked questions What is B&S gauge and how does it differ from AWG or metric sizing? B&S (Brown and Sharpe) is a wire gauge system commonly used in Australian battery and heavy-duty automotive cable. 2 B&S is equivalent to approximately 2 AWG and corresponds to a conductor cross-section of around 32.17mm². It is a standard sizing reference used by Australian auto electricians and suppliers for battery and starter cables. How does 2 B&S compare to 4 B&S and 6 B&S? 2 B&S has the largest conductor cross-section in the OEX B&S range at 32.17mm², compared to 4 B&S (20.29mm²) and 6 B&S (13.36mm²). It delivers the lowest resistance and highest current-carrying capacity select 2 B&S for the most extreme current demands, longest runs or heaviest commercial vehicle applications where no smaller cable in the range is sufficient. Always verify the correct cable size with a licensed auto electrician for your specific application. Is a red positive version of this cable available? Contact us to confirm availability of a matching red 2 B&S cable for positive supply runs. OEX produces battery cable in a range of B&S sizes and colours across the range. What does V90 mean? V90 is the Australian cable insulation classification indicating the PVC insulation is rated for continuous operation at up to 90°C. It is the standard specification for automotive-grade PVC insulated cable in Australia and confirms suitability for battery and engine bay installation positions. Is this cable available in other sizes or colours? OEX produces battery cable in a range of B&S sizes and colours. Contact us for available size and colour options to suit your specific application. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

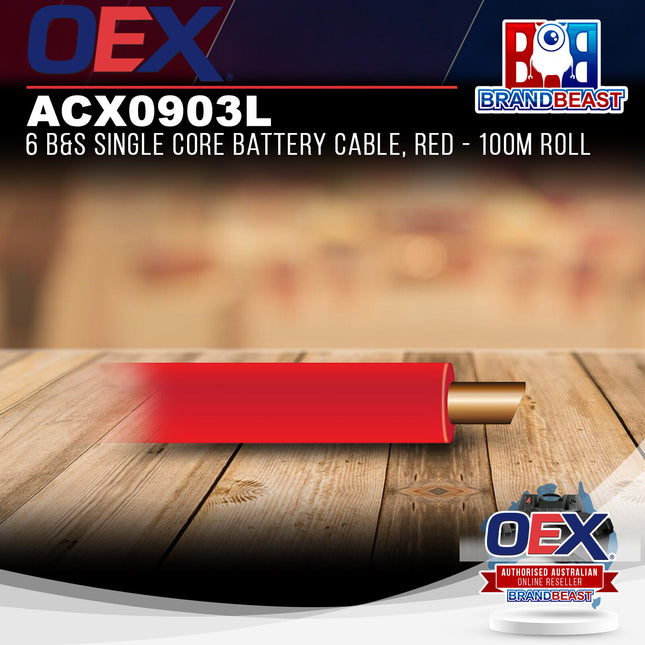

OEX ACX0903L Australian Made 6 B&S Single Core Battery Cable Red 100m Roll OFHC Copper V90 The OEX ACX0903L is a 6 B&S single core battery cable in red, supplied on a 100m roll. Made from oxygen free high conductivity (OFHC) copper, it is engineered for high-current positive supply wiring in automotive, caravan, marine and off-grid power applications. Rated to V90 (90°C) with UV stabilised PVC insulation and a voltage rating of up to 120V. RoHS compliant and Australian owned and made. Covered by a one year warranty. The ACX0903L pairs directly with the OEX ACX0902L black 6 B&S cable for a matched positive and negative installation. Product overview The ACX0903L is the 100m roll version of the ACX0903 red 6 B&S single core battery cable, suited to trade workshops and fleet operations running multiple high-current positive supply installations from a single roll. Red is the conventional positive wiring colour in automotive and marine electrical installations, making the ACX0903L the natural choice for battery positive supply cables, dual battery main positive feeds, starter motor and alternator positive leads, winch power cables and high-output amplifier power feeds. OFHC copper with less than 0.001% oxygen content minimises resistance, reduces oxidation over time and maximises current transfer efficiency across the full 100m roll. This is a meaningful difference in high-current applications such as dual battery systems, winch wiring and amplifier power feeds where voltage drop across a cable run directly affects performance. The UV stabilised V90 PVC insulation handles sustained underbonnet heat and direct sun exposure in Australian conditions. The 100m roll suits trade and workshop use, vehicle fleet fitouts and large-scale installations where consistent gauge and insulation specification across the entire job is required. Features and benefits OFHC copper conductor: Less than 0.001% oxygen content minimises electrical resistance, reduces oxidation and maximises current transfer efficiency, important for sustained-load applications including dual battery systems, winch wiring and amplifier power feeds. Red colour coding for positive supply runs: Red is the conventional positive wiring colour in automotive and marine electrical installations, assisting with circuit identification and reducing wiring errors in high-current battery supply circuits. Australian owned and made: Manufactured in Australia to local quality standards, ensuring full traceability for professional auto electricians and fleet operators who specify domestic product. V90 temperature rating (90°C): Insulation rated to the Australian V90 standard, withstanding sustained underbonnet temperatures and heat generated by high-current loads in enclosed wiring runs. Up to 120V voltage rating: Covers all standard 12V and 24V automotive systems with headroom, as well as low-voltage solar, caravan and marine power applications. UV stabilised PVC insulation: Resists cracking, hardening and degradation from prolonged sun exposure, suited to underbonnet, rooftop and exterior cable runs in Australian outdoor environments. RoHS compliant: Confirms the cable is free from restricted hazardous substances including lead, cadmium and mercury. 100m roll: Trade format suited to workshop supply, fleet fitouts and large-scale installations. Consistent gauge and insulation specification across the entire job from a single roll. Technical specs Specification Detail SKU ACX0903L Brand OEX Cable Type Single Core Battery Cable Gauge 6 B&S Conductor Material OFHC Copper Voltage Rating Up to 120V Insulation Type PVC Temperature Rating V90 (90°C) UV Stabilised Yes Cable Colour Red Length 100m Compliance RoHS Origin Australian owned and made Warranty One year Sold As 100m roll Frequently asked questions What is the difference between the ACX0903 and the ACX0903L? Both are 6 B&S single core red OFHC battery cable. The ACX0903 is supplied on a 30m roll and the ACX0903L is supplied on a 100m roll. Select based on the quantity required for your installation workload. What does 6 B&S mean and how does it compare to other cable gauges? B&S (Brown and Sharpe) is an Australian wire gauge standard. 6 B&S is a heavy-gauge cable suited to high-current applications. Confirm current carrying capacity with OEX or a licensed auto electrician to ensure it matches the load requirements of your specific installation and run length. Why does OFHC copper matter in a battery cable? OFHC copper has less than 0.001% oxygen content, which reduces electrical resistance, limits oxidation over time and maintains conductivity in high-heat environments. This is important for sustained-load applications including dual battery systems, winch wiring and amplifier power feeds where voltage drop across a cable run directly affects performance. Does this cable pair with the OEX ACX0902L black battery cable? Yes. The ACX0903L red and ACX0902L black are matching 6 B&S OFHC cables from the same OEX range, designed to be used together for positive and negative wiring in a consistent, professionally matched installation. Is this cable suitable for solar and caravan off-grid power systems? Yes. The 120V voltage rating, UV stabilised insulation and V90 temperature tolerance make the ACX0903L well suited for solar, caravan and off-grid power system positive wiring. Confirm current carrying capacity for your specific cable run length with OEX or a licensed auto electrician. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

OEX ACX0901L Australian Made 8 B&S Single Core Battery Cable Red 100m Roll OFHC Copper 7.91mm² V90 The OEX ACX0901L is an 8 B&S single core battery cable in red, supplied on a 100m roll. With a 7.91mm² OFHC copper conductor across 112 strands, this cable is designed for the higher-current demands of battery interconnect, starter motor and heavy accessory wiring where standard automotive cable sizes are insufficient. The red insulation colour suits positive supply runs in conventional automotive wiring colour coding. The PVC insulation is UV stabilised and rated to V90 (90°C). Compliant with AS/NZS 3808:2000 and RoHS. Covered by a one year warranty. Weighs 8.9kg. Product overview The ACX0901L is the red variant of the OEX 8 B&S single core battery cable range, sharing the same conductor specification and insulation rating as the black ACX0900L. Red is the conventional positive wiring colour in automotive and marine electrical installations, making the ACX0901L the natural choice for battery positive supply cables, dual battery main positive feeds, starter motor and alternator positive leads, and winch power cables where colour convention supports circuit identification. At 7.91mm² with a 112-strand OFHC copper conductor, this cable operates at a substantially different scale to the standard single-core automotive cable range. The 112-strand construction provides maximum flexibility for routing through tight engine bay and battery compartment spaces despite the large conductor size. The UV stabilised V90 PVC insulation handles continuous operating temperatures up to 90°C for battery and engine bay installations. The 100m roll suits trade workshops and fleet operations running multiple heavy-duty cable installations. Always verify the required cable size with a licensed auto electrician for your specific application, current load and run length. Features and benefits 8 B&S gauge battery cable: Battery cable sizing suited to high-current 12V and 24V positive supply applications including battery interconnect, starter motor feeds, dual battery main positive runs and winch power cables. Red colour coding for positive supply runs: Red is the conventional positive wiring colour in automotive and marine electrical installations, assisting with circuit identification and reducing wiring errors in high-current battery supply circuits. 7.91mm² conductor cross-section: Substantially larger than standard automotive single-core cable, providing the low-resistance conductor needed for sustained high-current positive supply applications. 112-strand construction: Maximum flexibility for routing through tight engine bay and battery compartment spaces despite the large conductor gauge. OFHC copper conductor: Oxygen free high conductivity copper minimises resistance for efficient current transfer across high-current battery and supply circuit applications. Australian owned and made: Premium quality copper cable produced locally to Australian automotive wiring standards. UV stabilised PVC insulation: Resists degradation in sun-exposed and engine bay environments. V90 temperature rating (90°C): PVC insulation rated for continuous operation at up to 90°C, suited to battery and engine bay installation environments. AS/NZS 3808:2000 compliant: Meets the Australian and New Zealand standard for insulated conductors and cables for internal wiring of equipment. RoHS compliant: Meets hazardous substance restrictions. 100m roll: Trade-length supply for workshops and fleet installers covering multiple heavy-duty cable installations from a single roll. Technical specs Specification Detail SKU ACX0901L Brand OEX Cable Type Single Core Battery Cable Gauge 8 B&S Conductor Cross Section 7.91mm² Conductor Strands 112 Strand Diameter 0.3mm Conductor Material OFHC Copper Voltage Rating Up to 110V Insulation Type PVC Temperature Rating V90 (90°C) UV Stabilised Yes Cable Colour Red Length 100m Weight 8.9kg Compliance AS/NZS 3808:2000, RoHS Warranty One year Sold As 100m roll Frequently asked questions What is B&S gauge and how does it differ from AWG or metric sizing? B&S (Brown and Sharpe) is a wire gauge system commonly used in Australian battery and heavy-duty automotive cable. 8 B&S is equivalent to approximately 8 AWG and corresponds to a conductor cross-section of around 7.91mm². It is a standard sizing reference used by Australian auto electricians and suppliers for battery and starter cables. What applications is 8 B&S red battery cable suited to? 8 B&S red battery cable is suited to positive supply runs including battery positive cables, starter motor and alternator positive leads, dual battery main positive feeds, winch power cables and other high-current applications where red identifies the positive supply. Always verify the required cable size with a licensed auto electrician for your specific application and run length. How does the ACX0901L differ from the ACX0900L? Both are 8 B&S single core battery cables with identical conductor and insulation specifications. The ACX0900L is black and suits negative or earth runs. The ACX0901L is red and suits positive supply runs. Select based on the polarity convention of your installation. What does V90 mean? V90 is the Australian cable insulation classification indicating the PVC insulation is rated for continuous operation at up to 90°C. It is the standard specification for automotive-grade PVC insulated cable in Australia and confirms suitability for battery and engine bay installation positions. Is this cable available in other sizes or colours? OEX produces battery cable in a range of B&S sizes and colours. Contact us for available size and colour options to suit your specific application. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less
