ECE/ADR Approved 12V Reverse Strip Light Ultra-Slim 3mm, 237mm, IP67
Product Overview
The LED Autolamps 235W12E is a 12V white LED reverse strip light measuring 237mm x 25mm x 3mm, sharing the same ultra-slim form factor as the 235A12 indicator strip. Designed for flush recessed mounting, it completes the 235 series strip lamp range with a reverse function drawing just 0.12A at 13.8V for efficient operation.
ECE and ADR approved, IP67 rated, and backed by a 5-year warranty.
Features & Benefits
Ultra-slim 3mm depth — flush recessed mount for a clean, integrated finish on trailer and caravan rear panels
White LED output — clear, bright reverse light for improved visibility when reversing
Low current draw — 0.12A at 13.8V for efficient 12V operation
ECE and ADR approved — dual compliance for international and Australian road approval standards as a reverse lamp
IP67 rated — fully sealed against dust and water immersion
12V only — designed for 12V trailer and vehicle electrical systems
5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
Specification
Detail
SKU
235W12E
Lamp Type
Reverse Strip
LED Colour
White
Voltage
12V
Dimensions
237mm x 25mm x 3mm
Current Draw
0.12A @ 13.8V
Mounting
Recessed flush
Protection Rating
IP67
Compliance
ECE / ADR
Warranty
5 years
Compatible With / Goes Well With
Trailers, caravans, and commercial vehicles requiring flush-mount reverse strip lamps
12V trailer and vehicle electrical systems
LED Autolamps 235A12 indicator strip lamp (same 237mm form factor)
LED Autolamps 235ASEQ-2 sequential indicator strip (same 237mm form factor)
LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 235W12E approved for road use in Australia?
Yes. The 235W12E carries both ECE and ADR approval, meeting international and Australian road approval standards for legal on-road use as a reverse lamp.
How does the 235W12E fit with other 235 series strip lamps?
The 235W12E is the reverse strip in the 235 series, sharing the same 237mm x 25mm x 3mm ultra-slim form factor as the 235A12 indicator strip and 235ASEQ-2 sequential indicator — all suited to matching flush-recessed rear lighting builds.
What is the current draw on the 235W12E?
The 235W12E draws just 0.12A at 13.8V — very efficient for a reverse lamp and well suited to battery-sensitive 12V caravan and trailer electrical systems.
What is the IP rating on the 235W12E?
The 235W12E is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and caravan mounting.
What warranty does the 235W12E carry?
The 235W12E is backed by a 5-year warranty from LED Autolamps.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Brighten Up Your Interior with Our Easy to Install LED and Neon Light Pieces
They are easy as 1-2-3 to install and remove. They come with a wide range of colours and lengths so you can use them however way you please.
Aerpro LU12B Features:
43cm overall length,
1.5m cable
Also available in green, purple, pink, white
Packed in hang sell, full-colour d/blister
Legendary Products & Support From Authorized Dealers
When you choose Aerpro, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & Training
Only authorized Aerpro dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty Protection:
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.
▸ Reliable Customer Support:
If you ever run into an issue, you're backed by Aerpro's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your Investment:
Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?
Choose wisely. Buy from an authorized Aerpro dealer today!
Single Black Surface Mount Bracket for LED Autolamps 235 Series No Cutout Required, 215mm Centres.
Product Overview
The LED Autolamps 235B1B is a single black plastic surface mount bracket designed to suit the 235 Series slimline recessed LED lamp range. The 235B1B allows the recessed 235 Series lights to be mounted on a flat surface without having to cut out a mounting hole providing a versatile surface mounting alternative for installations where panel cutting is not possible or practical.
The 235B1B is black plastic, single mount for one light only, surface mounted on 215mm centres. For a double bracket to mount two lamps side by side, refer to the 235B2B. The chrome alternative is the 235C1B. Supplied as a single unit.
Key Specifications
Compatible lamp series: LED Autolamps 235 Series lamps
Function: Single surface mount bracket mounts 1 lamp
Material: Black plastic
Bracket dimensions: 258mm x 82mm x 16mm
Mounting centres: 215mm
Application: Converts recessed 235 Series lamps to surface mount
Pack quantity: Single unit
Brand: LED Autolamps
SKU: 235B1B
Features & Benefits
Converts recessed to surface mount: Allows recessed 235 Series lights to be mounted on a flat surface without cutting a mounting hole ideal for retrofits and applications where panel cutting is not possible
Single lamp bracket: Mounts one 235 Series lamp for two lamps side by side, refer to the 235B2B double bracket
Black plastic: Dark finish suits modern trailer and commercial vehicle builds
215mm mounting centres: Standard bolt spacing for straightforward installation
Chrome alternative available: The 235C1B is the chrome finish single bracket for the same 235 Series lamps
Technical Specs
Specification
Detail
SKU
235B1B
Brand
LED Autolamps
Type
Single Surface Mount Bracket
Compatible Series
235 Series
Material
Black Plastic
Bracket Dimensions
258mm x 82mm x 16mm
Mounting Centres
215mm
Lamps Per Bracket
1
Pack Quantity
Single unit
Compatible With
Confirmed compatible lamp series:
All LED Autolamps 235 Series recessed lamps including:
235CA12 amber indicator 12V (previously listed)
235CR12 stop/tail clear lens 12V (previously listed)
235CSEQB sequential indicator 12V (previously listed)
235CAT1 front indicator 12V (previously listed)
235R24 stop/tail red lens 24V (previously listed)
235W24E reverse 24V (previously listed)
Frequently Asked Questions
How many lamps does this bracket mount?
The 235B1B is a single mount for 1 light only. For mounting two lamps side by side, refer to the 235B2B double bracket.
Do I still need to cut a hole for this bracket?
No the 235B1B allows recessed 235 Series lights to be mounted on a flat surface without cutting a mounting hole.
Is there a chrome version available?
Yes the 235C1B is the chrome finish single bracket for the same 235 Series lamps.
What are the mounting centres?
The 235B1B mounts on 215mm centres.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
12V Slimline Reverse Lamp with Black End Caps 285mm, ECE Approved, IP67, Interior Use Also.
Product Overview
The LED Autolamps 285BW12 is a 12V slimline white reverse lamp from the 285 Series, featuring black end caps and a surface mount design with 266mm centre-to-centre bolt spacing. The 285BW12 is the black end cap variant the chrome end cap alternative within this function range is the 285CW12. At just 285mm x 25mm x 10mm, this lamp provides powerful white reverse illumination in an ultra-compact strip format.
A notable additional feature: the 285BW12 can also be used as an interior lamp making it a versatile option for dual interior/exterior applications in caravans, campers, and commercial vehicles. ECE approved (E9 23R00/22 22112 00), IP67 rated, draws 0.18A at 13.8V, and supports both horizontal and vertical mounting orientations. Backed by LED Autolamps' 5-year warranty and supplied as a single unit in blister packaging.
Key Specifications
Function: Reverse lamp (also suitable for interior lamp use)
End caps: Black clip-on
Dimensions: 285mm x 25mm x 10mm
Centre-to-centre mounting: 266mm
Mount type: Surface mount clip-on black caps conceal screws
Mount orientation: Horizontal and vertical
Current draw: 0.18A @ 13.8V
Voltage: 12V only
IP rating: IP67
Compliance: ECE E9 23R00/22 22112 00
Warranty: 5 years
Packaging: Blister pack single unit
Brand: LED Autolamps
SKU: 285BW12
Features & Benefits
Dual-use: reverse lamp and interior lamp: The 285BW12 can be used as a standard reverse lamp or as an interior lamp, providing flexibility for caravan, camper, and commercial vehicle applications requiring both functions
Black end caps: Black clip-on end caps suit modern, dark-finish trailer and vehicle builds; the chrome version is the 285CW12
Slimline 285mm x 25mm x 10mm: Ultra-compact form factor suited to tight rear panel and interior mounting locations
266mm centre-to-centre bolt spacing: Wide mounting centres for stable, secure two-point surface installation
ECE approved E9 23R00/22 22112 00: Certified for legal use as a reverse lamp on Australian road vehicles and trailers
0.18A current draw: Low electrical load at 12V for the full 285mm strip lamp
IP67 waterproof: Completely sealed against dust and temporary water immersion suits exterior and wet-area installation
Horizontal and vertical mounting: Flexible orientation for rear panel, interior, and non-standard installation configurations
5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty
Technical Specs
Specification
Detail
SKU
285BW12
Brand
LED Autolamps
Series
285 Series
Function
Reverse Lamp (also interior use)
End Caps
Black clip-on
Dimensions
285mm x 25mm x 10mm
Centre-to-Centre Mounting
266mm
Mount Type
Surface mount clip-on caps
Mount Orientation
Horizontal and vertical
Current Draw
0.18A @ 13.8V
Voltage
12V only
IP Rating
IP67
ECE Compliance
E9 23R00/22 22112 00
Warranty
5 Years
Packaging
Blister Pack single unit
Compatible With
Suits 12V trailers, caravans, and vehicles requiring slimline reverse or interior lighting including:
Box trailers, car trailers, and boat trailers
Caravans and camper trailers with interior lamp dual use
Light commercial vehicles
Frequently Asked Questions
Can this lamp be used as an interior lamp as well as a reverse lamp?
Yes the 285BW12 is specifically noted as suitable for interior lamp use in addition to its ECE-approved reverse lamp function, making it a versatile option for dual-purpose applications in caravans and camper trailers.
What is the difference between the 285BW12 and the 285CW12?
The 285BW12 has black clip-on end caps while the 285CW12 has chrome end caps. Both are otherwise identical in function, dimensions, and compliance. Choose based on your preferred aesthetic.
What is the ECE compliance code for this lamp?
The 285BW12 is ECE approved under E9 23R00/22 22112 00, confirming it meets compliance standards for reverse lamp use on road vehicles and trailers.
What is the mounting centre-to-centre distance?
The 285BW12 uses 266mm centre-to-centre bolt spacing confirm this suits your mounting surface before installation.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
ADR Approved 12V Indicator Strip Lamp 18 LEDs, Ultra-Slim 3mm, Recessed, Hardwired
Product Overview
The LED Autolamps 380A12 is a 12V amber indicator strip lamp with 18 LEDs in a 382mm x 25mm x 3mm ultra-slim hardwired housing, designed for flush recessed mounting on trailers, caravans, and commercial vehicles. A longer-format counterpart to the 235A12 indicator strip 45mm wider at 382mm vs 237mm it delivers more LED coverage for wider trailer rear panels.
ADR road approved, IP67 rated, and backed by a 5-year warranty.
Features & Benefits
18 LEDs — higher LED count than the 235A12 (10 LEDs) for broader indicator output across the 382mm strip
Ultra-slim 3mm depth — flush recessed mount for a clean, integrated finish on trailer and caravan rear panels
382mm length — wider format suits larger trailer rear panels
Hardwired — direct hard-wired connection for permanent installation
ADR road approved — meets Australian Design Rules for legal on-road use as an indicator lamp
IP67 rated — fully sealed against dust and water immersion
12V only — designed for 12V trailer and vehicle electrical systems
5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
Specification
Detail
SKU
380A12
Lamp Type
Indicator Strip
LED Quantity
18
LED Colour
Amber
Voltage
12V
Dimensions
382mm x 25mm x 3mm
Mounting
Flush recessed
Connection
Hardwired
Protection Rating
IP67
Compliance
ADR
Warranty
5 years
Compatible With / Goes Well With
Trailers, caravans, and commercial vehicles requiring a wider-format flush-mount indicator strip
12V trailer and vehicle electrical systems
LED Autolamps 235A12 indicator strip (same 3mm depth, shorter 237mm format)
LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 380A12 approved for road use in Australia?
Yes. The LED Autolamps 380A12 is ADR road approved, meeting Australian Design Rules requirements for legal on-road use as an indicator lamp.
How does the 380A12 differ from the 235A12?
The 380A12 is 382mm long with 18 LEDs, while the 235A12 is 237mm with 10 LEDs. Both use the same ultra-slim 3mm recessed flush mount design — choose the 380A12 for wider trailer rear panels requiring broader indicator coverage.
What does hardwired mean for installation?
Hardwired means the lamp connects directly to the vehicle wiring without a plug connector — suited to permanent, fixed installations where a direct connection is preferred.
What is the IP rating on the 380A12?
The 380A12 is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion.
What warranty does the 380A12 carry?
The 380A12 is backed by a 5-year warranty from LED Autolamps.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Amber Side Direction Indicator with Inbuilt Amber Reflector 3 LEDs, ECE CRN 1331, 12/24V, Single Bulk.
Product Overview
The LED Autolamps 44AMEB is an amber side direction indicator with inbuilt amber reflex reflector from the 44 Series combining active LED indicator output and passive amber reflective compliance in a single slimline low-profile unit. The 44AMEB features PMMA acrylic lens over an ABS base, 3 LEDs, current draw of 0.012A at 13.8V and 0.04A at 28V, ECE Side Direction approval SM1-E9-00 CRN 1331, and Amber Reflector approval 02-E9-1A CRN 1014.
Also carries CTA-060081 compliance. Supplied as a single bulk unit. Measuring 100mm x 44mm x 12mm with a 90° bracket option and 50cm cable (10cm with plugs also available). Surface mount horizontally with screws, run wire through hole in fixing surface. Backed by LED Autolamps' 5-year warranty.
Key Specifications
Function: Amber side direction indicator + inbuilt amber reflex reflector
LED count: 3
Lens material: PMMA acrylic
Base material: ABS
Dimensions: 100mm x 44mm x 12mm
Cable: 50cm (10cm with plugs also available)
Mount type: Surface mount screws, wire through hole. 90° bracket option available
Current draw: 0.012A @ 13.8V / 0.04A @ 28V
IP rating: IP67
Input voltage: 12–24V DC (multivolt)
Compliance: ECE Side Direction SM1-E9-00 CRN 1331 / Amber Reflector CRN 1014 / CTA-060081
Warranty: 5 years
Pack quantity: Single unit (bulk)
Brand: LED Autolamps
SKU: 44AMEB
Features & Benefits
Dual function indicator and reflector: ECE approved for both side direction indicator (CRN 1331) and amber reflex reflector (CRN 1014) two compliance codes in one lamp
3 amber LEDs: Three LEDs through a PMMA acrylic lens for consistent, visible side direction indicator output
Ultra-low current draw: 0.012A at 13.8V: one of the lowest draws in the LED Autolamps range minimal load on indicator circuits
Slimline 12mm depth: Low-profile for discreet side panel installation
90° bracket option: For angled mounting configurations on corner posts and non-flush surfaces
50cm cable: Generous cable length for standard installation configurations
ADR/ECE approved: Legal for side direction indicator use on Australian road vehicles and trailers
IP67 waterproof: Completely sealed against dust and temporary water immersion
12V and 24V compatible: Suits all trailer, caravan, and commercial vehicle applications
5-year warranty: Backed by LED Autolamps' 5-year warranty
Technical Specs
Specification
Detail
SKU
44AMEB
Brand
LED Autolamps
Series
44 Series
Function
Amber Side Direction Indicator + Amber Reflex Reflector
LED Count
3
Lens Material
PMMA Acrylic
Base Material
ABS
Dimensions
100mm x 44mm x 12mm
Cable Length
50cm (10cm with plugs also available)
Mount Type
Surface mount screws, 90° bracket option
Current Draw
0.012A @ 13.8V / 0.04A @ 28V
IP Rating
IP67
Input Voltage
12–24V DC (multivolt)
ECE Side Direction
SM1-E9-00 CRN 1331
Amber Reflector
02-E9-1A CRN 1014
CTA Compliance
CTA-060081
Warranty
5 Years
Pack Quantity
Single unit (bulk)
Compatible With
Suits all 12V and 24V trailers, caravans, and commercial vehicles requiring amber side direction indicators:
Boat trailers and marine trailer applications
Box trailers, car trailers, and general-purpose trailers
Caravans and camper trailers
Light and heavy commercial trucks and buses
Frequently Asked Questions
What compliance codes does the 44AMEB carry?
ECE Side Direction SM1-E9-00 CRN 1331, Amber Reflector 02-E9-1A CRN 1014, and CTA-060081.
Does this lamp include a reflector?
Yes the 44AMEB has an inbuilt amber reflex reflector with its own ECE approval (CRN 1014) alongside the side direction indicator approval (CRN 1331).
What is the current draw?
0.012A at 13.8V and 0.04A at 28V an extremely low draw for both 12V and 24V systems.
Is the 90° bracket included?
The 90° bracket is listed as an option confirm with your retailer whether it is included or sold separately.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Cat 6 Side Direction Indicator with Vehicle Patch Lead Suits Land Cruiser 70, GVM Upgrade, 9–32V.
Product Overview
The LED Autolamps 77ACMB-LCRUISER70 is a Cat 6 side direction indicator from the 77 Series the vehicle-specific patch lead version pre-wired to suit the Land Cruiser 70 Series. The "LCRUISER70" suffix denotes the vehicle-specific patch lead harness this is a plug-and-play GVM upgrade indicator kit designed to connect directly to the Land Cruiser 70 Series existing wiring without modification.
Based on the 77ACMB (Cat 6 clear lens indicator, single unit), the 77ACMB-LCRUISER70 pairs the same 77 Series lamp with a vehicle-specific patch lead for simplified GVM upgrade fitment. Suitable for vehicle GVM upgrade, low profile compact design, easy fit with 3M tape and plug (supplied), IP67 rated, 9–32V, 5-year warranty, 77mm x 52mm x 22mm.
Key Specifications
Function: Cat 6 side direction indicator
Lens: Clear with internal amber LEDs
Vehicle patch: Land Cruiser 70 Series specific
Application: GVM upgrade
Dimensions: 77mm x 52mm x 22mm
Fitting system: 3M tape + serrated plug (supplied) + vehicle-specific patch lead
IP rating: IP67
Input voltage: 9–32V DC (multivolt)
Compliance: ECE Category 6 approved
Warranty: 5 years
Brand: LED Autolamps
SKU: 77ACMB-LCRUISER70
Features & Benefits
Land Cruiser 70 Series vehicle patch lead: Pre-wired harness configured for the Land Cruiser 70 Series plug-and-play installation without vehicle wiring modification
Cat 6 side direction indicator: ECE Category 6 compliant for GVM upgrade compliance requirements
GVM upgrade compatible: Specifically designed to meet the Cat 6 side indicator requirement for vehicle GVM upgrade approval
Clear lens with amber LEDs: Modern clean lens appearance for amber side direction indicator output
3M tape and plug supplied: 3M tape and serrated plug included for fast lamp fitting
9–32V broad voltage range: Wide voltage coverage for all 12V and 24V systems
IP67 waterproof: Completely sealed against dust and temporary water immersion
5-year warranty: Backed by LED Autolamps' 5-year warranty
Technical Specs
Specification
Detail
SKU
77ACMB-LCRUISER70
Brand
LED Autolamps
Series
77 Series
Function
Cat 6 Side Direction Indicator
Lens
Clear internal amber LEDs
Vehicle Patch
Land Cruiser 70 Series
Dimensions
77mm x 52mm x 22mm
Fitting System
3M tape + serrated plug (supplied) + vehicle patch lead
LED Orientation
Faces rear of vehicle
IP Rating
IP67
Input Voltage
9–32V DC (multivolt)
Compliance
ECE Category 6
Warranty
5 Years
Compatible With
Specifically suits:
Toyota Land Cruiser 70 Series GVM upgrade Cat 6 side direction indicator requirement
Frequently Asked Questions
What vehicle does the 77ACMB-LCRUISER70 suit?
The 77ACMB-LCRUISER70 is the vehicle-specific Cat 6 indicator for the Toyota Land Cruiser 70 Series. Confirm your exact model and year with your installer or LED Autolamps before purchasing.
What is the difference between the 77ACMB-LCRUISER70 and the 77ACMB-LCSAHARA?
Both are 77 Series Cat 6 clear lens indicators with vehicle-specific patch leads. The 77ACMB-LCRUISER70 suits the Land Cruiser 70 Series while the 77ACMB-LCSAHARA suits the Land Cruiser Sahara.
Is this lamp compatible with GVM upgrades?
Yes the 77 Series patch indicator is suitable for vehicle GVM upgrades as a Cat 6 side direction indicator.
Are the 3M tape and plug supplied?
Yes 3M tape and plug are supplied with the 77ACMB-LCRUISER70 as confirmed from supplier specifications.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Confirm vehicle compatibility before purchasing. Contact the seller if you're unsure.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
STEDI ST-04-G4-001 G4 Black Spot Work Light
Delivering maximum beam distance and intensity from four CREE XP-L2 LEDs, the STEDI G4 Black Spot reaches 235 metres at 1 LUX with a near-field zone of 28 metres, all in a fully sealed IP68 and IP69K rated housing with CISPR 25 C3 certification.
Product Overview
The ST-04-G4-001 is STEDI's G4 Black Spot Work Light, powered by four CREE XP-L2 LEDs producing 4000 raw lumens and 3000 tested lumens through an optimised spot reflector at 5700K white light. The concentrated beam reaches 235 metres in length at the 1 LUX threshold while the optimised reflector simultaneously illuminates a near-field zone of 28 metres in width, ensuring the critical area immediately around the vehicle or worksite is covered alongside the long-range forward beam. The 5700K colour temperature delivers a brilliant white light that reduces glare and eye strain during extended use. The G4 Spot is a multipurpose auxiliary light suited to worksite and agricultural use, front-facing motorcycle and ATV lighting, and 4WD auxiliary driving light applications where maximum forward reach is the priority. Rated IP68 and IP69K for complete dust and waterproof protection including high-pressure and high-temperature wash-down environments, shock tested at 30Gs and vibration tested at 5Gs. CISPR 25 C3 certification suppresses electromagnetic interference, protecting onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi. Compatible with both 12V and 24V systems, drawing 3.2A at 13.5V. The die-cast aluminium housing carries a premium AkzoNobel powder coat finish in black with a polycarbonate lens. Rated for 50,000 hours LED lifespan.
Features & Benefits
4x CREE XP-L2 LEDs at 40W Total: Four premium CREE XP-L2 LED emitters provide the optical efficiency and thermal management required for sustained high-output performance, producing 4000 raw lumens and 3000 independently tested lumens through the optimised spot reflector.
Concentrated Spot Beam at 1 LUX, 235m: The spot reflector concentrates output into a powerful forward beam reaching 235 metres at the 1 LUX threshold, providing the greatest forward reach of the G4 range and making the G4 Spot the right choice for applications where maximum distance illumination is the primary requirement.
28m Near-Field Width: The optimised reflector simultaneously illuminates a near-field zone of 28 metres wide, ensuring the critical area immediately around the vehicle or worksite is not left in darkness while the long-range beam is active.
5700K White Light with Reduced Glare: The 5700K colour temperature produces brilliant white light that reduces glare and eye strain during extended work sessions, providing high contrast and accurate colour rendering at distance.
IP68 and IP69K Dual Rating: The dual IP68 and IP69K certification confirms complete dust and waterproof protection against continuous water immersion and high-pressure, high-temperature water jet wash-down, guaranteeing performance even in the harshest environments.
CISPR 25 C3 Certified: CISPR 25 C3 electromagnetic compatibility certification suppresses interference with sensitive onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi, making the G4 Spot suitable for vehicles with critical communication equipment.
30G Shock and 5G Vibration Tested: Independently tested to withstand 30G shock loads and 5G sustained vibration, confirming structural and electrical integrity under the mechanical demands of motorcycle, ATV, off-road, and agricultural machinery applications.
12V and 24V Compatibility: Operates on both 12V and 24V electrical systems, making it compatible with motorcycles, passenger vehicles, light commercial vehicles, trucks, and agricultural machinery.
Premium AkzoNobel Powder Coat Finish: The housing carries a premium AkzoNobel powder coat in black, known for its adhesion, hardness, and resistance to chipping, UV degradation, and chemical exposure in outdoor applications.
Die-Cast Aluminium Housing with Polycarbonate Lens: The die-cast aluminium housing provides structural rigidity and thermal management for the LED array, and the polycarbonate lens provides impact resistance and optical clarity throughout the rated 50,000-hour lifespan.
Technical Specs
Specification
Detail
SKU
ST-04-G4-001
Brand
STEDI
LED
4x CREE XP-L2
LED Power Output
4 x 10W (40W total)
Raw Lumens
4,000 lm
Tested Lumens
3,000 lm
Beam Type
Spot
1 LUX Distance (Length)
235m
1 LUX Distance (Width)
28m
Colour Temperature
5700K
Operating Voltage
12V and 24V
Amp Draw
3.2A @ 13.5V
IP Rating
IP68 and IP69K
CISPR Rating
CISPR 25 C3
Shock Tested
30G
Vibration Tested
5G
Housing Material
Die-cast aluminium
Lens Material
Polycarbonate
Finish
Premium AkzoNobel powder coat, black
Hardware
Stainless steel
LED Lifespan
50,000 hours
Weight
1.0 kg
What's in the Box
1x STEDI G4 Spot Light
1x STEDI Black Cover
1x Stainless Steel Hardware
1x Stainless Steel Bracket
1x 2-Pin Male Connector
Goes Well With
The ST-04-G4-001 is the long-range option in the STEDI G4 range, best suited to 4WD auxiliary driving light setups, front-facing motorcycle and ATV lighting, and worksite and agricultural applications where maximum forward beam distance is the priority. It pairs naturally with the G4 Flood (ST-04-G4-003) or G4 Ultra Flood (ST-04-G4-004) in a multi-light configuration, where the Spot covers distance and the Flood covers the near-field width the Spot's 28-metre beam leaves relatively narrow. A STEDI or compatible wiring harness with switch is recommended for clean vehicle installation.
Frequently Asked Questions
How does the G4 Spot compare to the G4 Hybrid and G4 Flood in the same range?
All G4 variants use the same 4x CREE XP-L2 LEDs, 40W total power, 3000 tested lumens, housing, and certifications. The G4 Spot (ST-04-G4-001) delivers the greatest forward reach at 235 metres in length with a 28-metre near-field width, optimised for maximum distance illumination. The G4 Hybrid (ST-04-G4-002) combines spot and flood for 160 metres in length and 50 metres in width. The G4 Flood (ST-04-G4-003) reaches 81 metres at 60° and approximately 40 metres wide. The G4 Ultra Flood (ST-04-G4-004) delivers the broadest near-field coverage at 80° with a 37-metre-wide flood zone at 42 metres.
What does IP69K add to IP68 protection?
IP68 certifies the light is sealed against continuous water immersion at specified depth and duration. IP69K is an additional certification covering high-pressure and high-temperature water jet wash-down, encountered when hosing down agricultural machinery, motorcycles, and work vehicles. The G4's dual IP68 and IP69K rating confirms it is protected against both scenarios.
What does CISPR 25 C3 mean for motorcycle and vehicle installations?
CISPR 25 is an international standard measuring radio frequency emissions produced by vehicle components. C3 is the highest performance class within CISPR 25, confirming the G4 Spot produces minimal electromagnetic interference that could affect onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi. This is particularly important for motorcycles using Bluetooth intercoms and 4WD vehicles relying on UHF CB communication.
Is the G4 Spot road-legal as an auxiliary driving light?
The source data does not specify road legality for the G4 Spot. Please verify compliance with Australian road vehicle standards and applicable state regulations before mounting the G4 Spot in a forward-facing driving light position on a road-registered vehicle.
What is the rated lifespan of the CREE XP-L2 LEDs?
The CREE XP-L2 LEDs in the G4 are rated for 50,000 hours of operating life. At typical auxiliary light usage of 2-4 hours per day, this equates to many decades of service before the LEDs reach their rated end-of-life output level under normal use patterns.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
STEDI ST-04-G1-001 G1 Black Flood Work Light
Small in size and mighty in power, the STEDI G1 Black Flood delivers 750 tested lumens from a single CREE XP-L2 LED across an 18-metre by 21-metre flood zone at 1 LUX, in the most compact housing in the STEDI G Series.
Product Overview
The ST-04-G1-001 is STEDI's G1 Black Flood Work Light, the smallest and most compact model in the STEDI G Series, powered by a single CREE XP-L2 LED producing 1000 raw lumens and 750 tested lumens through an optimised flood reflector and lens at 5700K white light. Despite its ultra-compact form factor, the G1 Flood reaches 18 metres in length and 21 metres in width at the 1 LUX threshold, providing a wide near-field flood zone from a single LED housing that weighs just 0.290kg. The versatile design suits a wide range of applications including work and camp lighting, rear-mounted reverse lights, and any position where the larger G2 or G4 housings cannot be accommodated. The 5700K colour temperature delivers brilliant white light with reduced glare and eye strain. Rated IP68 and IP69K for complete dust and waterproof protection including high-pressure wash-down environments, shock tested at 30Gs and vibration tested at 5Gs. CISPR 25 C3 certification suppresses electromagnetic interference, protecting onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi. Compatible with both 12V and 24V systems, drawing just 0.8A at 13.5V. The die-cast aluminium housing carries a premium AkzoNobel powder coat finish in black with a polycarbonate lens, stainless steel hardware and bracket, and a STEDI protective cover included. Rated for 50,000 hours LED lifespan.
Features & Benefits
Single CREE XP-L2 LED at 10W: One premium CREE XP-L2 LED produces 1000 raw lumens and 750 independently tested lumens through the optimised flood reflector, delivering meaningful work light output from the most compact possible single-LED housing in the STEDI G Series.
Flood Beam at 1 LUX, 18m x 21m: The flood reflector and lens produce an illuminated zone of 18 metres in length and 21 metres in width at the 1 LUX threshold, providing broader lateral coverage than forward reach, suited to reverse lighting, campsite illumination, and close-range task work.
Ultra-Compact and Lightweight at 0.290kg: At 0.290kg and in the smallest housing in the G Series, the G1 Flood can be mounted in positions where even the G2 range cannot fit, including tight reverse light recesses, compact bracket mounts, and weight-critical installations.
5700K White Light: The 5700K colour temperature produces brilliant white light that accurately renders colours, reduces glare and eye strain, and provides high contrast for task and reverse lighting applications.
Ultra-Low Current Draw at 0.8A: Drawing just 0.8A at 13.5V, the G1 Flood is the most power-efficient model in the G Series, making it suitable for battery-sensitive installations and multi-light setups where total current draw must be minimised.
IP68 and IP69K Dual Rating: The dual IP68 and IP69K certification confirms complete dust and waterproof protection against continuous water immersion and high-pressure, high-temperature water jet wash-down.
CISPR 25 C3 Certified: CISPR 25 C3 electromagnetic compatibility certification suppresses interference with onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi.
30G Shock and 5G Vibration Tested: Independently tested to withstand 30G shock loads and 5G sustained vibration, confirming structural and electrical integrity for work vehicle, off-road, and motorcycle applications.
12V and 24V Compatibility: Operates on both 12V and 24V electrical systems, making it compatible with motorcycles, passenger vehicles, light commercial vehicles, trucks, and agricultural machinery.
Premium AkzoNobel Powder Coat Finish: The housing carries a premium AkzoNobel powder coat in black, known for its adhesion, hardness, and resistance to chipping, UV degradation, and chemical exposure in outdoor applications.
Die-Cast Aluminium Housing with Polycarbonate Lens: The die-cast aluminium housing provides structural rigidity and thermal management, and the polycarbonate lens provides impact resistance and optical clarity throughout the rated 50,000-hour lifespan.
Technical Specs
Specification
Detail
SKU
ST-04-G1-001
Brand
STEDI
LED
1x CREE XP-L2
LED Power Output
1 x 10W
Raw Lumens
1,000 lm
Tested Lumens
750 lm
Beam Type
Flood
1 LUX Distance (Length)
18m
1 LUX Distance (Width)
21m
Colour Temperature
5700K
Operating Voltage
12V and 24V
Amp Draw
0.8A @ 13.5V
IP Rating
IP68 and IP69K
CISPR Rating
CISPR 25 C3
Shock Tested
30G
Vibration Tested
5G
Housing Material
Die-cast aluminium
Lens Material
Polycarbonate
Finish
Premium AkzoNobel powder coat, black
Hardware
Stainless steel
LED Lifespan
50,000 hours
Weight
0.290 kg
What's in the Box
1x STEDI G1 Flood Light
1x STEDI Black Cover
1x Stainless Steel Hardware
1x Stainless Steel Bracket
1x 2-Pin Male Connector
Goes Well With
The ST-04-G1-001 is well suited to rear-mounted reverse lighting, compact work and campsite illumination, and any position where the smaller G Series housing is required. It pairs naturally with other STEDI G1, G2, and G4 lights in multi-light vehicle setups for comprehensive coverage across different mounting positions and output requirements. For applications requiring greater output in a similarly compact form factor, the G2 Flood (ST-04-G2-001) provides 1500 tested lumens at 20W from a slightly larger housing. A STEDI or compatible wiring harness with switch is recommended for clean vehicle installation.
Frequently Asked Questions
How does the G1 Flood compare to the G2 Flood and G2 Flush in the G Series?
The G1 Flood is the smallest and lightest model in the range with a single CREE XP-L2 LED producing 750 tested lumens at 0.8A and weighing 0.290kg, with a flood zone of 18m x 21m. The G2 Flood uses two CREE XP-L2 LEDs producing 1500 tested lumens at 1.6A and weighing 0.420kg, with a flood zone of 30m x 28m. The G2 Flush uses two CREE XP-L2 LEDs producing 1500 tested lumens at 0.8A and weighing 0.328kg with the same flood zone, but in a flush-mount housing. Choose the G1 when the smallest possible housing is the priority, the G2 Flood when higher output with surface-mount flexibility is needed, and the G2 Flush when flush-mount installation is required.
Is the G1 Flood suitable as a reverse light replacement?
Yes. STEDI specifically lists rear-mounted reverse lighting as a primary application for the G1 Flood. The ultra-compact housing can be installed in tight reverse light recesses, and the 18m x 21m flood zone with broader lateral spread than forward reach is well suited to illuminating the area directly behind the vehicle during reversing. Confirm compliance with applicable Australian road vehicle standards before installing as a replacement or supplementary reverse light on a road-registered vehicle.
What does IP69K add to IP68 protection?
IP68 certifies the light is sealed against continuous water immersion at specified depth and duration. IP69K is an additional certification covering high-pressure and high-temperature water jet wash-down, encountered when hosing down vehicles and equipment. The G1 Flood's dual IP68 and IP69K rating confirms it is protected against both scenarios.
What does CISPR 25 C3 mean for vehicle installations?
CISPR 25 is an international standard measuring radio frequency emissions produced by vehicle components. C3 is the highest performance class within CISPR 25, confirming the G1 Flood produces minimal electromagnetic interference that could affect onboard receivers including AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi.
What is the rated lifespan of the CREE XP-L2 LED?
The single CREE XP-L2 LED in the G1 Flood is rated for 50,000 hours of operating life. At typical auxiliary light usage of 2-4 hours per day, this equates to many years of service before the LED reaches its rated end-of-life output level under normal use patterns.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
OEX LLX3015 Rechargeable Magnetic Bar Light With Motion Sensor
Light up your workspace instantly and hands-free with the OEX LLX3015 Rechargeable Magnetic Bar Light, a 1000 lumen workshop powerhouse featuring motion sensor activation, 350° rotation, and dual magnetic mounting for professional-grade illumination anywhere on the job.
Product Overview
The OEX LLX3015 is a high-output rechargeable bar light built for demanding workshop, automotive, and field use. With a maximum output of 1000 lumens across a wide-format bar, it floods large work areas with bright, even light that a compact inspection torch simply cannot match.
What sets the LLX3015 apart is its motion sensor activation, which automatically triggers the light when movement is detected, eliminating the need to fumble for a switch when your hands are full or dirty. Two magnetic bases with 350° rotation allow the bar to be mounted and angled precisely on any steel surface, while integrated hooks provide additional hanging options in pits, under bonnets, or inside cargo areas.
Powered by dual 18650 Li-ion cells delivering 4400mAh of capacity, the LLX3015 offers up to 5 hours of run time and recharges via USB-C. Selectable 500 or 1000 lumen output lets you balance brightness and battery life to suit the task.
Features & Benefits
1000 Lumen maximum output flooding large work areas with bright, even light across the full bar width
Selectable 500 or 1000 lumen output to balance brightness and extend battery life as needed
Motion sensor activation automatically turns the light on when movement is detected, keeping hands free at all times
350° rotating magnetic bases allowing precise positioning and angling on any steel mounting surface
Dual magnetic bases and hooks providing versatile mounting options including magnetic stick-on, hang, and prop positions
4400mAh dual 18650 Li-ion battery delivering up to 5 hours of run time per charge
USB-C charging port for fast, convenient recharging using any standard USB-C cable
One year warranty backed by OEX for professional confidence
Technical Specs
Specification
Details
Part Number
LLX3015
Brand
OEX
Type
Rechargeable Magnetic Bar Light
Light Output
500 / 1000 Lumen (Selectable)
Battery Type
18650 Li-ion x2
Battery Capacity
4400mAh
Run Time
Up to 5 hours
Charging Port
USB-C
Mount
2x Magnetic Bases with 350° Rotation and Hooks
Motion Sensor
Yes
Warranty
1 Year
Unit of Measure
Each
Product Group
Lighting / Utility and Inspection Lighting
Compatible With / Goes Well With
The OEX LLX3015 Rechargeable Magnetic Bar Light is suited for a wide range of professional and workshop applications including:
Automotive workshops requiring wide-area flood lighting for engine bays, undercarriage work, and panel inspections
Auto electricians and mechanics who need bright, hands-free lighting that activates automatically during work
4WD and off-road enthusiasts for roadside repairs, campsite setup, and vehicle recovery in low-light conditions
Marine and caravan applications for onboard inspections, cargo bay lighting, and maintenance tasks
General trade use including panel beating, fabrication, plumbing, and electrical work in large or open work areas
Goes well with:
OEX LLX3012 Rechargeable Neck Light (wearable task lighting to complement wide-area bar illumination)
OEX LLX3014 Folding Inspection Light (compact inspection lighting for confined spaces)
USB-C power bank for extended off-grid recharging
Frequently Asked Questions
Q: How does the motion sensor activation work on the LLX3015?
A: The motion sensor detects movement within its detection range and automatically activates the bar light, eliminating the need to locate and press a switch when your hands are occupied or dirty. The sensor can be toggled on or off depending on your preference. Refer to the included instruction guide for confirmed activation range and settings.
Q: What is the difference between the 500 and 1000 lumen output modes?
A: The 500 lumen mode provides a lower brightness output suited to close-up inspection tasks and confined spaces, while also extending battery run time beyond the 5-hour figure quoted at full 1000 lumen output. Use 1000 lumens for large open work areas where maximum flood coverage is required.
Q: How does the 350° rotation work and can the bar be angled in any direction?
A: The dual magnetic bases rotate 350° allowing you to tilt and angle the bar light to direct illumination precisely where it is needed on any steel or iron mounting surface. This makes it easy to set the light flush, angled downward into an engine bay, or tilted upward to bounce light off a ceiling or surface.
Q: Can the LLX3015 be hung as well as magnetically mounted?
A: Yes. In addition to the two magnetic bases, the LLX3015 includes integrated hooks that allow it to be hung from shelving, racking, bonnet struts, roof bars, or any suitable anchor point, giving you full flexibility in positioning the light for each job.
Q: Is the OEX LLX3015 waterproof or water resistant?
A: An IP ingress protection rating is not specified on the product data sheet. The LLX3015 is built for workshop and field use but should not be submerged or exposed to heavy water ingress. Contact F.A.E. or refer to the product packaging for confirmed water resistance details before use in wet conditions.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!

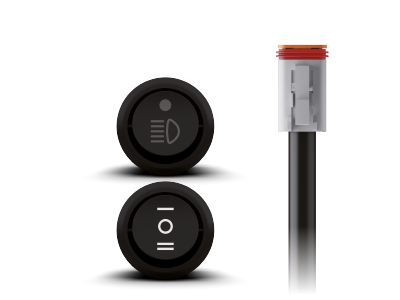

Roadvision RBWKD Universal Single Bar Lamp Wiring Harness with Dual Coloured DRL
Complete DIY wiring solution for professional installation of single light bars with dual coloured DRL functionality, featuring plug & play design compatible with 12V and 24V vehicles for hassle-free setup.
Product Overview
The Roadvision RBWKD Universal Single Bar Lamp Wiring Harness delivers a complete DIY solution for professional installation of driving light bars up to 140W with integrated dual coloured DRL functionality. This comprehensive plug & play wiring kit includes quality harnesses, relays, switches, plugs, and connectors that make installation quick and hassle-free without complex modifications. Featuring Roadvision's second-generation smart electronics that automatically detect both positive and negative headlamp systems, the RBWKD works seamlessly with halogen, HID, and LED bulbs. The kit includes a waterproof 4-pin Deutsch connector for reliable connections in harsh environments, plus both Bar Lamp Rocker Switch and DRL Rocker Switch with illumination for convenient control. Supplied with both 12V and 24V relays, this universal harness is compatible with vehicles operating on either voltage system, making it suitable for cars, 4WDs, light commercial vehicles, and trucks. The plug & play H4/HB3 piggyback connector simplifies integration with factory headlamp wiring, while compatibility with positive and negative switched headlamp systems ensures universal fitment across different vehicle manufacturers. The RBWKD is fully compatible with all Roadvision RHBT Series High Beam Patch Harnesses and specifically designed to suit Roadvision Dual Coloured DRL Light Bars for seamless system integration. Simple DIY installation means you can achieve professional results without specialized tools or electrical experience, making it ideal for enthusiasts and professionals alike.
Features & Benefits
Complete Plug & Play Solution: Comprehensive wiring kit includes quality harnesses, relays, illuminated rocker switches, waterproof Deutsch connector, and all necessary plugs and connectors for quick, hassle-free installation without complex modifications.
Smart Second-Generation Electronics: Advanced smart electronics automatically detect both positive and negative switched headlamp systems, ensuring compatibility across different vehicle manufacturers without manual configuration or troubleshooting.
Universal Bulb Compatibility: Simple plug & play design works seamlessly with halogen, HID, and LED bulbs, providing flexibility for various lighting technologies without requiring complex modifications or additional components.
12V & 24V Multi-Volt Operation: Supplied with both 12V and 24V relays for universal compatibility with cars, 4WDs, light commercial vehicles, and trucks, eliminating the need for voltage-specific harnesses.
Dual Coloured DRL Functionality: Dedicated DRL Rocker Switch provides independent control of dual coloured daytime running lights, allowing customization of your lighting setup with separate control for driving and DRL functions.
Waterproof Deutsch Connector: Professional-grade waterproof 4-pin Deutsch connector ensures reliable connections in harsh environments, protecting against moisture, dust, and vibration for long-lasting performance.
Professional-Grade Components: Quality harnesses, illuminated rocker switches, and robust relays deliver professional installation results with simple DIY setup, compatible with Roadvision RHBT Series High Beam Patch Harnesses for enhanced versatility.
Technical Specifications
Specification
Details
Model Number
RBWKD
Product Name
Universal Single Bar Lamp Wiring Harness with Dual Coloured DRL
Application
Single Light Bars
Power Rating
Suits up to 140W Light Bars
Connector Type
4 Pin Deutsch Connector (Waterproof)
Switches Included
Bar Lamp Rocker Switch (Illuminated), DRL Rocker Switch (Illuminated)
Voltage Compatibility
12V & 24V (Relays for both supplied)
Headlamp Connector
Plug & Play H4/HB3 Piggyback Connector
Headlamp System Compatibility
Positive & Negative Switched Systems
Bulb Compatibility
Halogen, HID, LED
Smart Electronics
Second-Generation Auto-Detection
RHBT Compatibility
Compatible with all Roadvision RHBT Series High Beam Patch Harnesses
Installation Type
Simple DIY Installation
Compatible With
The Roadvision RBWKD Wiring Harness is specifically designed for single light bars up to 140W and is fully compatible with Roadvision Dual Coloured DRL Light Bars. Works with all vehicle types operating on 12V or 24V electrical systems including cars, 4WDs, SUVs, light commercial vehicles, utes, and trucks. Compatible with positive and negative switched headlamp systems across all vehicle manufacturers. Integrates seamlessly with halogen, HID, and LED light bars. Can be used with all Roadvision RHBT Series High Beam Patch Harnesses for enhanced functionality and versatile lighting control options.
Frequently Asked Questions
What power rating of light bars will this harness support? The RBWKD is designed to suit single light bars up to 140W maximum power rating. For light bars between 140-300W, Roadvision recommends the RBHDWKD Heavy Duty model which features ATP connectors and enhanced current handling capability.
Can this harness be used on both 12V and 24V vehicles? Yes, the RBWKD includes both 12V and 24V relays, making it universally compatible with cars, 4WDs, light commercial vehicles, and trucks operating on either voltage system without requiring additional components or modifications.
What is the dual coloured DRL functionality? The RBWKD includes a dedicated DRL Rocker Switch that provides independent control of dual coloured daytime running lights, allowing you to operate the DRL function separately from the main driving light function for customized lighting control.
Will this work with my vehicle's headlamp system? Yes, the RBWKD features second-generation smart electronics that automatically detect both positive and negative switched headlamp systems, ensuring compatibility across different vehicle manufacturers. The plug & play H4/HB3 piggyback connector simplifies integration with factory wiring.
Do I need professional installation or can I install this myself? The RBWKD is designed for simple DIY installation with plug & play design and comprehensive components included. The kit requires no complex modifications and can be installed by enthusiasts with basic automotive electrical knowledge, though professional installation is always recommended for those unfamiliar with vehicle electrical systems.Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
Upgrade your vehicle lighting effortlessly with the JW Speaker 999011DFP LED Headlight Kit
Designed for multiple bulb types (H11, H9, H8, H16), this kit offers exceptional brightness, easy installation, and reliable performance to keep you safe on the road.
JW Speaker 999011DFP Features & Benefits:
Direct Fit Plug & Play Design: Installs easily into H11, H9, H8, and H16 sockets with no modifications needed—save time and avoid complicated wiring.
Bright 6000K Daylight White Output: Provides crisp, clear illumination that mimics natural daylight, improving nighttime visibility and reducing eye strain.
Compatible with Multiple Bulb Types: Versatile kit designed to replace several popular halogen bulbs, perfect for a wide range of vehicles.
Road Legal & DOT Compliant: Fully certified for on-road use, ensuring your lighting upgrade meets safety standards without legal issues.
Advanced Thermal Management System: Built-in cooling keeps LEDs at optimal temperature to prevent overheating and extend lifespan.
Durable & Weather Resistant: Rugged design withstands vibrations, shocks, and harsh weather, ensuring long-lasting performance.
Legendary Products & Support From Authorized Dealers
When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:
▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.
▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.
▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.
▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?
Choose wisely. Buy from Frankies BrandBeast today!
