OEX ACX0559 Australian Made 2mm Single Core Automotive Cable White 50m Roll OFHC Copper V90 The OEX ACX0559 is a 2mm single core automotive cable in white, supplied on a 50m roll. Manufactured in Australia from 99.99% oxygen free high conductivity (OFHC) copper, it is designed for reliable performance across a wide range of 12V and 24V automotive, marine and caravan wiring applications. Rated at 5A continuous at 30°C with V90 rated PVC insulation. RoHS compliant and CAN bus compatible. Product overview The ACX0559 is the white 50m variant in the OEX 2mm single core automotive cable range, sharing the same conductor specification and insulation rating as the red, green and black variants. White cable is commonly used for specific signal functions in trailer and caravan wiring, including reverse light circuits, and as a neutral identifier in multi-wire harness builds where colour differentiation assists with circuit tracing. The 50m roll suits trade installers and enthusiasts tackling multi-circuit jobs without the commitment of a full 100m roll. In Australian automotive wiring, the "2mm" designation refers to the overall cable diameter. The conductor cross-section is 0.5mm² (20AWG) with 18 strands of 0.18mm copper, providing the flexibility needed for routing through tight spaces and around bends in vehicle bodywork. The 99.99% OFHC copper conductor minimises resistance and signal loss, and the UV stabilised V90 PVC insulation handles continuous operating temperatures up to 90°C for underbonnet and outdoor-exposed installations. Ampacity decreases as ambient temperature rises, so underbonnet applications in high-heat environments should be assessed accordingly. Features and benefits 99.99% OFHC copper conductor: Oxygen free high conductivity copper minimises resistance and signal loss across the cable run, maintaining reliable electrical performance in automotive and marine applications. Australian owned and made: Premium quality copper cable produced locally to Australian automotive wiring standards. White colour coding: White is commonly used for specific signal circuits in trailer and caravan wiring including reverse light feeds, and as a neutral identifier in multi-wire harness builds where colour differentiation supports circuit tracing and fault finding. UV stabilised PVC insulation: Resists degradation in sun-exposed and underbonnet environments, extending the service life of the cable in outdoor-exposed installation positions. V90 temperature rating: PVC insulation rated for continuous operation at up to 90°C, the standard automotive-grade insulation specification in Australia. 5A rated at 30°C: Suited to lighting, signal wiring and low-current accessory circuits in 12V and 24V systems. 18-strand construction: The 18-strand conductor provides flexibility and resistance to fatigue during installation and in service, well suited to routing through tight spaces and around bends. RoHS compliant: Meets hazardous substance restrictions. CAN bus compatible: Meets the signal integrity requirements for use in modern vehicle communication network environments. 50m roll: Practical mid-length format suited to trade and enthusiast installs where a full 100m roll is more than required. Technical specs Specification Detail SKU ACX0559 Brand OEX Cable Type Single Core Automotive Industry Known Size 2mm Conductor Cross Section 0.5mm² Gauge 20AWG Conductor Strands 18 Strand Diameter 0.18mm Conductor Material 99.99% OFHC Copper Amp Rating 5A at 30°C Voltage Rating Up to 100V Insulation Type PVC Temperature Rating V90 (90°C) UV Stabilised Yes Cable Colour White Length 50m Weight 0.5kg Compliance RoHS Warranty One year Sold As 50m roll Frequently asked questions What does "2mm cable" mean is that the conductor size or the overall diameter? In Australian automotive wiring, "2mm" refers to the overall cable diameter, not the conductor cross-section. This cable has a conductor cross-section of 0.5mm² (20AWG) with 18 strands of 0.18mm copper. The 2mm designation is the industry-standard size reference used by auto electricians and suppliers across Australia. What is the amp rating for this cable? This cable is rated at 5A continuous at 30°C. Ampacity decreases as ambient temperature rises, so applications in high-heat environments such as underbonnet installations should be assessed against the expected operating temperature before use. What does V90 mean? V90 is the Australian cable insulation classification indicating the PVC insulation is rated for continuous operation at up to 90°C. It is the standard specification for automotive-grade PVC insulated cable in Australia and confirms suitability for underbonnet and outdoor-exposed installation positions. Is this cable suitable for CAN bus wiring? Yes. OEX notes this cable as CAN bus compatible, meaning it meets the signal integrity requirements for use in modern vehicle communication network environments. Is this cable available in other colours or lengths? OEX produces single core automotive cable in a range of colours and roll lengths. Contact us for available colour and length options to suit your specific wiring application. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

OEX ACX0903 Australian Made 6 B&S Single Core Battery Cable Red 30m Roll OFHC Copper 13.36mm² V90 The OEX ACX0903 is a 6 B&S single core battery cable in red, supplied on a 30m roll. With a 13.36mm² OFHC copper conductor across 192 strands, this cable is designed for demanding high-current positive supply applications including heavy battery interconnects, starter motor wiring and main supply runs where low resistance and high current capacity are required. The red insulation colour suits positive supply runs in conventional automotive wiring colour coding. The PVC insulation is UV stabilised and rated to V90 (90°C). Compliant with AS/NZS 3808:2000 and RoHS. Covered by a one year warranty. Product overview The ACX0903 is the red variant of the OEX 6 B&S single core battery cable range, sharing the same conductor specification and insulation rating as the black ACX0902. Red is the conventional positive wiring colour in automotive and marine electrical installations, making the ACX0903 the natural choice for battery positive supply cables, dual battery main positive feeds, starter motor and alternator positive leads and winch power cables where colour convention supports circuit identification. At 13.36mm² with a 192-strand OFHC copper conductor, the ACX0903 provides significantly lower resistance and higher current-carrying capacity than the 8 B&S range at 7.91mm². This makes it suited to longer battery cable runs and circuits with higher current demand where minimising voltage drop is critical. The 192-strand construction provides exceptional flexibility for routing through tight engine bay and battery compartment spaces. The UV stabilised V90 PVC insulation handles continuous operating temperatures up to 90°C for battery and engine bay installations. The 30m roll suits workshop jobs and single-vehicle installations without the bulk of a full-length trade roll. Always verify the required cable size with a licensed auto electrician for your specific application, current load and run length. Features and benefits 6 B&S gauge battery cable: Larger battery cable sizing suited to demanding high-current 12V and 24V positive supply applications where the 8 B&S range would be undersized. Red colour coding for positive supply runs: Red is the conventional positive wiring colour in automotive and marine electrical installations, assisting with circuit identification and reducing wiring errors in high-current battery supply circuits. 13.36mm² conductor cross-section: Significantly larger than the 8 B&S (7.91mm²), providing reduced resistance and higher current-carrying capacity for longer runs and more demanding positive supply circuits. 192-strand construction: Exceptional flexibility for routing through tight engine bay and battery compartment spaces despite the larger cable gauge. OFHC copper conductor: Oxygen free high conductivity copper minimises resistance for efficient current transfer across demanding battery and positive supply circuit applications. Australian owned and made: Premium quality copper cable produced locally to Australian automotive wiring standards. UV stabilised PVC insulation: Resists degradation in sun-exposed and engine bay environments. V90 temperature rating (90°C): PVC insulation rated for continuous operation at up to 90°C, suited to battery and engine bay installation environments. AS/NZS 3808:2000 compliant: Meets the Australian and New Zealand standard for insulated conductors and cables for internal wiring of equipment. RoHS compliant: Meets hazardous substance restrictions. 30m roll: Workshop-friendly length for single-vehicle and multi-circuit jobs without the bulk of a full-length trade roll. Technical specs Specification Detail SKU ACX0903 Brand OEX Cable Type Single Core Battery Cable Gauge 6 B&S Conductor Cross Section 13.36mm² Conductor Strands 192 Strand Diameter 0.3mm Conductor Material OFHC Copper Voltage Rating Up to 110V Insulation Type PVC Temperature Rating V90 (90°C) UV Stabilised Yes Cable Colour Red Length 30m Weight 4.44kg Compliance AS/NZS 3808:2000, RoHS Warranty One year Sold As 30m roll Frequently asked questions What is B&S gauge and how does it differ from AWG or metric sizing? B&S (Brown and Sharpe) is a wire gauge system commonly used in Australian battery and heavy-duty automotive cable. 6 B&S is equivalent to approximately 6 AWG and corresponds to a conductor cross-section of around 13.36mm². It is a standard sizing reference used by Australian auto electricians and suppliers for battery and starter cables. How does 6 B&S compare to 8 B&S? 6 B&S has a significantly larger conductor cross-section (13.36mm² vs 7.91mm²) and more strands (192 vs 112), giving it lower resistance and higher current-carrying capacity. Select 6 B&S for longer runs or circuits with higher current demand than 8 B&S can comfortably handle. Always verify the correct cable size with a licensed auto electrician for your specific application. How does the ACX0903 differ from the ACX0902? Both are 6 B&S single core battery cables with identical conductor and insulation specifications. The ACX0902 is black and suits earth and negative runs. The ACX0903 is red and suits positive supply runs. Select based on the polarity convention of your installation. What does V90 mean? V90 is the Australian cable insulation classification indicating the PVC insulation is rated for continuous operation at up to 90°C. It is the standard specification for automotive-grade PVC insulated cable in Australia and confirms suitability for battery and engine bay installation positions. Is this cable available in other sizes or colours? OEX produces battery cable in a range of B&S sizes and colours. Contact us for available size and colour options to suit your specific application. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

OEX DXA4107 12V 130A Denso Style Alternator Quad Leg Mount 6-Groove 52mm Pulley IR218 New Unit The OEX DXA4107 is a new 12V 130A alternator in the Denso style with a quad leg mount and 6-groove pulley. Confirm all mounting dimensions and pin code against your vehicle's existing alternator before ordering. 3-year passenger vehicle warranty, 1-year commercial warranty. Product overview The DXA4107 is a high-output 130A Denso-style quad leg alternator suited to vehicles with elevated electrical demands. The IR218 pin code is specific to this unit within the OEX Denso range. All mounting dimensions, pulley configuration and pin code should be confirmed against your vehicle's existing alternator before purchasing. OEX alternators are sourced from manufacturers who are typically OEM suppliers, operating under ISO 9001 certified quality management. This provides the engineering quality and testing standards of original equipment at an aftermarket price, backed by a comprehensive warranty. Features and benefits New unit: Brand new, not remanufactured. 130A output: High-output alternator for vehicles with elevated electrical demands. Quad leg mount, 163mm CTC, 43mm inside leg: Confirm all mounting dimensions against the vehicle before ordering. 6-groove 52mm OD pulley: 6-groove multi-rib pulley for serpentine belt drive systems. M10x1.25/11mm pivot hole and adjusting hole: Confirm hole sizes and thread specifications suit the vehicle's mounting points. IR218 pin code: Confirm pin code and all dimensions against your vehicle. Internal regulator: Voltage regulation handled internally. ISO 9001 certified manufacturing: Sourced from OEM-quality manufacturers operating under ISO 9001 certified quality management. 3-year passenger / 1-year commercial warranty: Extended warranty for passenger vehicle applications. Technical specs Specification Detail SKU DXA4107 Brand OEX Voltage 12V Output 130A Style Denso Regulator Internal Mount Quad leg Pulley Section 6-groove Pulley OD 52mm Mount CTC 163mm Inside Leg 43mm Pivot Hole M10x1.25/11mm Adjusting Hole M10x1.25/11mm Pin Code IR218 Condition New Weight 5.64kg Warranty 3 years (passenger), 1 year (commercial) Frequently asked questions Is this a new or remanufactured unit? New. The DXA4107 is a brand new unit, not remanufactured or rebuilt. What is the quality standard behind OEX alternators? OEX alternators are sourced from manufacturers who are typically OEM suppliers, operating under ISO 9001 certified quality management with stringent engineering, testing and quality control procedures. This provides OEM-level quality at an aftermarket price, backed by a comprehensive warranty. How does the DXA4107 quad leg mount differ from twin and single leg units? The mount leg configuration describes how the alternator attaches to the engine bracket. A quad leg unit has four mounting legs; twin leg units have two and single leg units have one. Confirm your vehicle's bracket configuration matches the quad leg mount before ordering. What is the warranty on this alternator? 3 years for passenger vehicle applications, 1 year for commercial use. What should I confirm before ordering this alternator? Confirm mount type (quad leg), CTC (163mm), inside leg (43mm), pivot hole (M10x1.25/11mm), adjusting hole (M10x1.25/11mm), pulley section (6-groove), pulley OD (52mm) and pin code (IR218) all match your vehicle's requirements. Alternators are vehicle-specific, verify fitment before purchasing. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

OEX ACX0808 Australian Made 4mm Twin Core Sheathed Automotive Cable Red and Black with Black Outer Sheath 30m Roll OFHC Copper 15A V90 The OEX ACX0808 is a 4mm twin core sheathed automotive cable supplied on a 30m roll. Red and black conductors are enclosed in a common black outer sheath, providing both polarity identification and an additional layer of mechanical and UV protection over a standard figure 8 configuration. Each conductor has a 1.84mm² OFHC copper cross-section rated at 15A at 30°C with 26-strand construction. The PVC insulation and sheath are UV stabilised and rated to V90 (90°C). Compliant with AS/NZS 3808:2000 and RoHS. Covered by a one year warranty. Product overview The ACX0808 is the 4mm variant in the OEX twin core sheathed automotive cable range, stepping up from the 3mm ACX0806 with a larger 1.84mm² conductor cross-section and a 15A continuous rating per conductor. The common black outer sheath encloses two separately insulated conductors and provides an additional layer of mechanical and UV protection over a standard figure 8 configuration, making it better suited to exposed runs, engine bay wiring, trailer feeds and installations where the cable will be routed through areas requiring extra abrasion or weather resistance. The red conductor is positive and the black conductor is negative or return, following standard automotive wiring convention. At 1.84mm² (15AWG) per conductor with a 15A continuous rating, the ACX0808 handles higher-current two-wire circuits including auxiliary and driving light wiring, accessory power and return feeds and trailer and caravan lighting circuits drawing up to 15A per conductor. The 26-strand construction provides flexibility for routing through tight spaces, and the UV stabilised V90 PVC insulation and sheath handle continuous operating temperatures up to 90°C. The 30m roll suits workshop jobs and multi-circuit installations without the bulk of a full-length trade roll. Features and benefits Sheathed twin core construction: Red and black conductors enclosed in a black outer sheath for added mechanical and UV protection and a cleaner finished appearance, suited to exposed runs and locations requiring extra abrasion or weather resistance. Red and black conductors: Conventional polarity colouring for straightforward positive and negative identification without additional marking or tape. OFHC copper conductors: Oxygen free high conductivity copper minimises resistance across the cable run, maintaining reliable electrical performance in automotive and marine applications. Australian owned and made: Premium quality copper cable produced locally to Australian automotive wiring standards. 15A rated at 30°C per conductor: Higher current capacity than the 3mm ACX0806, suited to auxiliary lighting, accessory wiring and higher-current two-wire circuits drawing up to 15A per conductor. Current carrying capacity reduces at higher ambient temperatures. UV stabilised PVC insulation and sheath: Resists degradation in sun-exposed and outdoor environments, extending the service life of the cable in exposed installation positions. V90 temperature rating (90°C): Insulation and sheath rated for continuous operation at up to 90°C, the standard automotive-grade insulation specification in Australia. 26-strand construction: The 26-strand conductor provides flexibility and resistance to fatigue during installation and in service, suited to routing through tight spaces and around bends. AS/NZS 3808:2000 compliant: Meets the Australian and New Zealand standard for insulated conductors and cables for internal wiring of equipment. RoHS compliant: Meets hazardous substance restrictions. 30m roll: Workshop-friendly length for multi-circuit jobs without the bulk of a full-length trade roll. Technical specs Specification Detail SKU ACX0808 Brand OEX Cable Type Twin Core, Sheathed Industry Known Size 4mm Conductor Cross Section 1.84mm² per conductor Gauge 15AWG Conductor Strands 26 Strand Diameter 0.3mm Conductor Material OFHC Copper Amp Rating 15A at 30°C per conductor Voltage Rating Up to 110V Insulation Type PVC Temperature Rating V90 (90°C) UV Stabilised Yes Conductor Colours Red and black Sheath Colour Black Length 30m Weight 1.71kg Compliance AS/NZS 3808:2000, RoHS Warranty One year Sold As 30m roll Frequently asked questions What is the difference between sheathed twin core and figure 8 twin core cable? A sheathed twin core cable encloses two separately insulated conductors inside a common outer sheath, providing an additional layer of mechanical and UV protection. A figure 8 cable bonds two conductors side by side without a separate outer sheath. Sheathed cable is better suited to exposed runs and locations requiring extra abrasion or weather resistance. How does the ACX0808 compare to the ACX0806? Both are twin core sheathed cables with the same construction and sheath colour. The ACX0806 uses 3mm conductors at 1.13mm² and 10A per conductor. The ACX0808 uses larger 4mm conductors at 1.84mm² and 15A per conductor, suited to circuits where the 3mm 10A rating would be undersized. How do I tell which conductor is positive and which is negative? The red conductor is positive and the black conductor is negative or return, following standard automotive wiring colour convention. What is the amp rating per conductor? Each conductor is rated at 15A continuous at 30°C. Ampacity decreases as ambient temperature rises, so applications in high-heat environments such as underbonnet installations should be assessed against the expected operating temperature before use. Is this cable available in other sizes or lengths? OEX produces twin core sheathed and figure 8 cable in a range of sizes and roll lengths. Contact us for available size and length options to suit your wiring application. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

OEX ACX0806 Australian Made 3mm Twin Core Sheathed Automotive Cable Red and Black with Black Outer Sheath 30m Roll OFHC Copper 10A V90 The OEX ACX0806 is a 3mm twin core sheathed automotive cable supplied on a 30m roll. Red and black conductors are enclosed in a common black outer sheath, providing both polarity identification and an additional layer of mechanical and UV protection over a standard figure 8 configuration. Each conductor has a 1.13mm² OFHC copper cross-section rated at 10A at 30°C with 16-strand construction. The PVC insulation and sheath are UV stabilised and rated to V90 (90°C). Compliant with AS/NZS 3808:2000 and RoHS. Covered by a one year warranty. Product overview A sheathed twin core cable encloses two separately insulated conductors inside a common outer sheath, providing an additional layer of mechanical and UV protection that a standard figure 8 configuration does not. This makes the ACX0806 better suited to exposed runs, engine bay wiring, trailer feeds and installations where the cable will be routed through areas requiring extra abrasion or weather resistance. The red conductor is positive and the black conductor is negative or return, following standard automotive wiring colour convention. At 1.13mm² (17AWG) per conductor with a 10A continuous rating, the ACX0806 suits trailer and caravan lighting circuits, auxiliary and driving light wiring, accessory power and return feeds and general two-wire circuits drawing up to 10A per conductor. The 16-strand construction provides flexibility for routing through tight spaces, and the UV stabilised V90 PVC insulation and sheath handle continuous operating temperatures up to 90°C for underbonnet and outdoor-exposed installations. The 30m roll suits workshop jobs and multi-circuit installations without the bulk of a full-length trade roll. Features and benefits Sheathed twin core construction: Red and black conductors enclosed in a black outer sheath for added mechanical and UV protection and a cleaner finished appearance, suited to exposed runs and locations requiring extra abrasion or weather resistance. Red and black conductors: Conventional polarity colouring for straightforward positive and negative identification without additional marking or tape. OFHC copper conductors: Oxygen free high conductivity copper minimises resistance across the cable run, maintaining reliable electrical performance in automotive and marine applications. Australian owned and made: Premium quality copper cable produced locally to Australian automotive wiring standards. 10A rated at 30°C per conductor: Suited to trailer lighting, auxiliary lighting, accessory wiring and general two-wire circuits drawing up to 10A per conductor. Current carrying capacity reduces at higher ambient temperatures. UV stabilised PVC insulation and sheath: Resists degradation in sun-exposed and outdoor environments, extending the service life of the cable in exposed installation positions. V90 temperature rating (90°C): Insulation and sheath rated for continuous operation at up to 90°C, the standard automotive-grade insulation specification in Australia. 16-strand construction: The 16-strand conductor provides flexibility and resistance to fatigue during installation and in service, suited to routing through tight spaces and around bends. AS/NZS 3808:2000 compliant: Meets the Australian and New Zealand standard for insulated conductors and cables for internal wiring of equipment. RoHS compliant: Meets hazardous substance restrictions. 30m roll: Workshop-friendly length for multi-circuit jobs without the bulk of a full-length trade roll. Technical specs Specification Detail SKU ACX0806 Brand OEX Cable Type Twin Core, Sheathed Industry Known Size 3mm Conductor Cross Section 1.13mm² per conductor Gauge 17AWG Conductor Strands 16 Strand Diameter 0.3mm Conductor Material OFHC Copper Amp Rating 10A at 30°C per conductor Voltage Rating Up to 110V Insulation Type PVC Temperature Rating V90 (90°C) UV Stabilised Yes Conductor Colours Red and black Sheath Colour Black Length 30m Weight 1.227kg Compliance AS/NZS 3808:2000, RoHS Warranty One year Sold As 30m roll Frequently asked questions What is the difference between sheathed twin core and figure 8 twin core cable? A sheathed twin core cable encloses two separately insulated conductors inside a common outer sheath, providing an additional layer of mechanical and UV protection. A figure 8 cable bonds two conductors side by side without a separate outer sheath. Sheathed cable is better suited to exposed runs and locations requiring extra abrasion or weather resistance. How do I tell which conductor is positive and which is negative? The red conductor is positive and the black conductor is negative or return, following standard automotive wiring colour convention. What is the amp rating per conductor? Each conductor is rated at 10A continuous at 30°C. Ampacity decreases as ambient temperature rises, so applications in high-heat environments such as underbonnet installations should be assessed against the expected operating temperature before use. What does AS/NZS 3808:2000 compliance mean? AS/NZS 3808:2000 is the Australian and New Zealand standard covering insulated conductors and cables for internal wiring of equipment. Compliance confirms the cable meets defined requirements for conductor construction, insulation properties and performance. Is this cable available in other sizes or lengths? OEX produces twin core sheathed and figure 8 cable in a range of sizes and roll lengths. Contact us for available size and length options to suit your wiring application. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

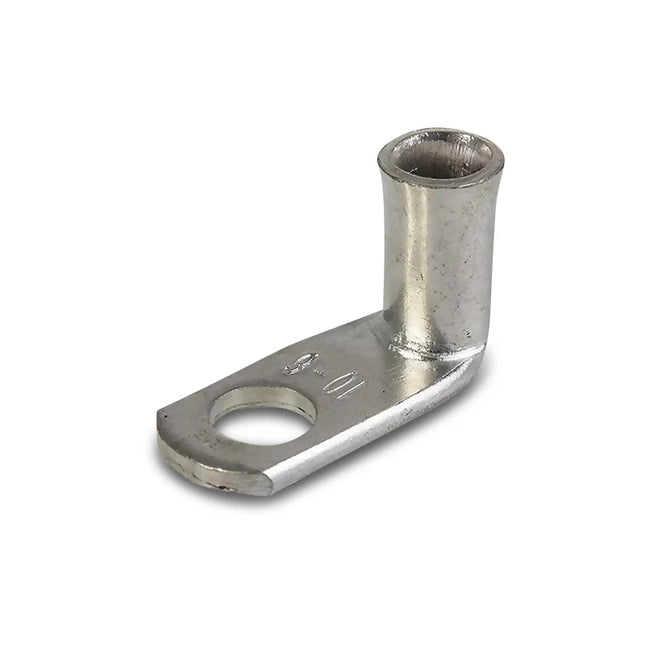

OEX ACX0137FE 90-Degree Flared End Cable Lug 8 B&S REF 10-6 with 6mm Stud Hole Pack of 10 The OEX ACX0137FE is a 90-degree flared end copper cable lug with zinc plating for 8 B&S wire. Reference number 10 6 indicates a 10mm barrel inner diameter and a 6mm stud hole. The 90-degree angle means the ring faces perpendicular to the cable run, unlike a straight lug where the cable and ring are in line. The flared barrel entry guides cable strands cleanly into the barrel for consistent crimping or soldering. Supplied in a pack of 10 with a one year warranty. Product overview A straight lug has the cable and ring in the same line, with the cable going straight into the barrel and the ring exiting from the same end. The ACX0137FE places the barrel and ring at right angles to each other. This is useful when the terminal or bolt faces a direction perpendicular to the cable routing, such as connecting to a vertical terminal stud when the cable runs horizontally along a panel, or routing cable through a bulkhead to a terminal on the other side. The 90-degree angle reduces the bend radius required from the cable itself and produces a neater, less stressed connection in confined or awkward installation spaces. The flared end barrel guides the 8 B&S cable strands smoothly into the barrel during installation, reducing the chance of stray strands being left outside the crimp zone. Copper construction provides excellent conductivity and zinc plating adds corrosion resistance. Both crimping and soldering are accepted termination methods. The ACX0137FE shares the same REF 10-6 specification as the straight lug ACX0100 and suits the same 8 B&S wire and M6 connection points. Features and benefits 90-degree angle for right angle connections: The ring faces perpendicular to the cable barrel, suited to right angle connections and confined spaces where a straight lug would cause cable stress or an awkward bend in the cable run. Flared end barrel for consistent installation: The outward flared barrel entry guides cable strands smoothly into the barrel, reducing stray strands outside the crimp zone for a complete, secure connection. 8 B&S wire capacity: The 10mm barrel suits 8 B&S cable, covering medium current automotive and 4WD accessory wiring applications up to approximately 40-50A depending on cable length and installation conditions. 6mm stud hole: The ring end fits M6 bolts, studs and terminals with 6mm connections. Copper with zinc plating: Copper provides excellent electrical conductivity and zinc plating adds corrosion resistance for automotive and marine environments. Solder or crimp termination: Compatible with both crimping and soldering. Pack of 10: Ten lugs per pack suits workshop and trade use. One year warranty: Covered by a one year OEX warranty. Technical specs Specification Detail SKU ACX0137FE Brand OEX Type Cable Lug (Ring Terminal), 90-Degree Flared End Reference Number 10-6 Wire Size 8 B&S Barrel Inner Diameter 10mm Stud Hole Diameter 6mm Angle 90-degrees End Type Flared Material Copper with zinc plating Termination Solder or crimp Pack Quantity 10 Weight 0.1kg (pack) Warranty One year Sold As Pack of 10 Frequently asked questions Why would I use a 90-degree lug instead of a straight lug? A 90-degree lug places the barrel and ring at right angles, which is useful when the terminal or bolt faces a direction perpendicular to the cable routing. Examples include connecting to a vertical terminal stud when the cable runs horizontally along a panel, or routing cable through a bulkhead to a terminal on the other side. Using a 90-degree lug reduces the bend radius required from the cable itself and produces a neater, less stressed installation in confined spaces. How does the ACX0137FE compare to the ACX0100? Both are REF 10-6 flared end lugs for 8 B&S wire with a 6mm stud hole. The ACX0100 is a standard straight lug and the ACX0137FE has the 90-degree angle. Choose the ACX0100 for standard straight run connections and the ACX0137FE where the connection point is perpendicular to the cable routing direction. What does the flared end add to this lug? The flared barrel entry acts as a guide funnel for cable strands during installation, reducing stray strands outside the crimp zone. The same benefit applies in the 90-degree format as in straight flared end lugs, improving connection integrity and consistency. Can these be used with the OEX 10mm stud battery terminals? No. The ACX0137FE has a 6mm stud hole and will not fit over a 10mm stud. The OEX ACX0025, ACX0026, ACX0027 and ACX0028 battery terminals all use 10mm studs and require a lug with a 10mm hole such as the ACX0116FE. Does the 90-degree angle affect how I crimp the lug? The crimp is applied to the barrel section in the same way as a straight lug. The 90-degree angle is in the body of the lug between the barrel and the ring, not in the barrel itself. Standard ratchet crimpers suited to 8 B&S cable will work correctly on the barrel section of the ACX0137FE. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!

Read more less

OEX ACX2086/5 60A Type 3 Manual Reset Mini Surface Mount Circuit Breaker IP66 32V DC SAE and UL Compliant Box of 5 The OEX ACX2086/5 is a 60A Type 3 manual reset circuit breaker in compact mini surface mount format, supplied in a box of 5. Switchable for use as an isolation switch, rated IP66 for water jet and dust protection, and compliant with SAE J553, J1171 and UL1500 (ignition protected) standards — a safety-critical specification for marine, automotive and commercial electrical installations. Compact 58.2x35.7x34.7mm UL 94V-0 thermal plastic housing rated from -40°C to 85°C. #10-32 threaded studs accept 6mm or 1/4" ring terminals. Protective stud insulators included. Covered by a one year warranty. Product overview The ACX2086/5 addresses a specific installation requirement — compact manual reset circuit protection with ignition protection certification for marine and fuel-adjacent environments. The UL1500 and SAE J1171 ignition protection compliance means the breaker is constructed to prevent it from igniting flammable vapours in its surrounding environment, a mandatory or strongly recommended specification for marine engine compartments and fuel storage areas where petrol vapours may be present. The compact 58.2x35.7x34.7mm mini surface mount format suits installations where space is limited and a full-size manual reset breaker would not fit. The Type 3 switchable design allows the breaker to function as both a manual reset circuit breaker and a manual isolation switch. IP66 provides full dust exclusion and protection against powerful water jets from any direction — appropriate for marine surface mount applications where IP66 is the relevant standard rather than IP67's submersion rating. The #10-32 threaded studs accept 6mm or 1/4" ring terminals with protective stud insulators included. The box of 5 suits workshops and installers running multiple marine or automotive circuit protection jobs. Features and benefits 60A rating: High-current circuit protection suited to marine main power feeds, dual battery main feeds, automotive and 4WD supply protection and commercial vehicle auxiliary circuits. Type 3 manual reset (switchable): Manually reset after tripping. Also functions as a manual isolation switch Type 3 classification. Compact mini surface mount format 58.2x35.7x34.7mm: Suited to space-limited installations where a full-size manual reset breaker would not fit. IP66 rated: Fully sealed against dust and protected against powerful water jets from any direction the relevant standard for marine surface mount applications. 32V DC rated: Suits 12V and 24V DC electrical systems. SAE J553, J1171 and UL1500 compliant ignition protected: Certified construction that prevents the breaker from igniting flammable vapours, required or strongly recommended for marine engine compartments and fuel storage areas. UL 94V-0 thermal plastic housing: Flame retardant housing material for additional safety in demanding environments. #10-32 threaded studs: Accepts 6mm or 1/4" ring terminals. Protective stud insulators included. Operating temperature -40°C to 85°C: Suited to extreme environment installations including engine bays and outdoor marine applications. Box of 5: Workshop-friendly multi-pack for multiple installations. One year warranty: Covered by a one year OEX warranty. Technical specs Specification Detail SKU ACX2086/5 Brand OEX Type Mini Circuit Breaker Breaker Type Type 3, Manual Reset (Switchable) Current Rating 60A Voltage Rating 32V DC IP Rating IP66 Terminal Studs #10-32 threaded Terminal and Lug Size 6mm or 1/4" Housing Material Thermal plastic UL 94V-0 Dimensions 58.2mm (H) x 35.7mm (W) x 34.7mm (D) Operating Temperature -40°C to 85°C Compliance SAE J553, SAE J1171, UL1500 (Ignition Protected) Accessories Included Protective stud insulators Pack Quantity 5 Warranty One year Sold As Box of 5 Frequently asked questions What does ignition protected (UL1500) mean? Ignition protection, as defined by UL1500 and SAE J1171, means the circuit breaker is constructed to prevent it from igniting flammable vapours in its surrounding environment. This is a mandatory or strongly recommended specification for marine electrical installations particularly in engine compartments and fuel storage areas where petrol vapours may be present. What is the difference between IP66 and IP67? Both ratings provide full dust protection. IP66 is rated against powerful water jets from any direction. IP67 is rated for temporary submersion. For marine surface mount applications, IP66 is the relevant standard the breaker is designed for surface mounting, not submersion. What terminal size does this breaker use? The breaker uses #10-32 threaded studs. Compatible ring terminals and cable lugs should have a 6mm or 1/4" hole. Select terminals sized for your cable gauge with this hole size. How does this differ from the ACX1847 and ACX1848? The ACX2086/5 is a compact mini surface mount format (58.2x35.7x34.7mm), rated at 32V DC with SAE and UL marine compliance certification. The ACX1847 (150A) and ACX1848 (200A) are larger heavy-duty breakers rated to 72VDC with 9.5mm studs and no marine ignition protection certification. Select the ACX2086/5 for marine and compact installations up to 60A, and the ACX1847 or ACX1848 for larger gauge, higher current or higher voltage applications. Is this available as a single unit or in other amp ratings? Yes. Single units are available in 10A, 15A, 20A, 30A, 40A, 50A and 60A. Box of 5 packs are available in 40A, 50A and 60A. Contact us for the correct rating and pack size for your application. Legendary Products & Support From Authorized Dealers When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice: ▸ Expert Knowledge & TrainingOnly authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations. ▸ Authorized Warranty ProtectionWe offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support. ▸ Reliable Customer SupportIf you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently. ▸ Protect Your InvestmentBuying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that? Choose wisely. Buy from Frankies BrandBeast today!
